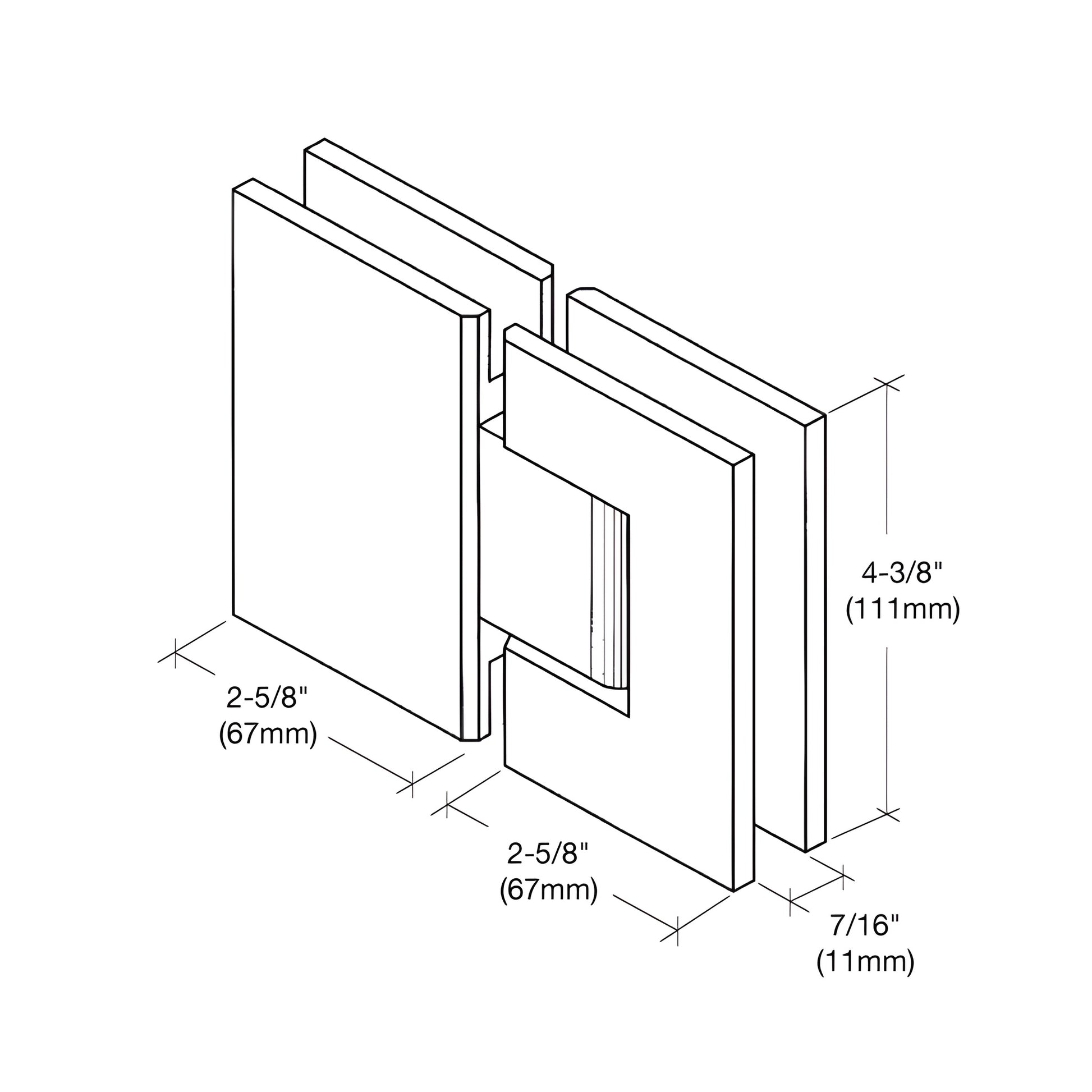

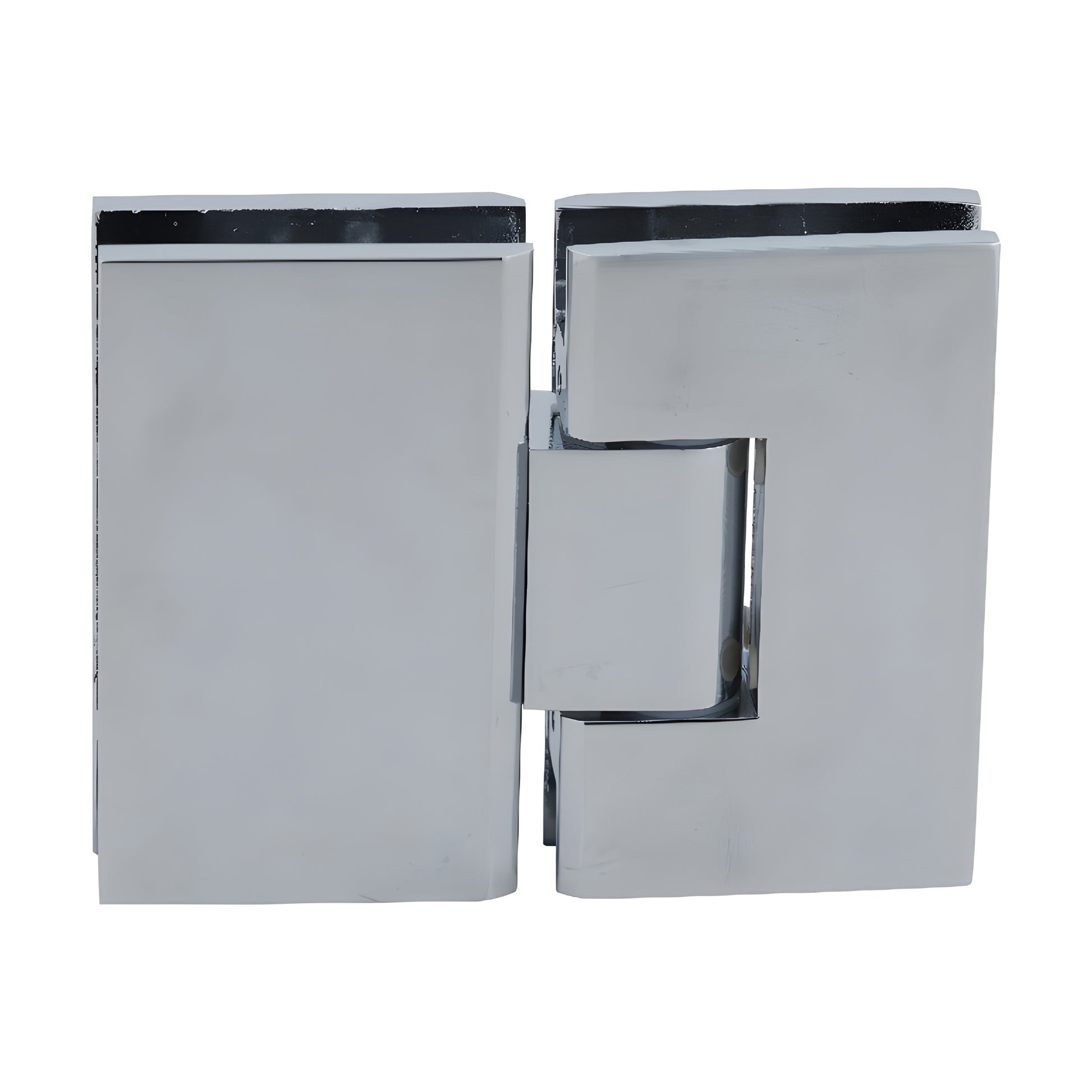

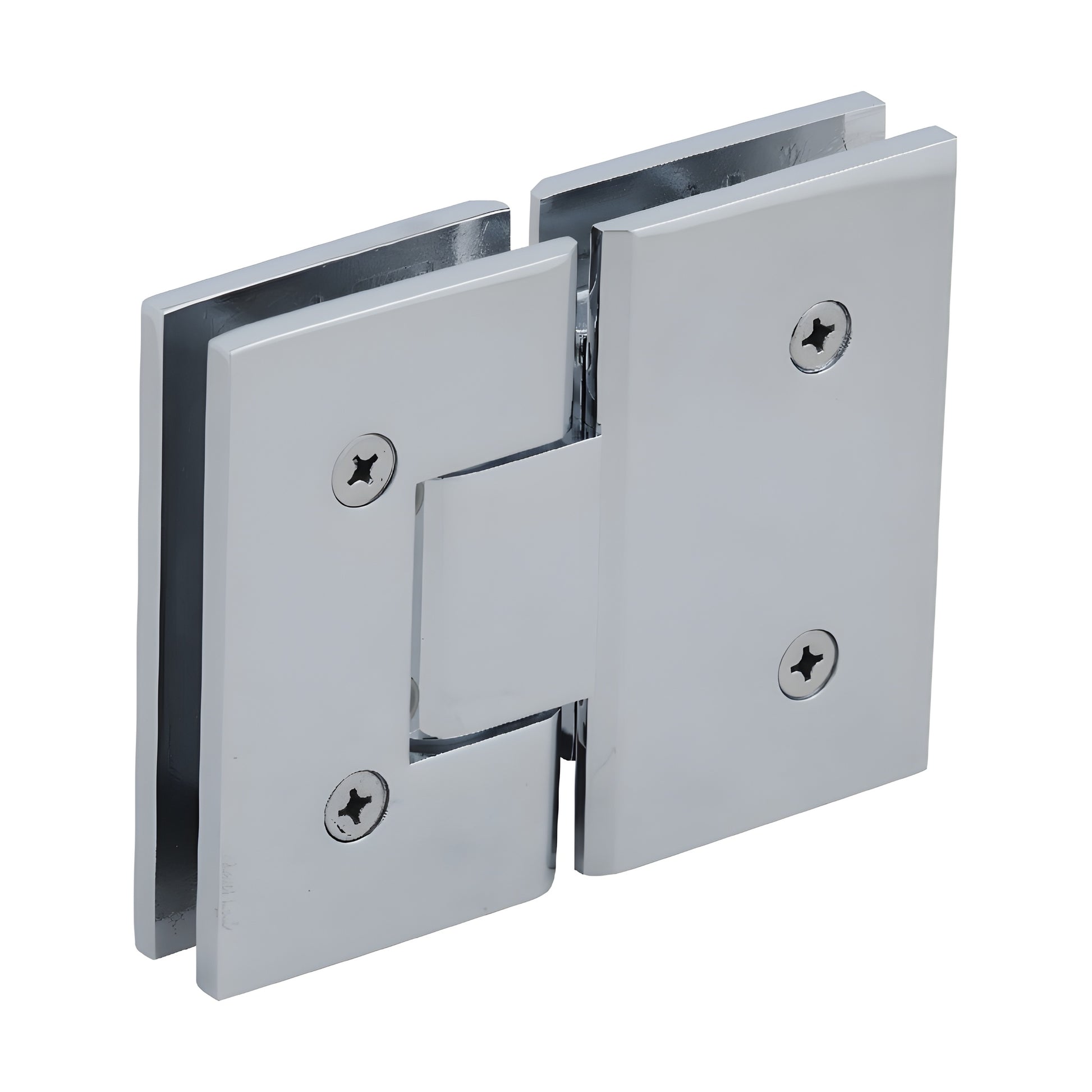

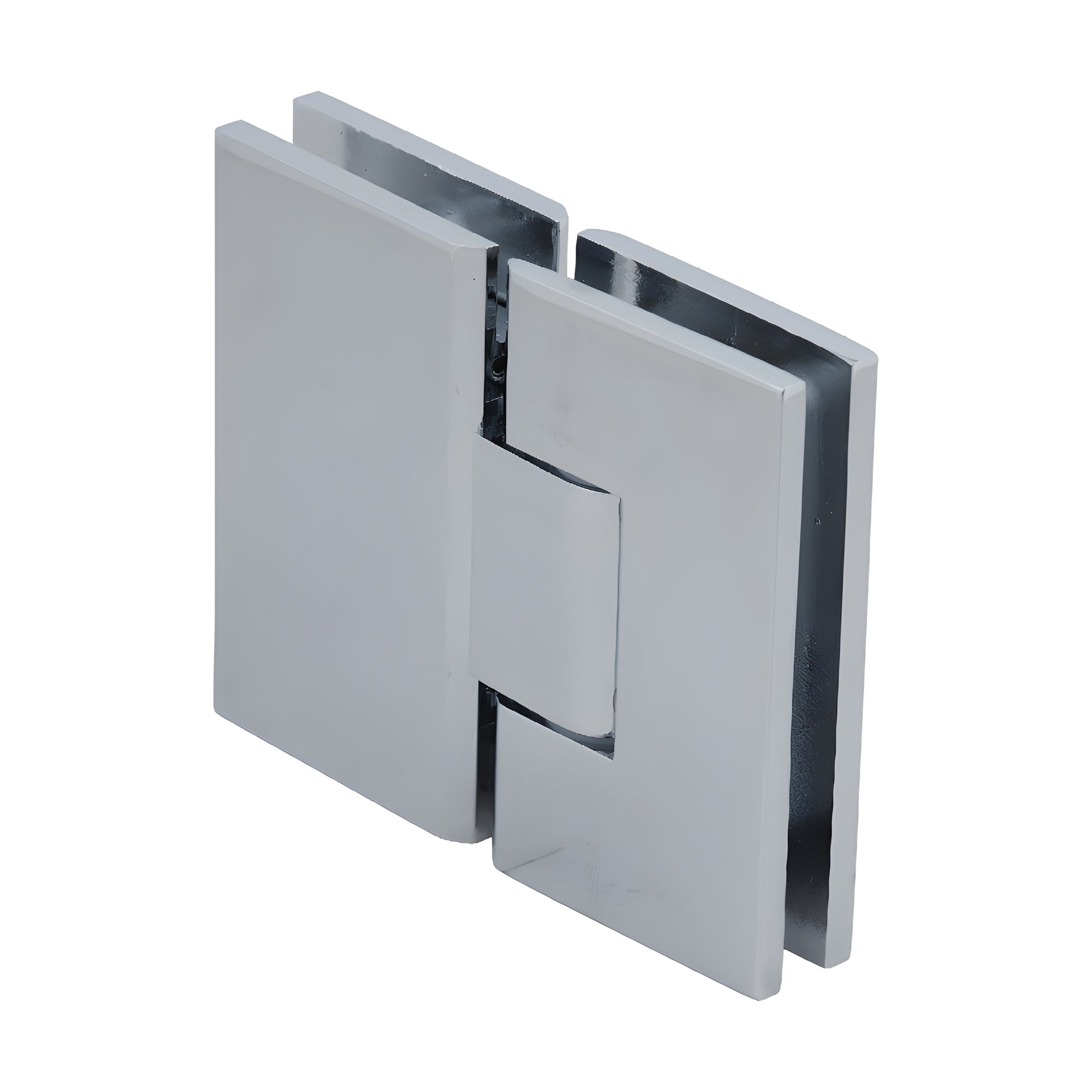

CRL Victoria 180° Polished Chrome Glass-to-Glass Shower Door Hinge

• Excellent choice for heavier, wider shower doors—supports up to 140 lbs (64 kg)
• Integrated safety interlock and stiffening beam for superior glass-panel control
• Wall-mount and 180° glass-to-glass hinge models available (frameless shower door hinges)
• Fits 3/8" to 1/2" (10 to 12 mm) tempered safety glass

CRL Victoria Series Hinges (SKU: VCT180CH) support wider, heavier frameless shower doors with a maximum door weight of 140 lbs (64 kg) and a maximum door width of 39" (1 m) using only two hinges. These 180 degree glass-to-glass and wall-mount hinges reduce visible hardware for a clean, modern aesthetic.

Key features: an integrated stiffening beam minimizes clamping plate flex for exceptional holding power; heat-treated stainless steel springs increase durability; increased self-centering force improves closing performance. Stocked in six popular finishes with custom finishes available.

Using two hinges: With 3/8" to 1/2" (10 to 12 mm) tempered glass up to 39" (1 m) wide, two hinges will hold up to 140 lbs (64 kg). Do not use three hinges.

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Do not exceed maximum door weight or width. Maximum two hinges per door. Glass fabrication is required. Use only the template included; cut-out dimensions may differ from other brands.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For alternative applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template.

Order the VCT180CH Victoria Series hinge for durable, high-capacity frameless shower door mounting—contact us to check finish availability and lead time.
