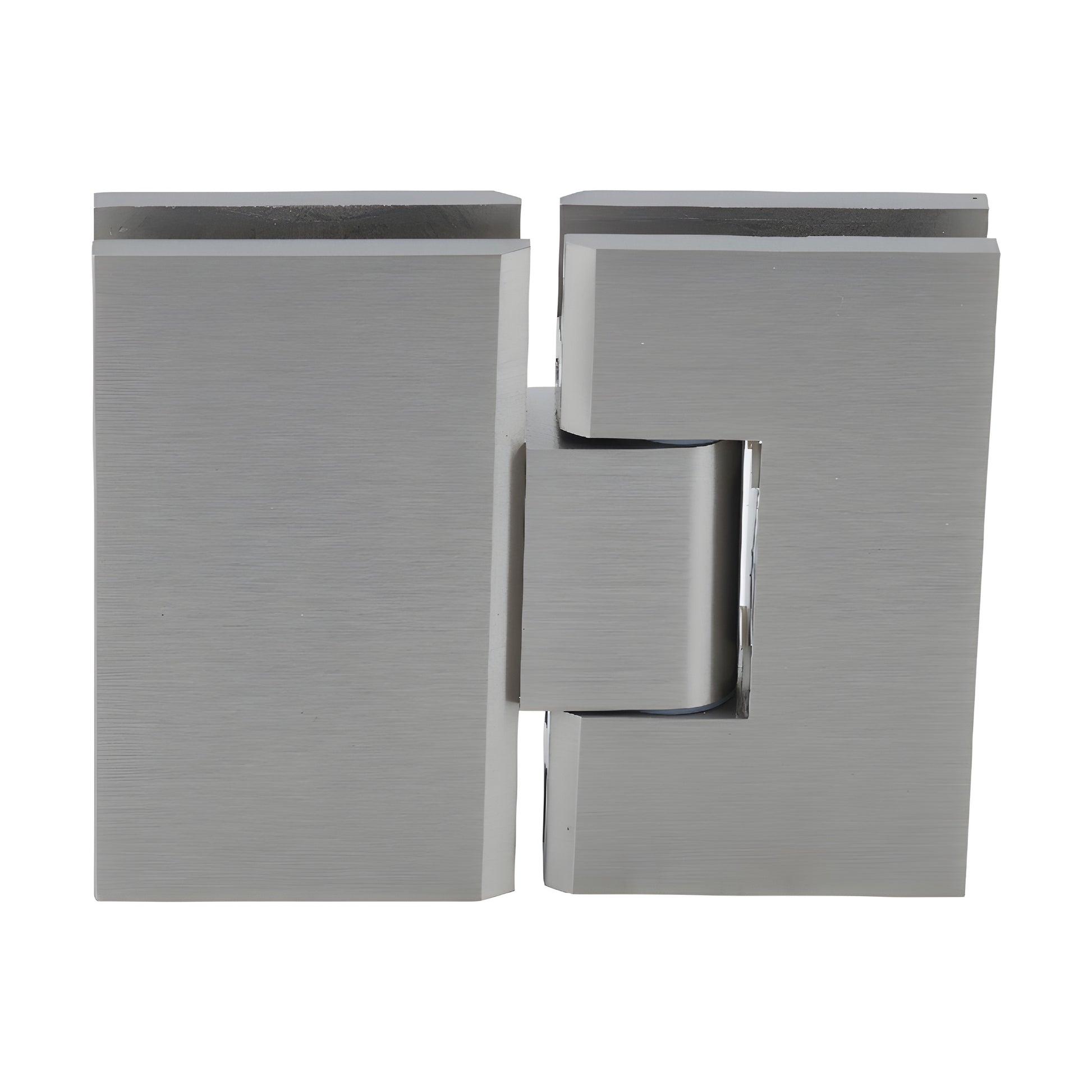

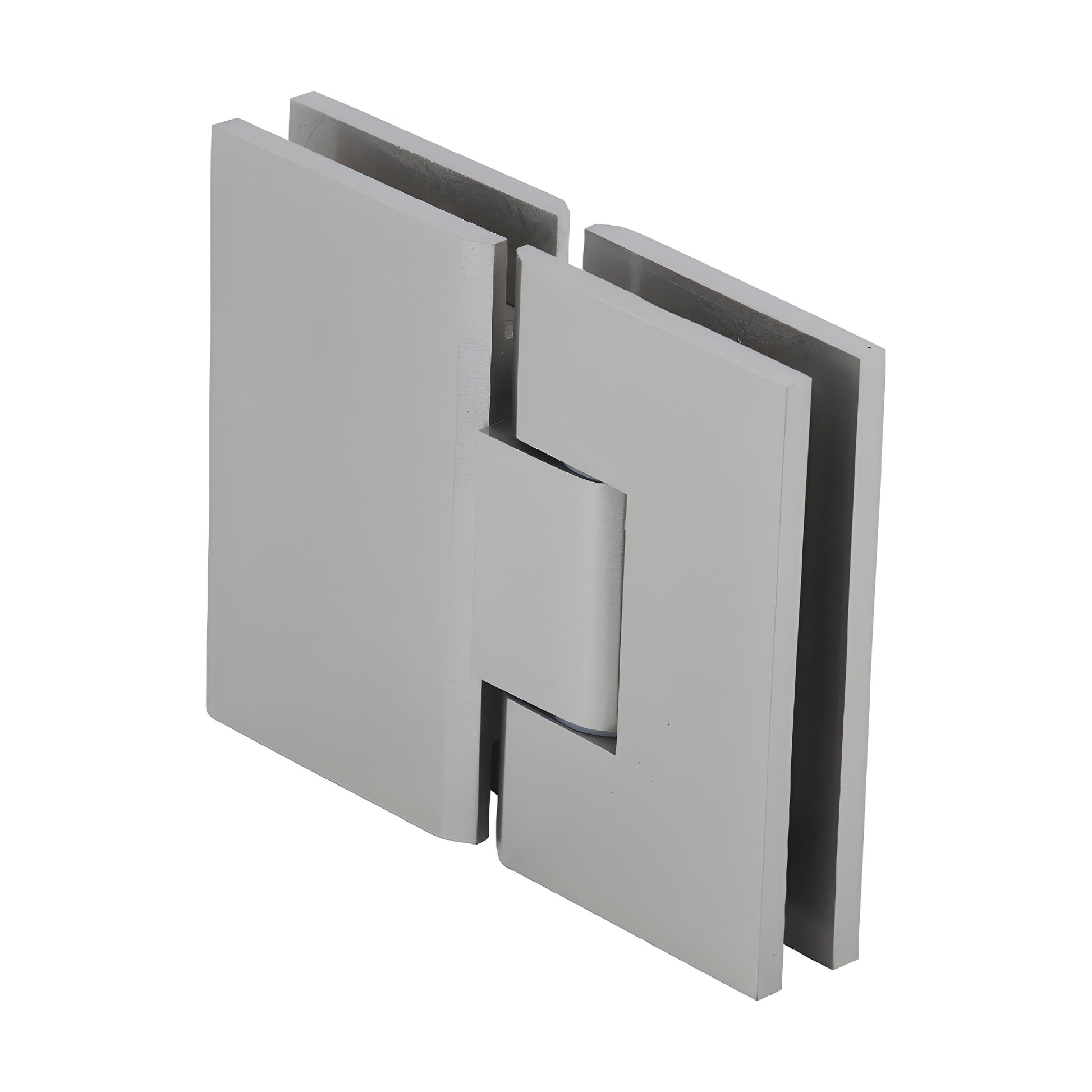

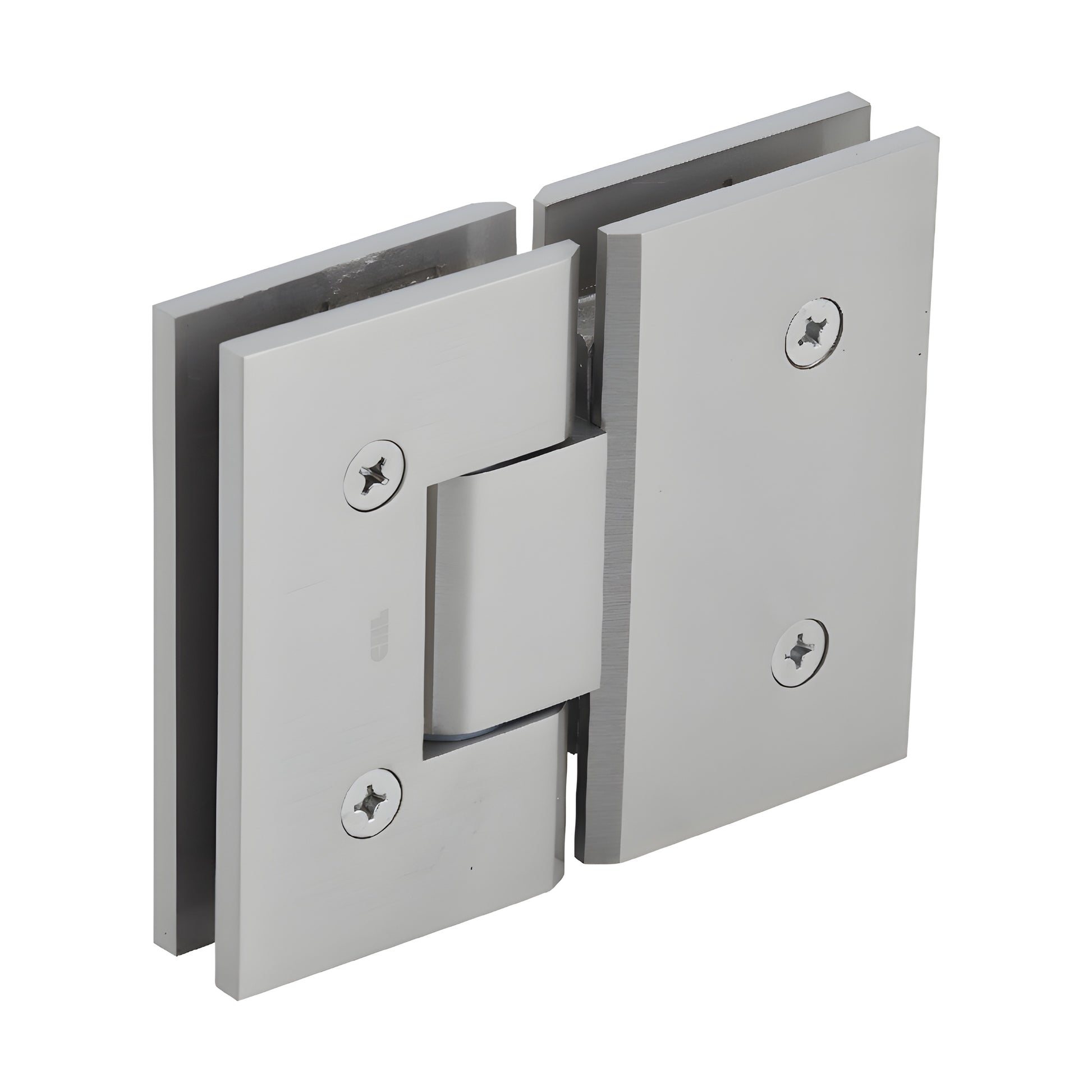

CRL Victoria 180° Brushed Nickel Glass-to-Glass Shower Hinge

• Heavy-duty frameless shower door hinge for 3/8" to 1/2" (10–12 mm) tempered safety glass
• Integrated safety interlock and stiffening beam for superior glass-panel control
• Available in wall-mount and 180° glass-to-glass models
• Supports up to 140 lbs (64 kg) and 39" (1 m) door width using two hinges

CRL Victoria Series Hinges (SKU: VCT180BN) are engineered for wider, heavier frameless shower doors, reducing visible hardware while delivering exceptional holding power. The integrated stiffening beam minimizes clamping-plate flex, and heat-treated stainless steel springs increase durability and self-centering performance. Stocked in six popular finishes; custom finishes available.

Important: Use only two hinges per door. Do not use three hinges. Do not exceed the maximum door weight or width. Glass fabrication is required.

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template—cut-out dimensions may not match other brands.


Order the VCT180BN heavy-duty frameless shower door hinge today to upgrade durability and achieve a clean, minimalist look.
