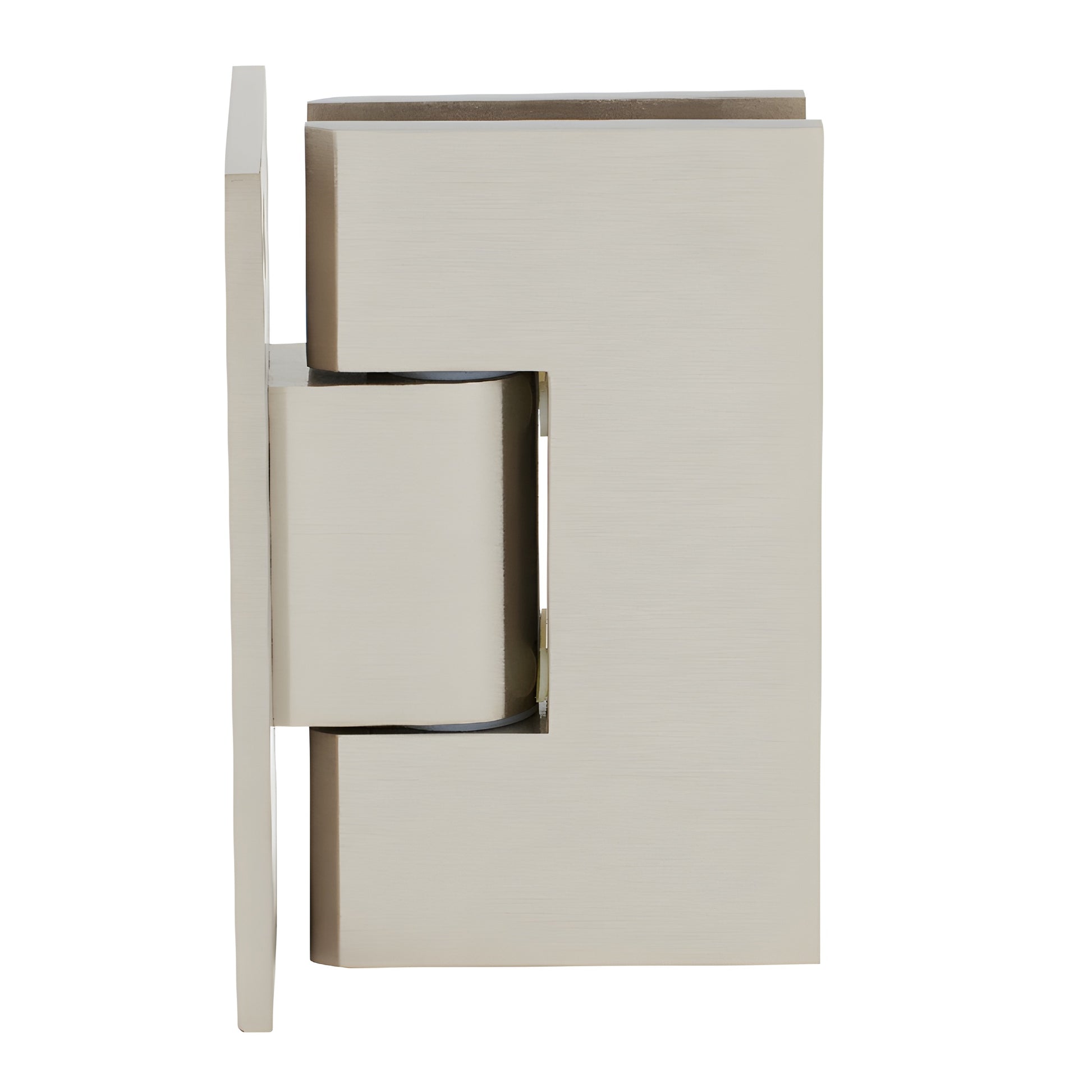

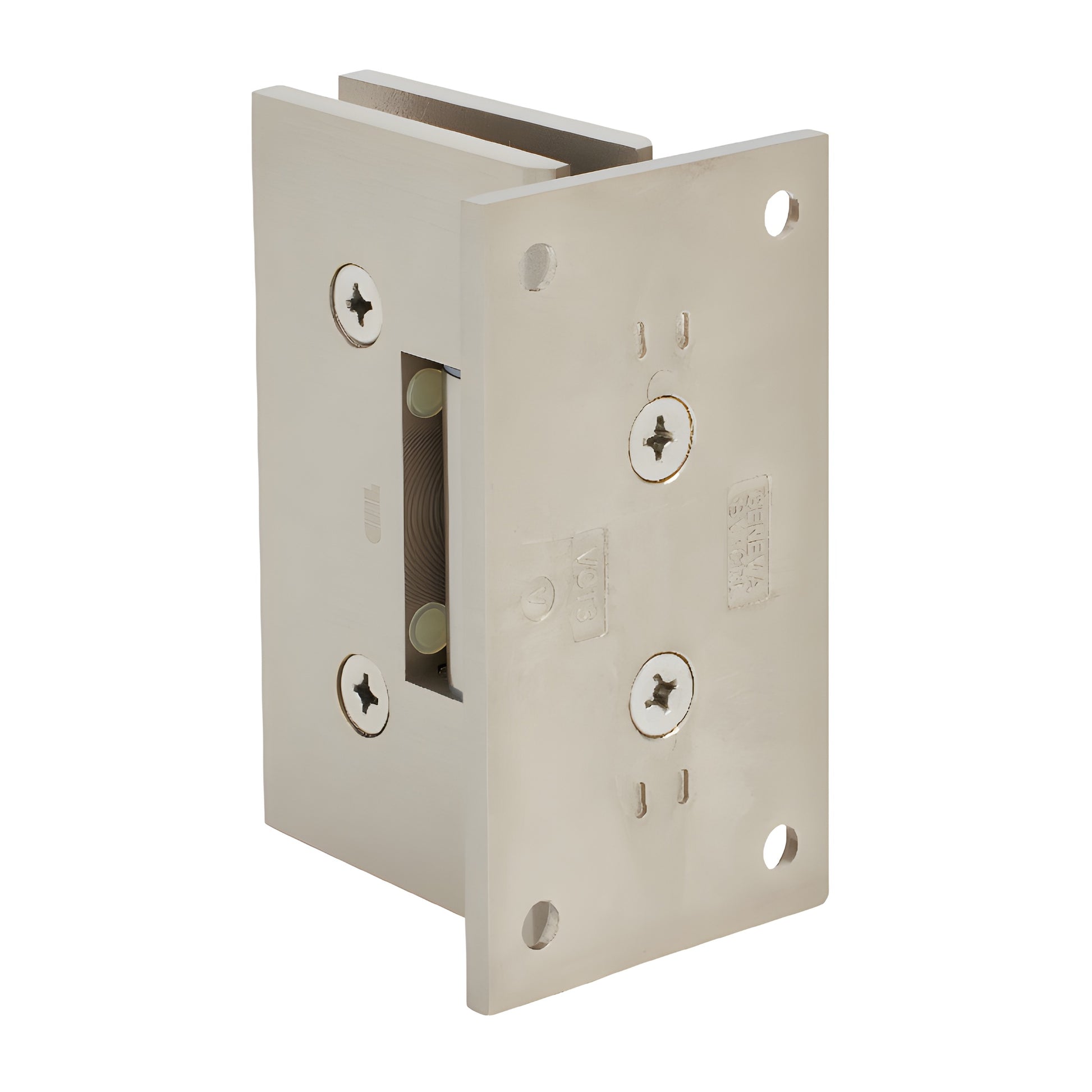

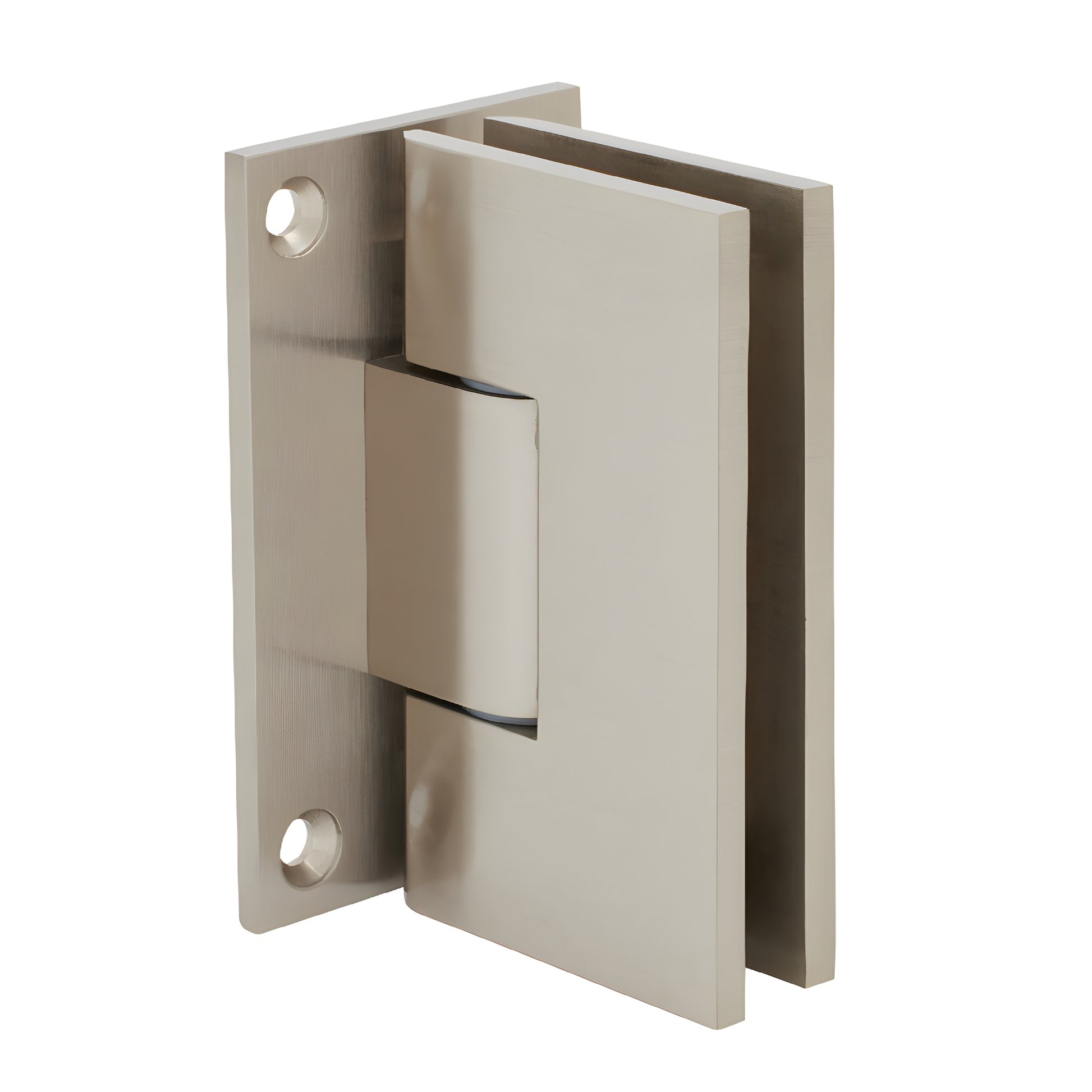

CRL Victoria Brushed Nickel Wall-Mount Full Back Plate Hinge

• An excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Wall-mount and 180° glass-to-glass models available
• For use with 3/8" to 1/2" (10–12 mm) thick tempered safety glass

CRL Victoria Series Hinges — SKU: VCT037BN support wider, heavier frameless shower doors with a maximum door weight of 140 lbs (64 kg) and maximum door width of 39" (1 m) using only two hinges. These hinges reduce visible hardware for a clean frameless aesthetic and include an integrated stiffening beam to minimize clamping-plate flex for exceptional holding power.

These hinges deliver increased self-centering force and use heat-treated stainless steel springs for enhanced durability. Stocked in six popular finishes with custom finishes available.

IMPORTANT: Use only two hinges per door—do not use three. Do not exceed the listed maximum door weight or width. Glass fabrication is required.

Using two hinges: With 3/8" to 1/2" (10–12 mm) glass up to 39" (1 m) wide, two hinges will hold up to 140 lbs (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Shop the CRL Victoria Series frameless shower door hinges (VCT037BN) for durable, high-capacity performance—order now.
