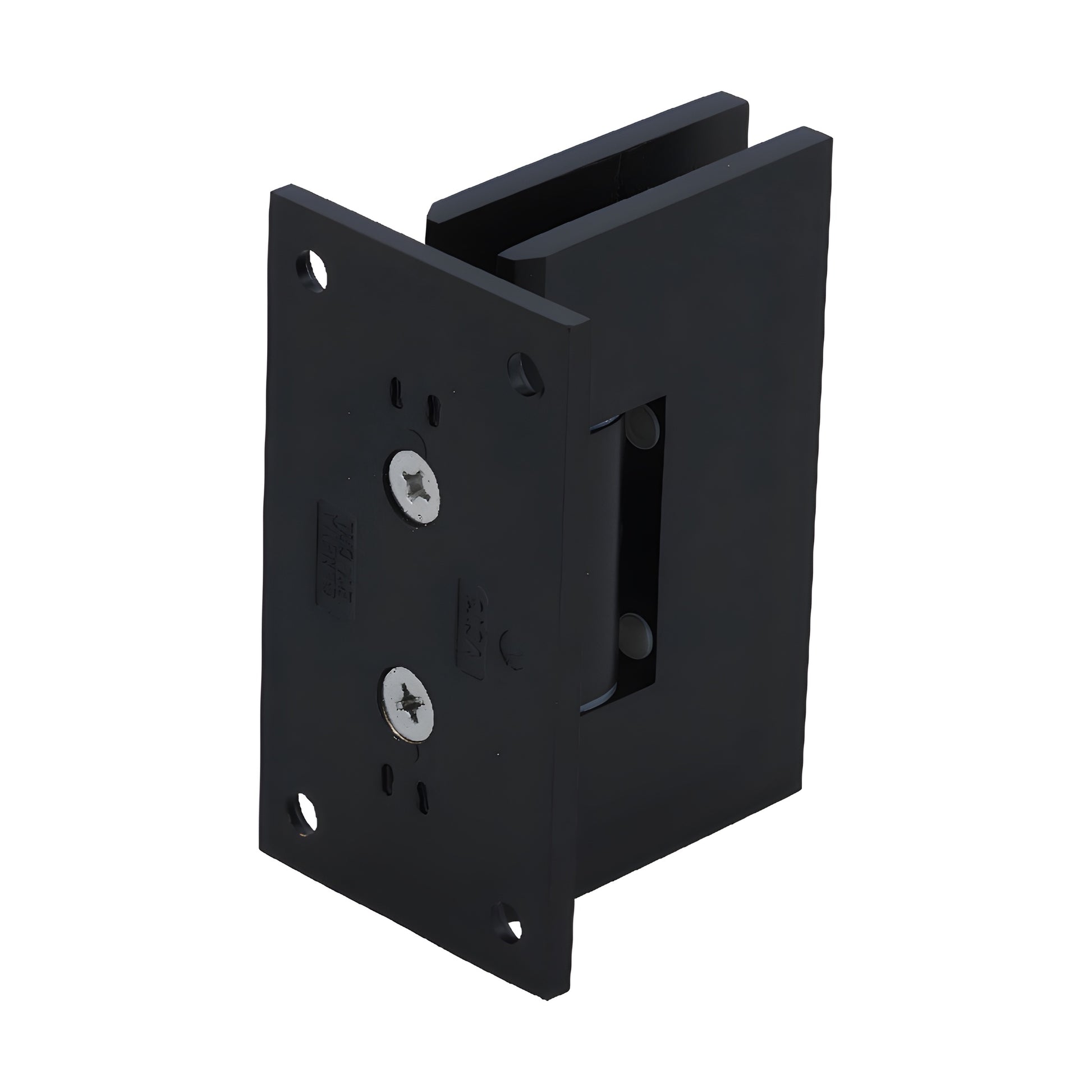

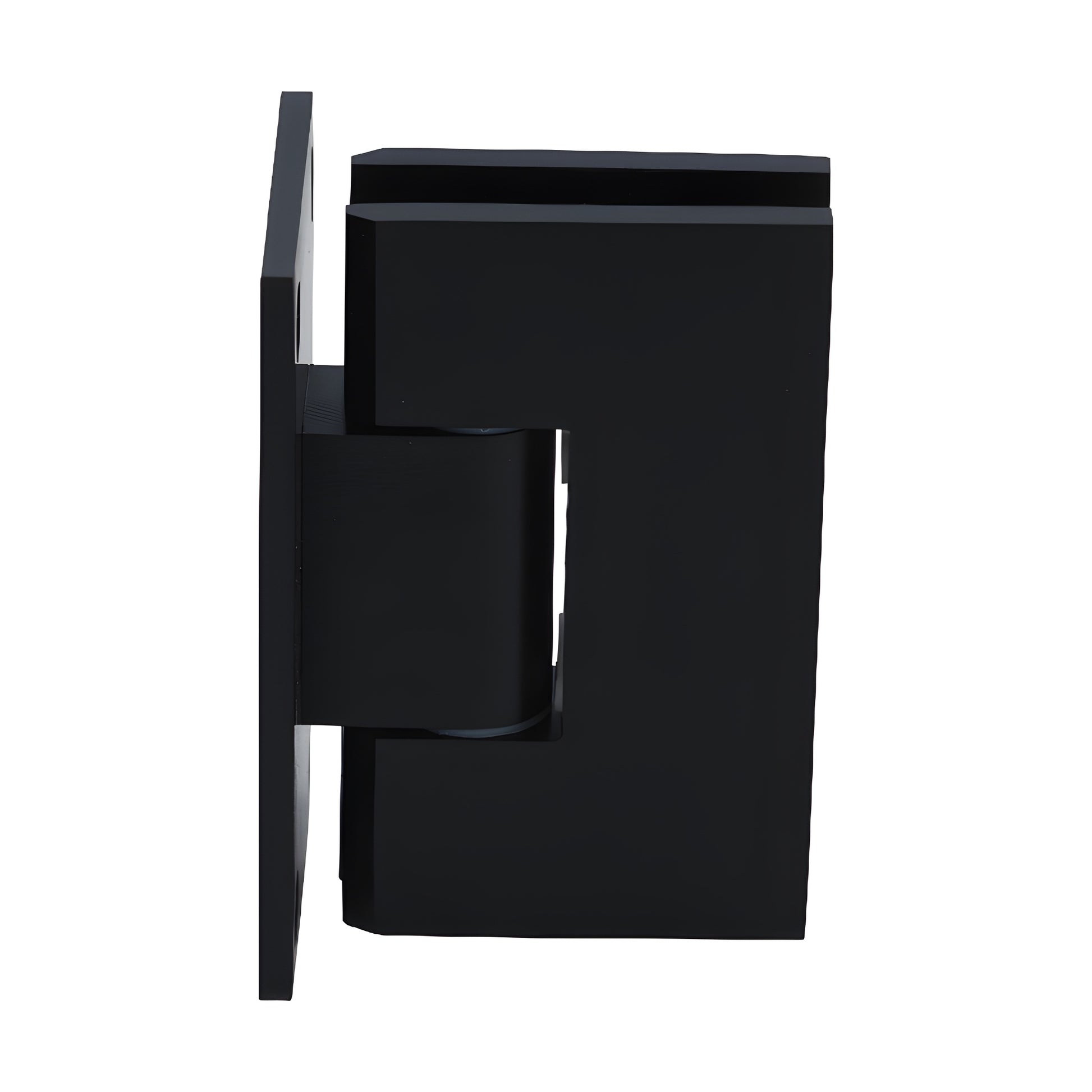

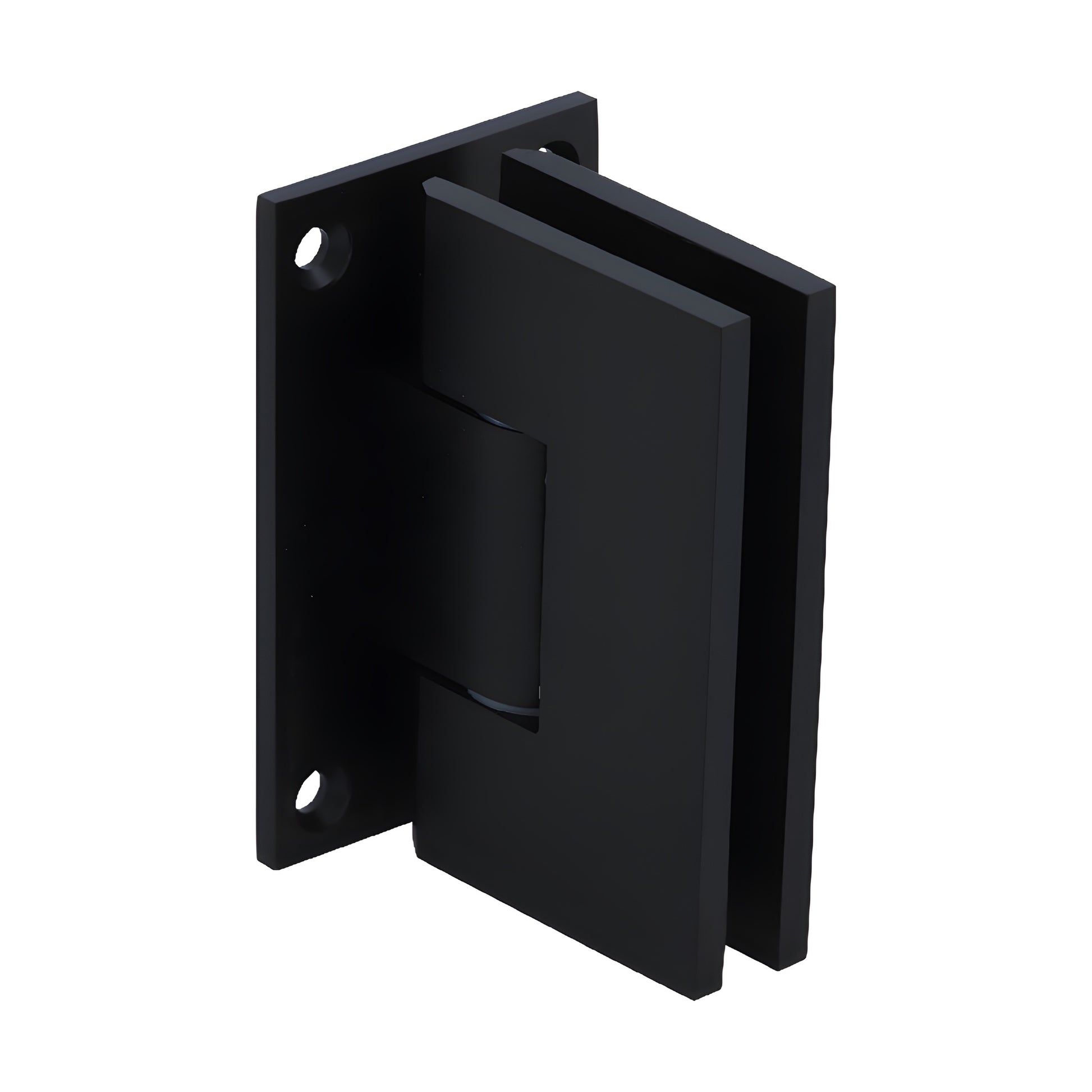

CRL Victoria Oil Rubbed Bronze Wall-Mount Full Back Plate Hinge

• An excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Available as wall-mount and 180° glass-to-glass hinge models
• For use with 3/8" to 1/2" (10–12 mm) thick tempered safety glass

CRL Victoria Series Hinges (SKU: VCT0370RB) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These heavy-duty, solid brass shower door hinges create a clean, minimalist look by reducing visible hardware and use an integrated stiffening beam to minimize clamping plate flex for exceptional holding power. Heat-treated stainless steel springs increase durability and provide added self-centering force for reliable operation on 3/8"–1/2" tempered safety glass. Stocked in six popular finishes; custom finishes available.

NOTE: Do not use three hinges. Do not exceed maximum door weight or width. Maximum two hinges per door. Glass fabrication and cut-out per template are required.

Highlights / Differentiators:

• Designed for frameless shower doors and heavy-duty shower door applications
• Integrated safety interlock for improved glass panel control
• Stiffening beam reduces clamp flex for superior holding power
• Heat-treated springs for enhanced durability and increased self-centering
• Available wall-mount and glass-to-glass models for flexible installation

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template—cut-out dimensions may not match other brands.
