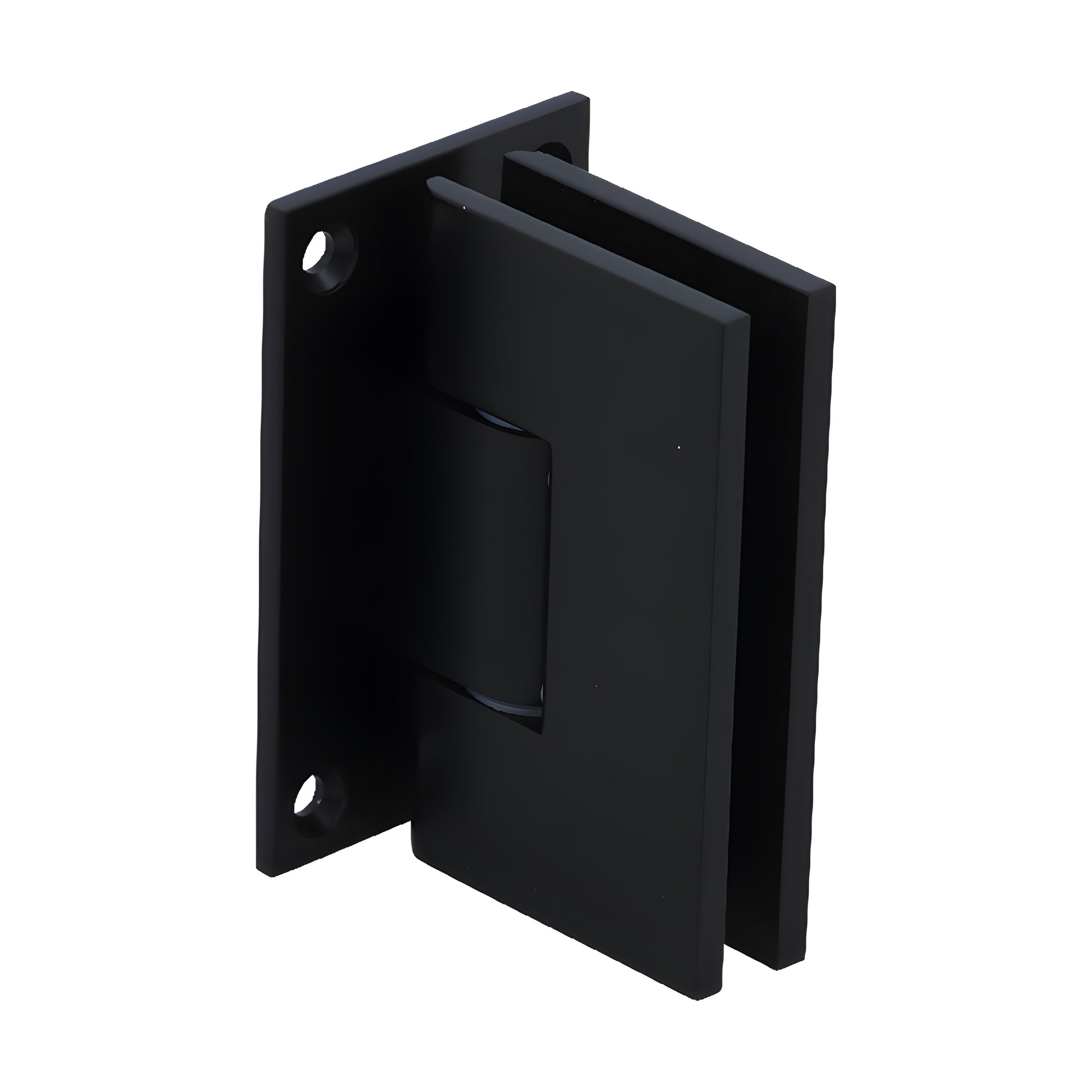

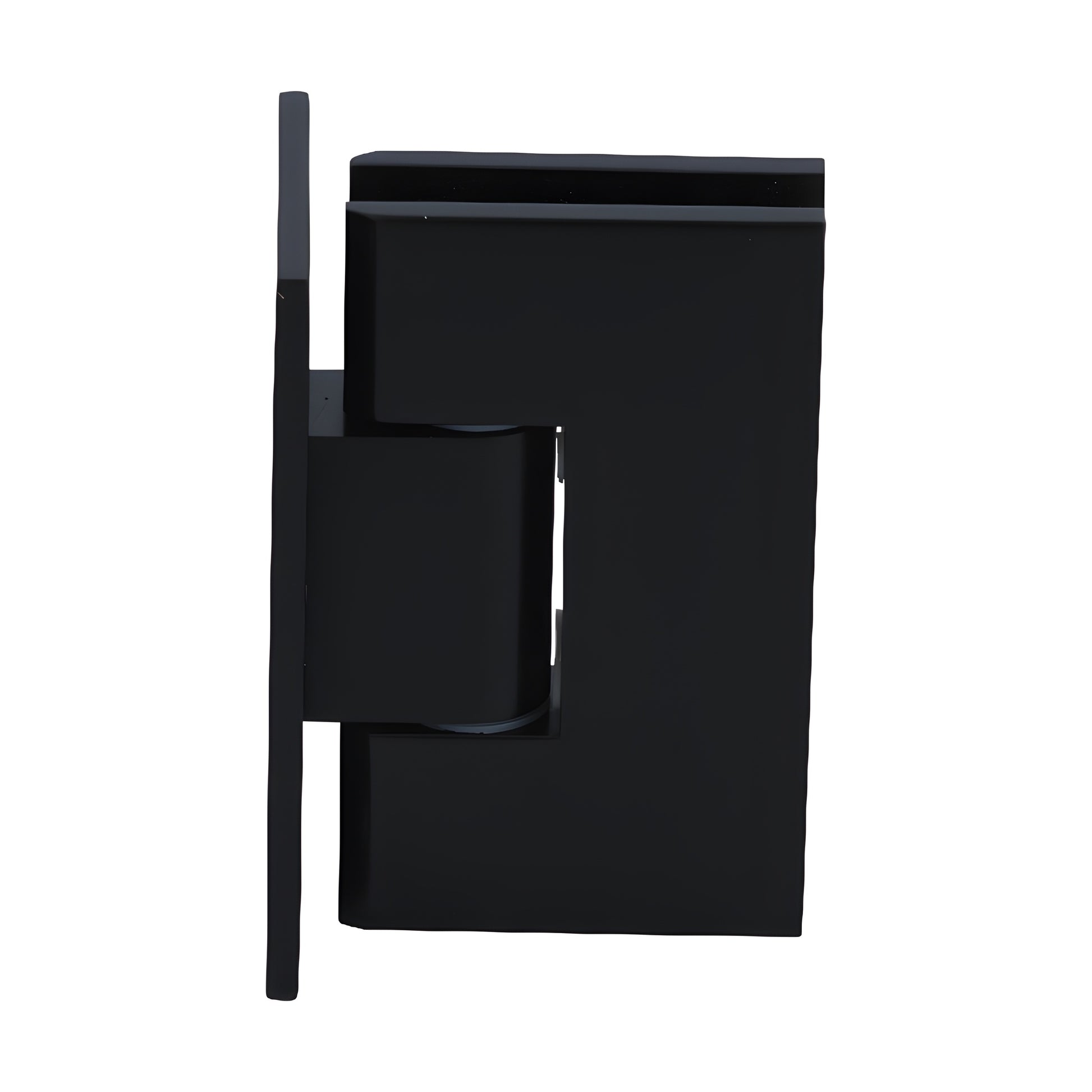

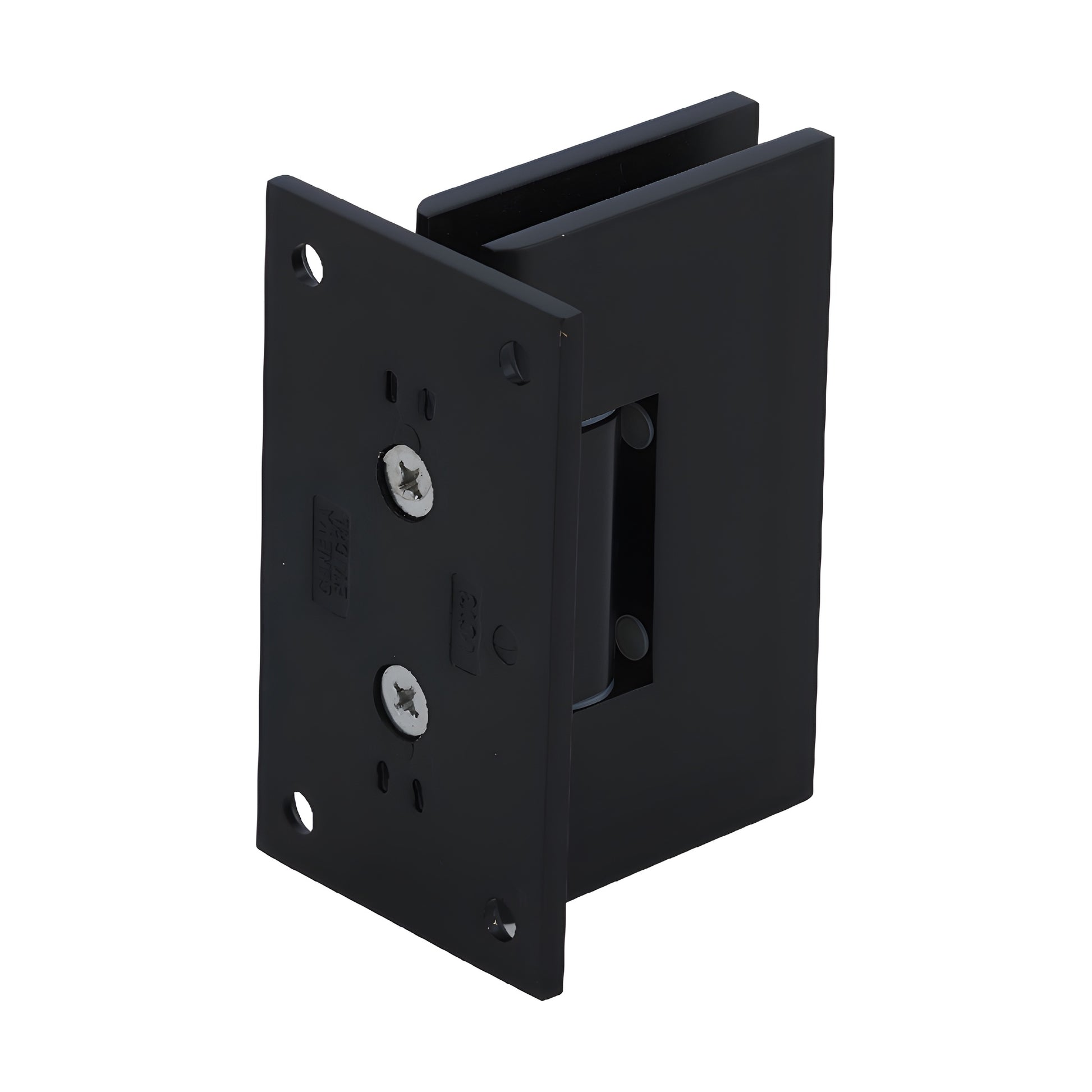

CRL Victoria Matte Black Shower Door Hinge Full Back Plate

• Excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass-panel control
• Available in wall-mount and 180° glass-to-glass hinge models
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Victoria Series Hinges (SKU: VCT037MBL) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These solid brass shower door hinges reduce visible hardware for a clean frameless aesthetic and are ideal for heavy glass shower doors and commercial hotel applications.

Key differentiators: integrated stiffening beam to minimize clamping plate flex for exceptional holding power, heat‑treated stainless springs for long life, and increased self‑centering force for smooth operation. Stocked in six popular finishes; custom finishes available.

NOTE: Do not use three hinges. Maximum two hinges per door. Do not exceed door weight or width capacities. Glass fabrication is required.

Using two hinges: With 3/8" to 1/2" (10 to 12 mm) glass up to 39" (1 m) wide, two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.



Sell your next frameless shower with confidence—order CRL Victoria Series hinges (VCT037MBL) today.
