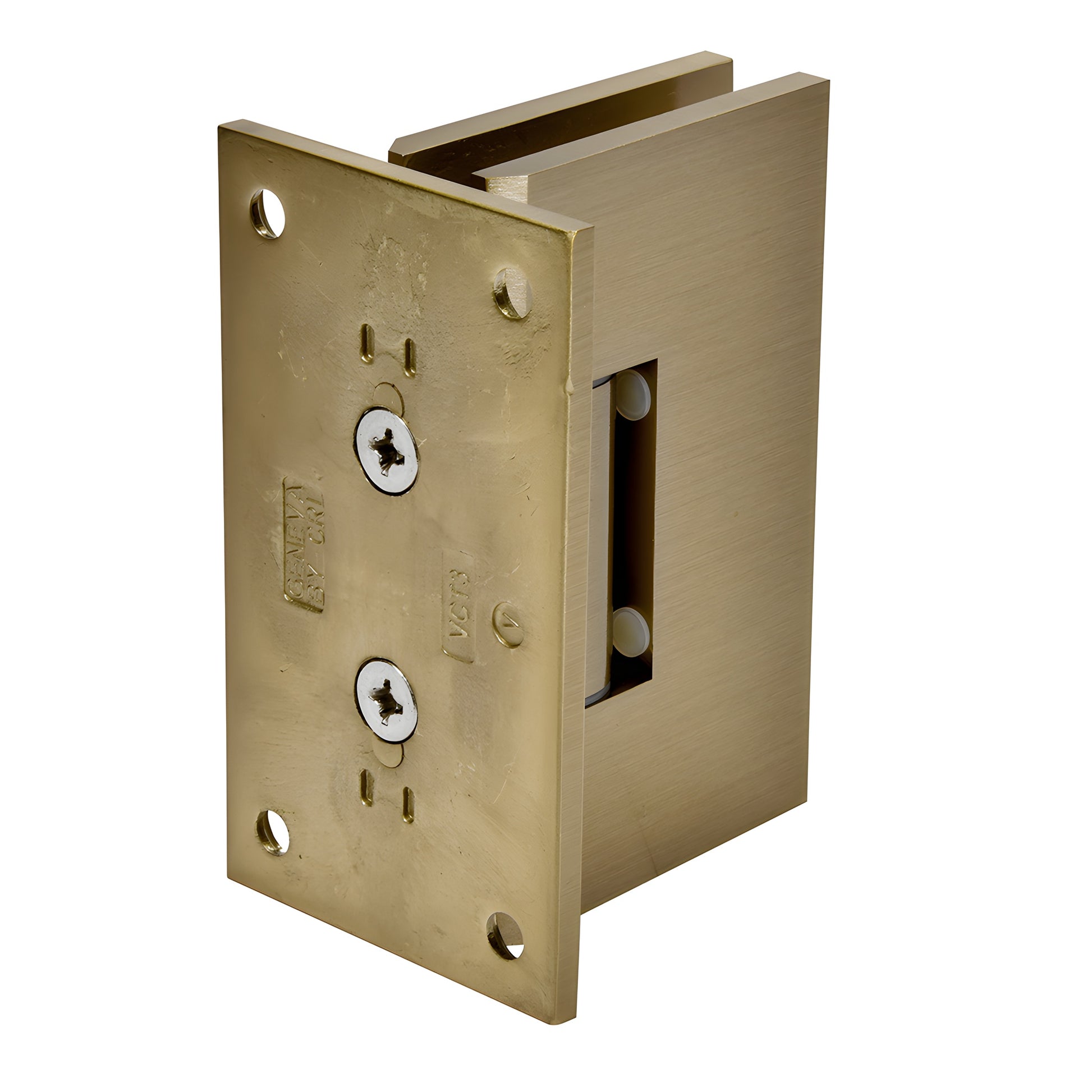

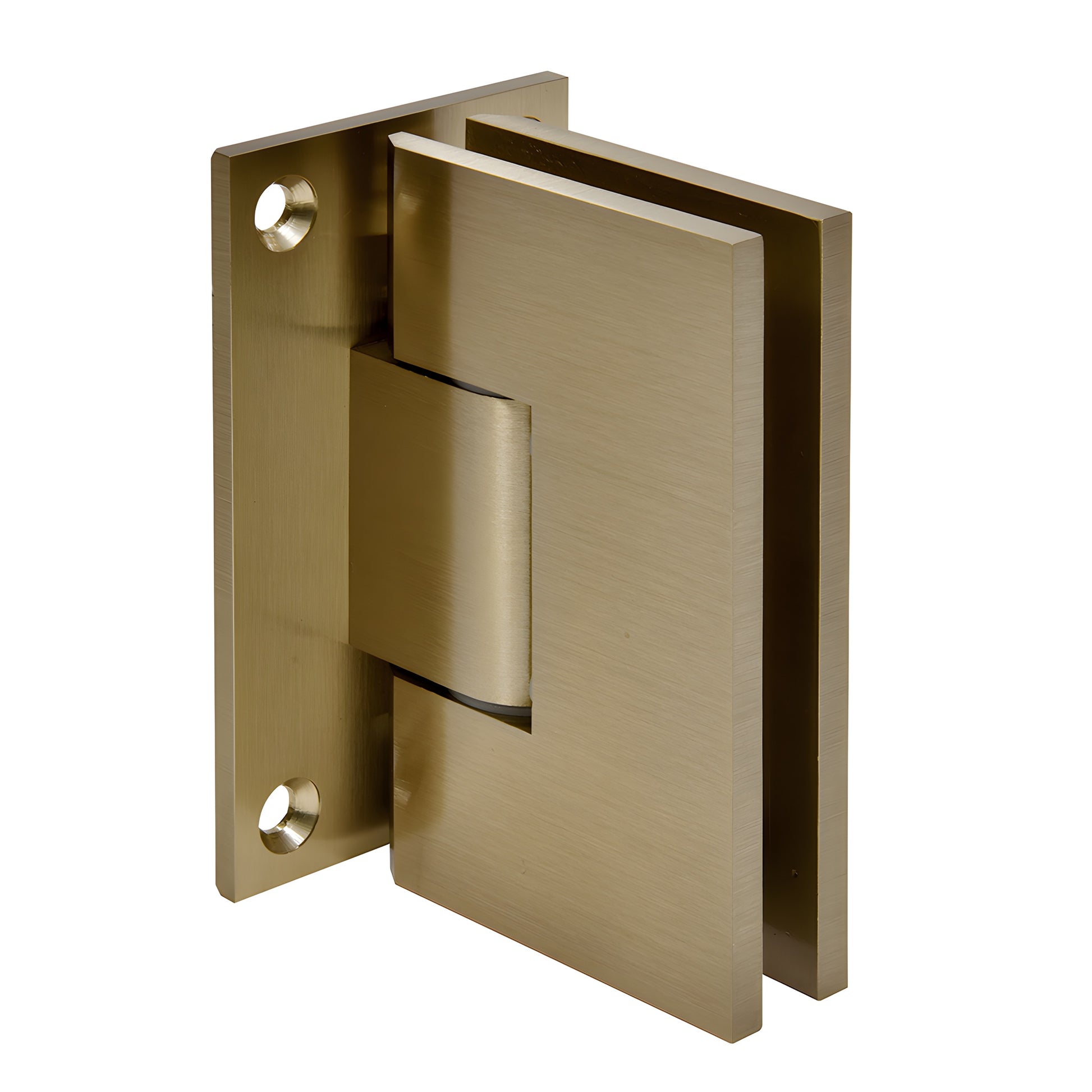

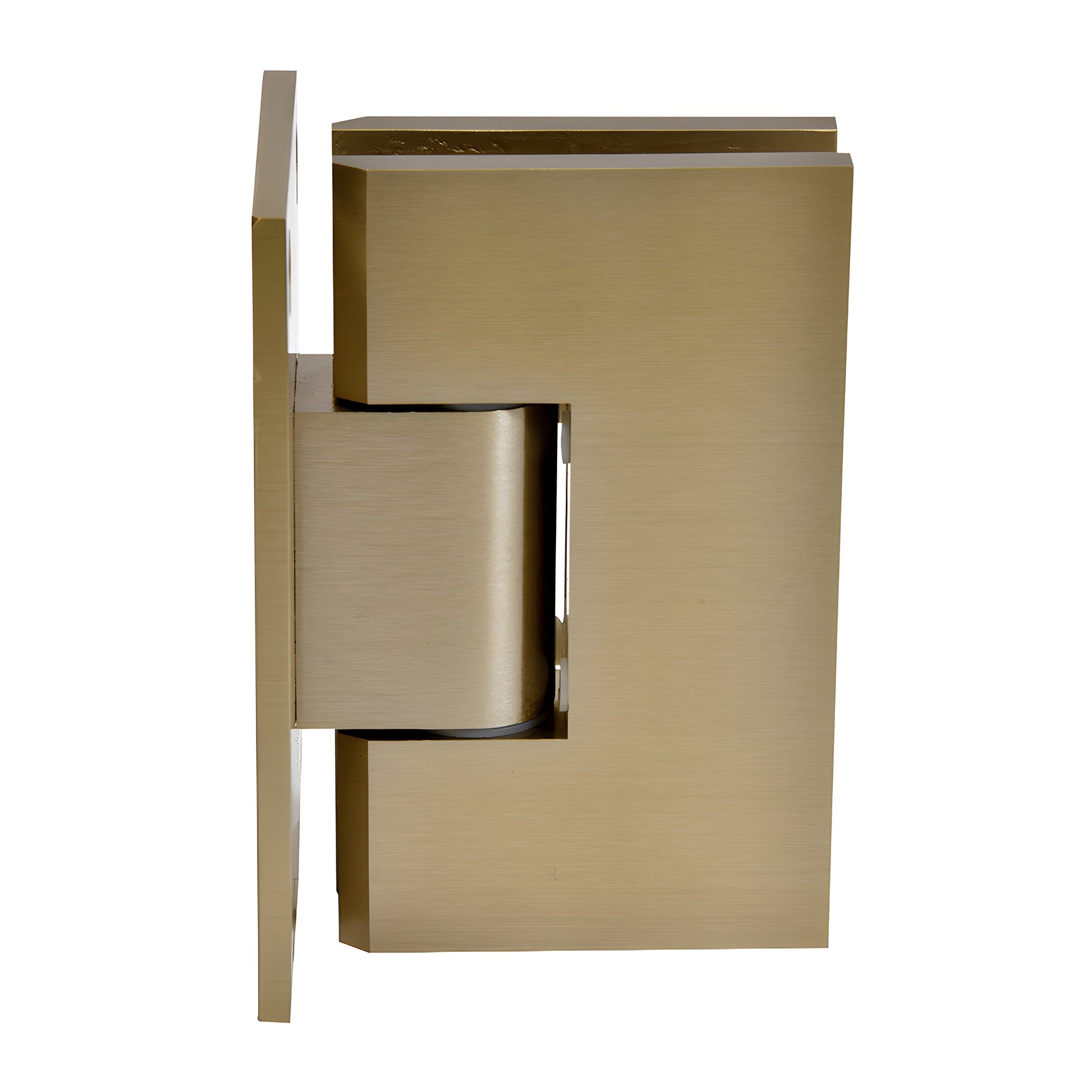

CRL Brushed Bronze Finish Wall Mount Full Back Plate Door Hinge

CRL Brushed Bronze Finish Wall Mount Full Back Plate Door Hinge

Regular price $257.70 CAD
Regular price Sale price $257.70 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# VCT037BBRZ
Shipping Weight: 3.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Finish/Color
Brushed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
4-3/8 in. (111 mm)
Material
Brass
Maximum Door Weight
140 lbs. (63.5 kg)
Maximum Door Width
39 in. (991 mm)
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Victoria
Width
2-15/16 in. (75 mm)

Overview

  • Excellent choice for heavier, wider frameless shower doors
  • Integrated safety interlock enhances glass-panel control and reduces hardware
  • Available in wall-mount and 180° glass-to-glass models
  • For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Victoria Series Hinges (SKU: VCT037BBRZ) support wider, heavier frameless glass shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges—delivering a clean, minimal hardware aesthetic.


These heavy-duty shower door hinges use an integrated stiffening beam to minimize clamping-plate flex for exceptional holding power. Heat-treated stainless steel springs increase durability and provide stronger self-centering force for reliable operation. Stocked in six popular finishes; custom finishes available.


Important: Use a maximum of two hinges per door. Do not use three hinges. Cut-out and glass fabrication are required. Do not exceed the specified door weight or width limits.


Key Specifications
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory-set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions


Product Warning:
Designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Most shipping weights are approximate. If you need exact weight for shipping cost calculations, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.


For a dependable, heavy-duty frameless glass shower hinge that minimizes visible hardware and maximizes holding power, order SKU VCT037BBRZ or contact CRL Customer Service to confirm finish and availability.
