- An Excellent Choice for Heavier, Wider Shower Doors
- Integrated Safety Interlock Enhances Glass Panel Control
- Wall Mount and 180 Degree Glass-to-Glass Models Available
- For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Safety Glass
- Apply medium-strength threadlocker on cover plate screws

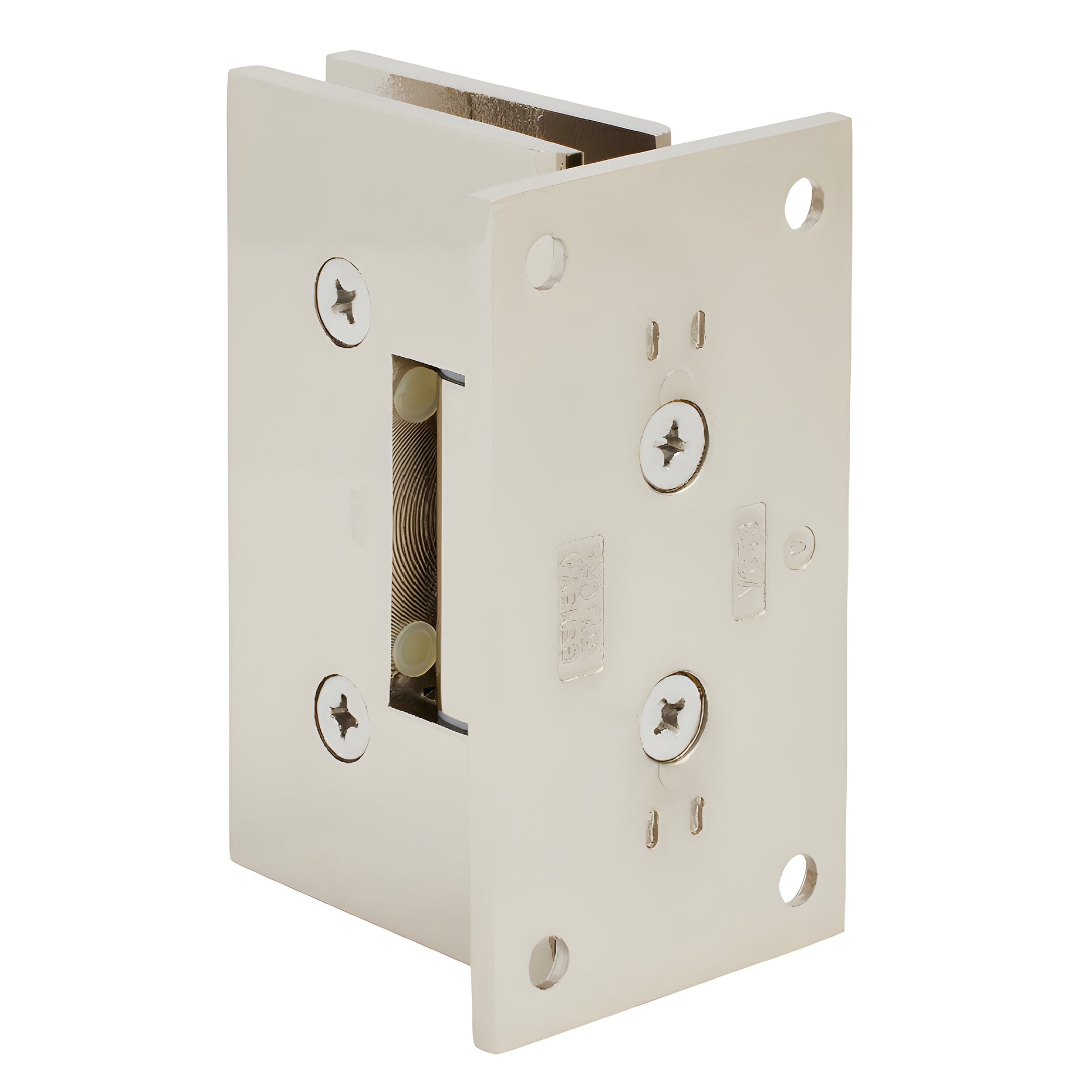

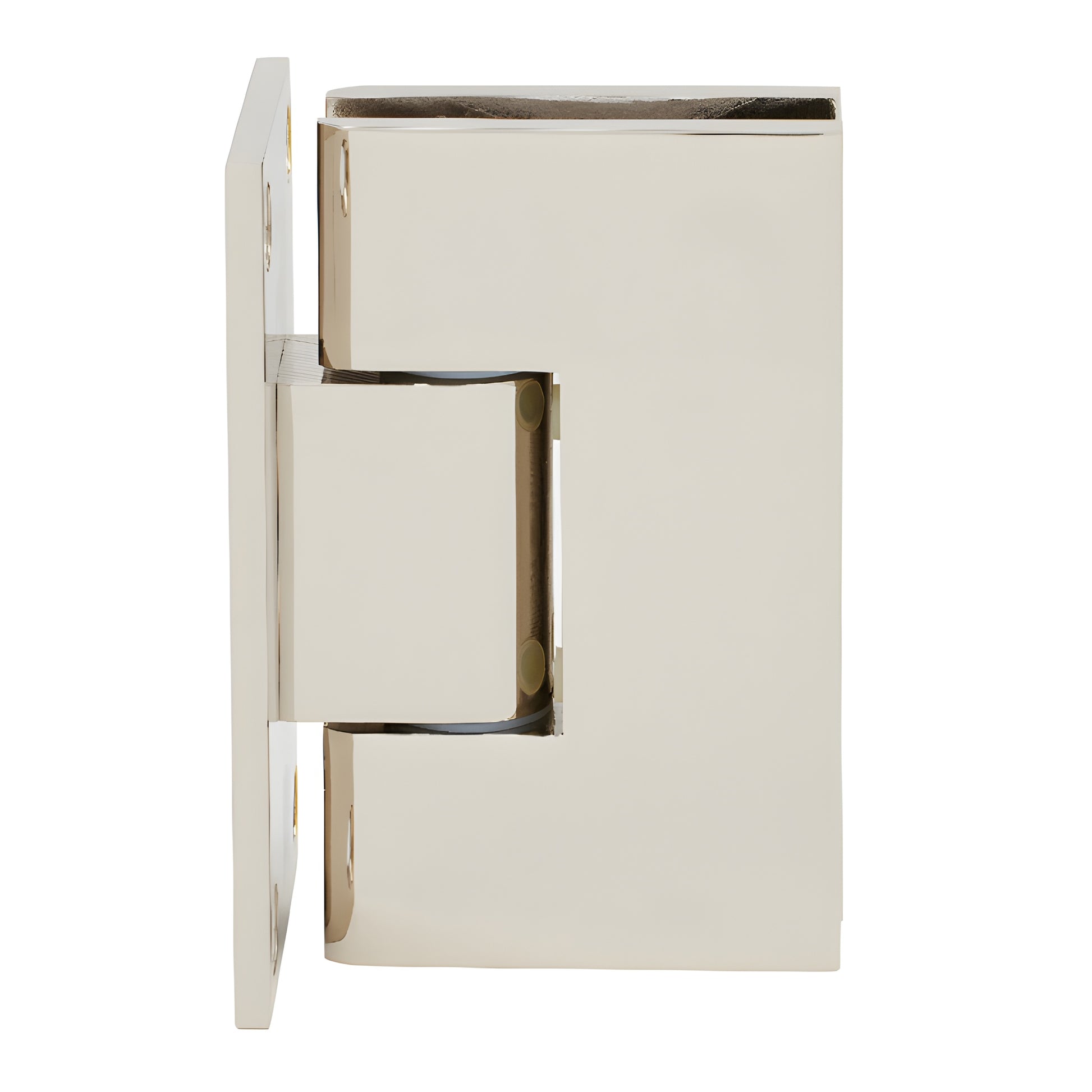

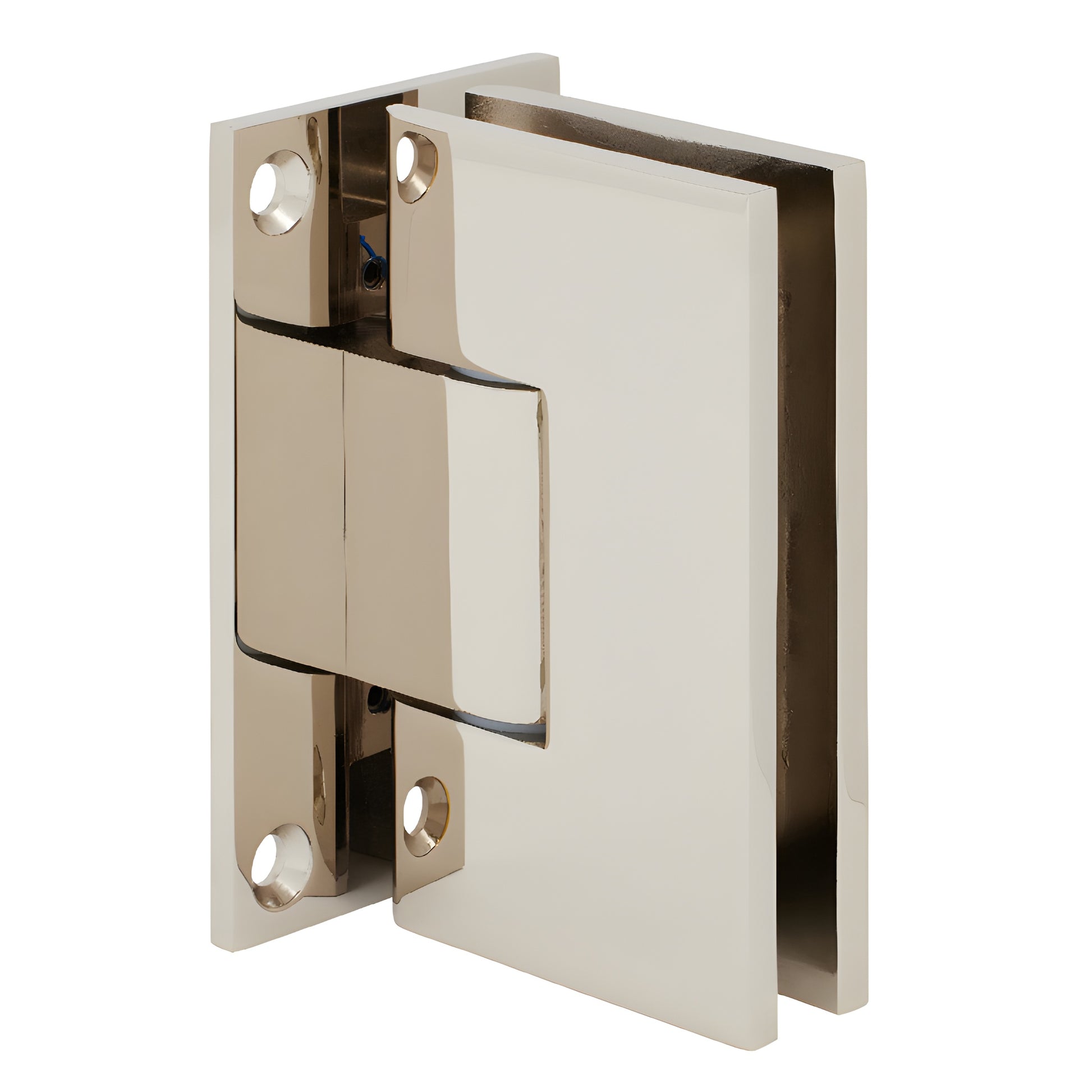

CRL Victoria Series Hinges
have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.
NOTE
Do not use three hinges.
This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.
Using two hinges
with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).
SPECIFICATIONS
Glass Thickness
3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction
Solid Brass
Hinge Swings
90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type
Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes
Gaskets, Screws, and Glass Fabrication Dimensions
Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.
Product Warning
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
