- An excellent choice for heavier, wider frameless shower doors
- Integrated safety interlock enhances glass panel control
- Wall-mount and 180° glass-to-glass models available
- For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

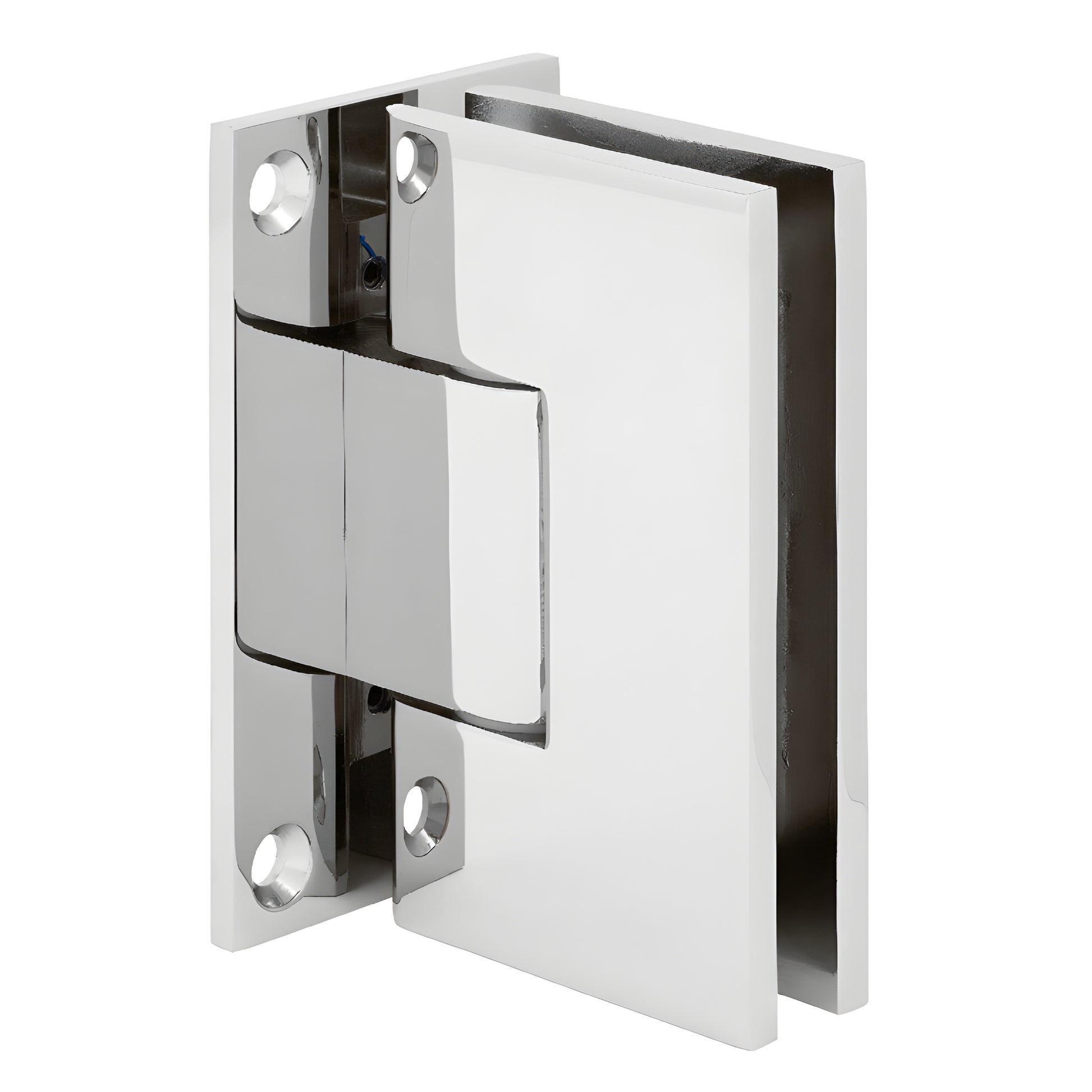

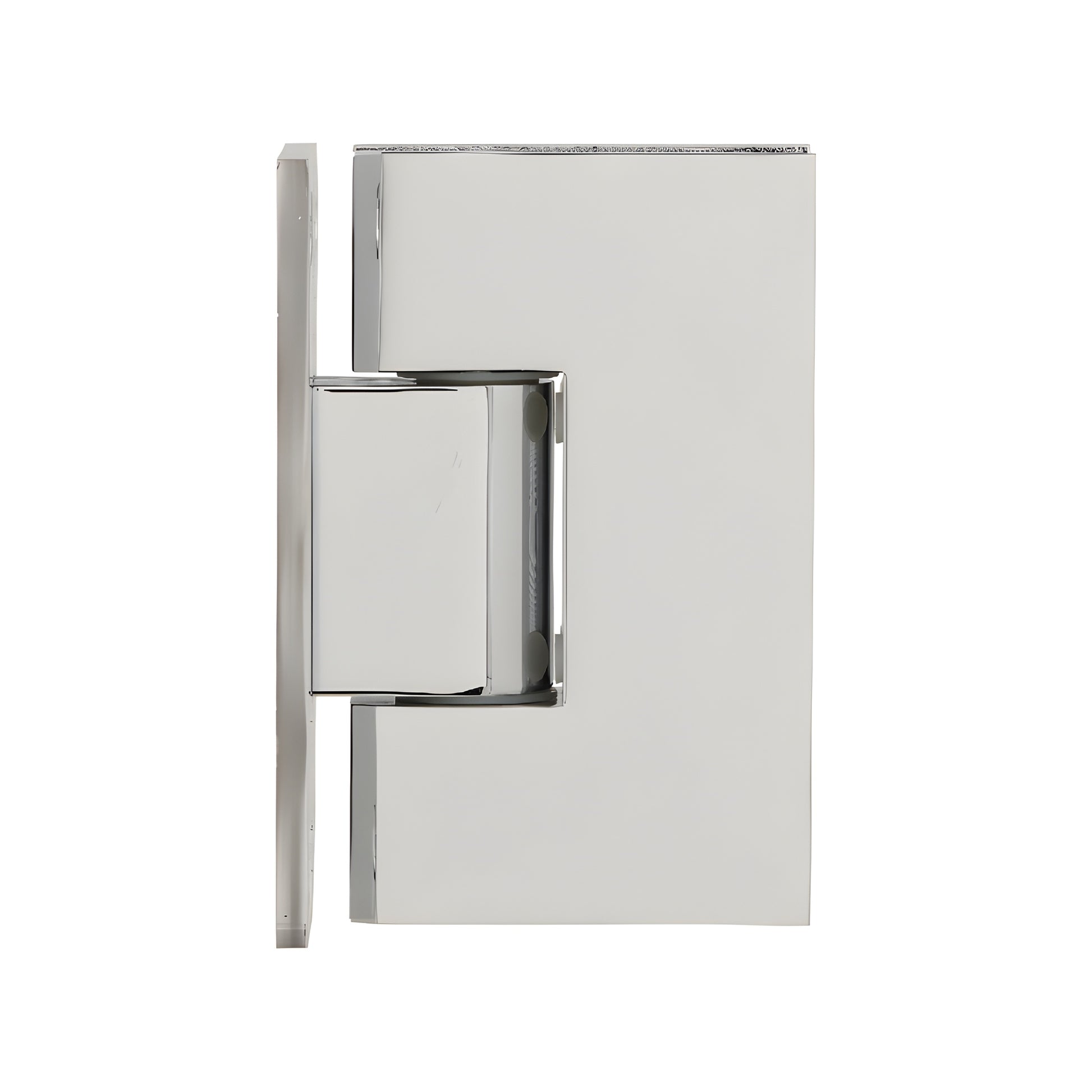

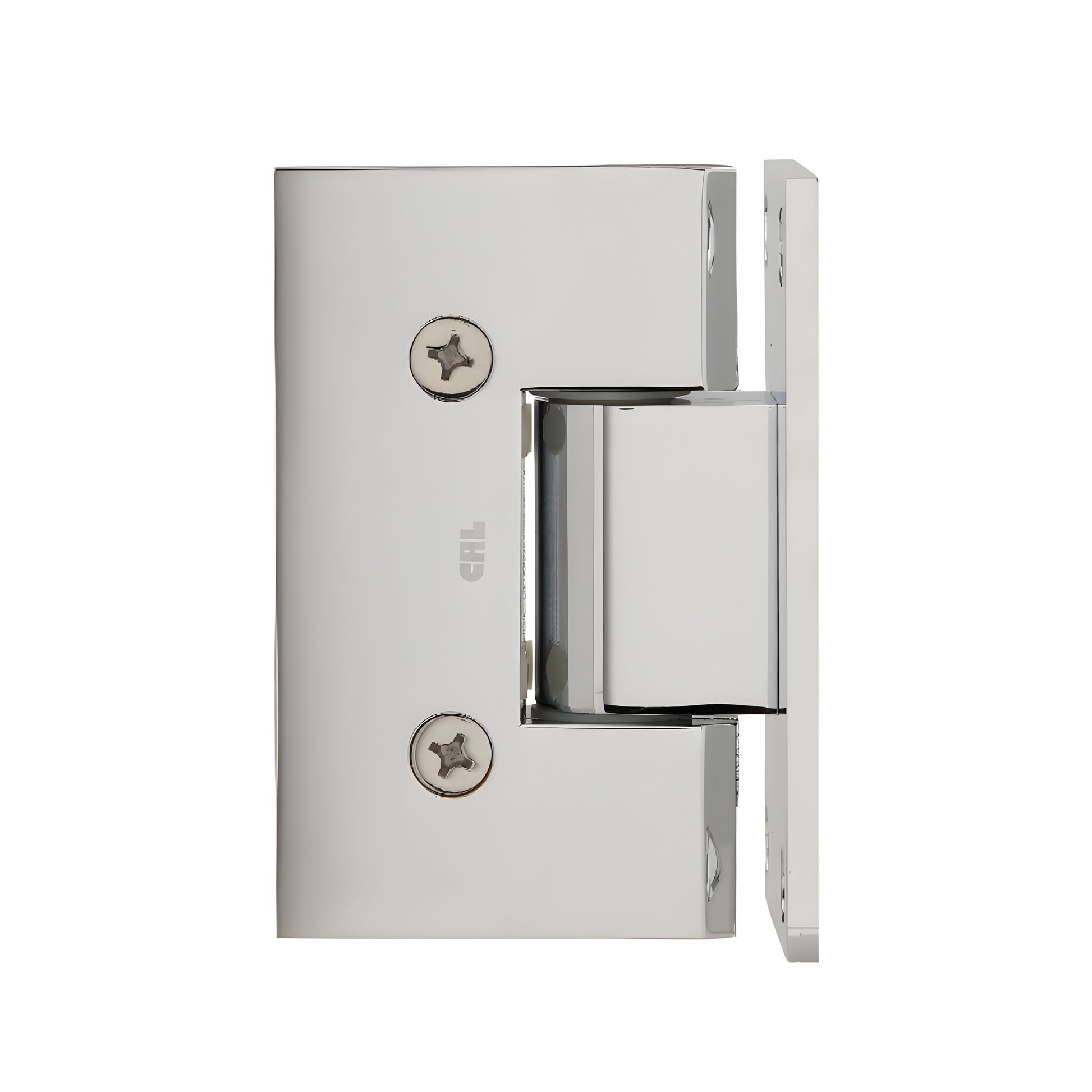

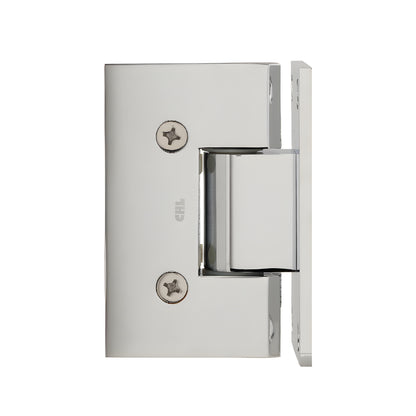

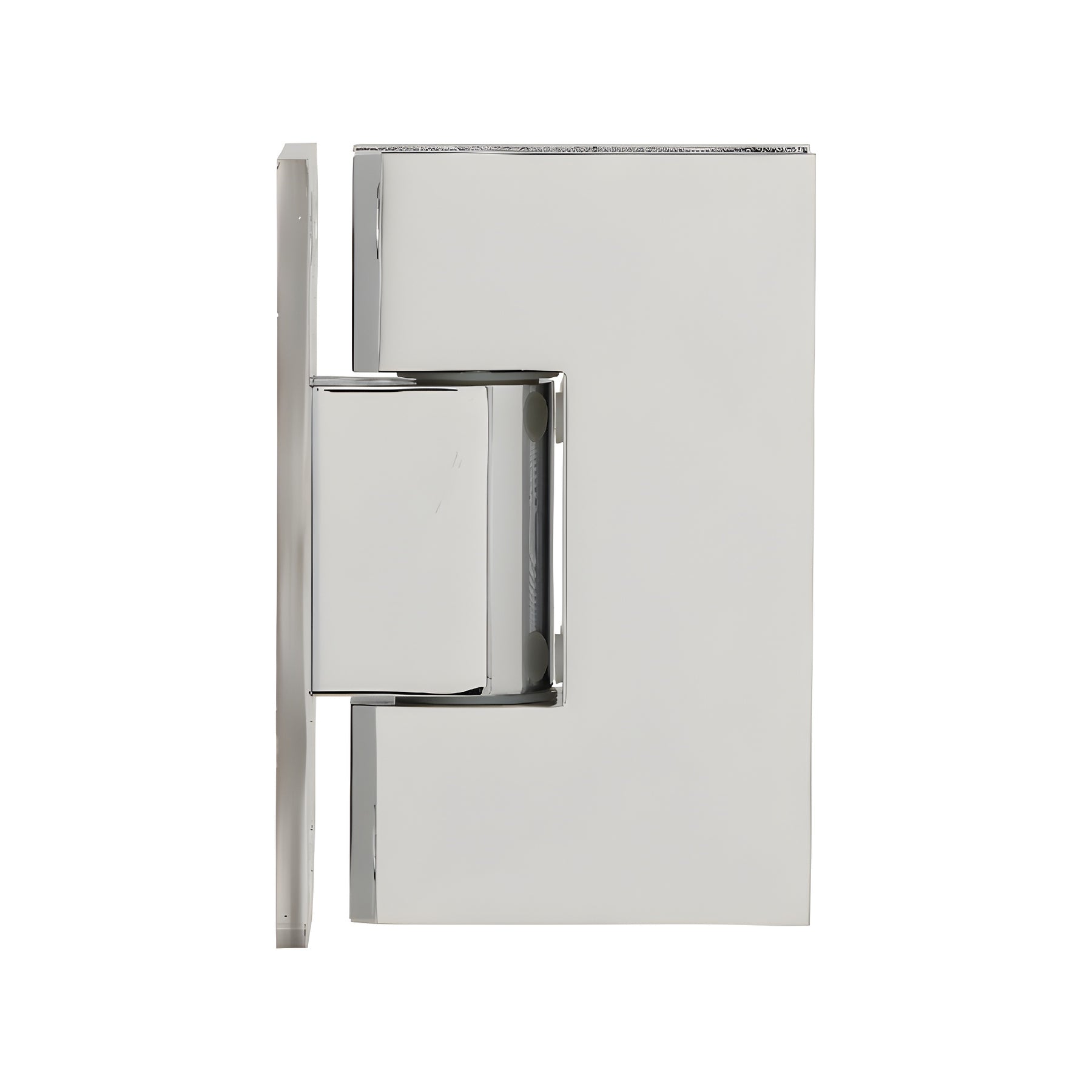

CRL Victoria Series Hinges (SKU: VCT037CH) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. This reduces visible hardware for a clean, minimalist shower appearance while providing heavy-duty holding power thanks to an integrated stiffening beam that minimizes clamping plate flex.
Key differentiators: heat-treated stainless steel springs for enhanced durability, increased self-centering force, and solid-brass construction for long-term corrosion resistance. Stocked in six popular finishes; custom finishes available.
NOTE: Do not use three hinges. Maximum two hinges per door. Do not exceed specified door weight or width capacities.
Using two hinges: With 3/8" to 1/2" (10 to 12 mm) glass up to 39" (1 m) wide, two hinges will hold up to 140 lbs (64 kg).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory-set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
NOTE: Glass fabrication is required. Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.
Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For applications beyond their intended purpose, obtain approval from the CRL Shower Door Technical Sales Department.
Most shipping weights are approximate and unverified. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor settings.
