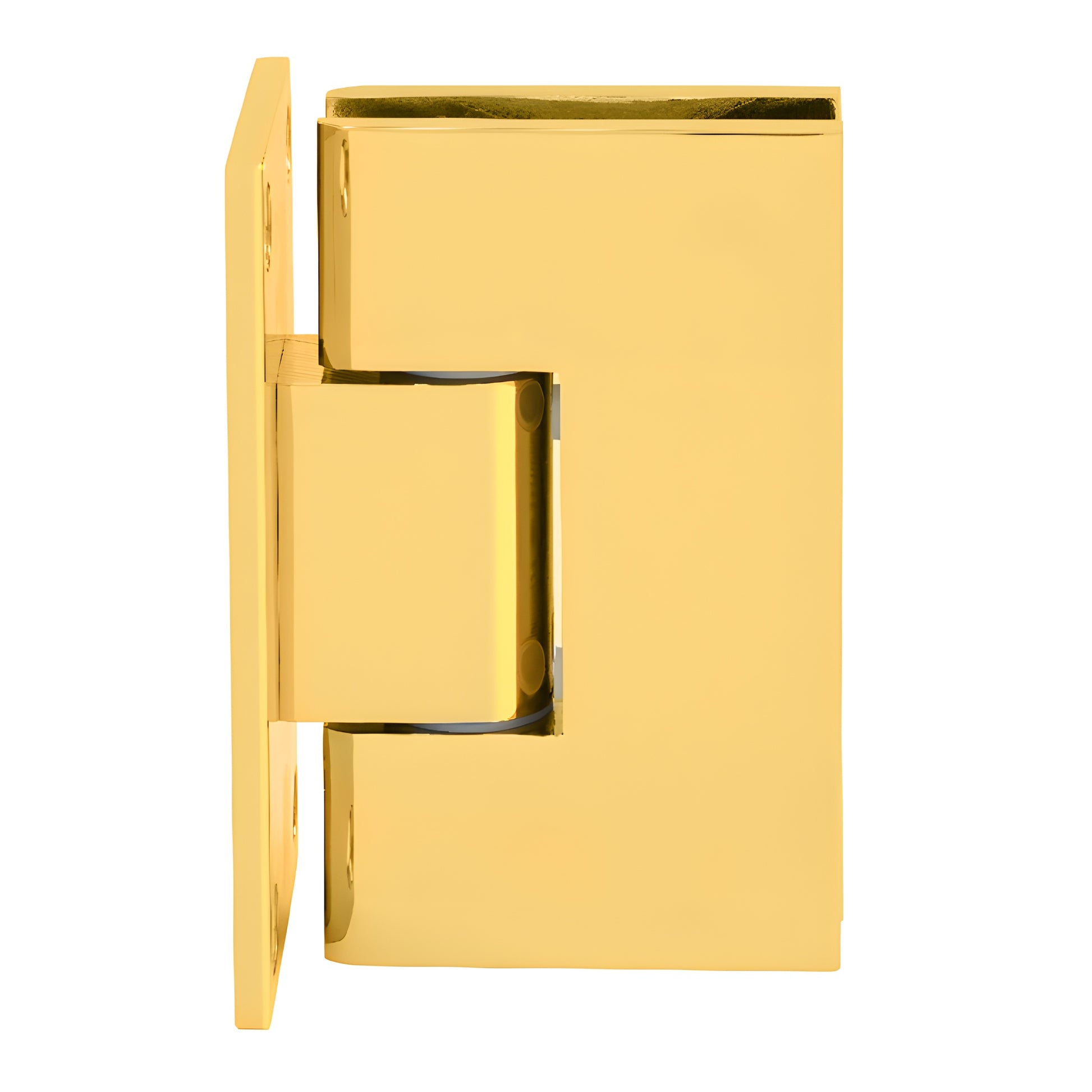

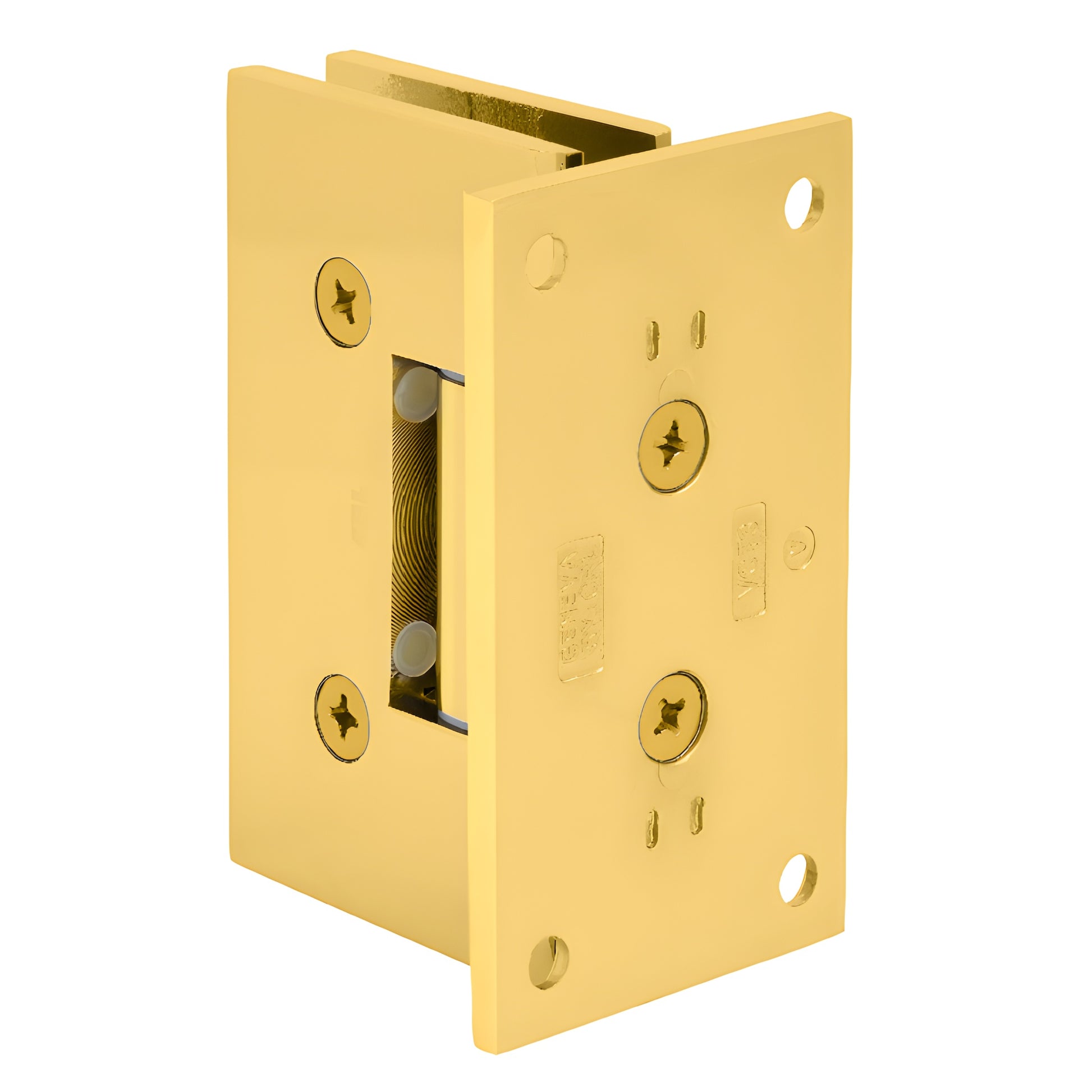

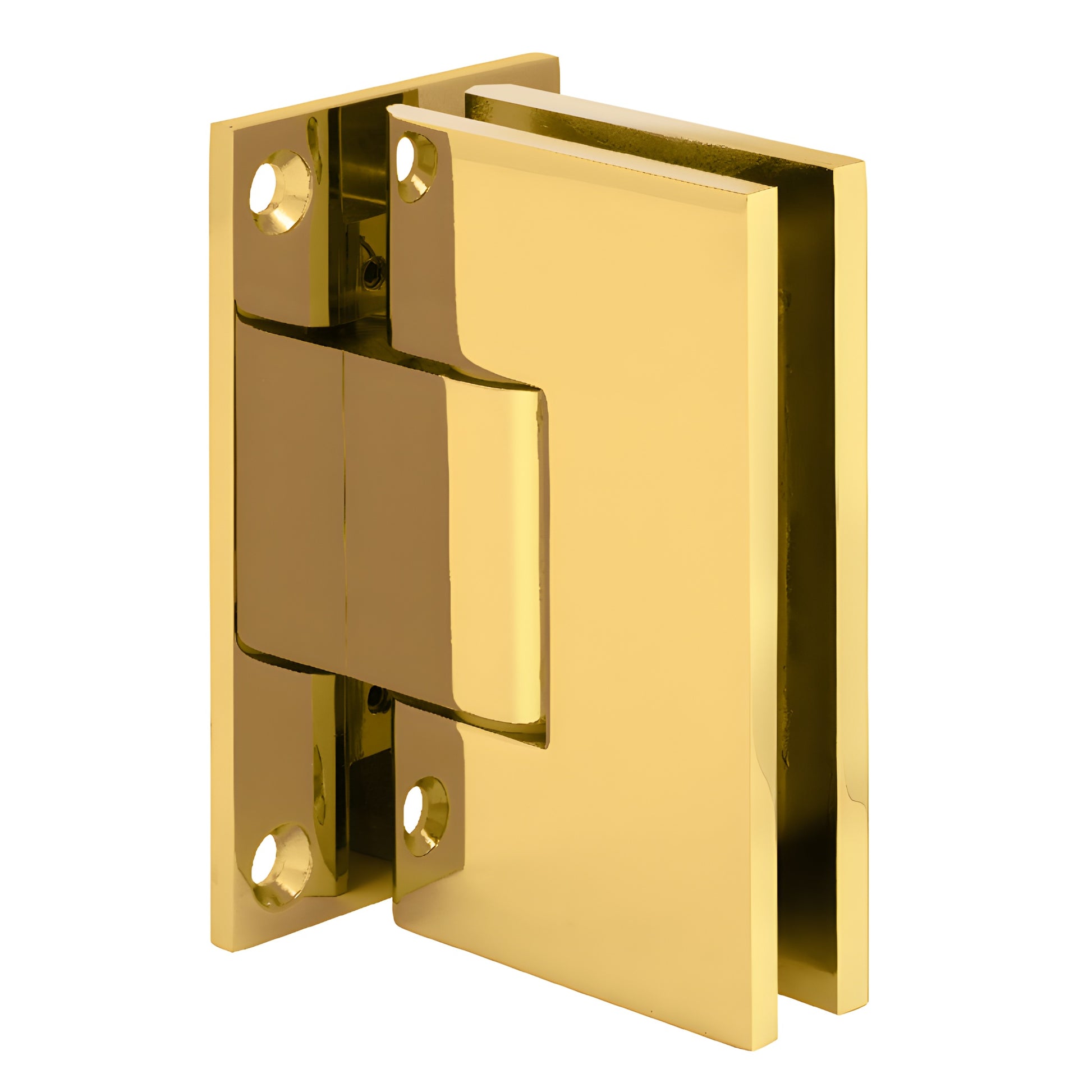

CRL Victoria Unlacquered Brass Wall-Mount Full Backplate Hinge

• An excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Available in wall-mount and 180° glass-to-glass models
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Victoria Series Hinges — Model VCT037ULBR support wider, heavier frameless shower doors with a maximum door weight of 140 lbs (64 kg) and a maximum door width of 39" (1 m) when using only two hinges. These hinges reduce visible hardware for a clean frameless shower door aesthetic while delivering exceptional holding power thanks to an integrated stiffening beam that minimizes clamping-plate flex. Heat-treated stainless steel springs provide increased durability and stronger self-centering force—ideal for high-use residential and hotel shower applications.

NOTE: Use a maximum of two hinges per door. Do not use three hinges.

Designed for 3/8" to 1/2" (10 to 12 mm) tempered safety glass, Victoria Series hinges are stocked in six popular finishes with custom finishes available. Includes gaskets, screws, and glass fabrication dimensions. Glass fabrication is required.

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (at factory-set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required

NOTE: Do not exceed door weight or width maximum capacities. Maximum two hinges per door. Glass fabrication is required.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For alternate applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
