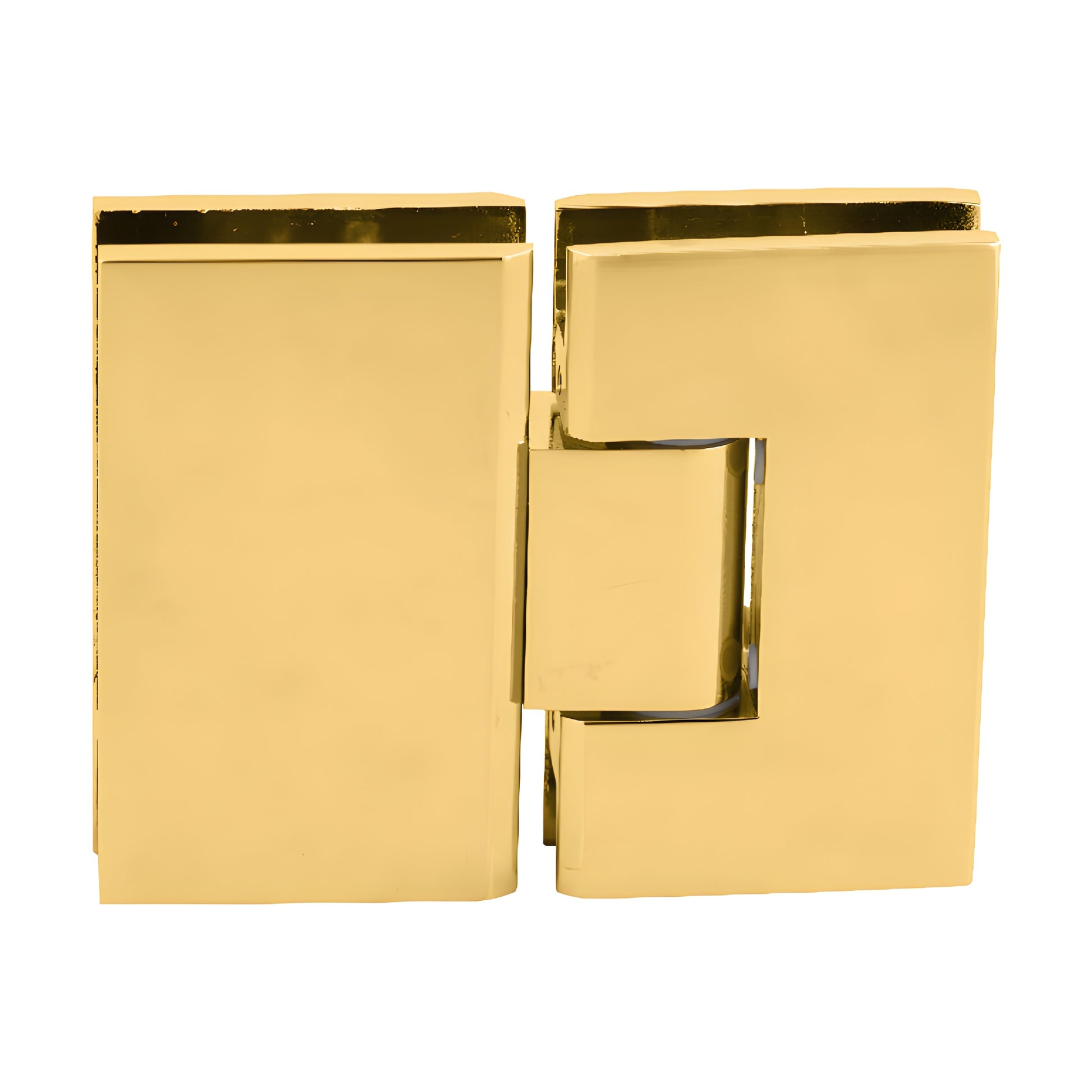

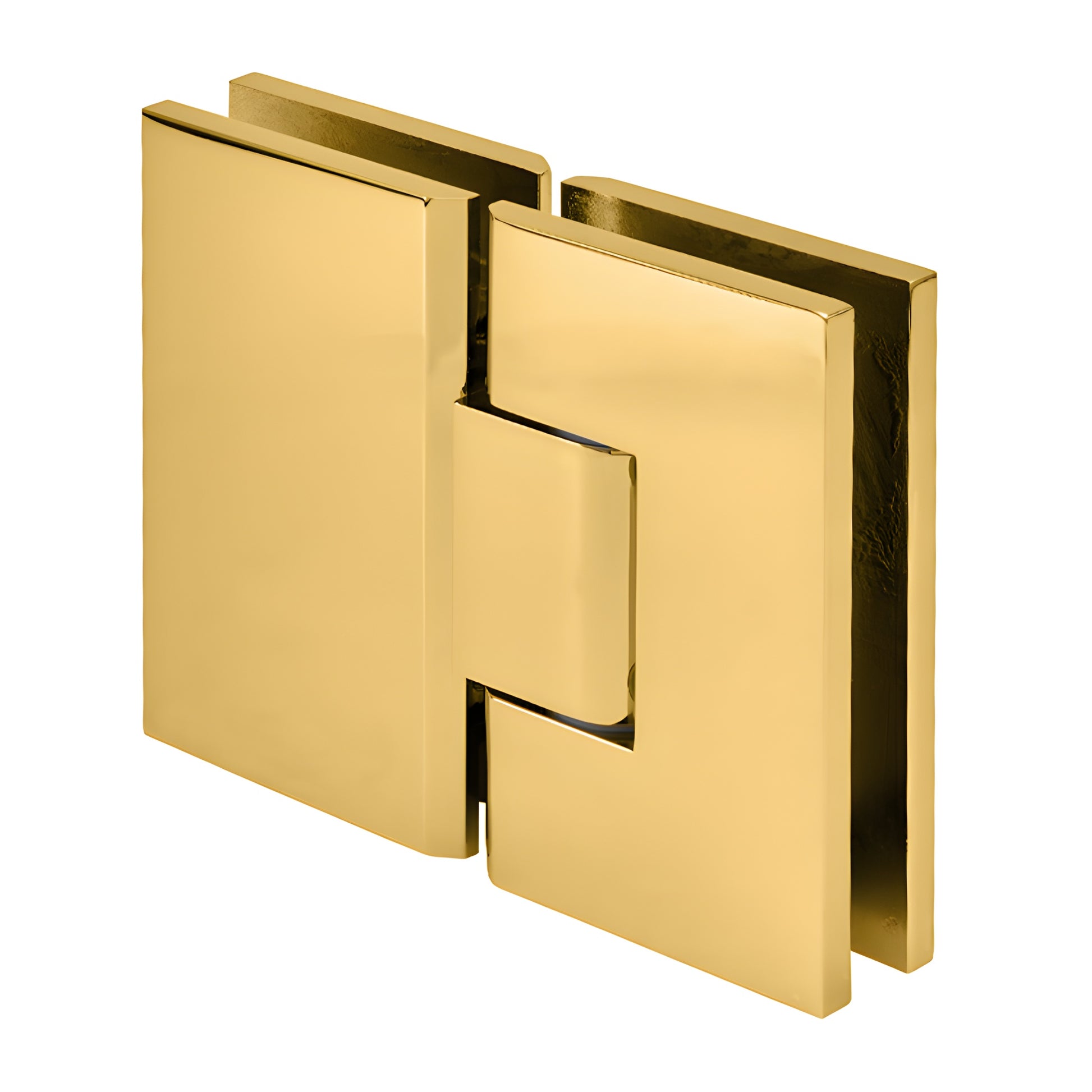

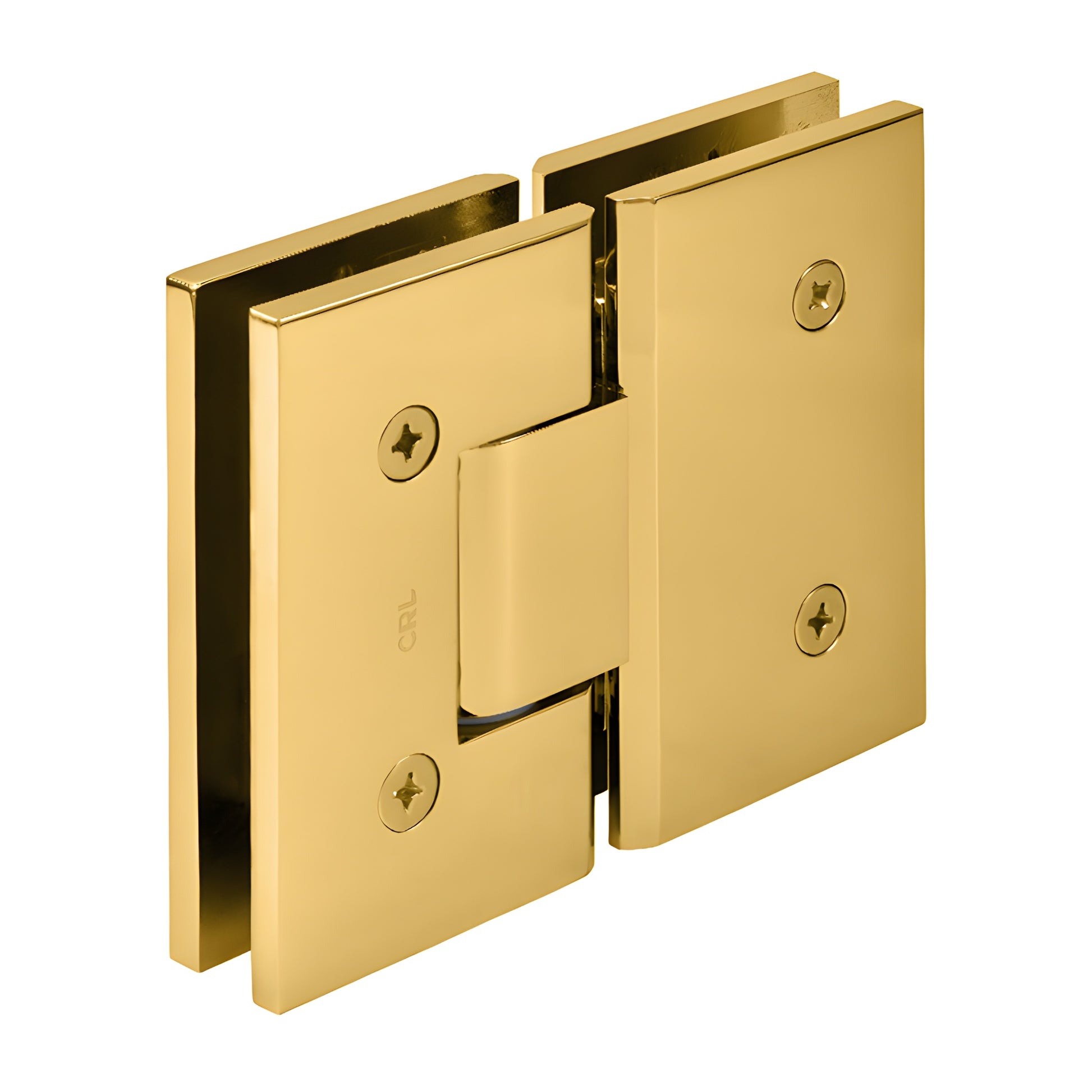

CRL Victoria 180° Unlacquered Brass Glass-to-Glass Shower Door Hinge

• An excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Wall-mount and 180° glass-to-glass models available
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Victoria Series Hinges (SKU: VCT180ULBR) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These solid brass, 180-degree shower door hinges reduce visible hardware for a clean frameless look and incorporate an integrated stiffening beam to minimize clamping plate flex for superior holding power. Heat-treated stainless steel springs increase durability and deliver stronger self-centering performance.


NOTE: Do not use three hinges.

For use with 3/8" and 1/2" (10 and 12 mm) tempered glass. Stocked in six popular finishes; custom finishes available. Using two hinges with 3/8"–1/2" (10–12 mm) glass at 39" (1 m) width, the pair will hold up to 140 lbs (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Do not exceed maximum door weight or width. Maximum two hinges per door. Glass fabrication is required.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Brass Finish Advisory:
