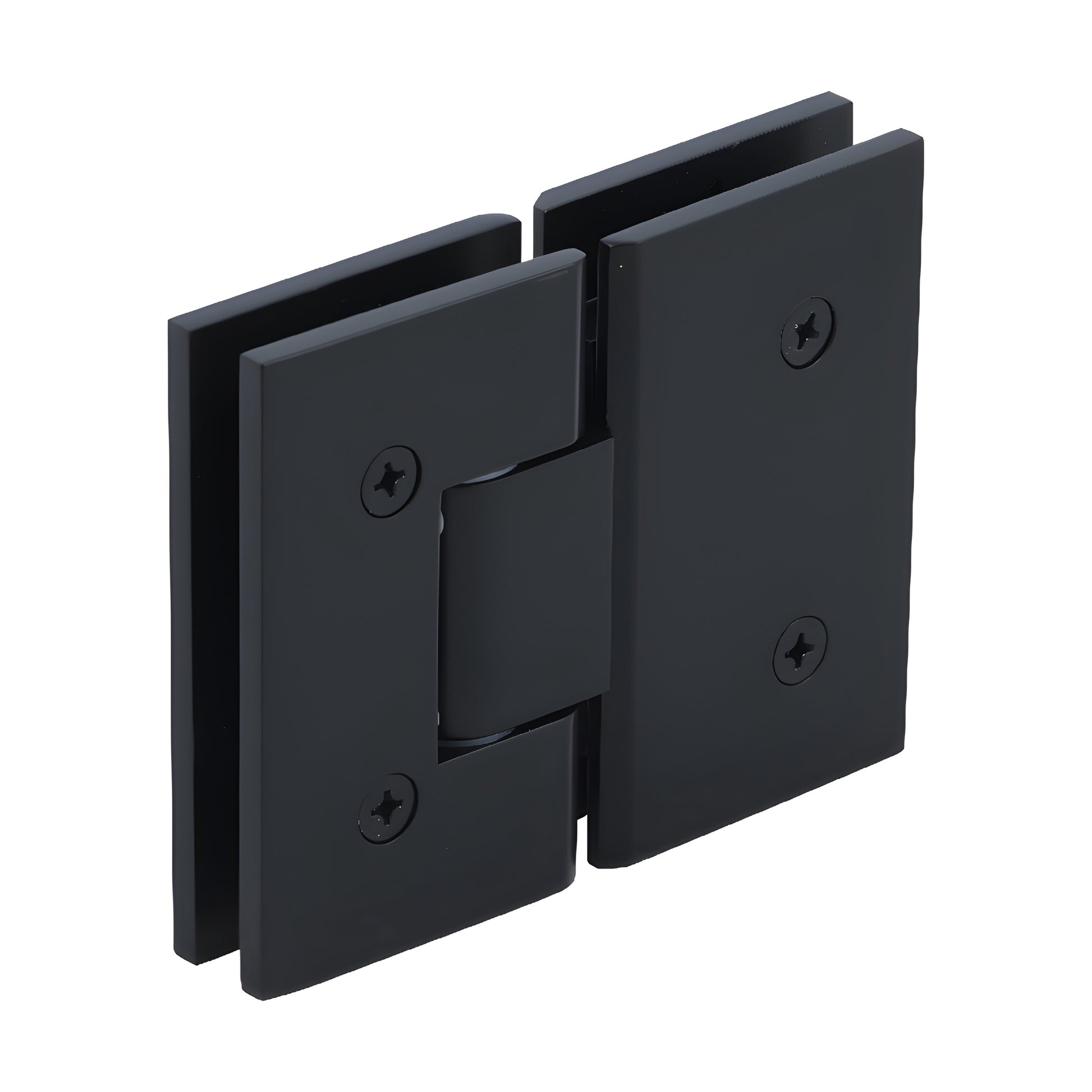

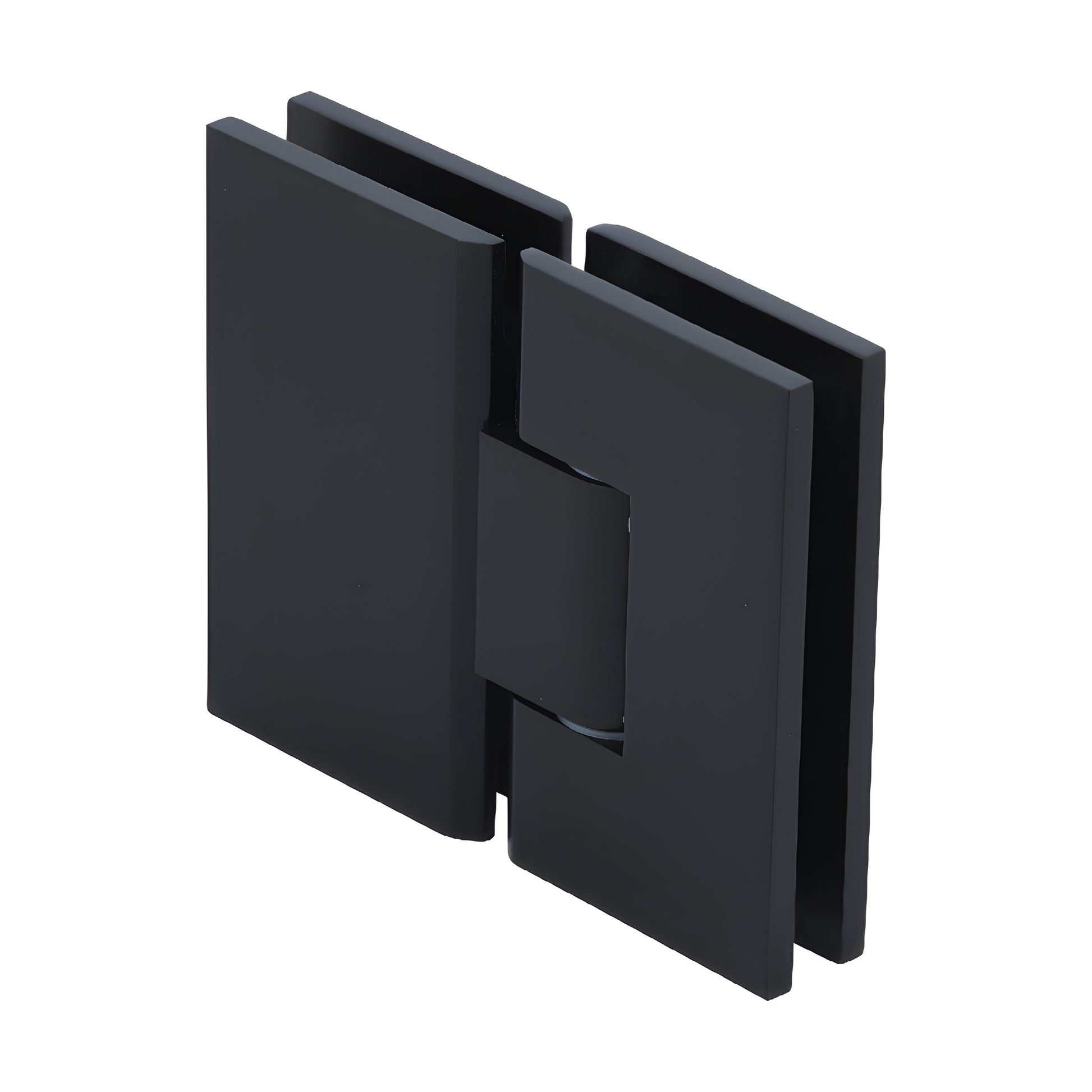

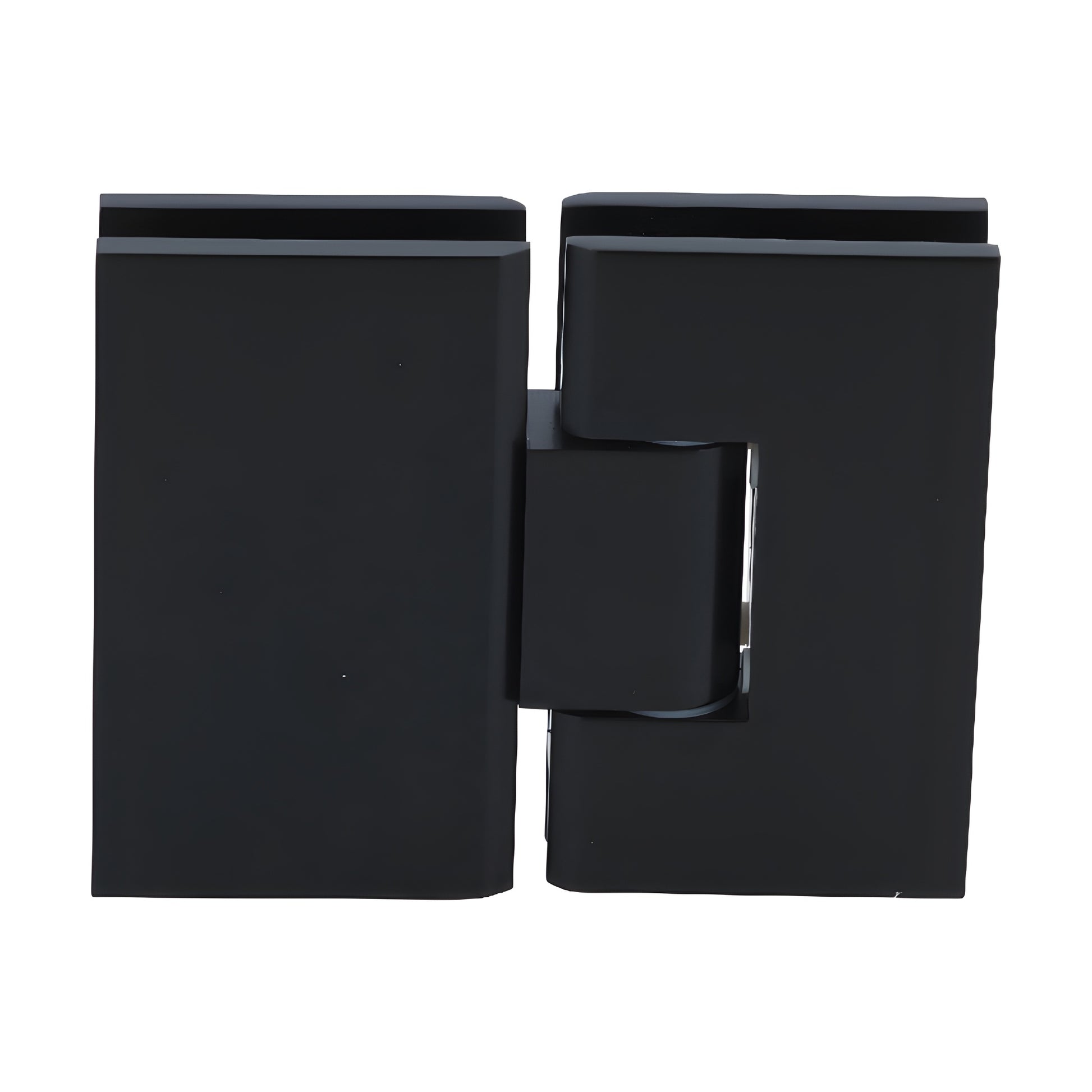

CRL Victoria 180° Matte Black Glass-to-Glass Shower Door Hinge

• SKU: VCT180MBL — Ideal for heavier, wider frameless shower doors
• Integrated safety interlock and stiffening beam for superior glass panel control
• Available as wall-mount and 180° glass-to-glass hinge models
• For 3/8" to 1/2" (10 to 12 mm) tempered safety glass

CRL Victoria Series Hinges support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges—making them a top choice for high-capacity shower door hinges and commercial-grade hotel installations.


NOTE: Do not use three hinges.

These hinges reduce visible hardware for a cleaner frameless aesthetic. An integrated stiffening beam minimizes clamping plate flex for exceptional holding power, while heat-treated stainless steel springs increase durability and self-centering force. Stocked in six popular finishes; custom finishes available.

Using two hinges with 3/8" to 1/2" (10 to 12 mm) glass at up to 39" (1 m) width will hold up to 140 lbs (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Do not exceed maximum door weight or width capacities. Maximum two hinges per door. Glass fabrication required.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may differ from other brands.


Order the VCT180MBL Victoria Series hinge for a durable, high-capacity frameless shower door solution.
