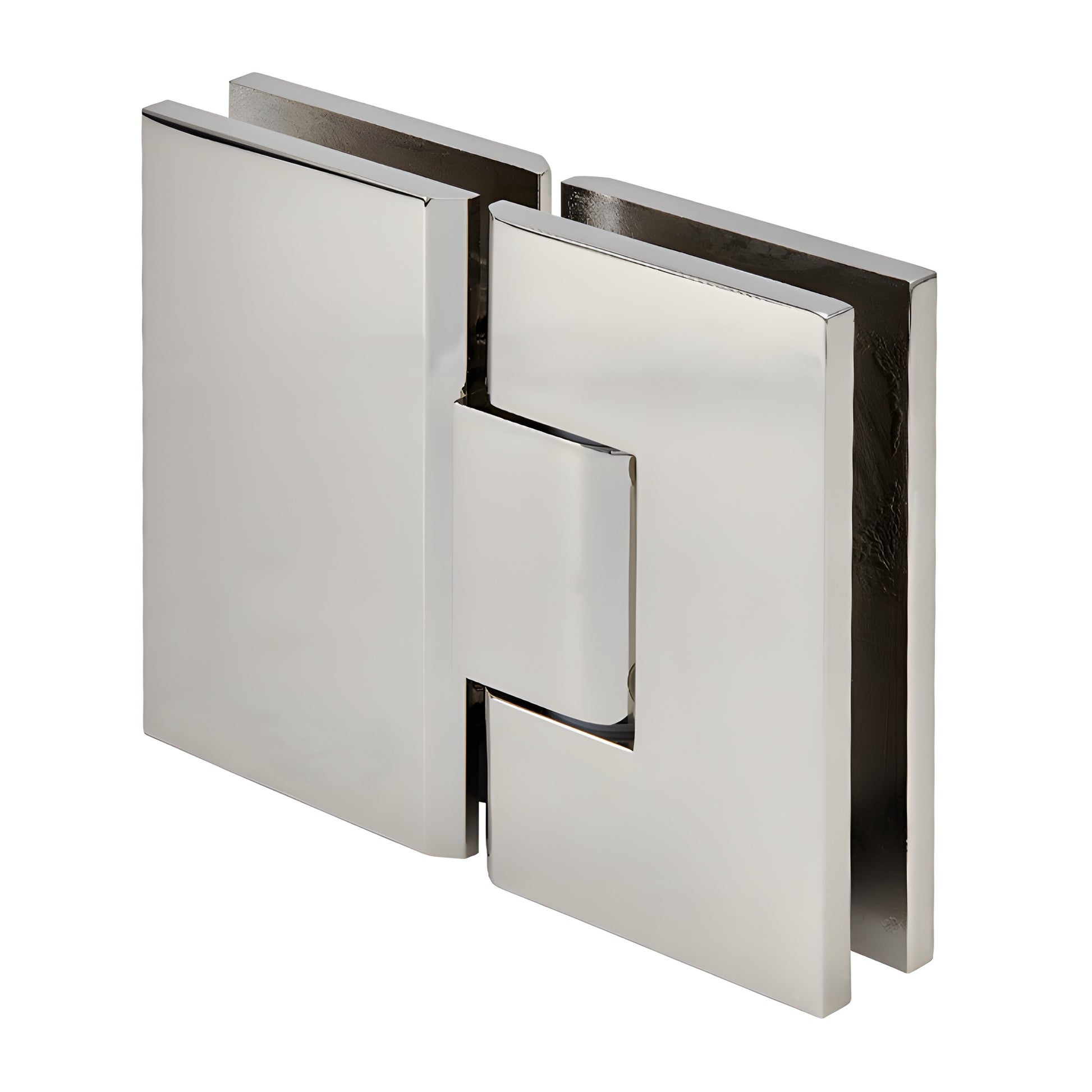

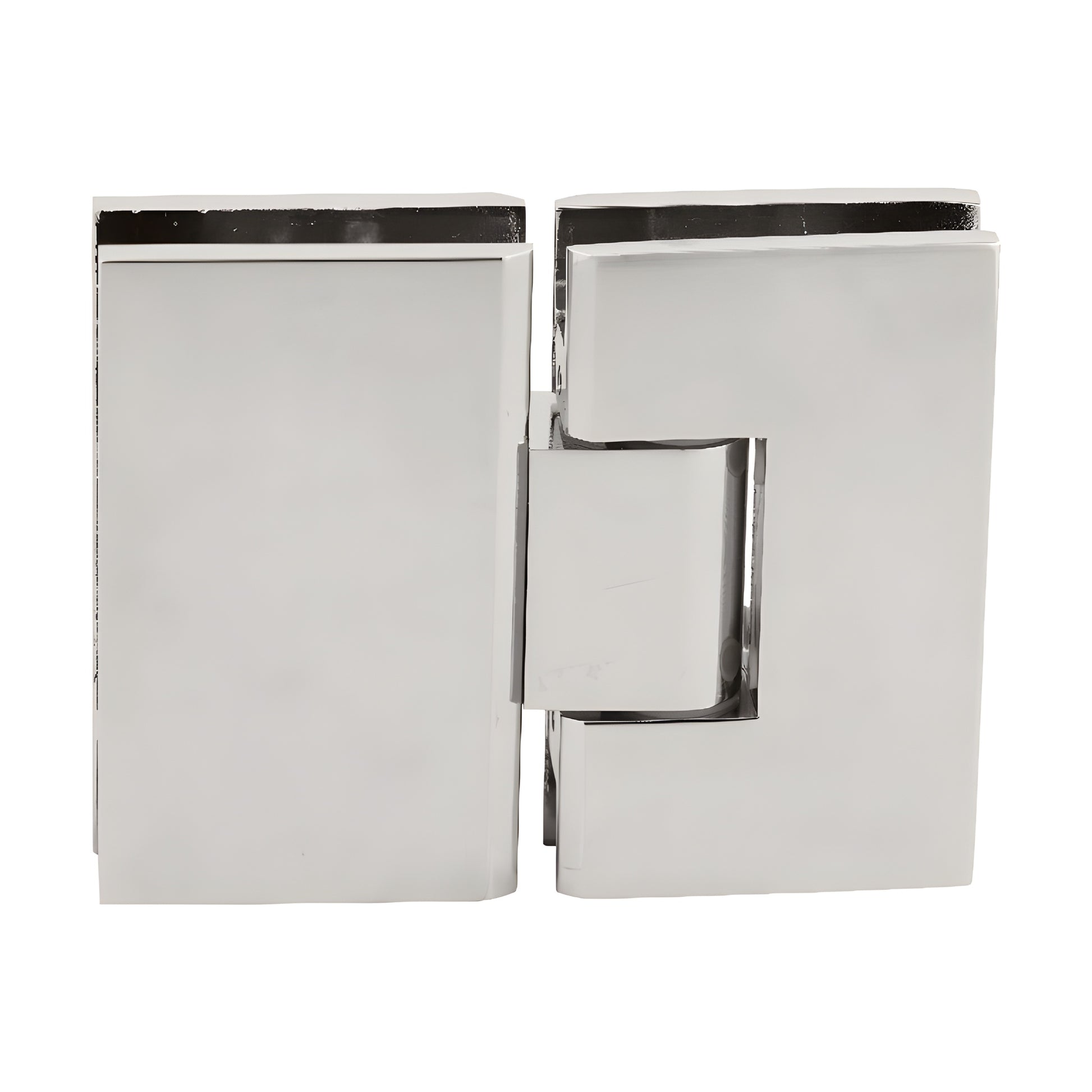

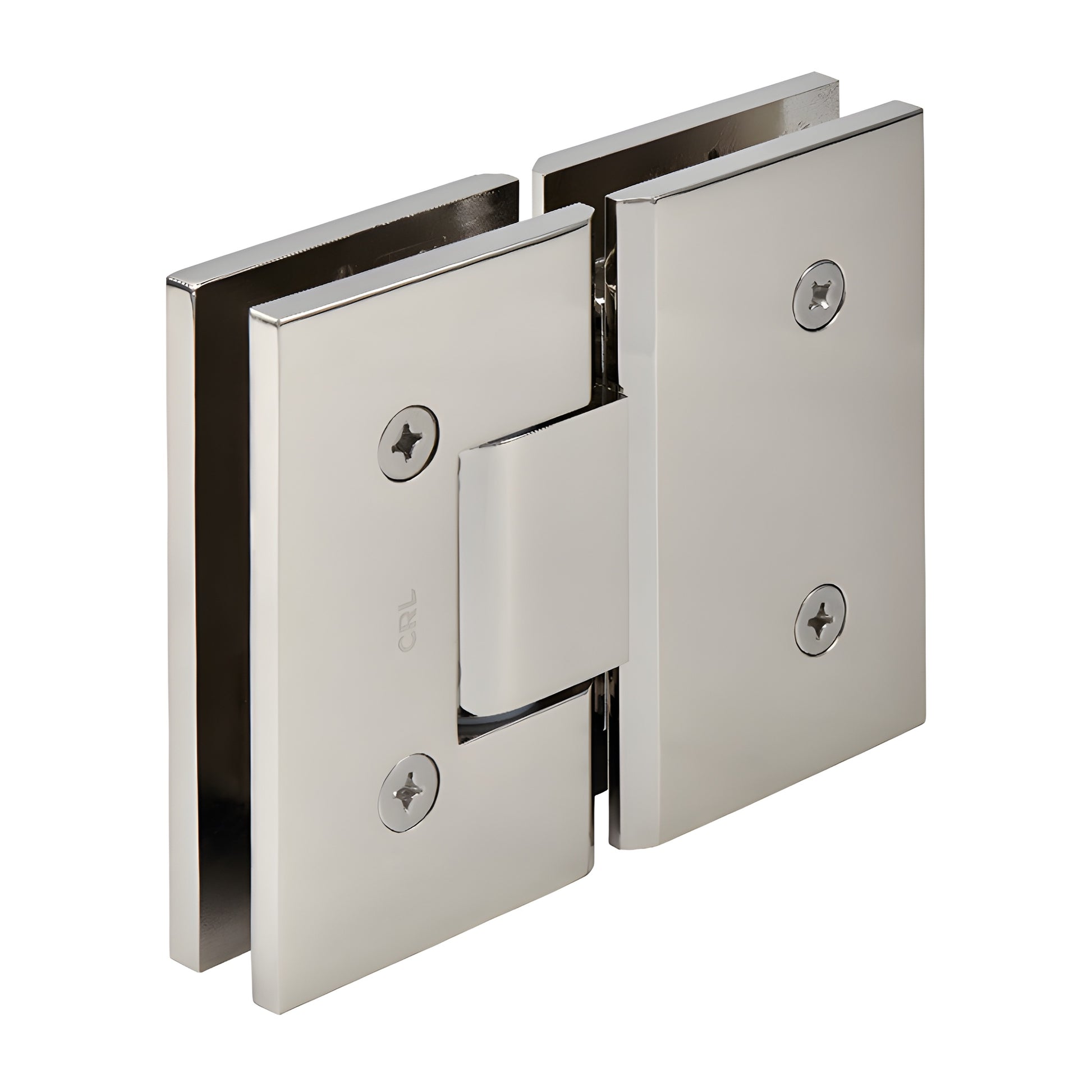

CRL Victoria 180° Glass-to-Glass Polished Nickel Shower Door Hinge

• SKU: VCT180PN — Frameless 180° glass-to-glass and wall-mount shower door hinge
• Supports wider, heavier frameless shower doors up to 140 lbs (64 kg) and 39" (1 m) wide using two hinges
• Integrated safety interlock and stiffening beam for superior glass panel control and reduced clamp flex
• For 3/8" to 1/2" (10 to 12 mm) tempered safety glass

CRL Victoria Series Hinges deliver a clean frameless shower aesthetic by minimizing visible hardware while supporting heavier, wider doors. The integrated stiffening beam reduces clamping plate flex for exceptional holding power; heat-treated stainless steel springs increase durability and provide strong self-centering force. Available in six stocked finishes with custom finishes on request.

Important: Use only two hinges per door. Do not use three hinges.

Key Features

• Maximum door weight: 140 lbs (64 kg) using two hinges
• Maximum door width: 39" (1 m) with two hinges
• Glass thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Construction: Solid brass
• Hinge swings: 90° in and 90° out (factory set)
• Closing type: Self-centering within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions (cut-out template required)

Specifications:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position

NOTE: Do not exceed maximum door weight or width. Maximum two hinges per door. Glass fabrication and proper cut-out per the included template are required. Cut-out dimensions for CRL hinges may not match other brands.

Product Warning:
CRL Shower Door Hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template supplied with this hinge.
