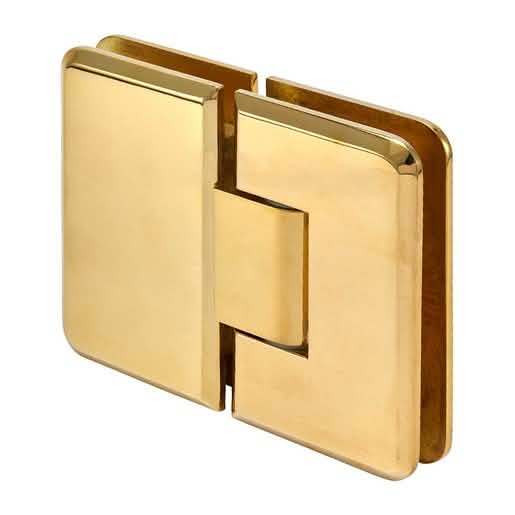

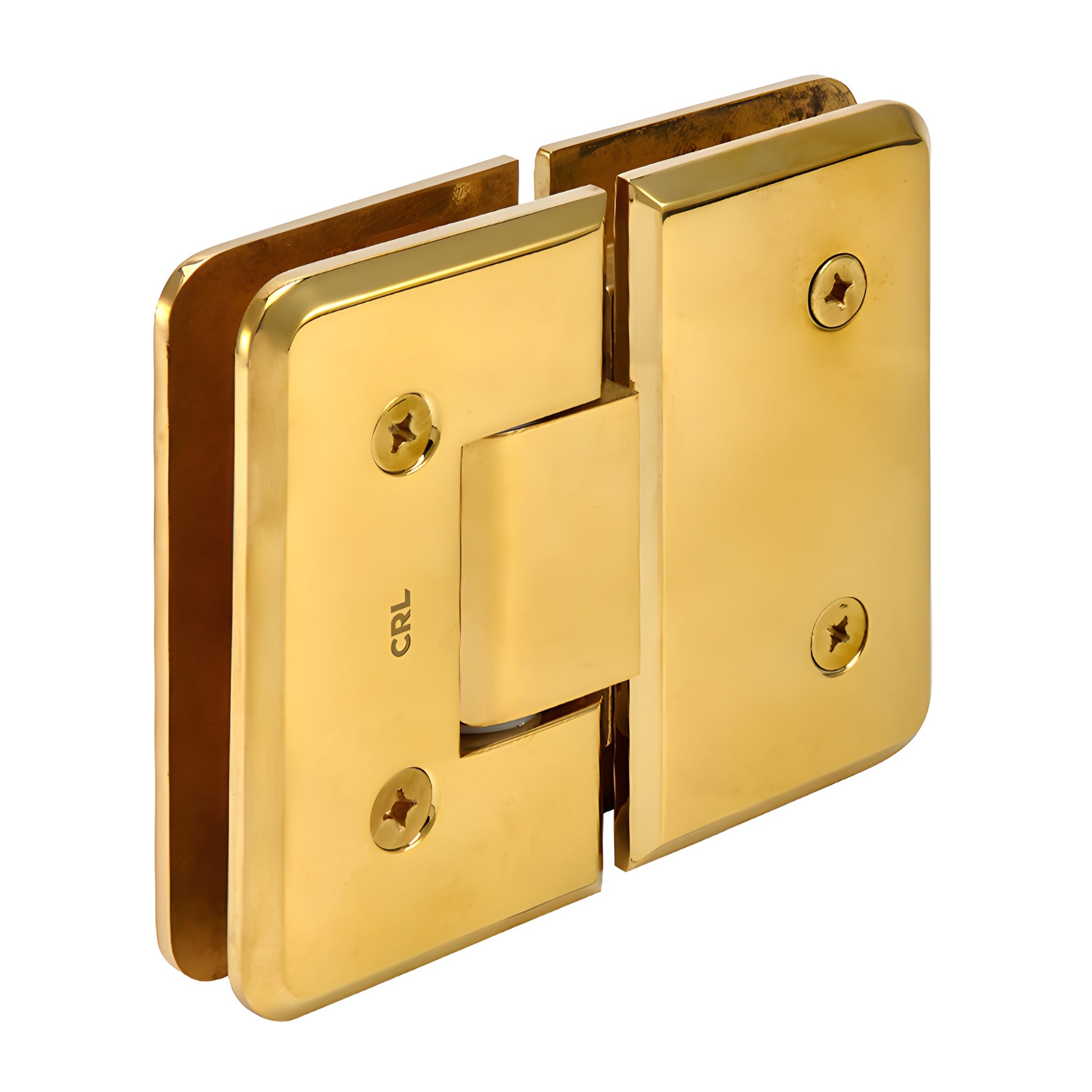

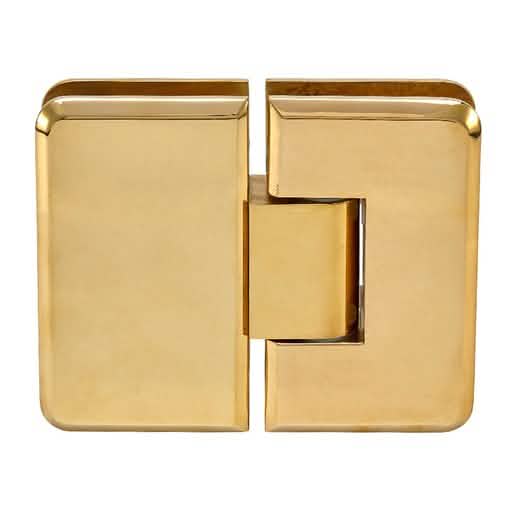

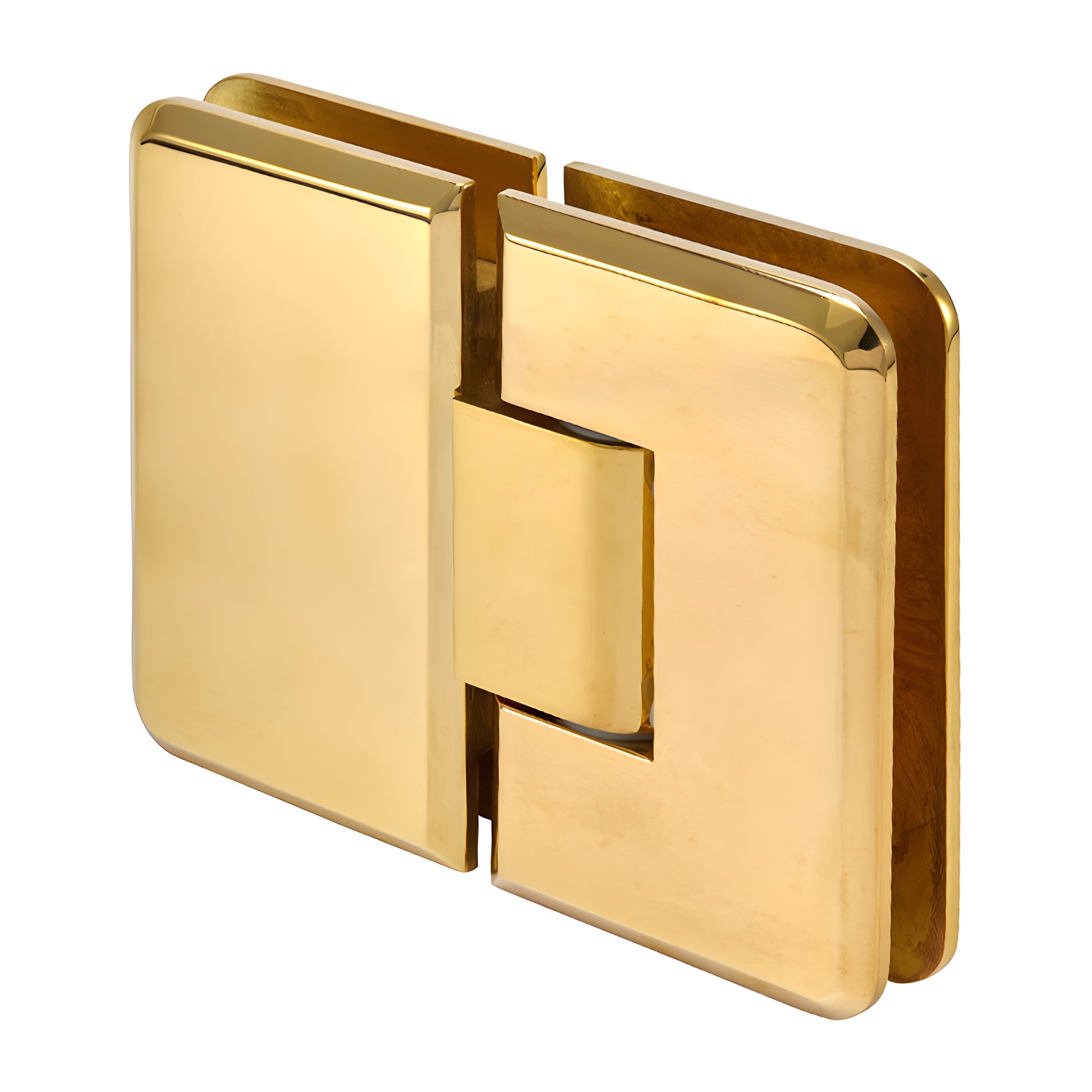

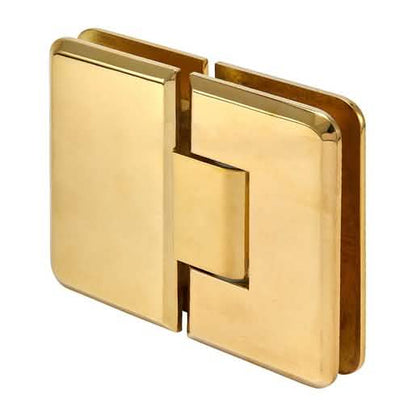

CRL Plymouth 180° Unlacquered Brass Glass-to-Glass Hinge - Frameless

• Excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Available wall-mount and 180° glass-to-glass models
• Fits 3/8" to 1/2" (10 to 12 mm) tempered safety glass

CRL Plymouth Series Hinges (SKU: PLY180ULBR) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These heavy-duty 180-degree shower hinges reduce visible hardware for a clean frameless aesthetic and are ideal as a frameless shower door hinge for 3/8 to 1/2 inch glass.

Do not use three hinges. These hinges feature an integrated stiffening beam to minimize clamping plate flex and increase holding power, higher self-centering force, and heat-treated stainless steel springs for improved durability.

Using two hinges with 3/8"–1/2" (10–12 mm) glass and a 39" (1 m) door width will support up to 140 lbs (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Do not exceed maximum door weight or width capacities. Maximum two hinges per door. Glass fabrication is required.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
