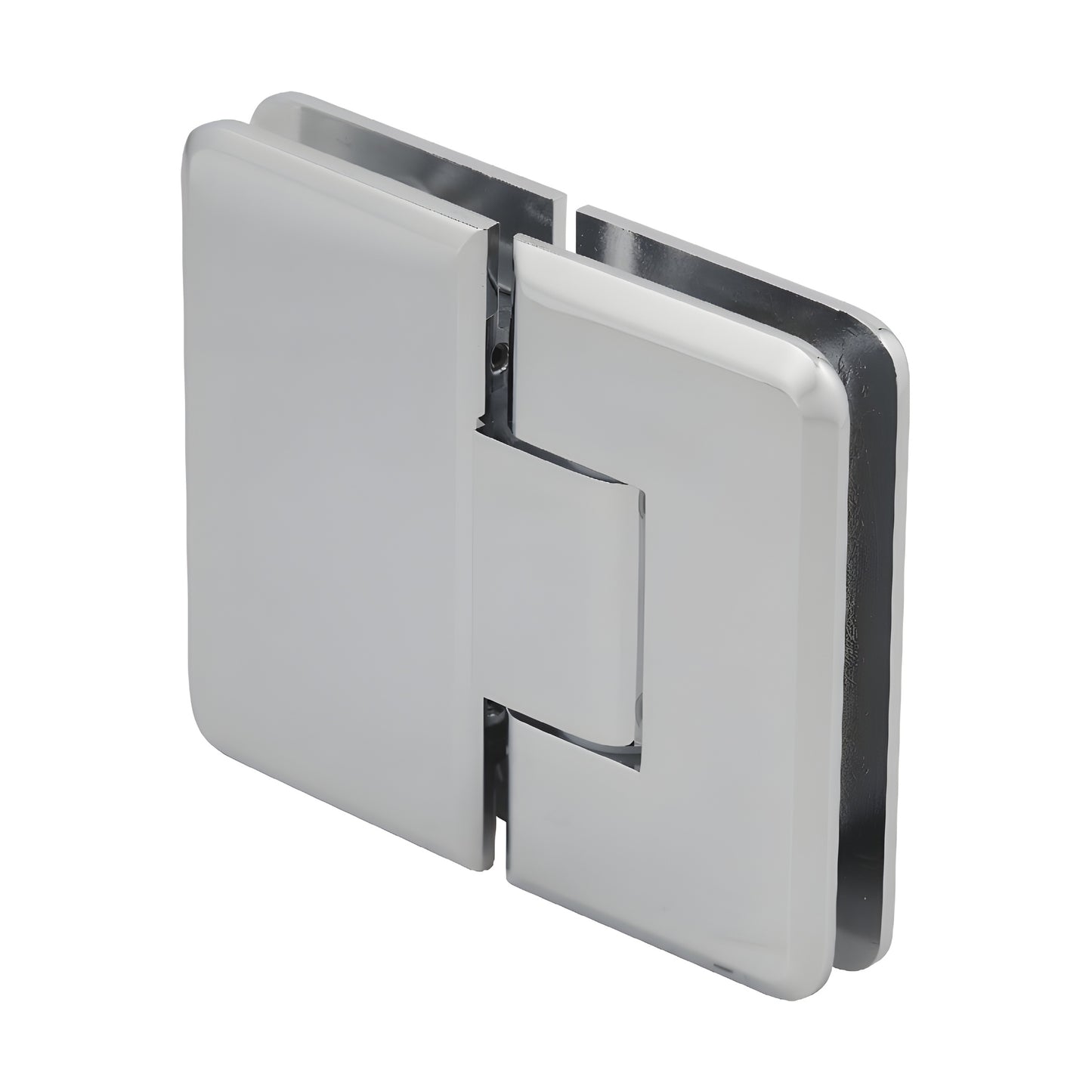

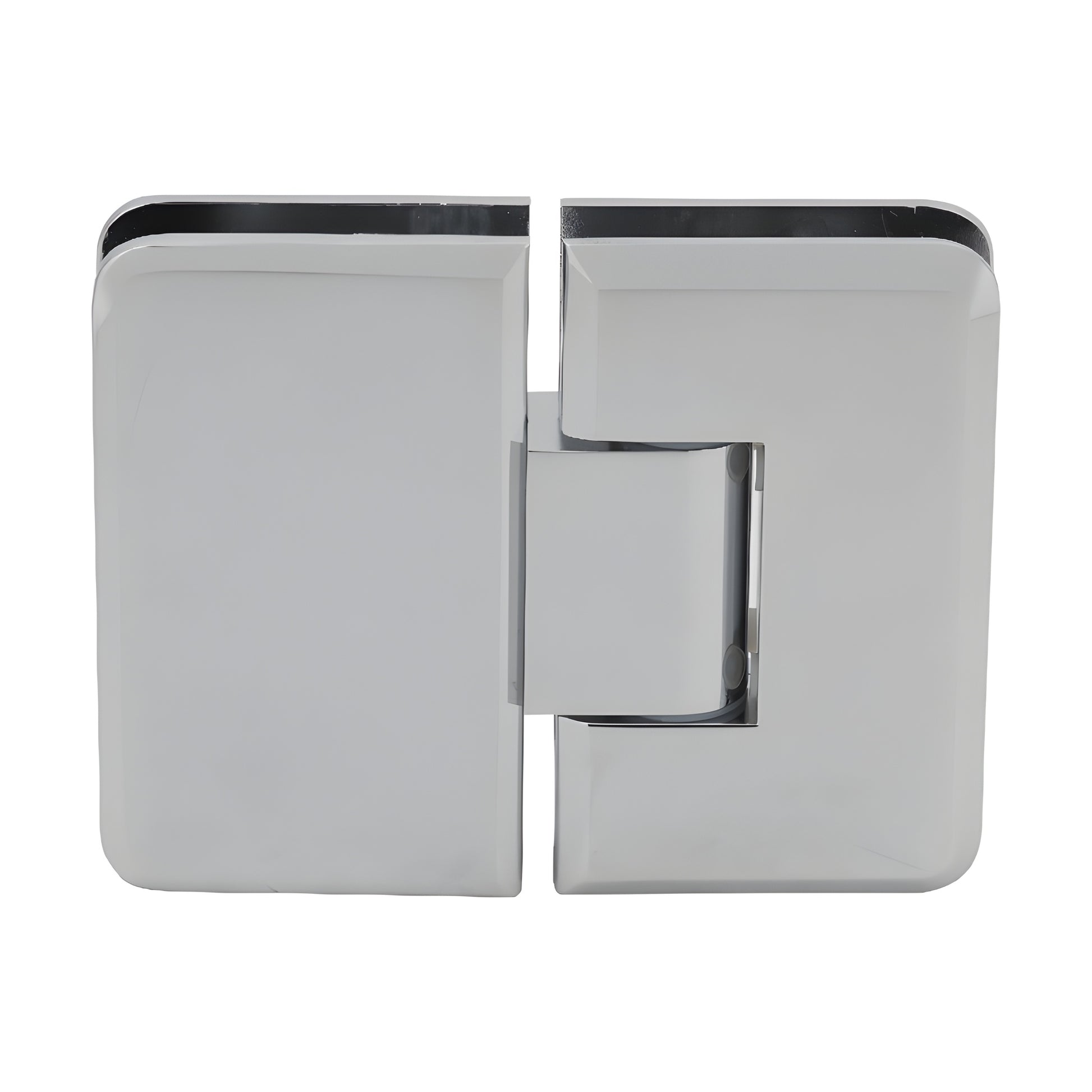

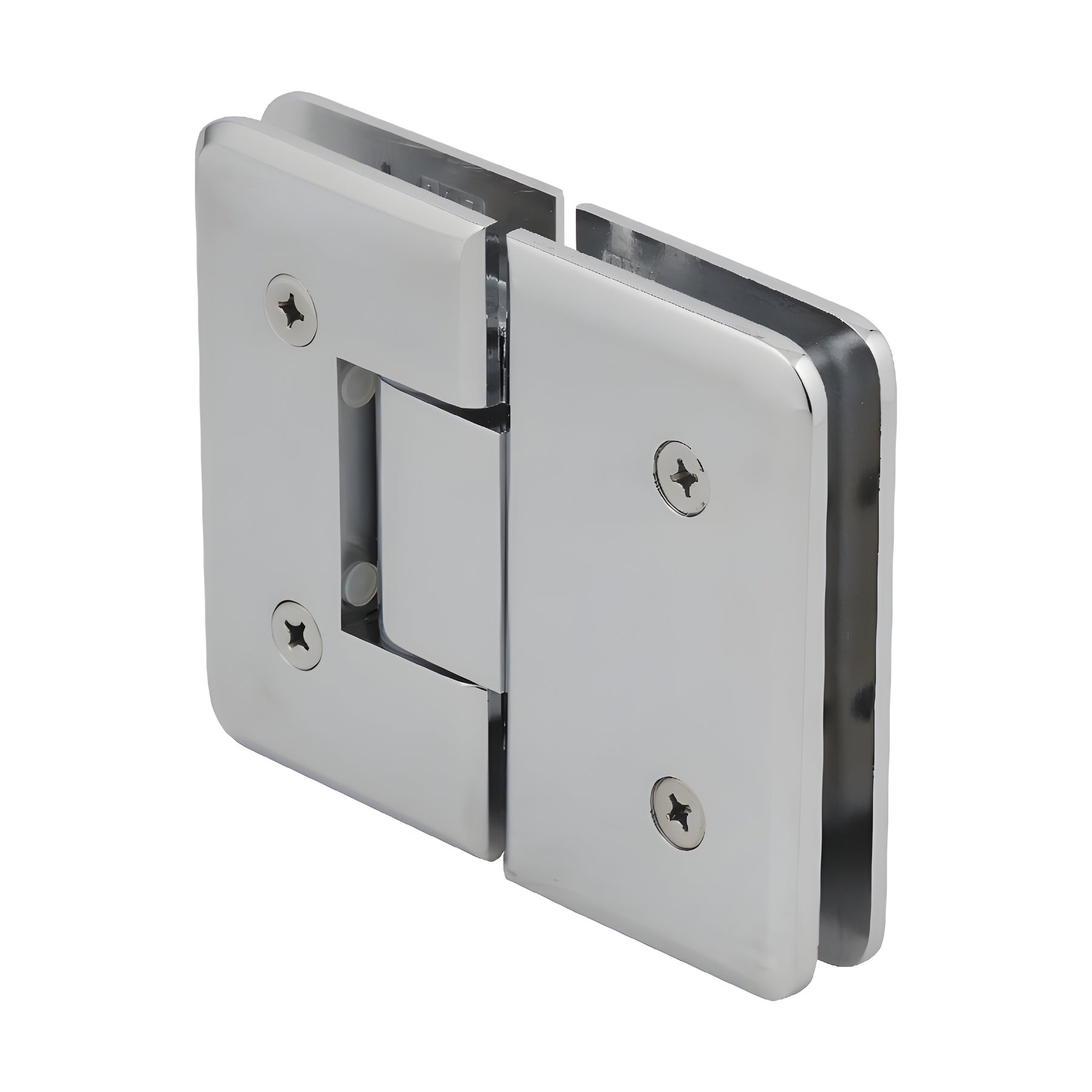

CRL Plymouth Chrome 180° Frameless Glass-to-Glass Shower Hinge

• Ideal for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Available as wall-mount and 180° glass-to-glass hinge models
• For 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Plymouth Series Hinges (SKU: PLY180CH) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These solid-brass, heavy-duty shower door hinges use an integrated stiffening beam to minimize clamping-plate flex for exceptional holding power and increased self-centering force. Heat-treated stainless steel springs improve durability for frequent use in residential and hotel shower applications.

Important: Use only two hinges per door; do not use three. Do not exceed maximum door weight or width. Glass fabrication and the included template are required.

Key Features & Differentiators

• Frameless shower door hinge for wider, heavier doors—reduces visible hardware
• Integrated safety interlock for enhanced glass control and user safety
• 180-degree glass-to-glass and wall-mount options for versatile frameless shower configurations
• Durable construction with solid brass body and heat-treated stainless springs

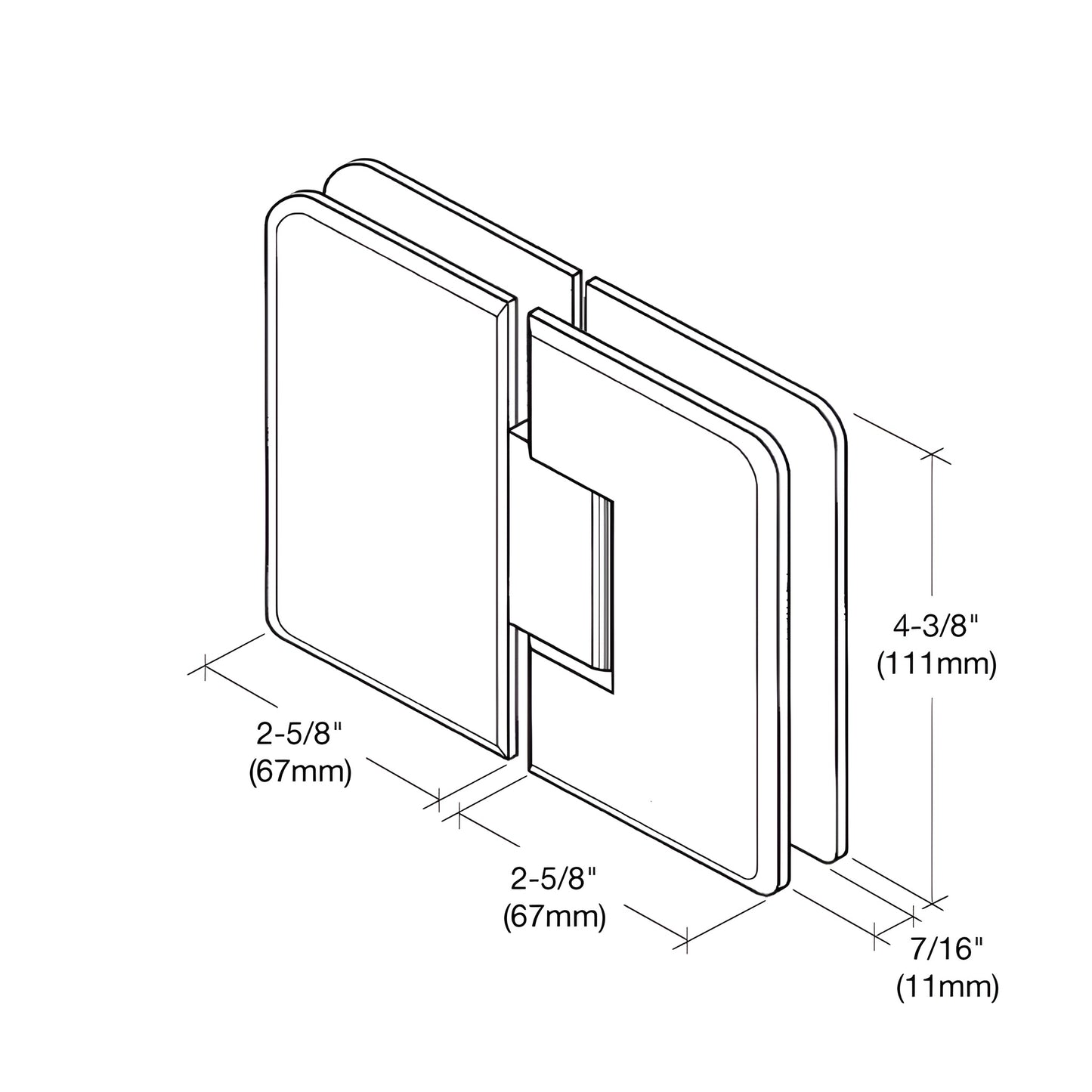

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Maximum Door Weight (with two hinges): 140 lbs (64 kg)
Maximum Door Width (with two hinges): 39" (1 m)
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions/template

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the included template—cut-out dimensions may not match other brands.
