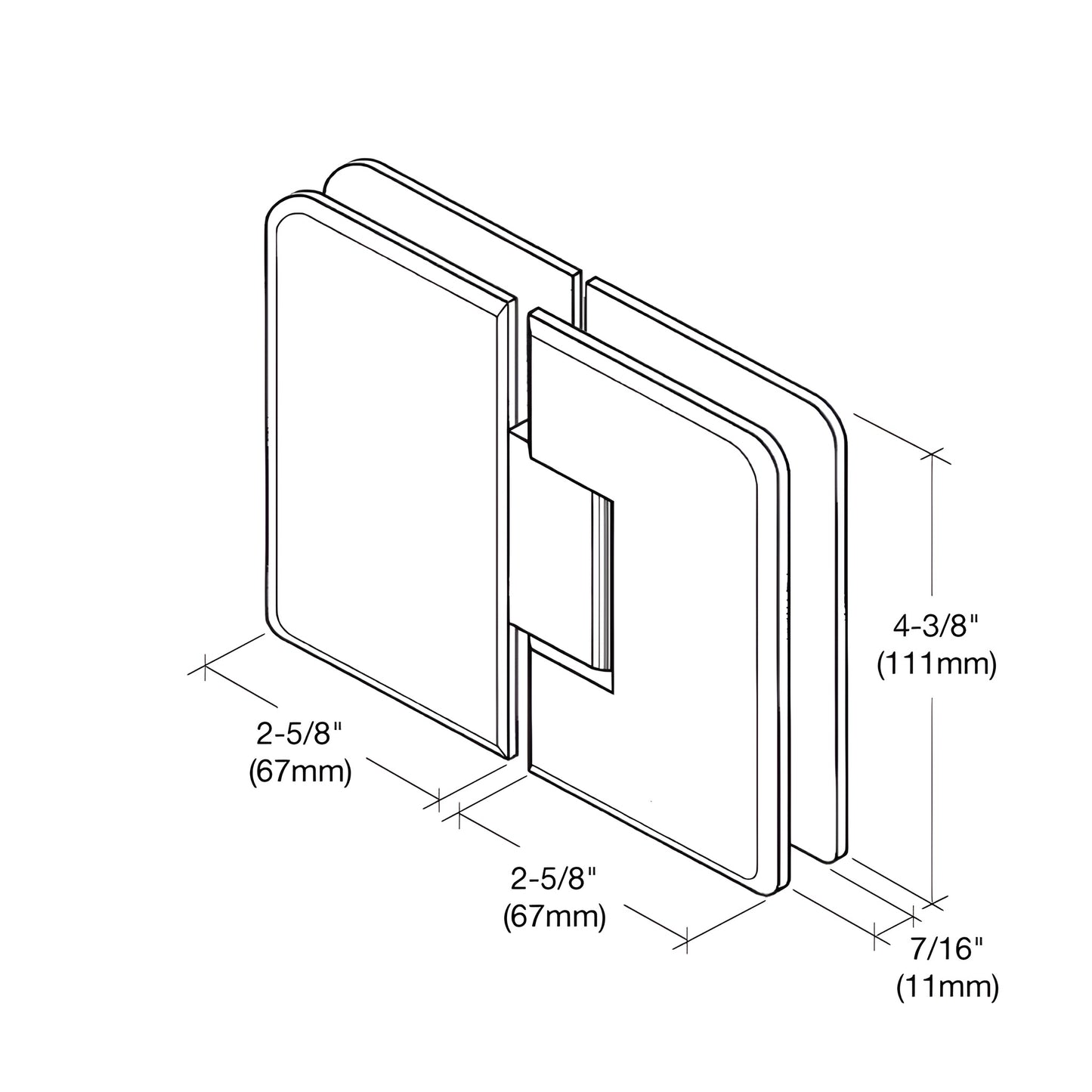

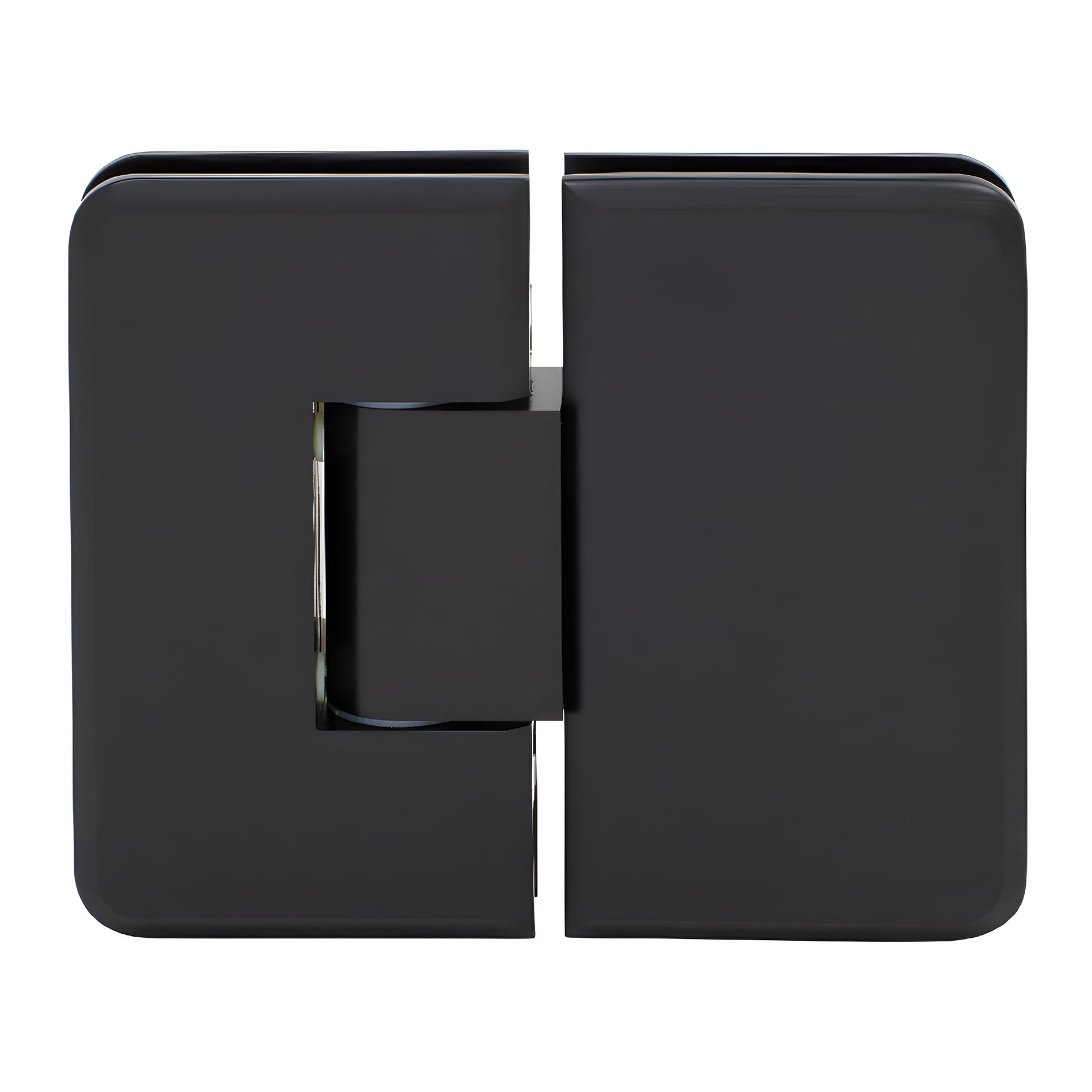

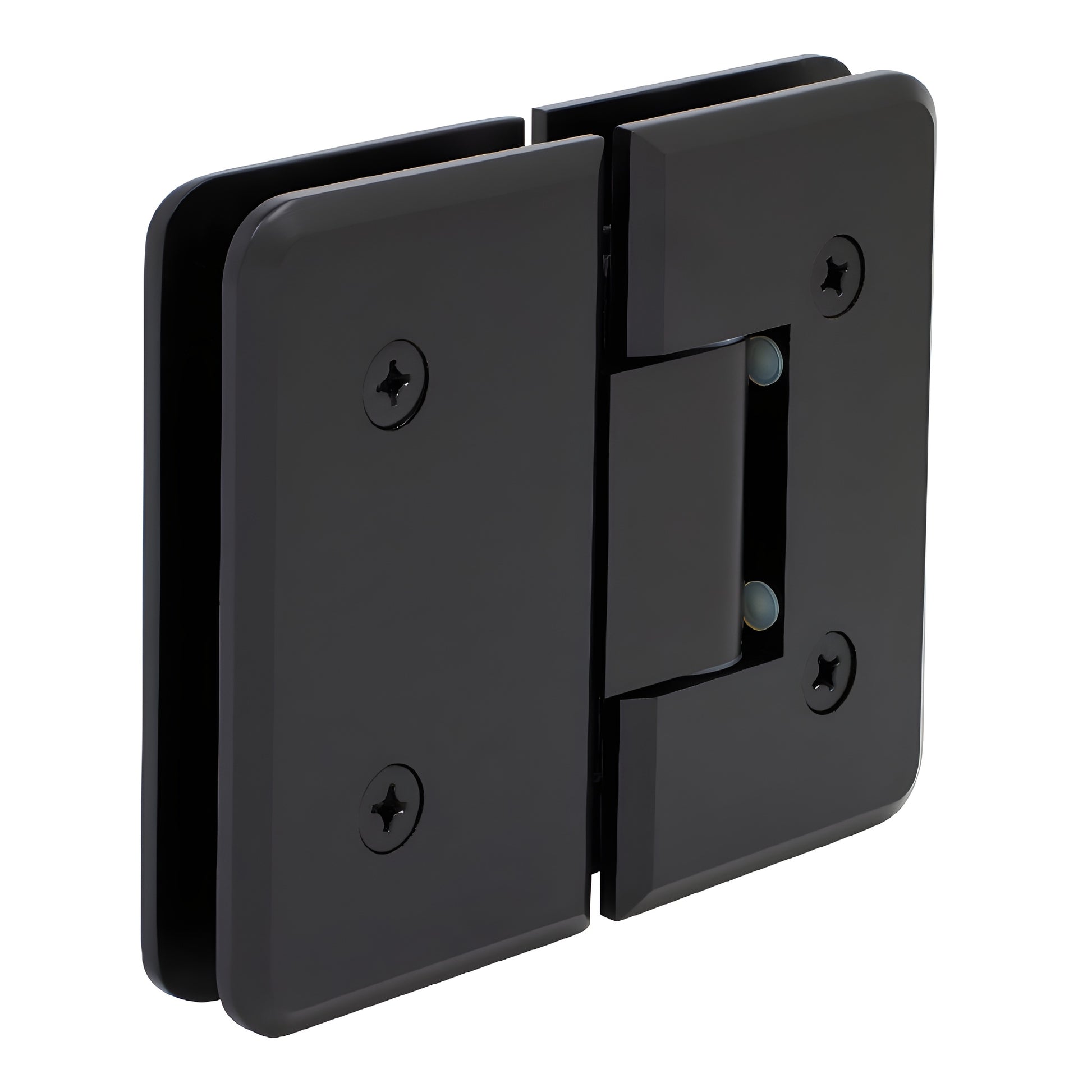

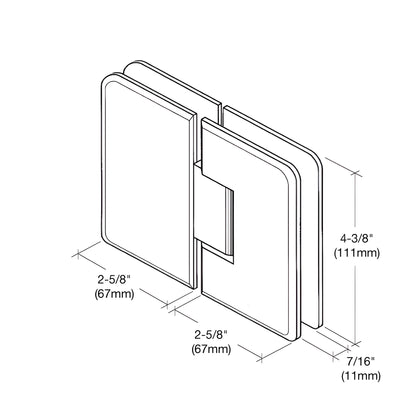

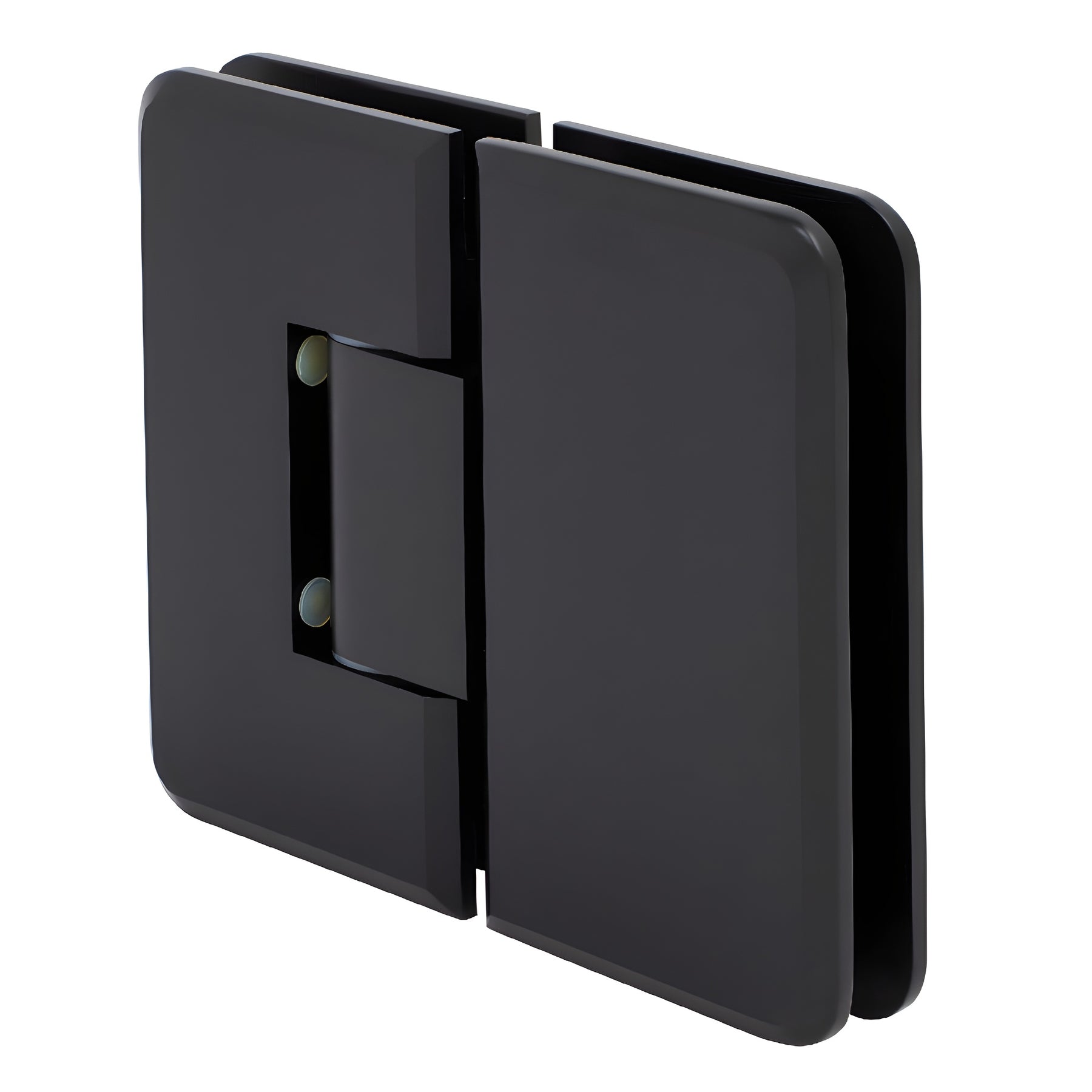

CRL Plymouth 180° Oil Rubbed Bronze Glass-to-Glass Shower Hinge

• Excellent choice for heavier, wider shower doors
• Integrated safety interlock enhances glass panel control
• Wall-mount and 180° glass-to-glass models available
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered glass

CRL Plymouth Series Hinges (SKU: PLY1800RB) support wider, heavier frameless shower doors — up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These heavy-duty glass door hinges create a clean frameless aesthetic with less visible hardware and include an integrated stiffening beam to minimize clamping plate flex for exceptional holding power.

Key differentiators:

• Designed specifically for frameless shower door installations and heavy-duty glass doors
• Integrated stiffening beam and heat-treated stainless steel springs for increased durability and self-centering force
• Includes gaskets, screws, and glass fabrication dimensions for accurate installation

IMPORTANT: Use only two hinges per door — do not use three. Do not exceed the stated maximum door weight or width. Glass fabrication and the included template are required; cut-out dimensions may differ from other brands.

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the included template; do not substitute cut-out dimensions from other hinge brands.

Order the PLY1800RB heavy-duty frameless shower door hinge today to streamline installation and ensure reliable, long-lasting performance.
