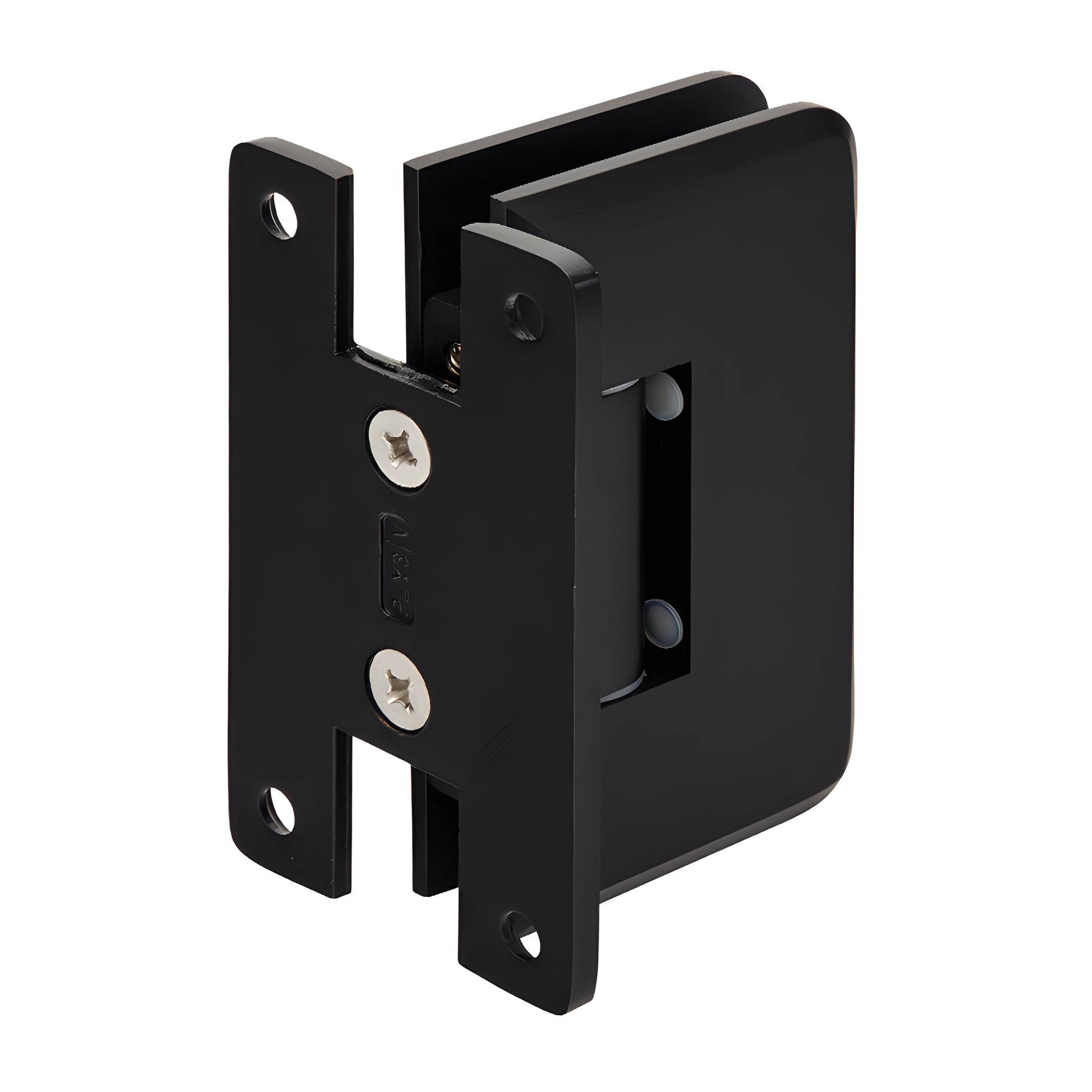

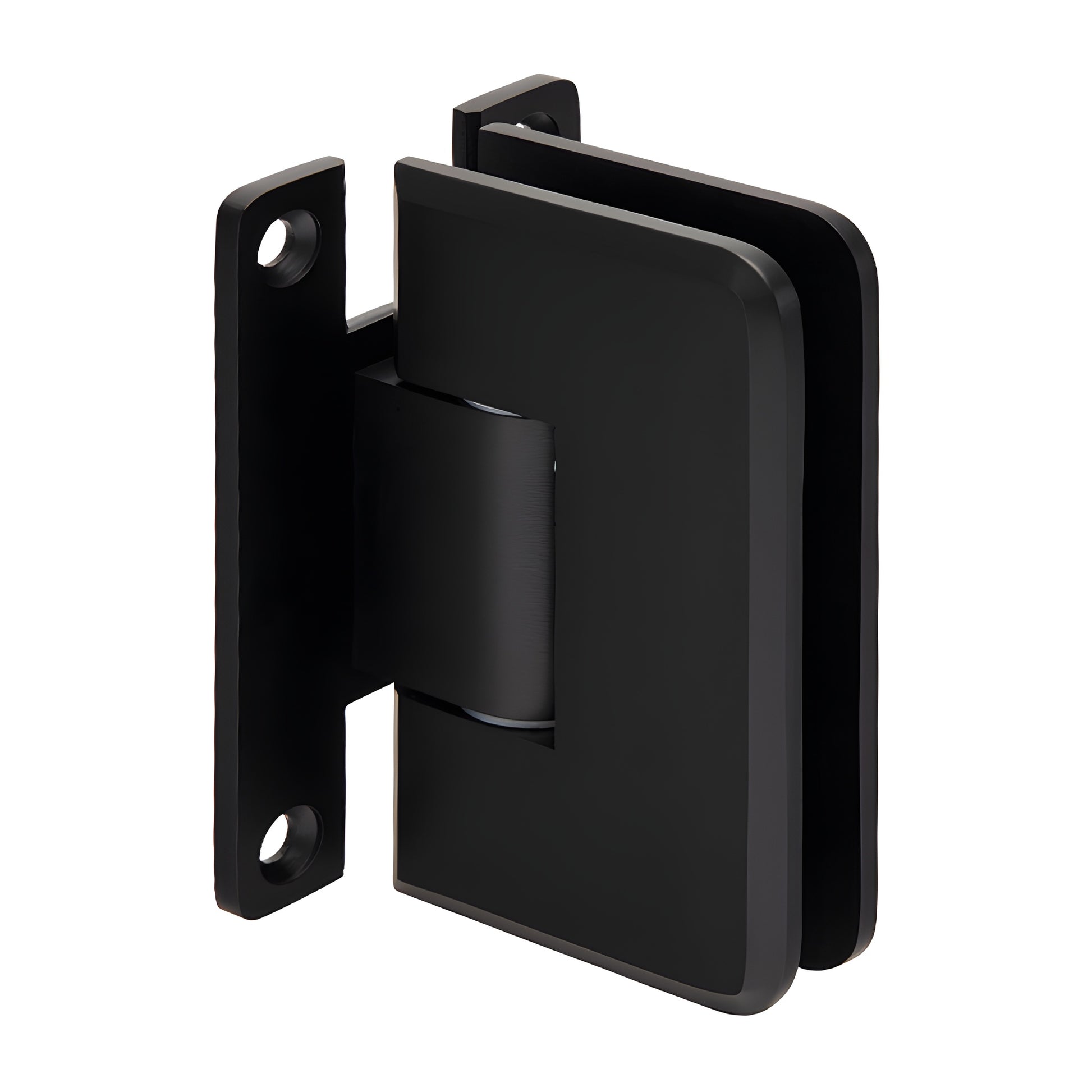

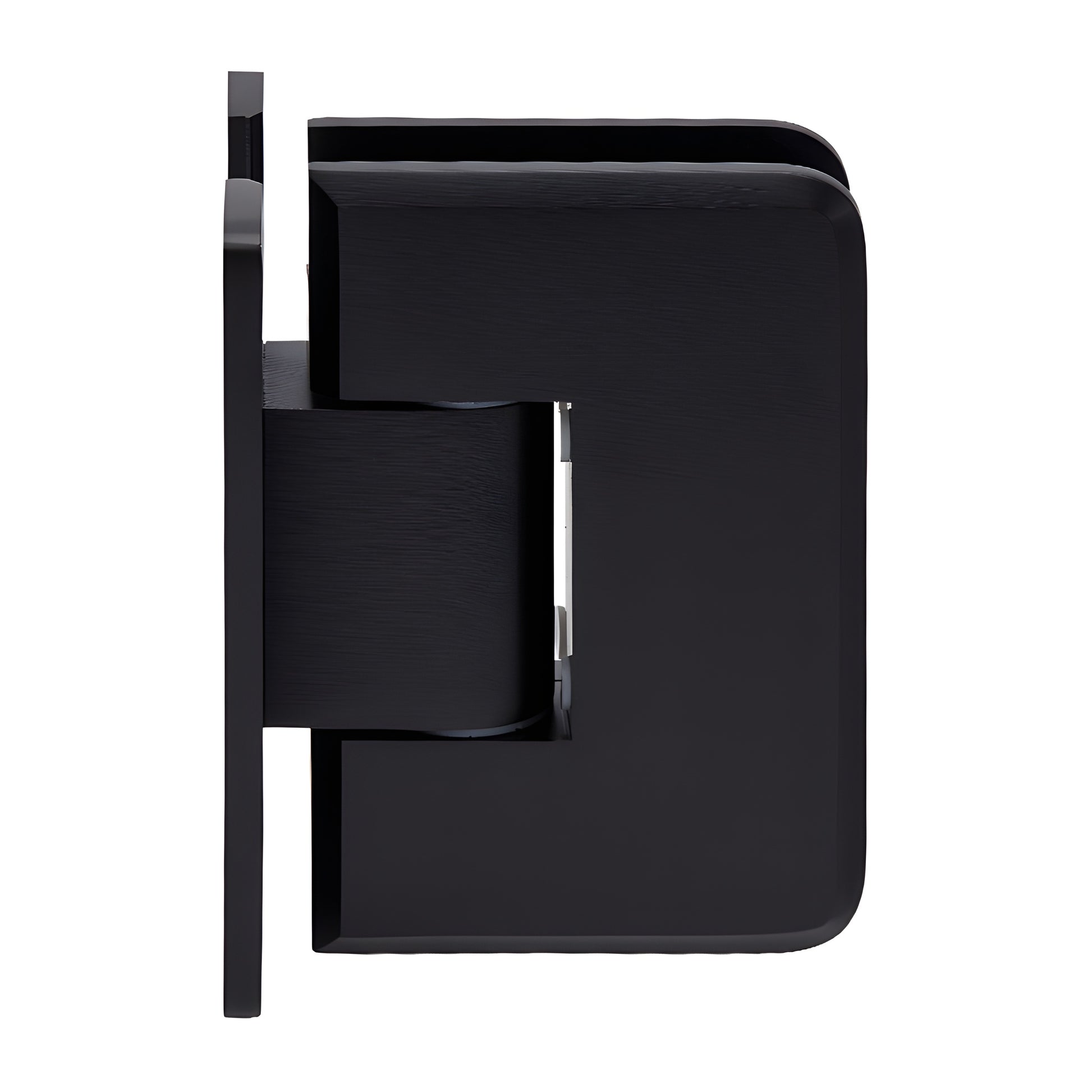

CRL Plymouth Series Oil Rubbed Bronze Wall-Mount H Backplate Hinge

• Ideal for heavier, wider frameless shower doors
• Integrated safety interlock for superior glass panel control
• Available as wall-mount and 180° glass-to-glass models
• Compatible with 3/8" to 1/2" (10–12 mm) tempered safety glass

CRL Plymouth Series Hinges (SKU: PLY0370RB) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) width using only two hinges. These heavy-duty shower door hinges create a clean, frameless aesthetic by minimizing visible hardware. They feature an integrated stiffening beam to reduce clamping plate flex, increased self-centering force, and heat-treated stainless steel springs for long-term durability. Stocked in six popular finishes; custom finishes available.

Important: Do not use three hinges. Maximum two hinges per door. Do not exceed specified door weight or width capacities. Glass fabrication is required.

Using two hinges: With 3/8" to 1/2" (10–12 mm) tempered glass and up to 39" (1 m) width, two hinges will support up to 140 lbs (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For alternate applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Find the Plymouth Series PLY0370RB heavy-duty frameless shower door hinge for 3/8"–1/2" tempered glass—order or request a quote today.
