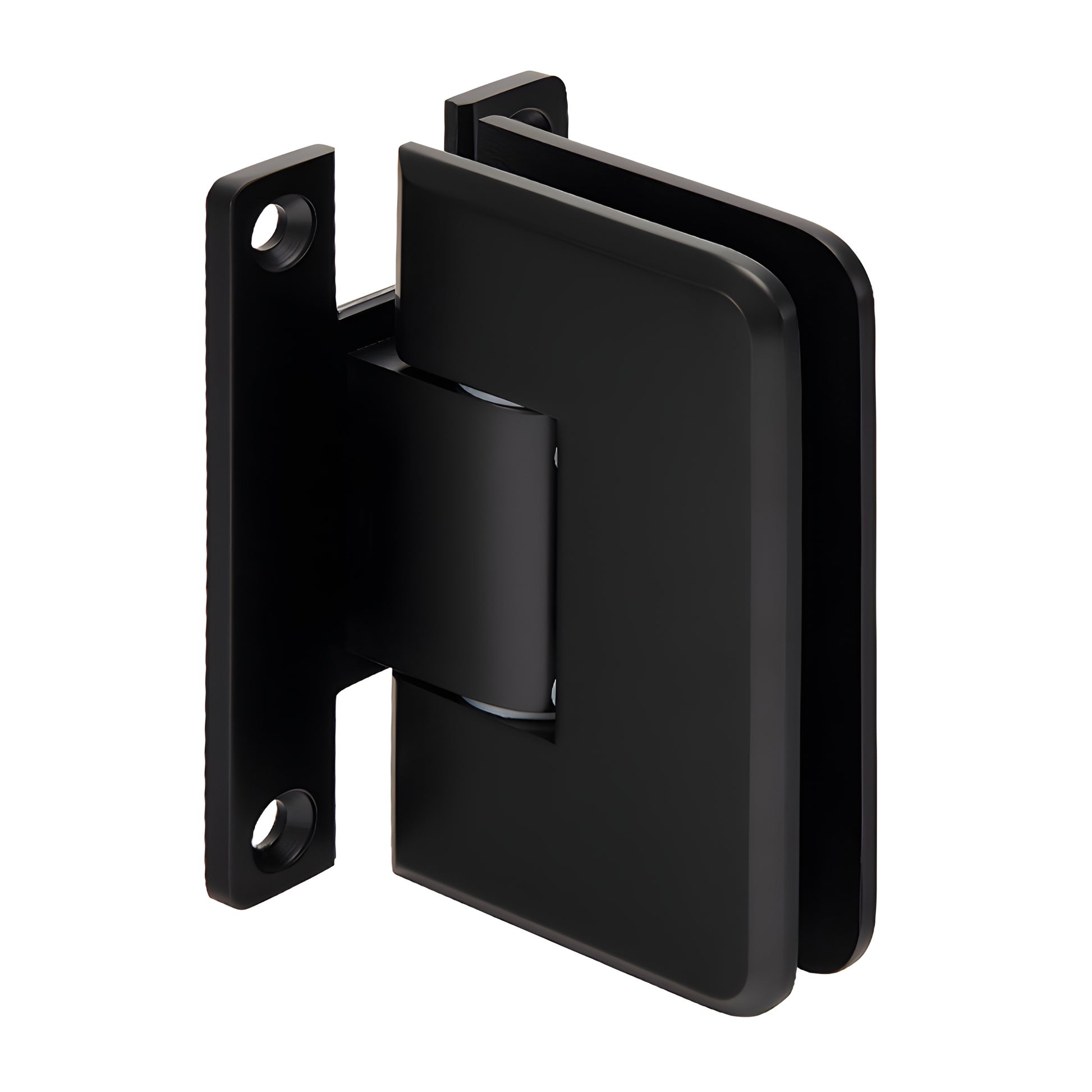

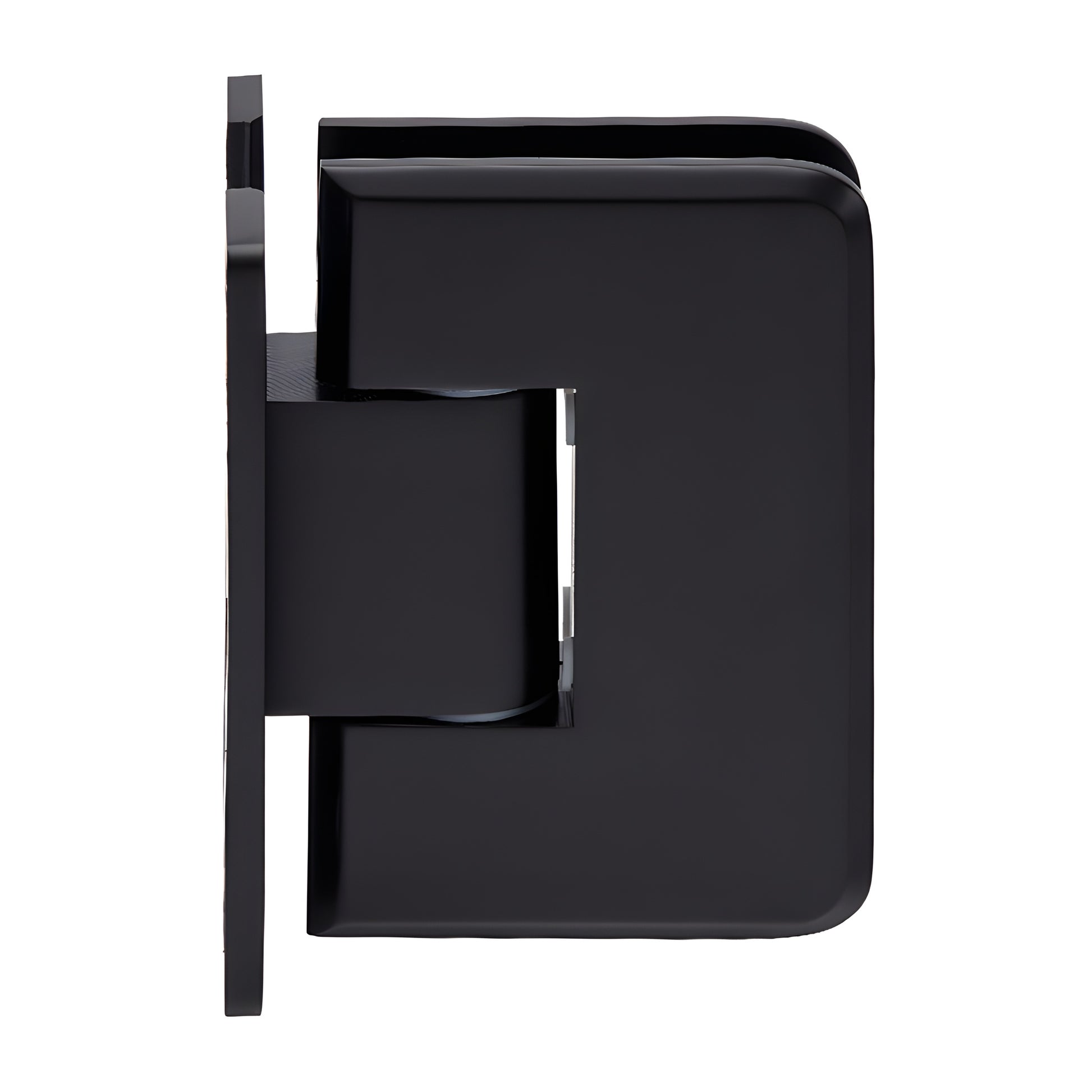

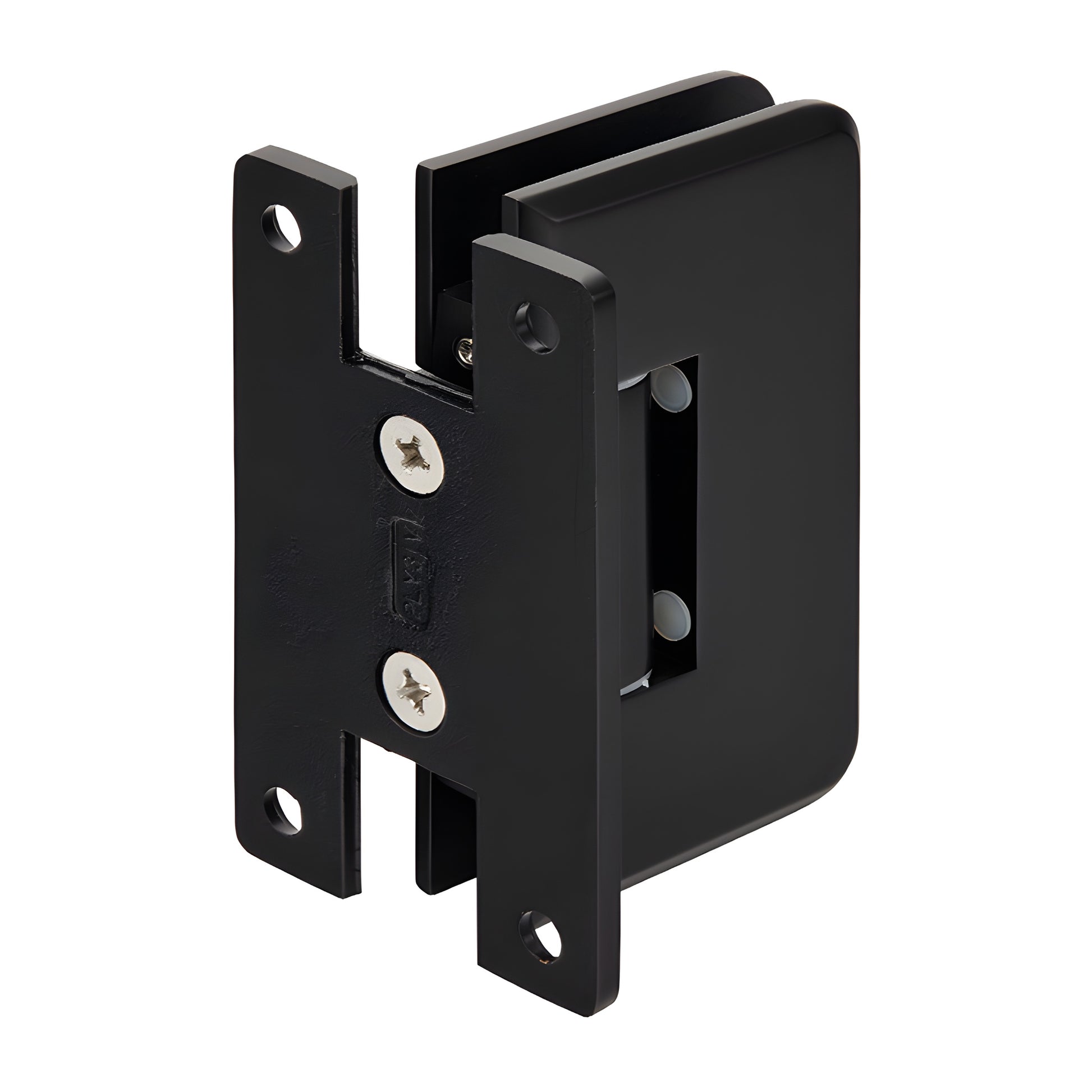

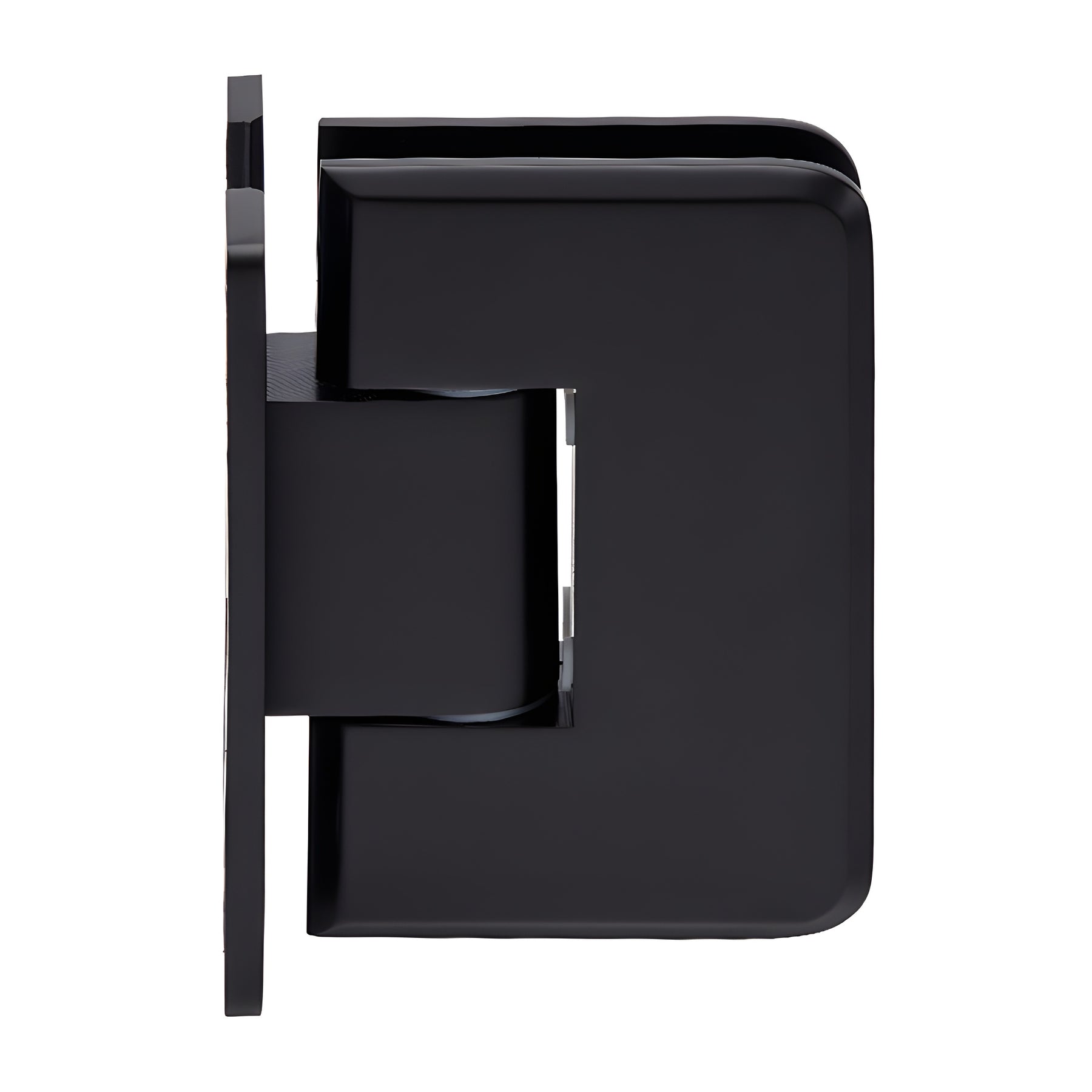

CRL Plymouth Matte Black Wall-Mount Glass Hinge with H Back Plate

• An excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Wall-mount and 180° glass-to-glass models available
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Plymouth Series Hinges (SKU: PLY037MBL) support wider, heavier frameless shower doors—up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges. These solid-brass shower door hinges reduce visible hardware for a clean, frameless aesthetic and include an integrated stiffening beam to minimize clamping plate flex for exceptional holding power. Heat-treated stainless steel springs provide enhanced durability and increased self-centering force for reliable operation with 3/8" and 1/2" (10–12 mm) tempered glass. Stocked in six popular finishes; custom finishes available.

NOTE: Do not use three hinges. Do not exceed maximum door weight or width. Maximum two hinges per door.

Using two hinges: With 3/8" to 1/2" (10–12 mm) glass and up to 39" (1 m) width, two hinges will hold up to 140 lbs (64 kg). Glass fabrication is required.

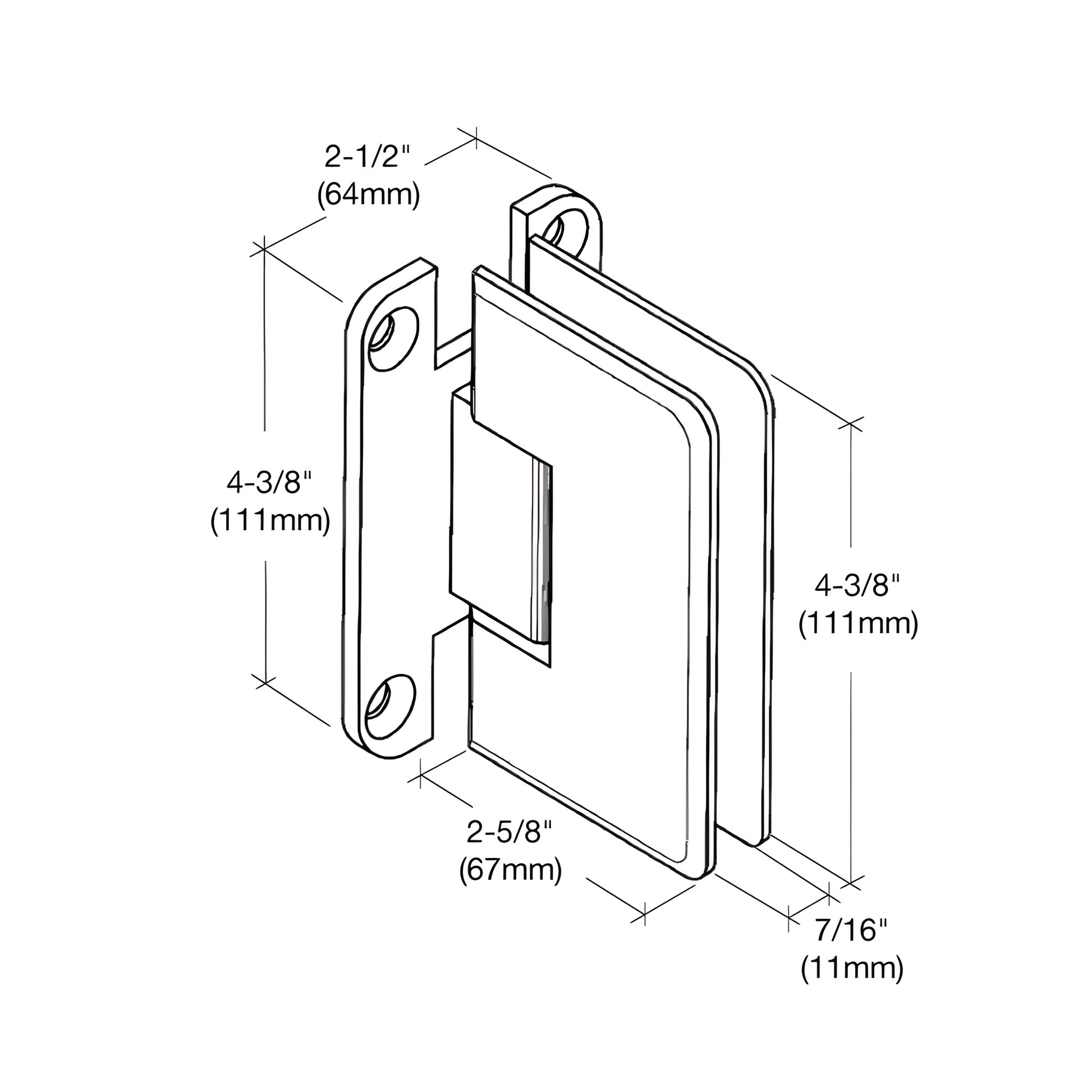

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory-set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
