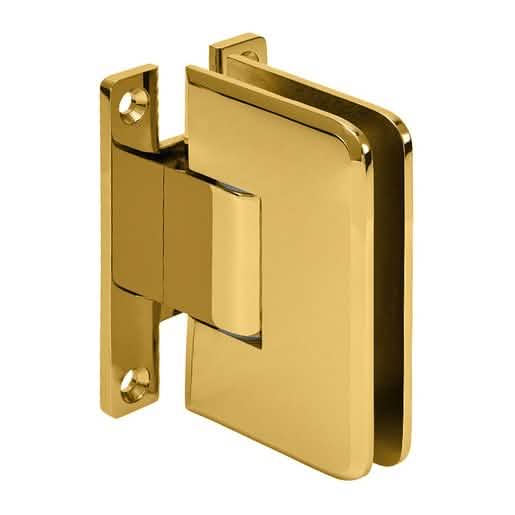

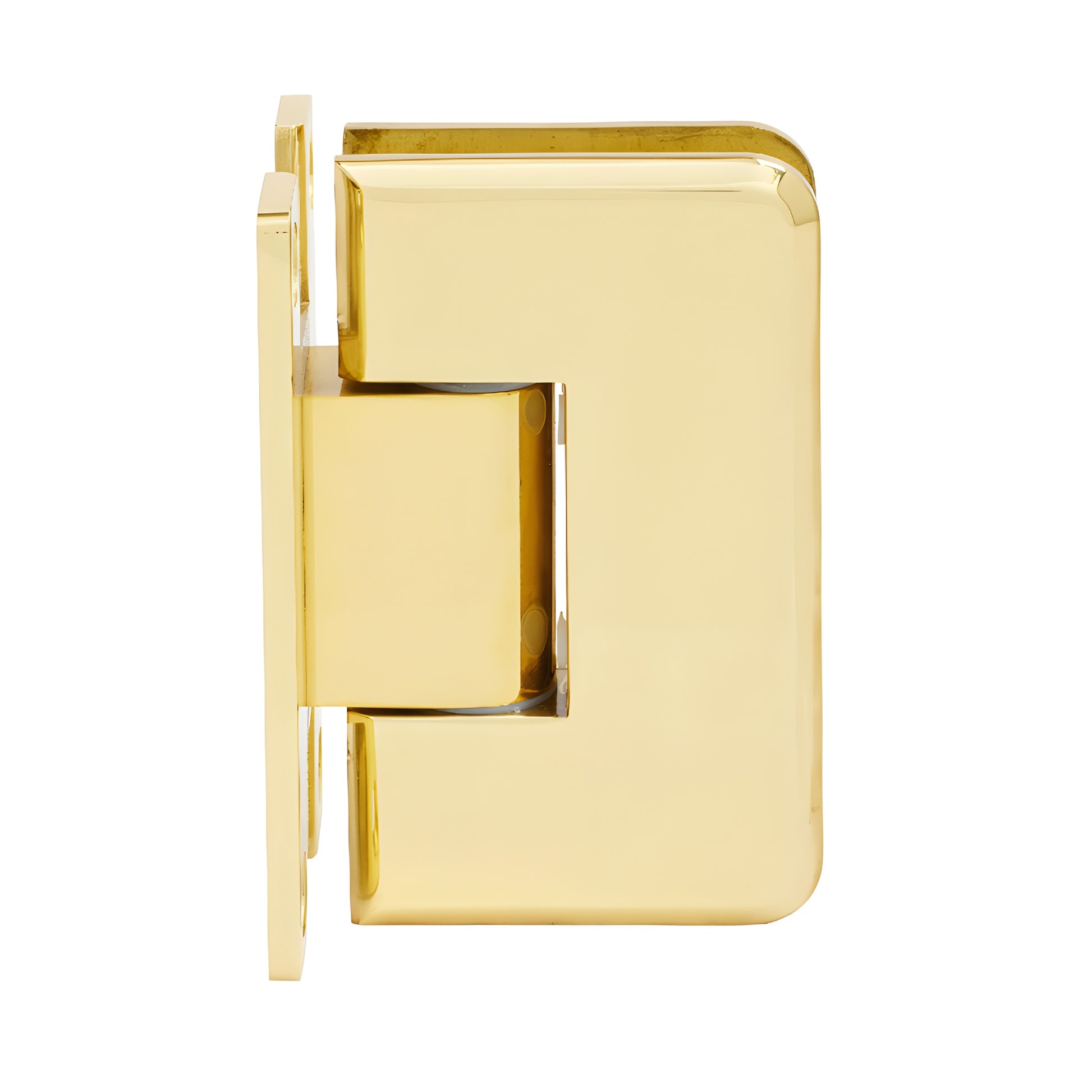

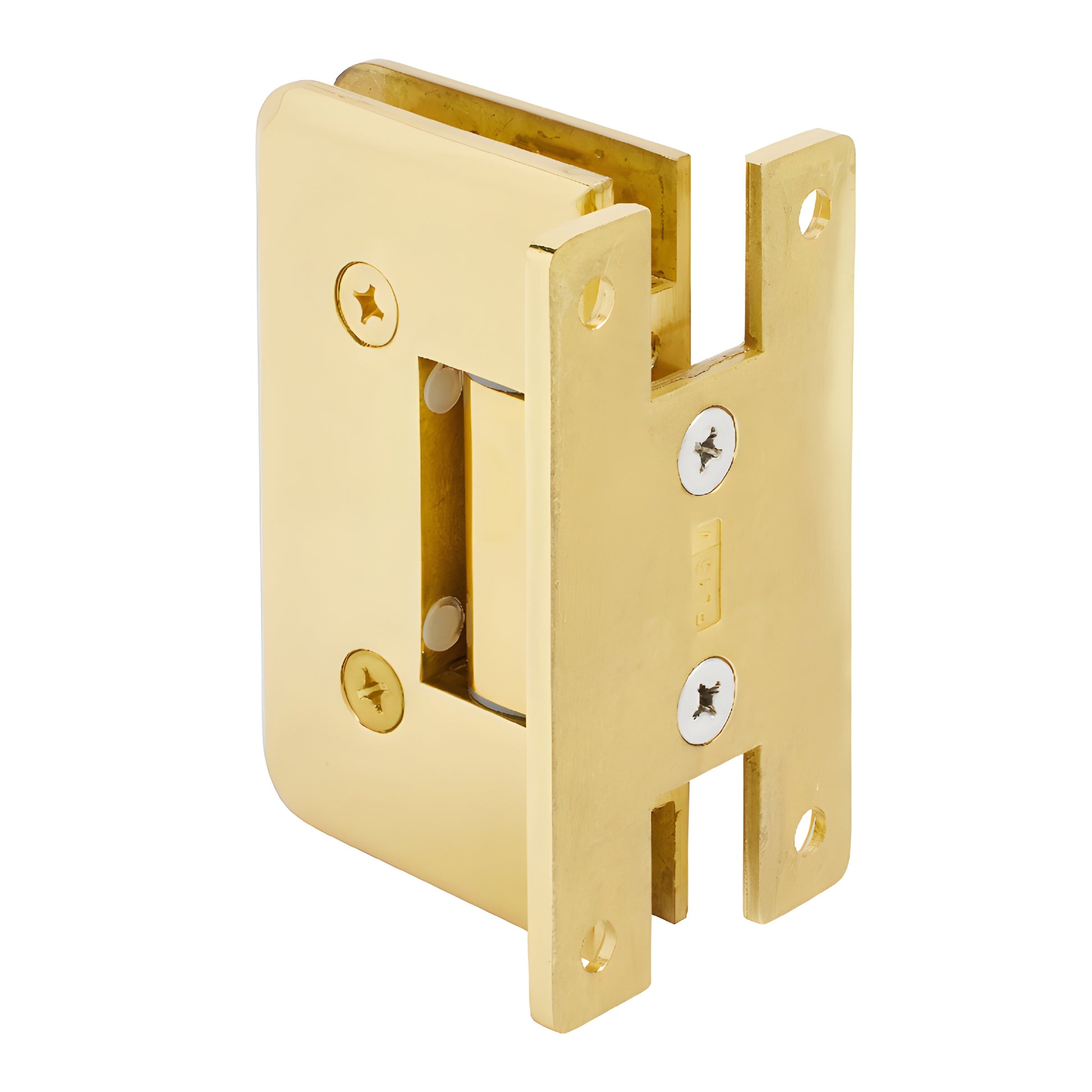

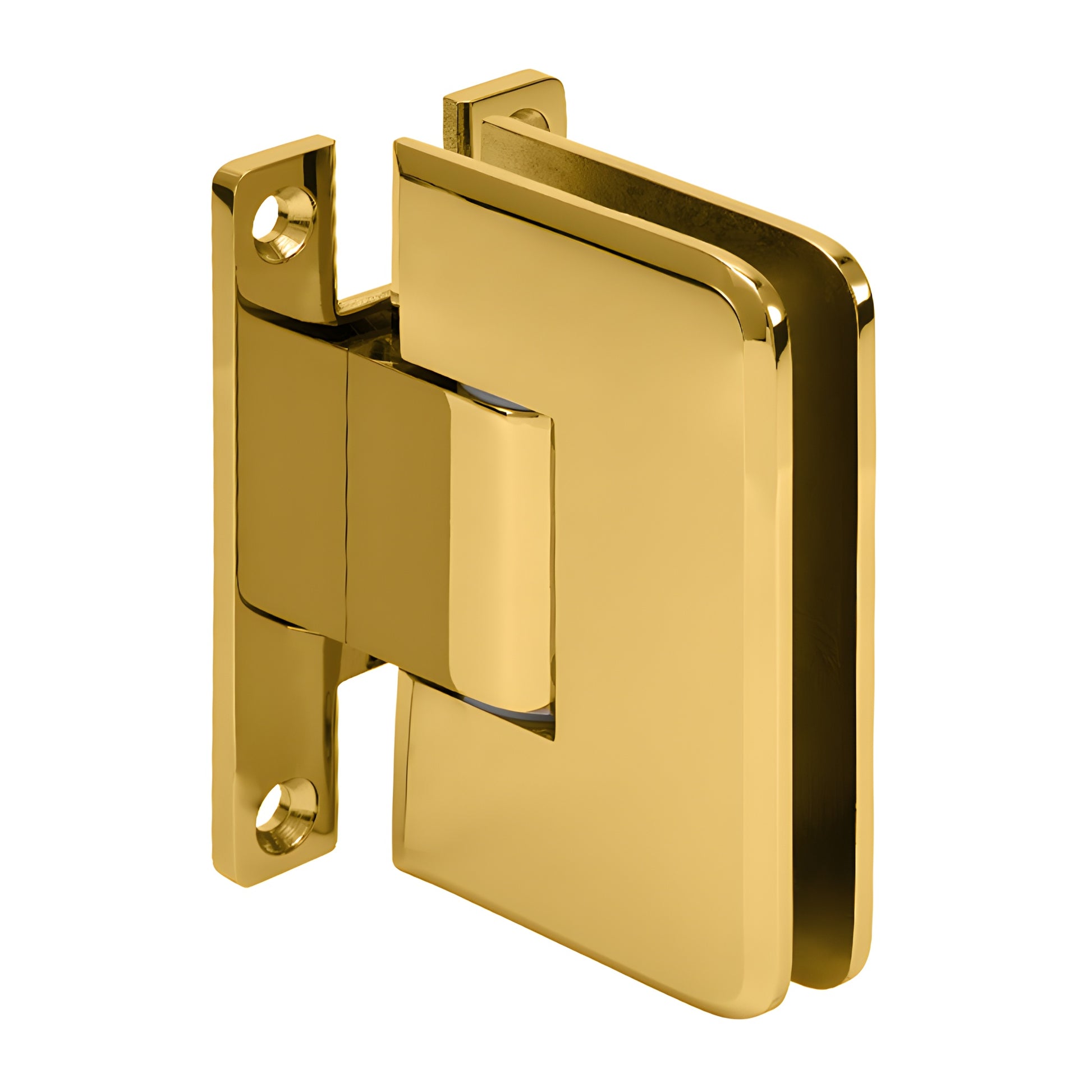

CRL Brass Plymouth Series Wall-Mount H Back Plate Hinge

• Excellent choice for heavier, wider shower doors—supports up to 140 lbs (64 kg)
• Integrated safety interlock and stiffening beam for superior glass panel control
• Available in wall-mount and 180° glass-to-glass models for frameless shower doors
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Plymouth Series Hinges are heavy-duty, solid-brass shower door hinges engineered for wider, heavier frameless glass doors. With two hinges you can support a maximum door weight of 140 lbs (64 kg) and a maximum door width of 39" (1 m), making these an ideal heavy-duty glass shower door hinge for residential and hotel applications.

Design advantages: An integrated stiffening beam minimizes clamping plate flex for exceptional holding power, while heat-treated stainless steel springs and increased self-centering force improve durability and reliable operation. Stocked in six popular finishes; custom finishes available.

NOTE: Do not use three hinges. Maximum two hinges per door to maintain the intended frameless aesthetic and performance.

Using two hinges: With 3/8" to 1/2" (10 to 12 mm) tempered glass and a door width up to 39" (1 m), two hinges will hold up to 140 lbs (64 kg). Glass fabrication is required.

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions

PRODUCT WARNING:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
