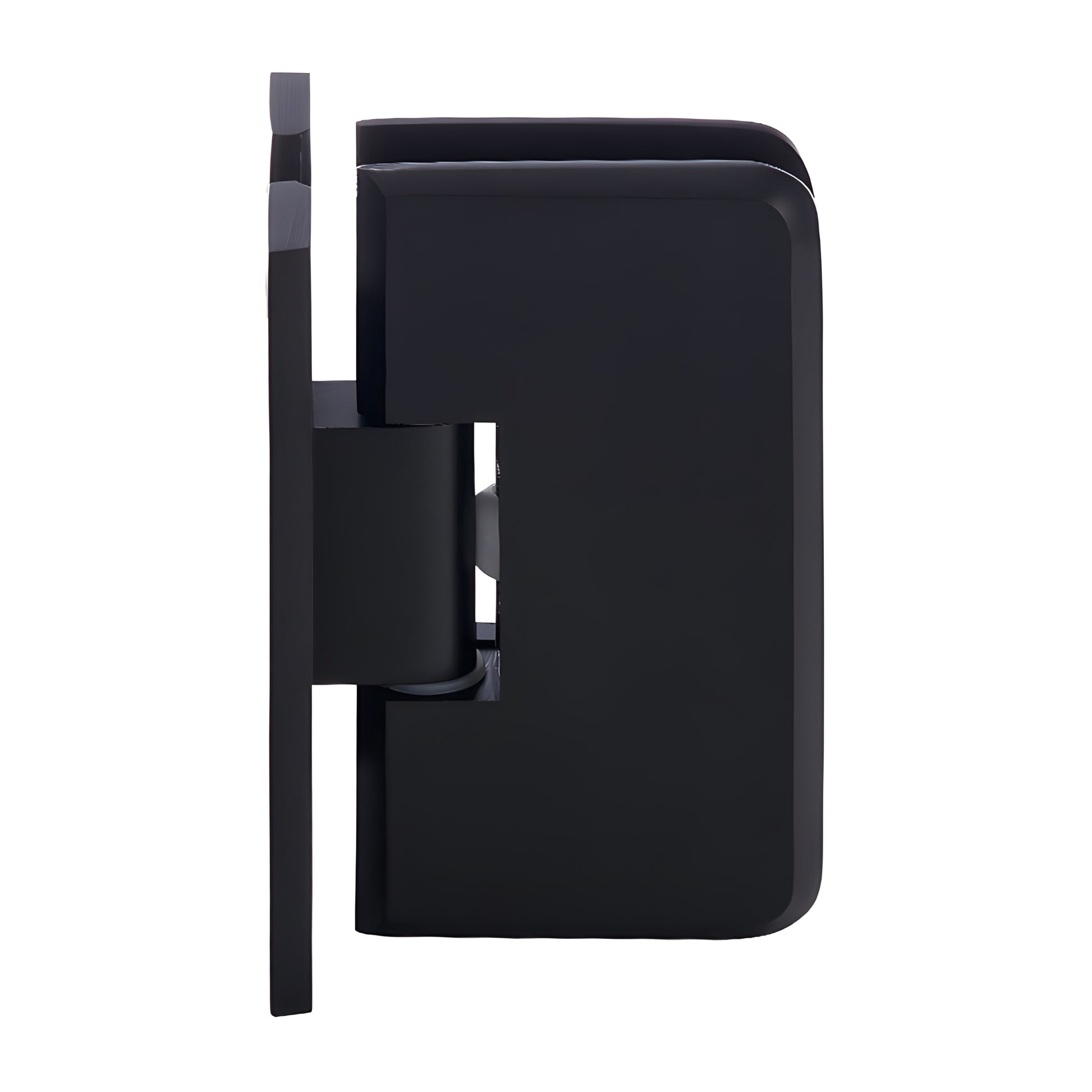

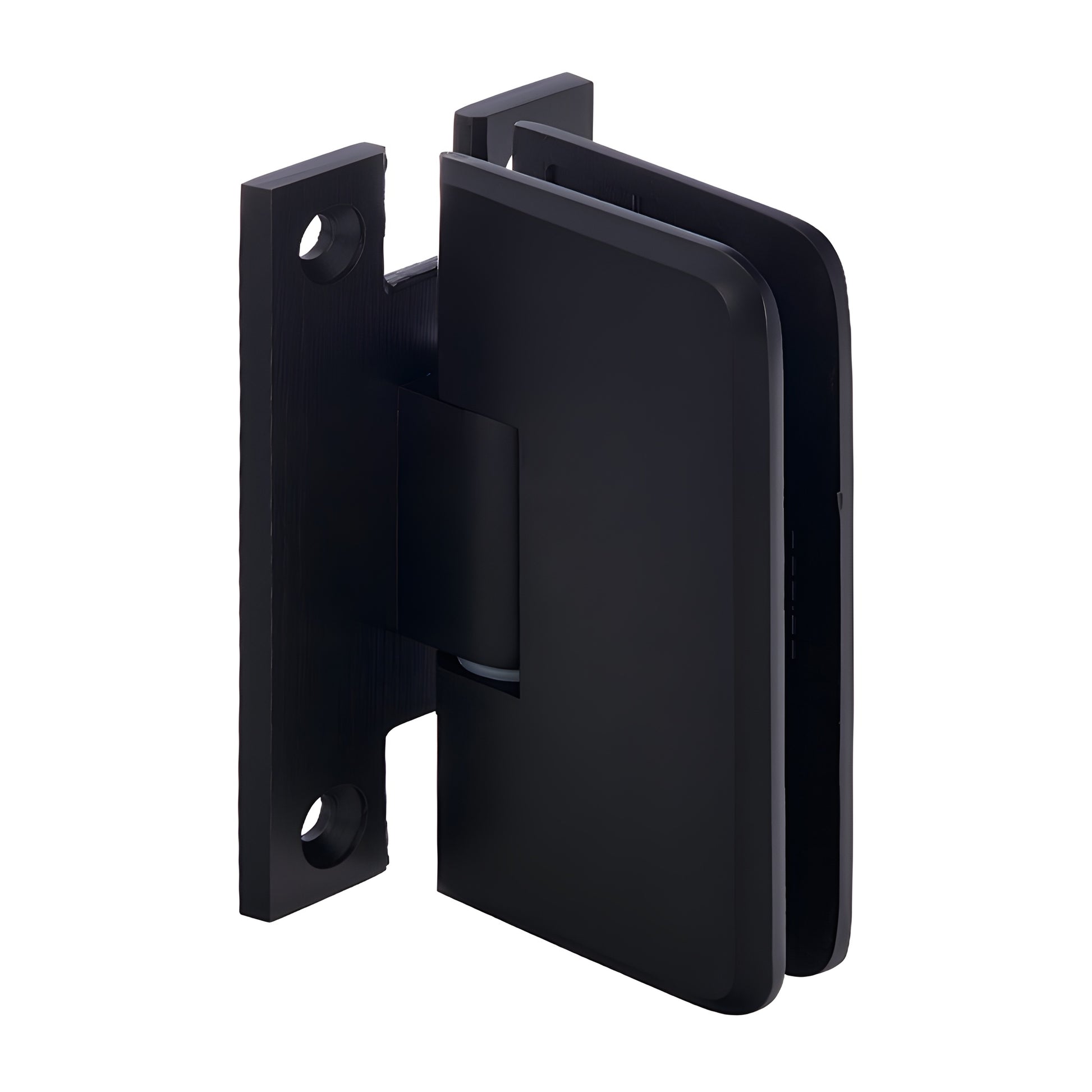

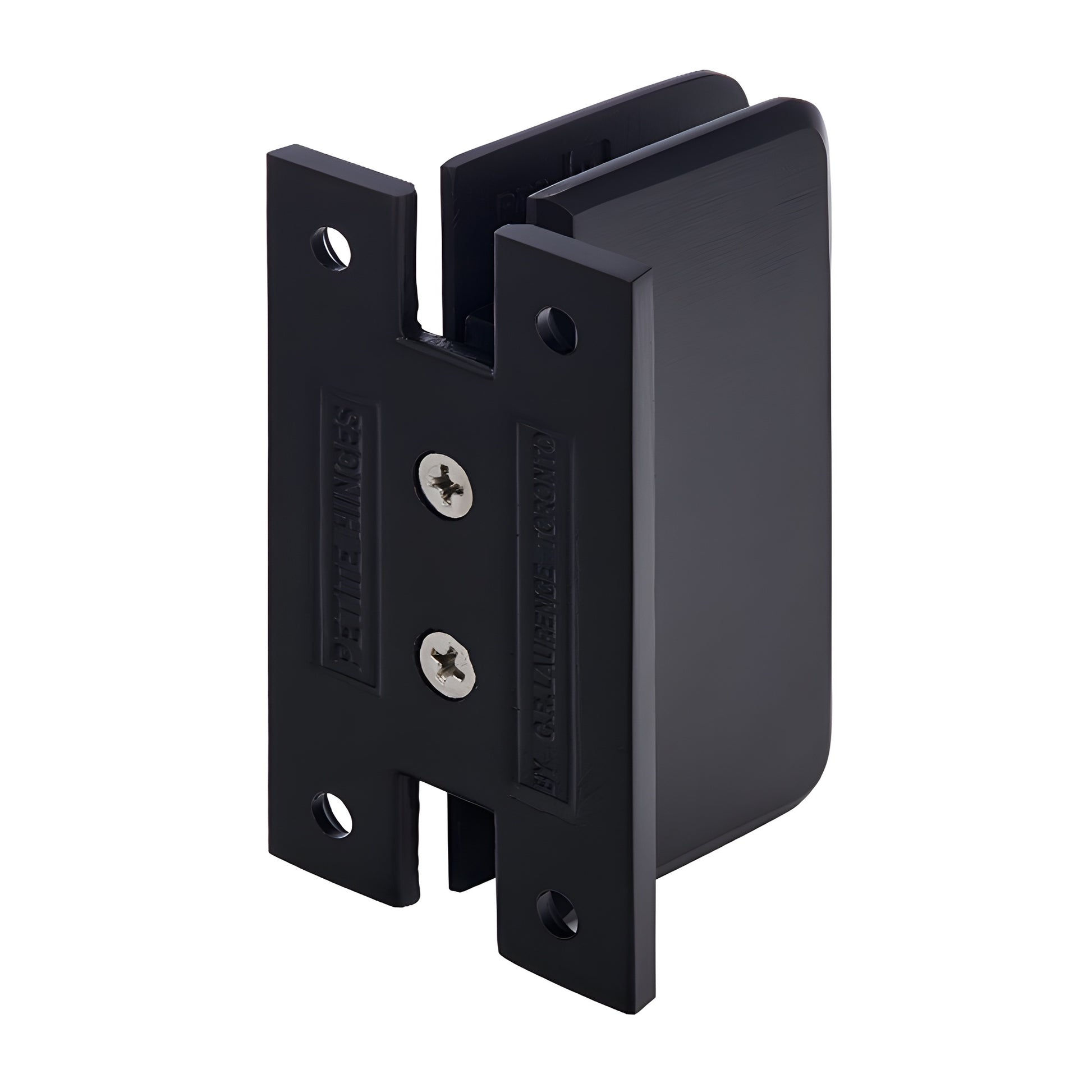

- Wall Mount Full Back Plate
- Precise Closing Feature to Zero Degrees
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
The
CRL Petite Series
provides a complete spectrum of Hinges for frameless shower doors using 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Developed to allow virtually every application configuration, they deliver design freedom. The Petite Series includes three unique types: The PET044 Wall Mount Flush Back Plate Hinge allows for a clean exterior sight line by having all mounting screws inside the shower; the PET181 Glass-to-Glass Hinge is used to mount a door to a fixed panel in a 180 degree plane, and allows the door to swing in a complete 180 degree arc outwards; the PET182 Glass-to-Glass Hinge allows the door to swing in a complete 180 degree arc inwards. Petite Hinges have mitered edges with curved corners to provide an aesthetically pleasing look. Petite Hinges have 25% thicker plates than competitive Hinges, thereby reducing deflection and providing greater holding power.
Using two hinges
with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).
Using three hinges
with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).

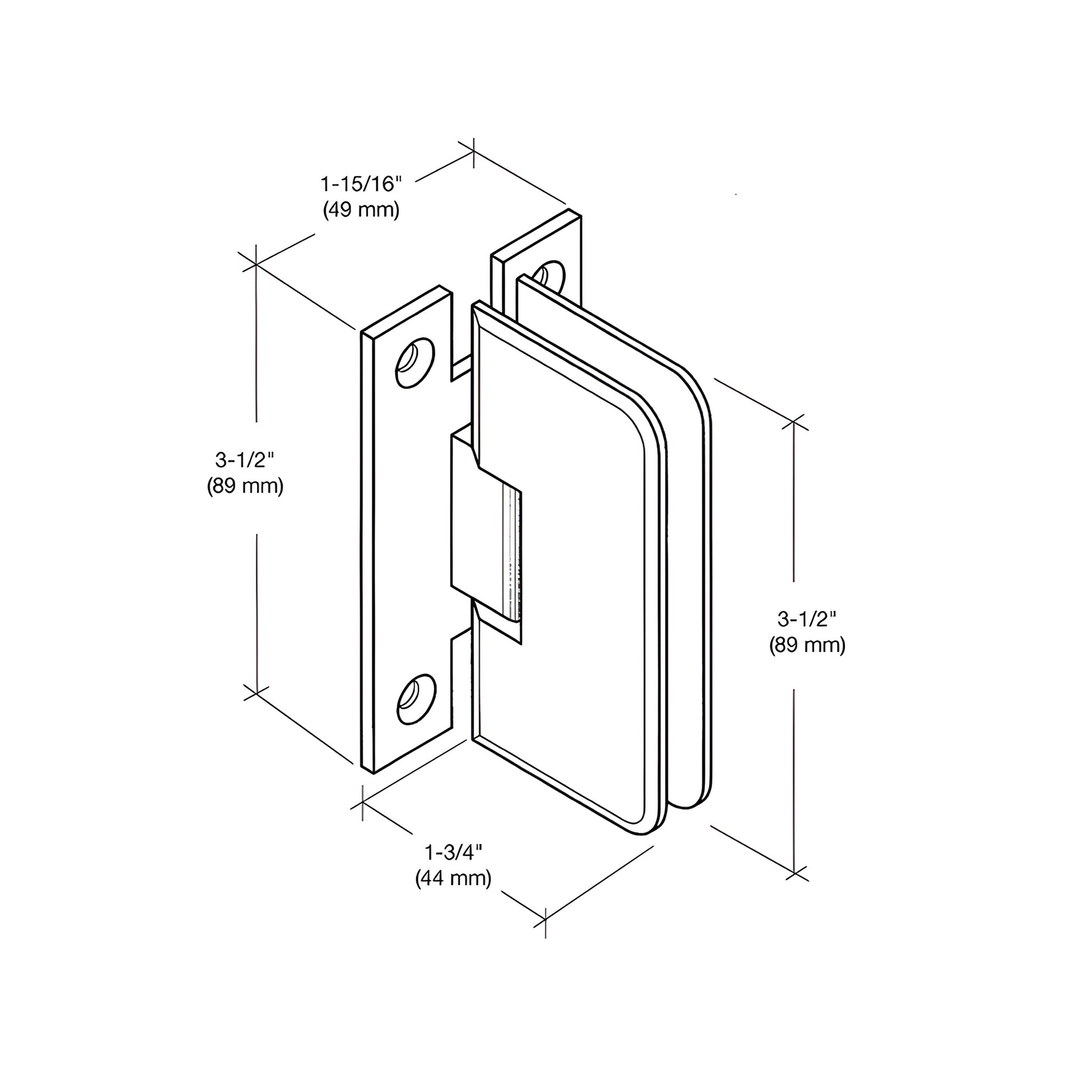

SPECIFICATIONS
Glass Thickness
1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features
Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction
Solid Brass
Hinge Swings
90 degree In and 90 degree Out (Except PET045, PET054, PET135, PET181, and PET182)
Closing Type
Precise Closing to 0 degree
Cut-Out Required
(Except PET181 and PET182, which require holes only).
Includes
Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning
CRL Shower Door Hinges
are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
