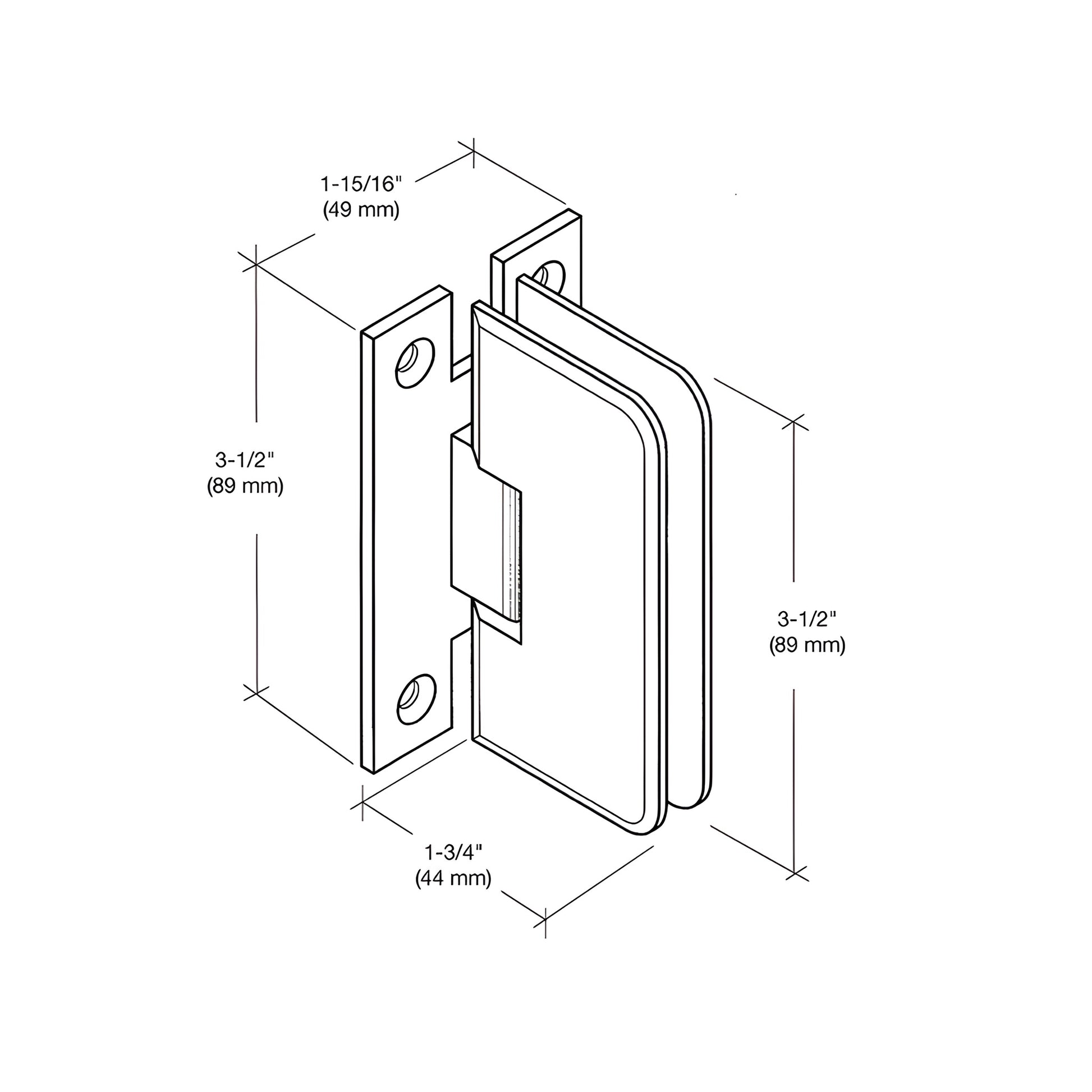

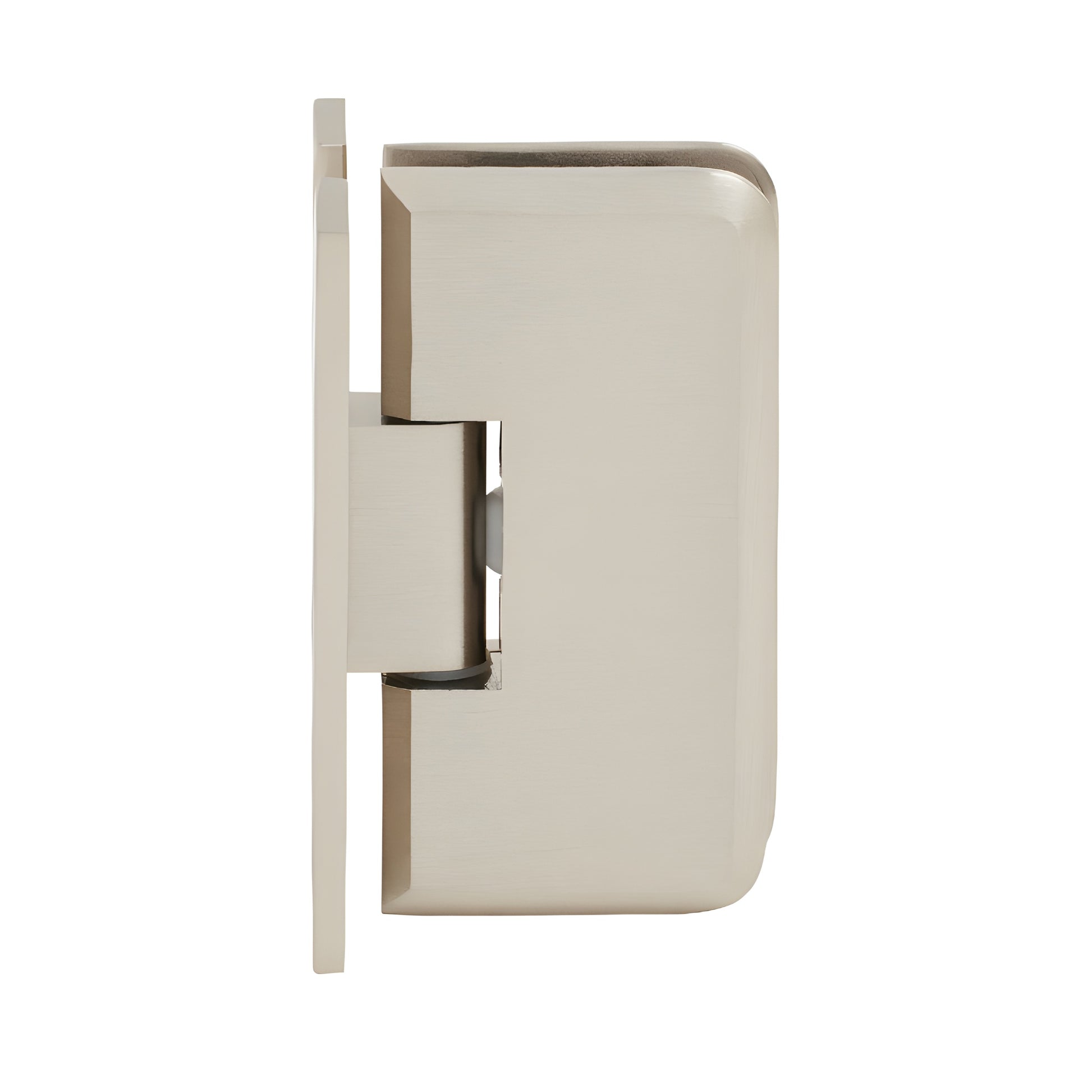

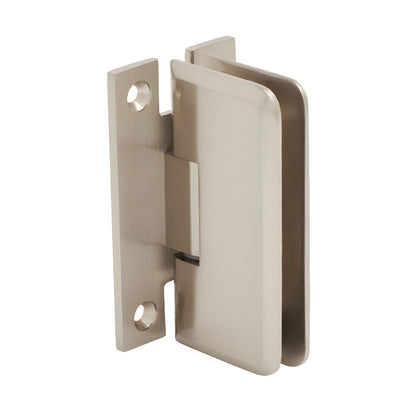

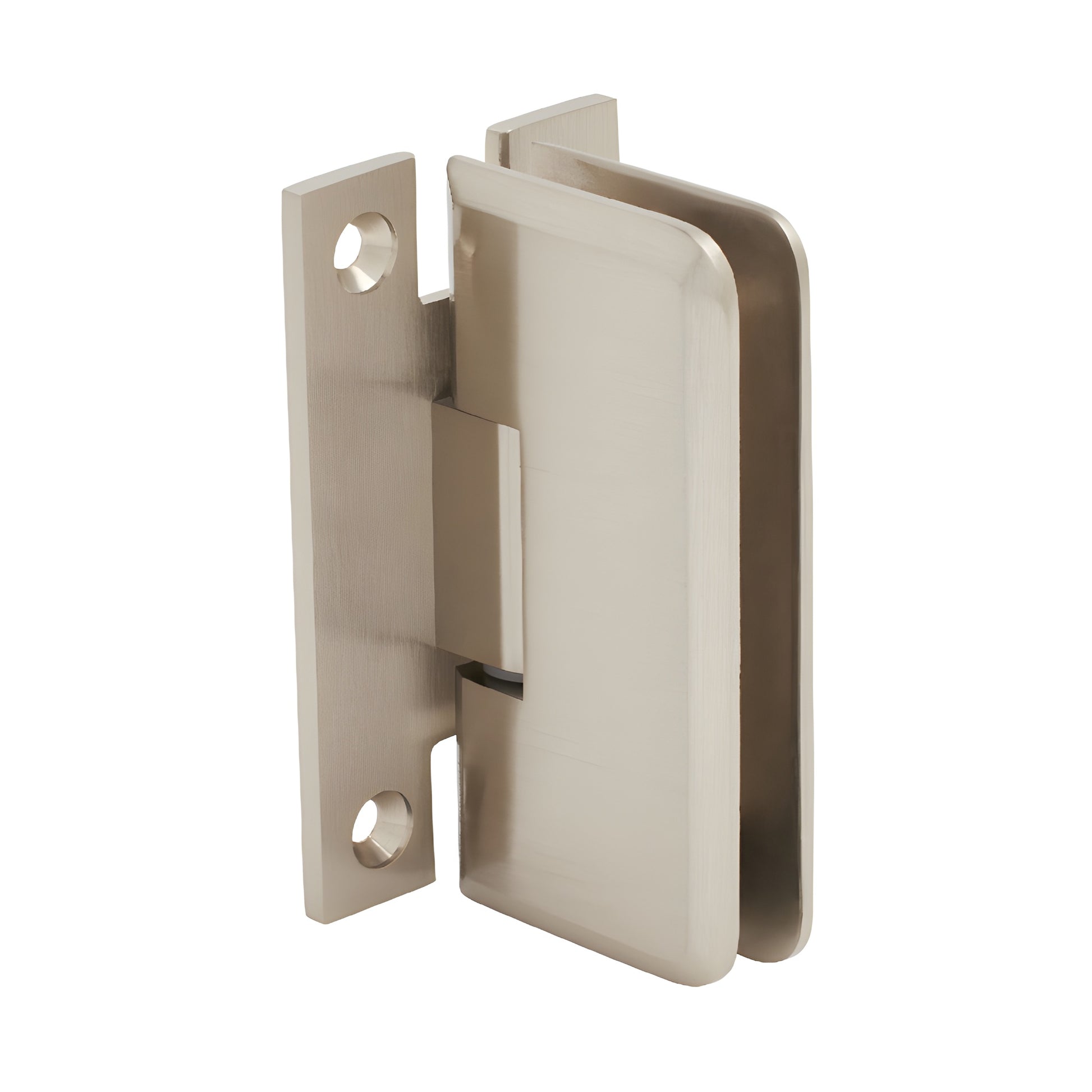

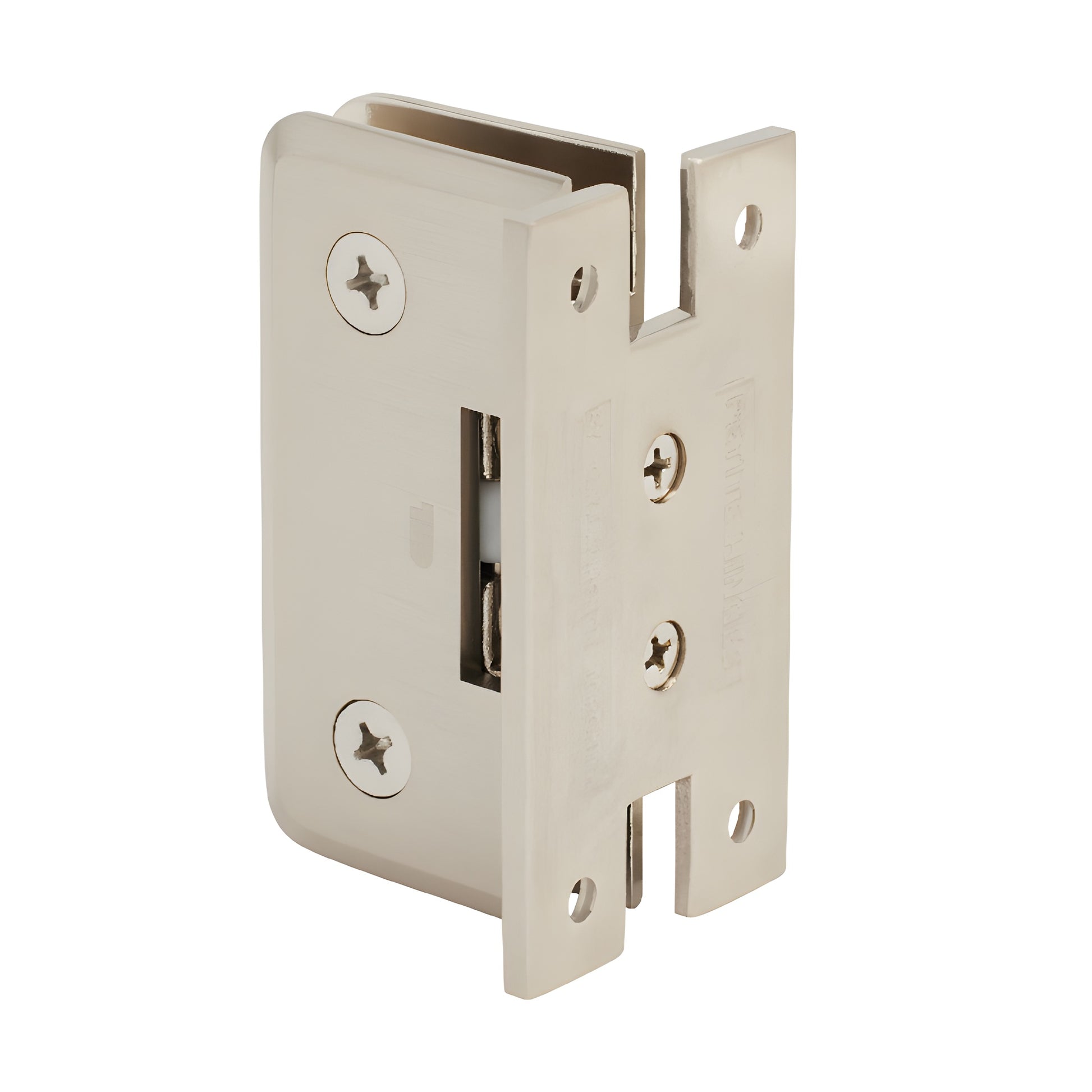

CRL 037 Petite Brushed Nickel Wall-Mount H Backplate Hinge

• Wall Mount Full Back Plate
• Precise Closing Feature to Zero Degrees
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The CRL Petite Series frameless shower door hinges (SKU PET037BN) support 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass and deliver design freedom across virtually every application. Engineered for frameless shower doors, the Petite Series includes multiple hinge types: PET044 Wall Mount Flush Back Plate Hinge (clean exterior sight line with mounting screws inside the shower), PET181 Glass-to-Glass Hinge (door-to-panel, 180° outward swing), and PET182 Glass-to-Glass Hinge (door-to-panel, 180° inward swing). Petite Hinges feature mitered edges with curved corners for a refined look and have hinge plates 25% thicker than competing hinges for reduced deflection and greater holding power.


Performance:
Two-hinge configuration: For 1/4"–5/16" (6–8 mm) glass, supports up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).

Three-hinge configuration: For 1/4"–5/16" (6–8 mm) glass, supports up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Plates 25% thicker than competitive hinges for reduced deflection and improved holding power
Construction: Solid Brass
Hinge Swings: 90° In and 90° Out (Except PET045, PET054, PET135, PET181, and PET182)
Closing Type: Precise closing to 0°
Cut-Out Required: (Except PET181 and PET182, which require holes only)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request—contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions for CR
