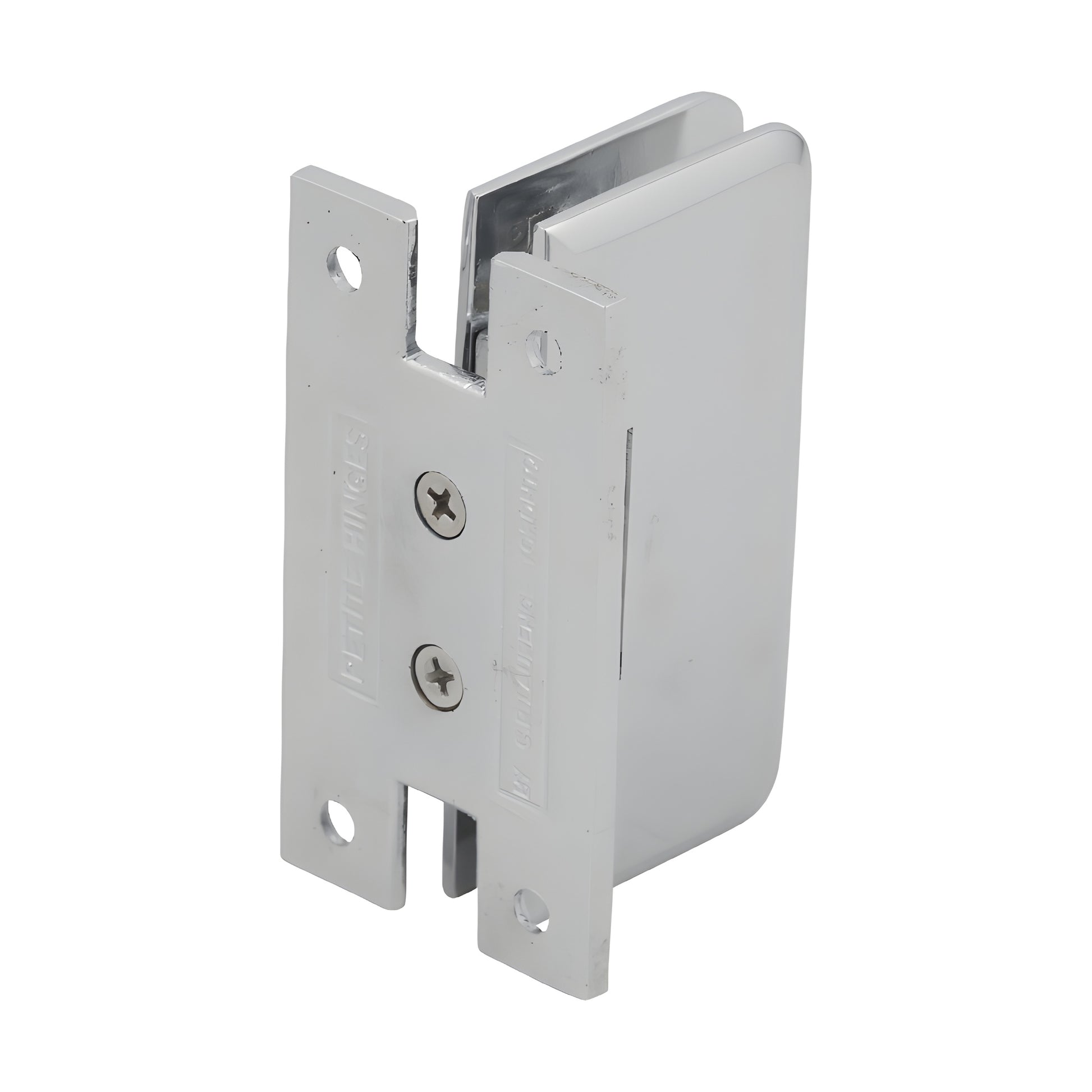

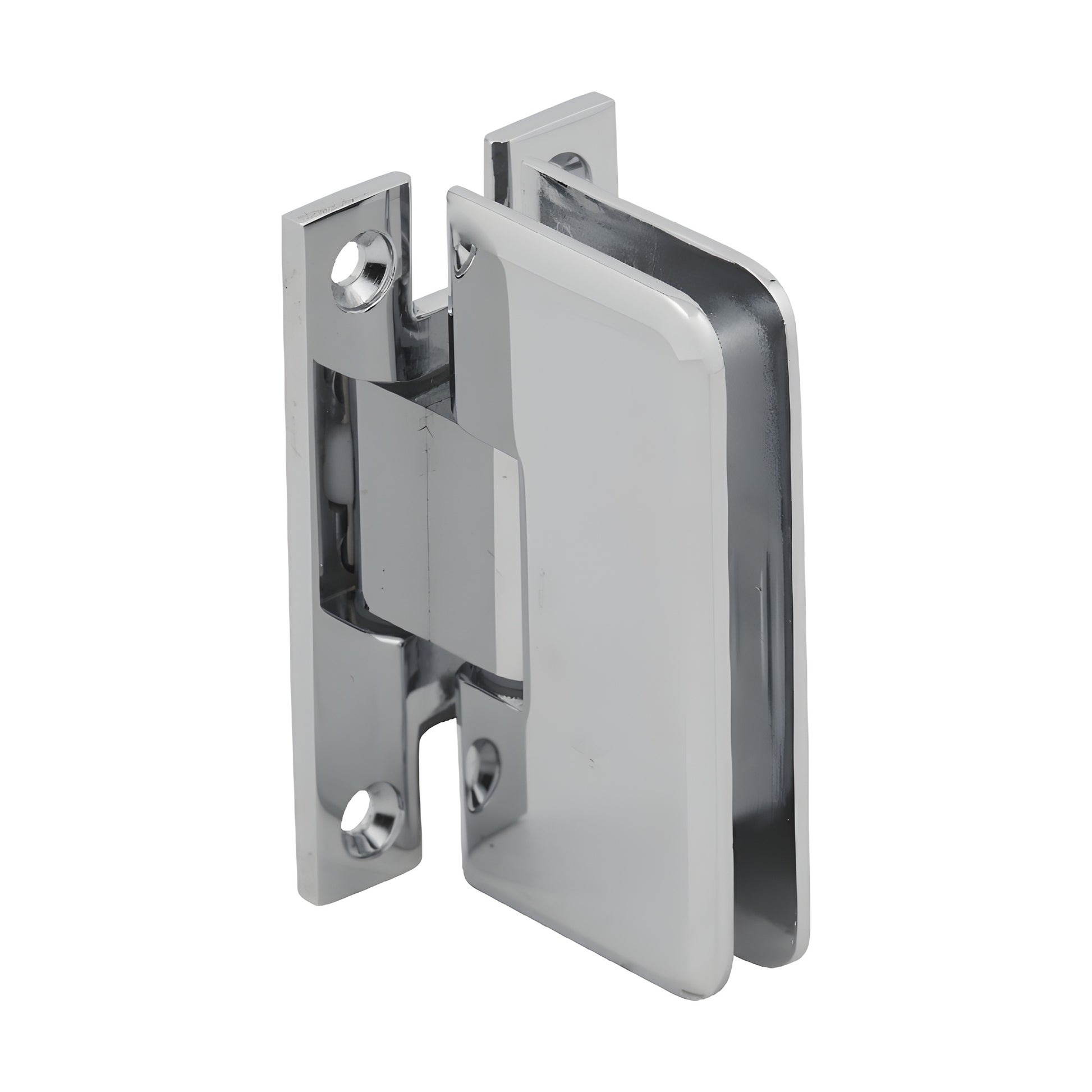

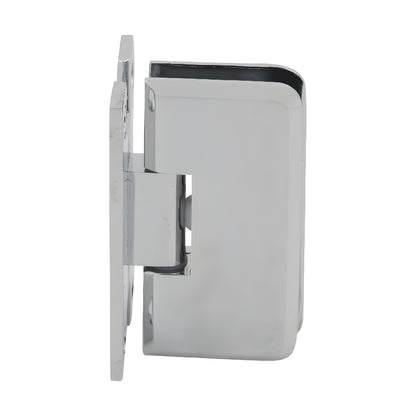

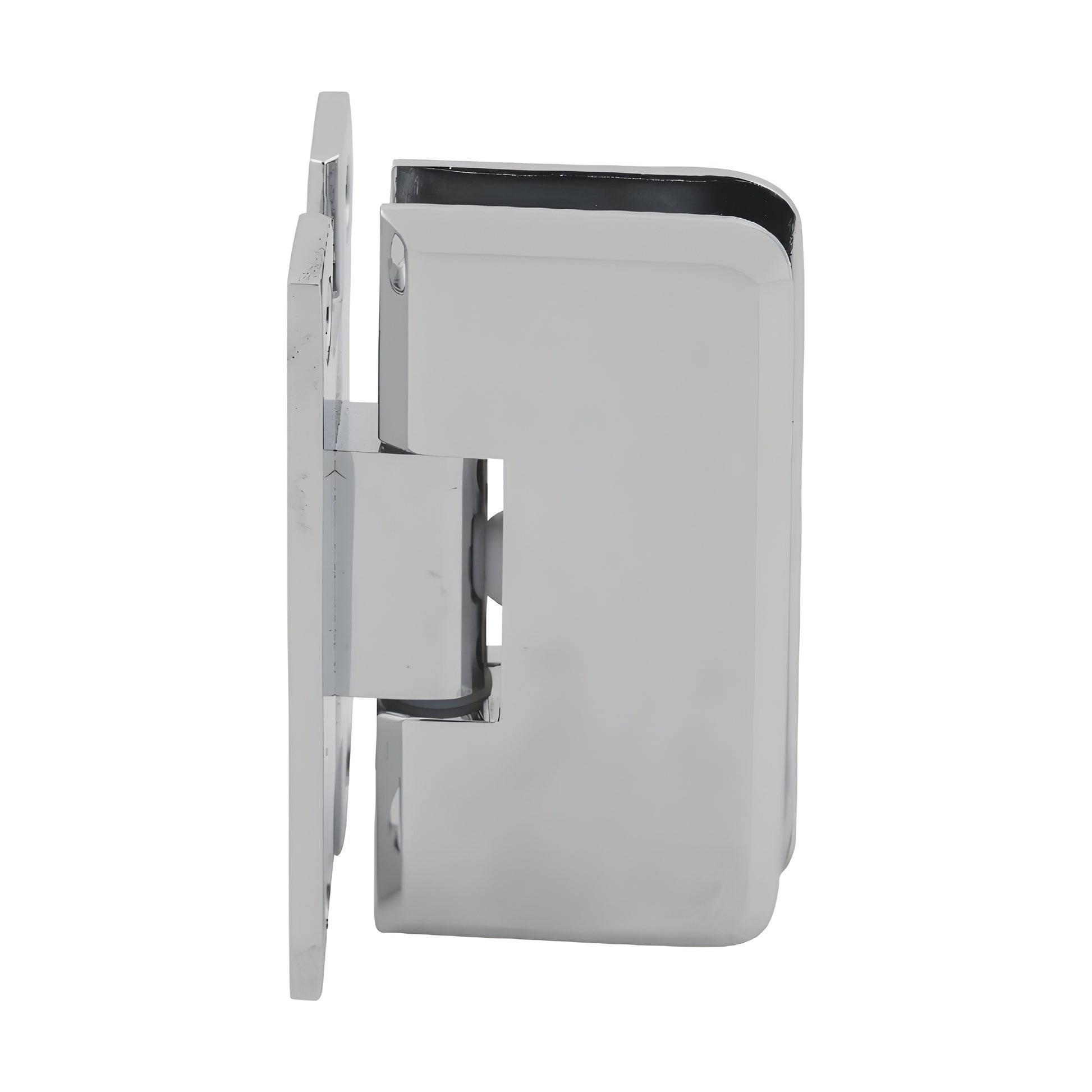

CRL Petite 037 Series Polished Chrome Wall Mount H Back Plate Hinge

• Wall Mount Full Back Plate
• Precise Closing Feature to Zero Degrees
• Available in several beautiful finishes (custom finishes on request)
• 3 Year Warranty
• Use Monolithic Tempered Glass

The CRL Petite Series delivers premium frameless shower door hinges for 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Designed for residential and hotel shower enclosures, the Petite Series offers mounting flexibility and clean aesthetics for frameless shower doors and panels. Key hinge types include:

• PET044 Wall Mount Flush Back Plate Hinge — clean exterior sight line with all mounting screws inside the shower
• PET181 Glass-to-Glass Hinge — mounts a door to a fixed panel and allows a full 180° outward arc
• PET182 Glass-to-Glass Hinge — mounts a door to a fixed panel and allows a full 180° inward arc

Petite Hinges feature mitered edges with curved corners, solid brass construction, and hinge plates that are 25% thicker than competitive hinges to reduce deflection and increase holding power—an important differentiator for durable frameless shower door hardware. Load Capacity & Door Size
Using two hinges (6 or 8 mm glass): holds up to 55 lbs. (25 kg), max door width 31" (787 mm).
Using three hinges (6 or 8 mm glass): holds up to 82 lbs. (37 kg), max door width 34" (864 mm). SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: 25% thicker hinge plates vs. competitors — less deflection, greater holding power
Construction: Solid Brass
Hinge Swings: 90° In and 90° Out (except PET045, PET054, PET135, PET181, PET182)
Closing Type: Precise closing to 0°
Cut-Out Required: (except PET181 and PET182, which require holes only)
Includes: Gaskets, screws, and glass fabrication dimensions
Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department. Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template — CRL cut-outs may not match other brands.
