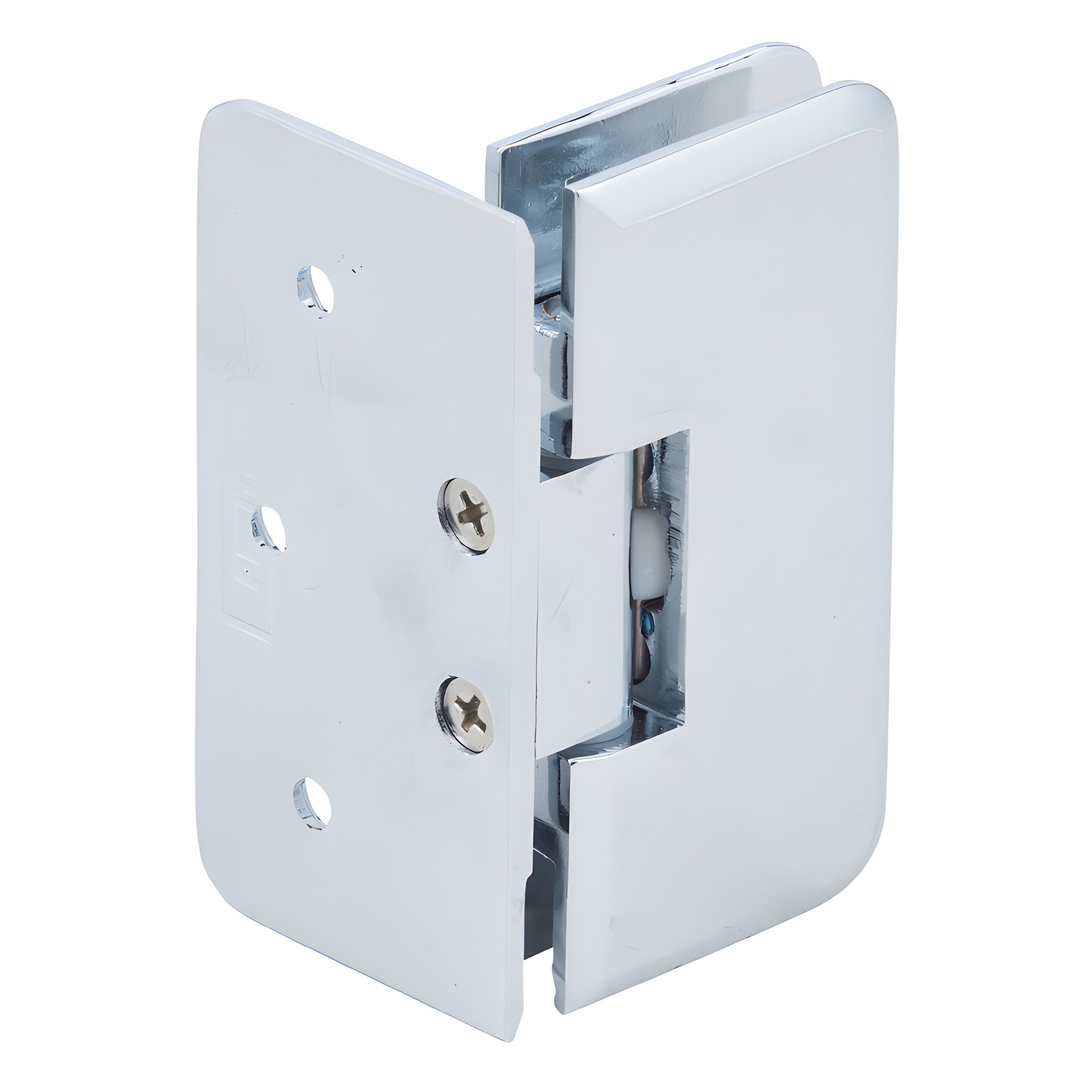

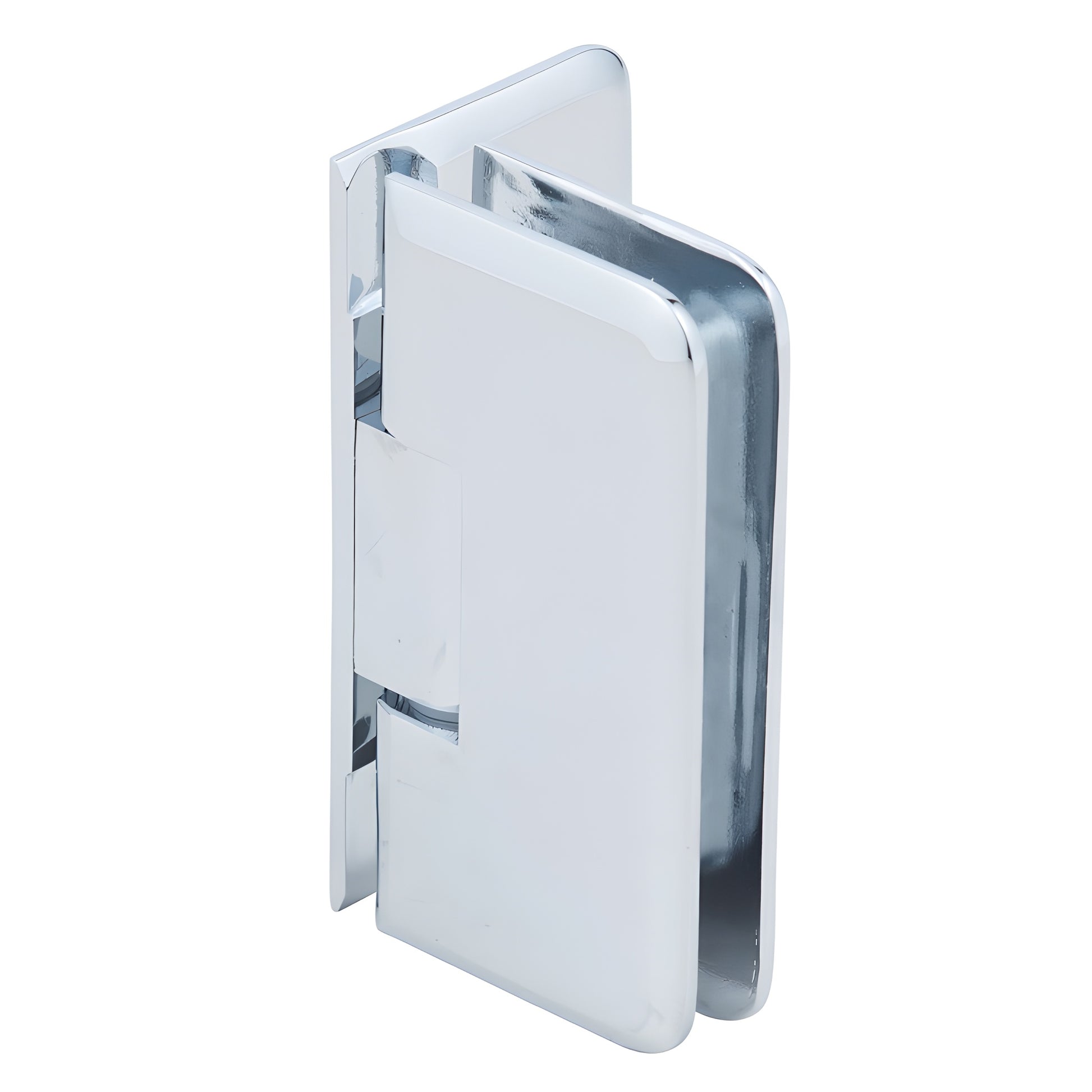

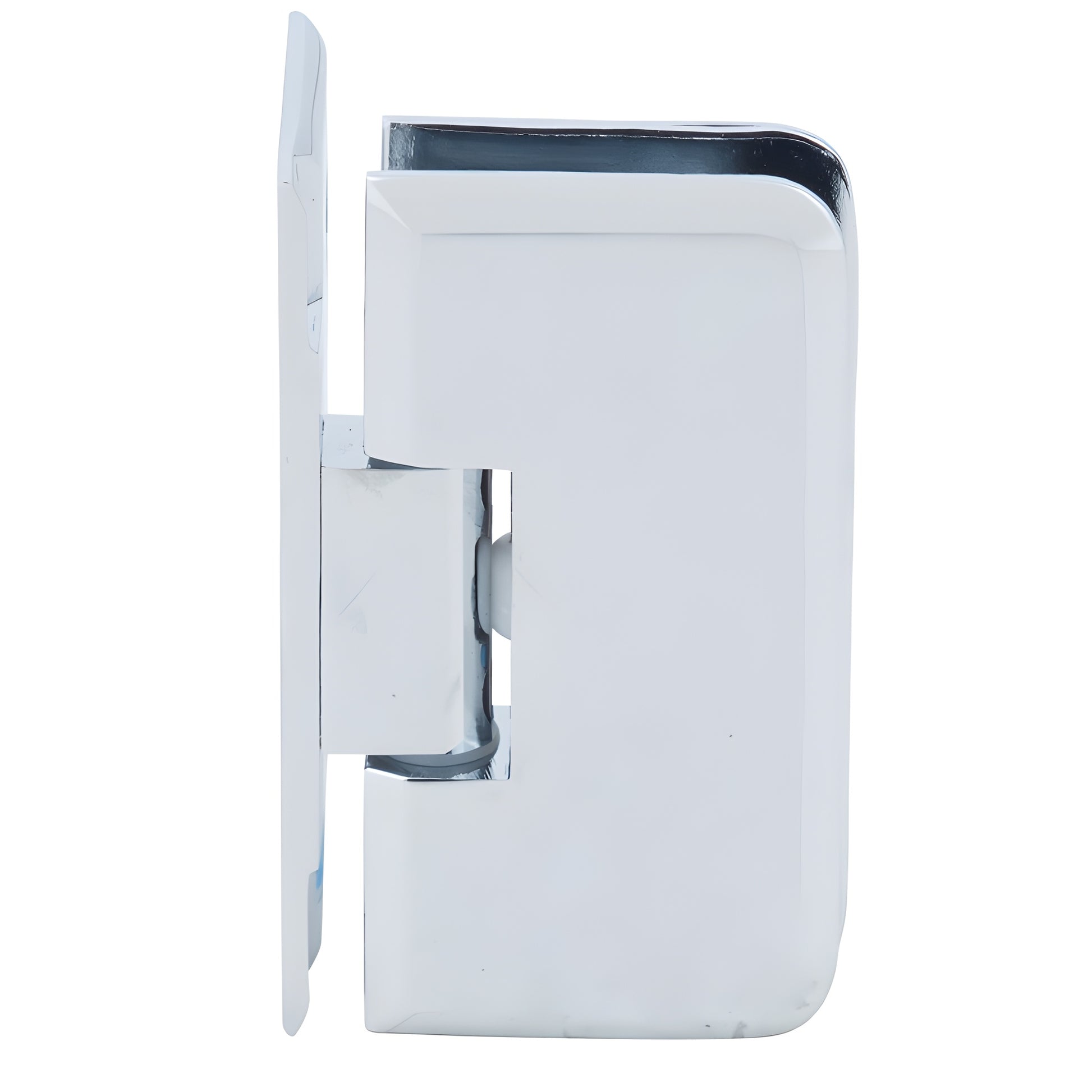

CRL Polished Chrome Petite 044 Wall-Mount Glass Door Hinge

• Wall Mount Offset Back Plate (allows a clean sight line from shower exterior)
• Precise closing feature to zero degrees
• Available in several durable decorative finishes; custom finishes available on request
• 3 year warranty
• Designed for use with monolithic tempered safety glass (6 mm–8 mm)

The CRL Petite Series delivers a complete line of heavy-duty, low-profile hinges for frameless shower doors (SKU PET044CH). Engineered for 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass, these wall mount flush back plate hinges (PET044) provide a clean exterior sight line by locating all mounting screws inside the shower. The Petite Series also includes glass-to-glass models PET181 (180° out-swing) and PET182 (180° in-swing) for frameless shower door installations. Petite hinges feature mitered edges with curved corners for an upscale appearance and hinge plates that are 25% thicker than competitive hinges to reduce deflection and increase holding power—ideal for reliable frameless shower door hardware.

Load capacity & door width (frameless shower door hinge):
Using two hinges: Holds up to 55 lbs (25 kg) with maximum door width 31" (787 mm).
Using three hinges: Holds up to 82 lbs (37 kg) with maximum door width 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass
Special Features: Plates 25% thicker than competitive hinges for reduced deflection and greater holding power
Construction: Solid brass
Hinge Swings: 90° in and 90° out (except PET045, PET054, PET135, PET181, and PET182)
Closing Type: Precise closing to 0° (zero degrees)
Cut-Out Required: (except PET181 and PET182, which require holes only)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for finish options or custom frameless shower hinge solutions.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
