Product Details

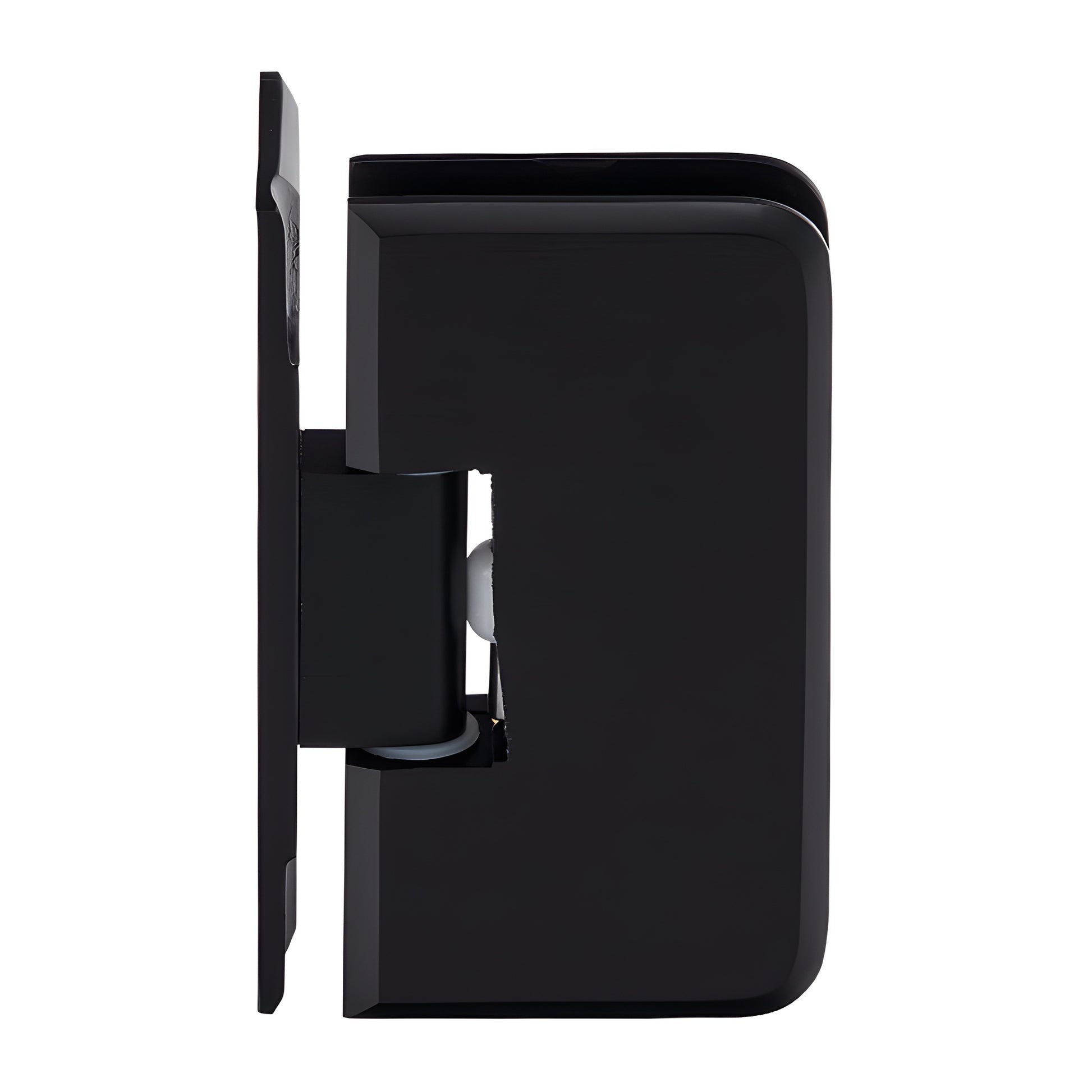

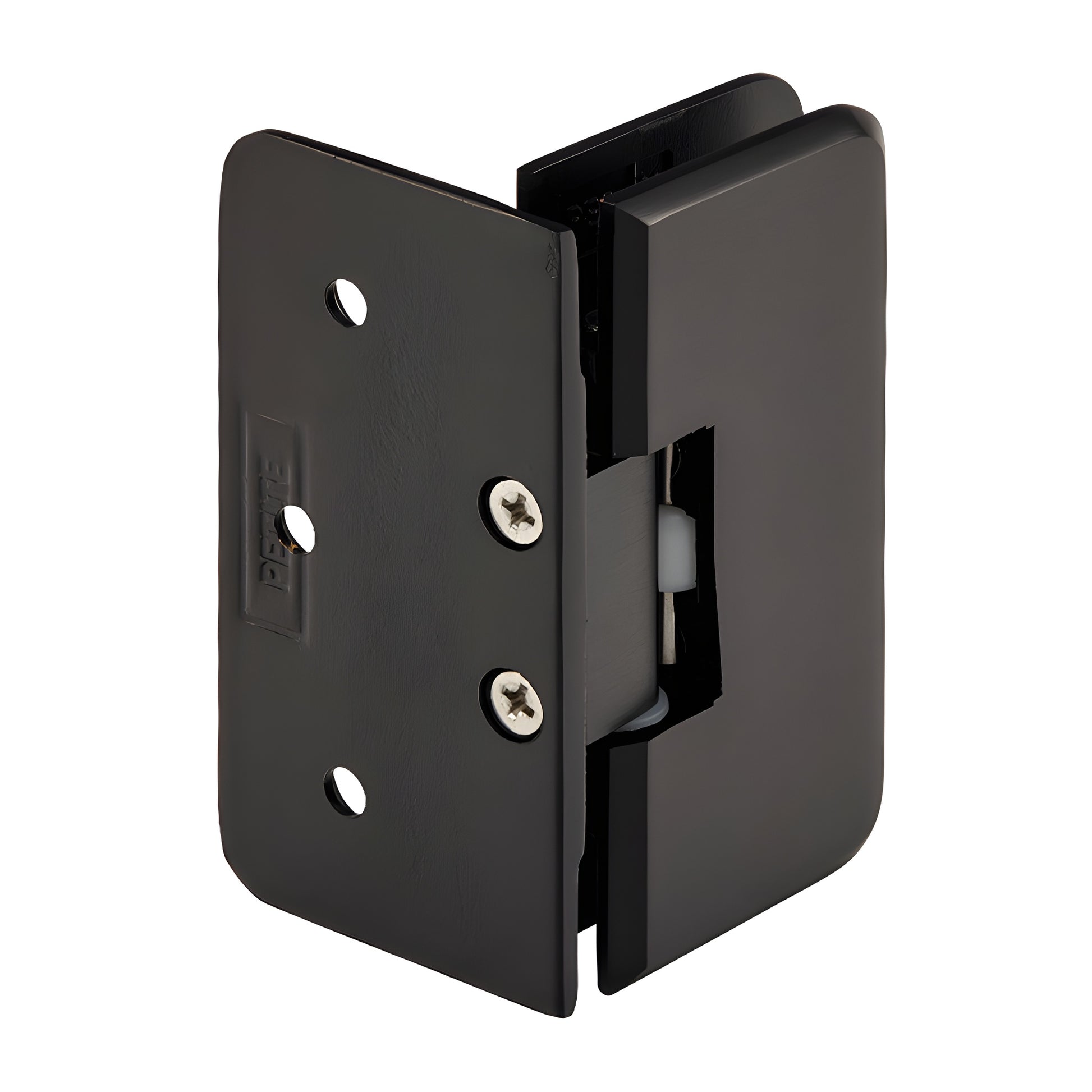

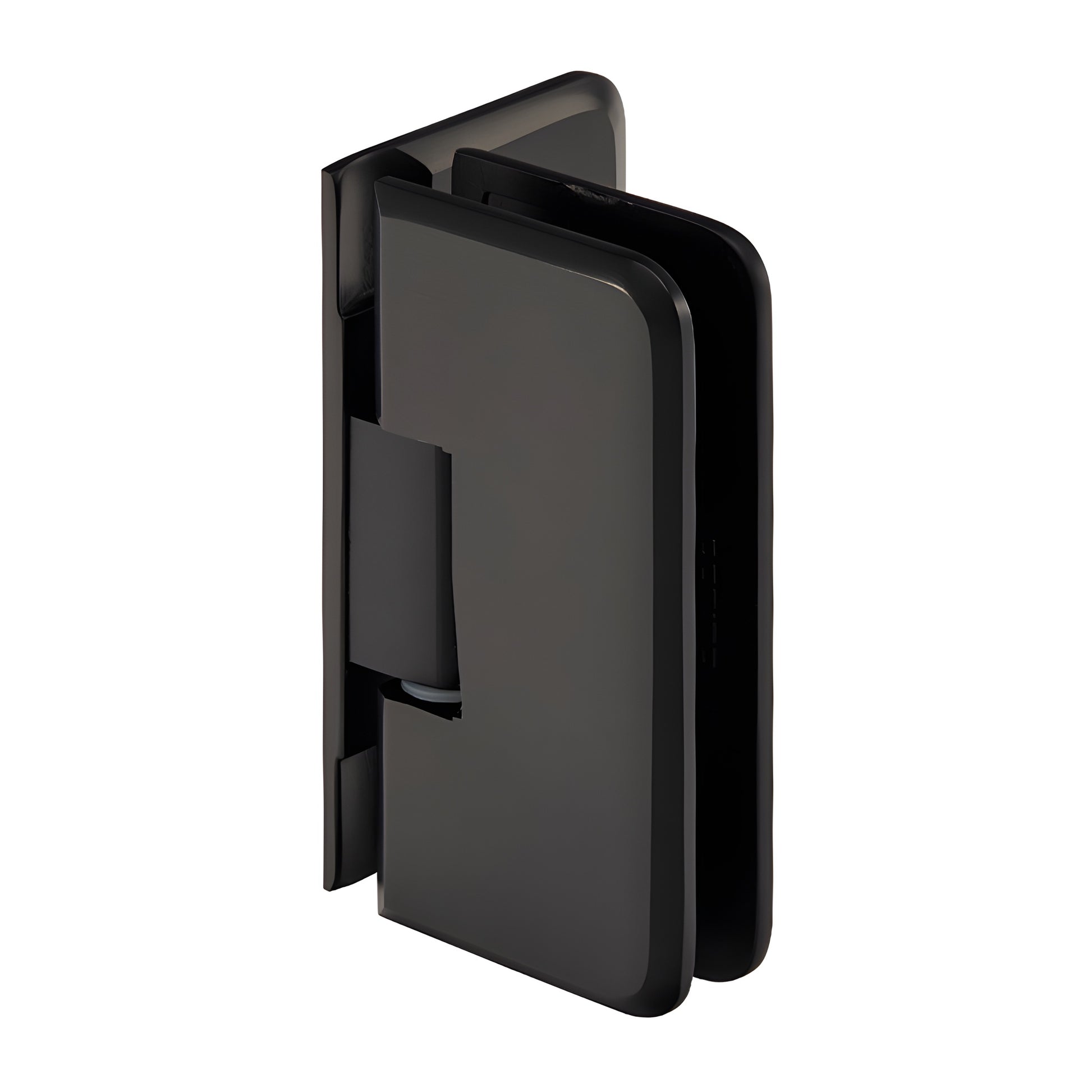

- Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
- Precise Closing Feature to Zero Degrees
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
The CRL Petite Series provides a complete spectrum of Hinges for frameless shower doors using 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Developed to allow virtually every application configuration, they deliver design freedom. The Petite Series includes three unique types: The PET044 Wall Mount Flush Back Plate Hinge allows for a clean exterior sight line by having all mounting screws inside the shower; the PET181 Glass-to-Glass Hinge is used to mount a door to a fixed panel in a 180 degree plane, and allows the door to swing in a complete 180 degree arc outwards; the PET182 Glass-to-Glass Hinge allows the door to swing in a complete 180 degree arc inwards. Petite Hinges have mitered edges with curved corners to provide an aesthetically pleasing look. Petite Hinges have 25% thicker plates than competitive Hinges, thereby reducing deflection and providing greater holding power.
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (Except PET045, PET054, PET135, PET181, and PET182)
Closing Type: Precise Closing to 0 degree
Cut-Out Required (Except PET181 and PET182, which require holes only).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
