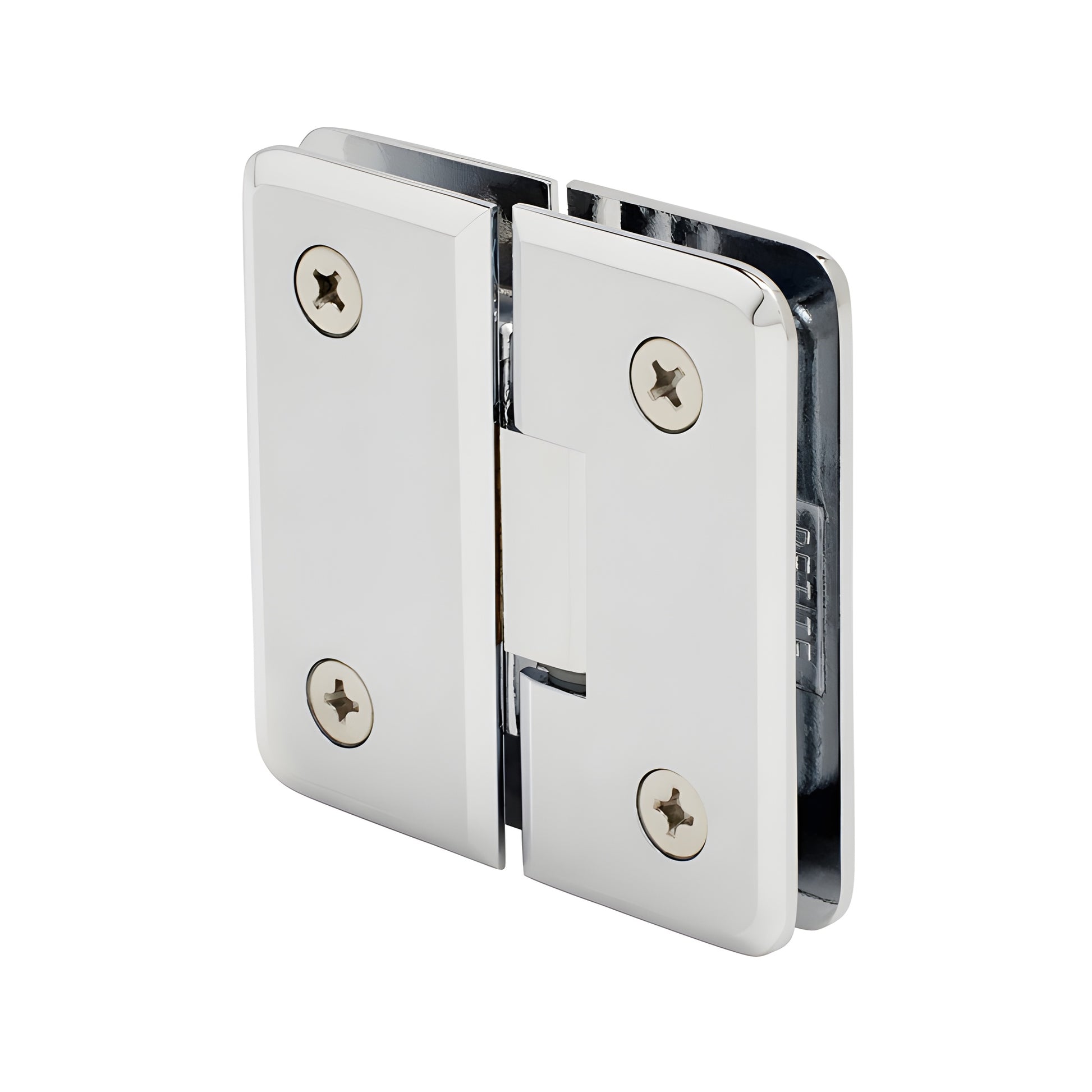

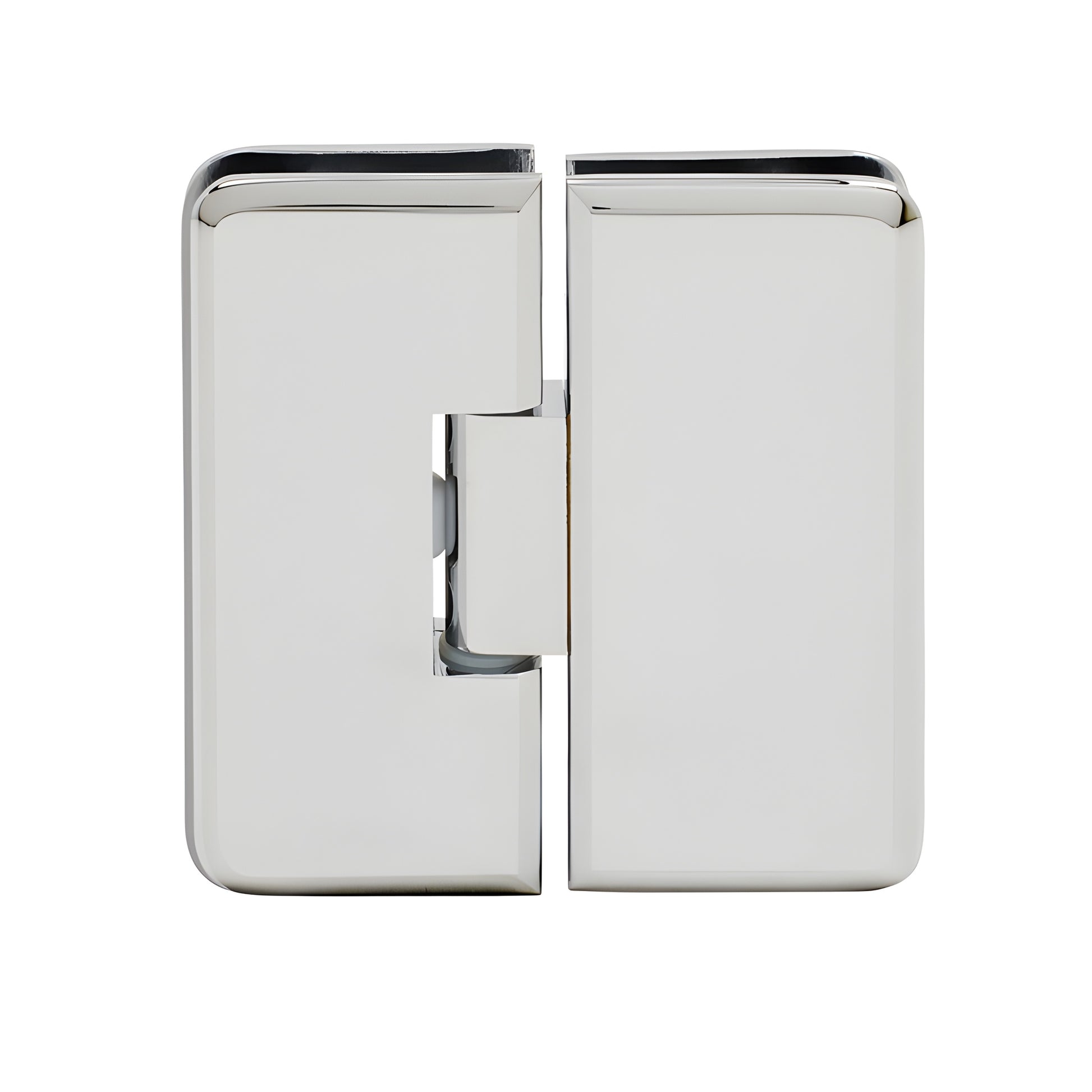

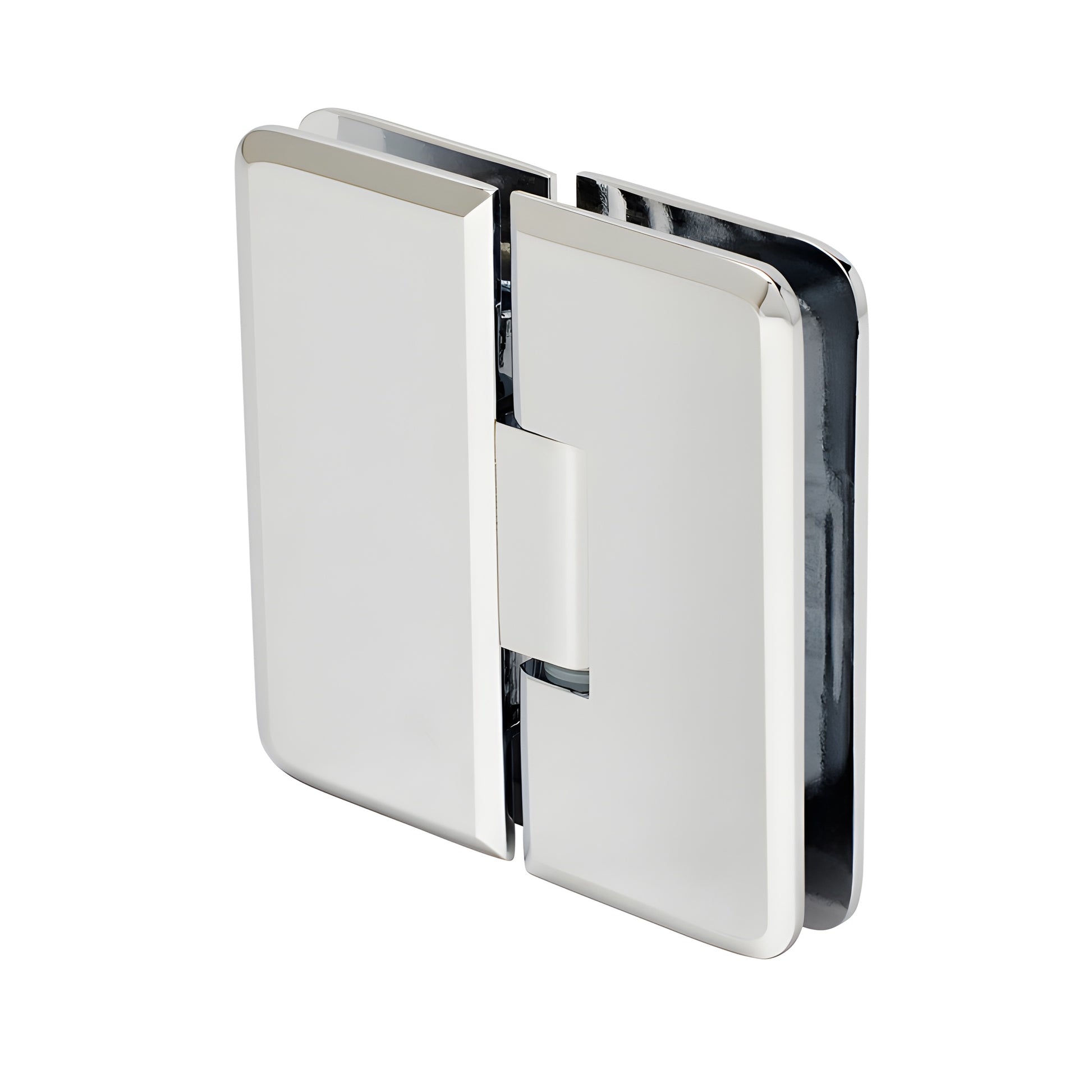

CRL Polished Chrome Petite 180° Glass-to-Glass Shower Door Hinge

• 180° Glass-to-Glass Hinge — door swings 90° in and 90° out
• Precise closing to 0° for reliable, self-centering operation
• Available in multiple beautiful finishes; custom finishes on request
• Solid brass construction with 25% thicker hinge plates for reduced deflection and greater holding power
• 3-year warranty
• Designed for use with monolithic tempered safety glass (1/4" / 6 mm to 5/16" / 8 mm)

The CRL Petite Series offers a complete line of frameless shower door hinges engineered for 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Designed to support a wide range of frameless shower door configurations, the Petite Series delivers design freedom and dependable performance. Models in the series include:

• PET044 — Wall-mount flush back plate hinge with concealed exterior mounting screws for a clean sight line
• PET181 — Glass-to-glass hinge for mounting a door to a fixed panel in a 180° plane; allows full 180° outward swing
• PET182 — Glass-to-glass hinge allowing a full 180° inward swing

Petite hinges feature mitered edges with curved corners for a refined appearance and plates 25% thicker than competitive hinges to reduce deflection and increase holding power.

Load Ratings

Using two hinges: With 1/4" or 5/16" glass (6 or 8 mm), holds up to 55 lb (25 kg). Maximum door width: 31" (787 mm).

Using three hinges: With 1/4" or 5/16" glass (6 or 8 mm), holds up to 82 lb (37 kg). Maximum door width: 34" (864 mm).

SPECIFICATIONS

Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass

Special Features: Hinge plates are 25% thicker than competitive hinges for reduced deflection and greater holding power

Construction: Solid brass

<
