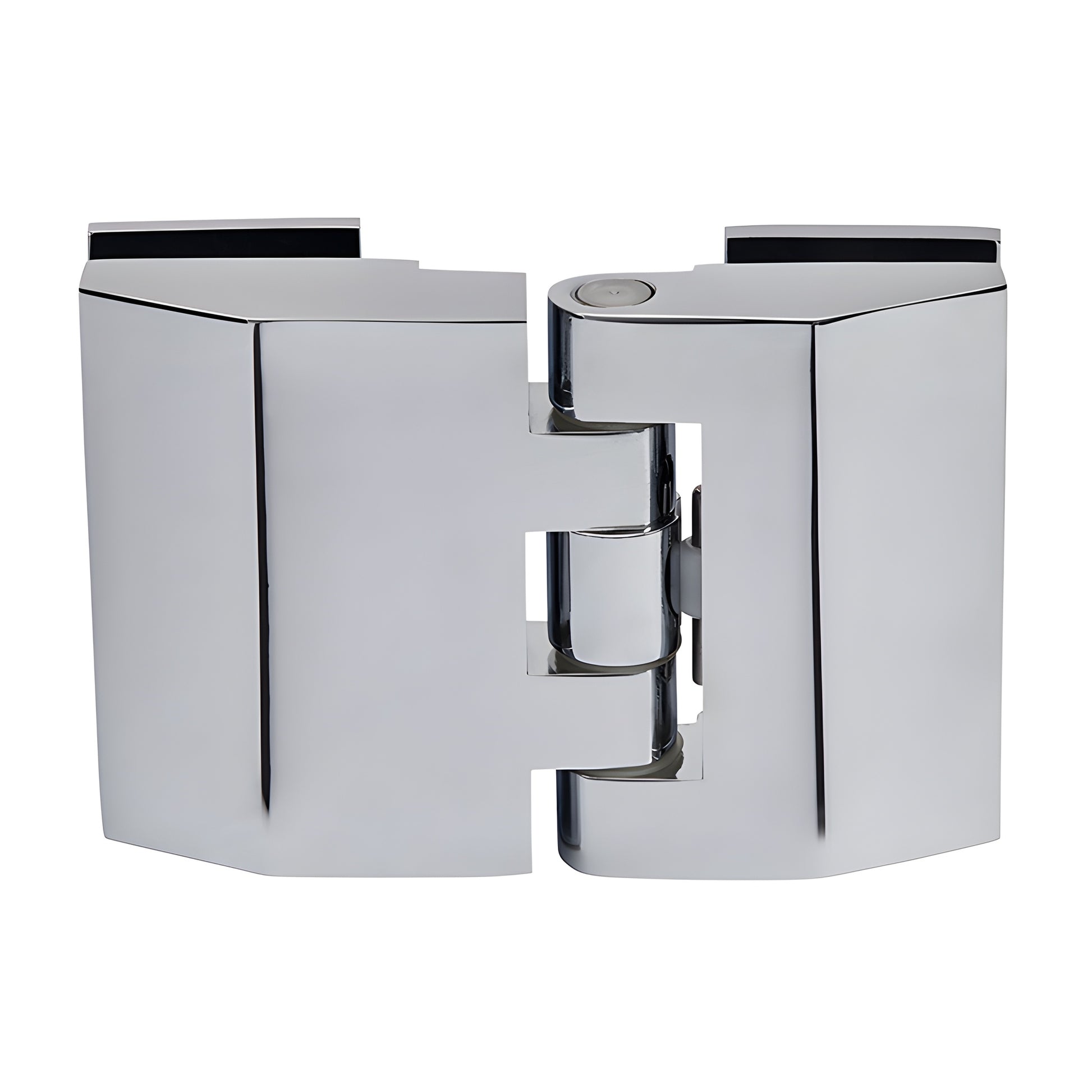

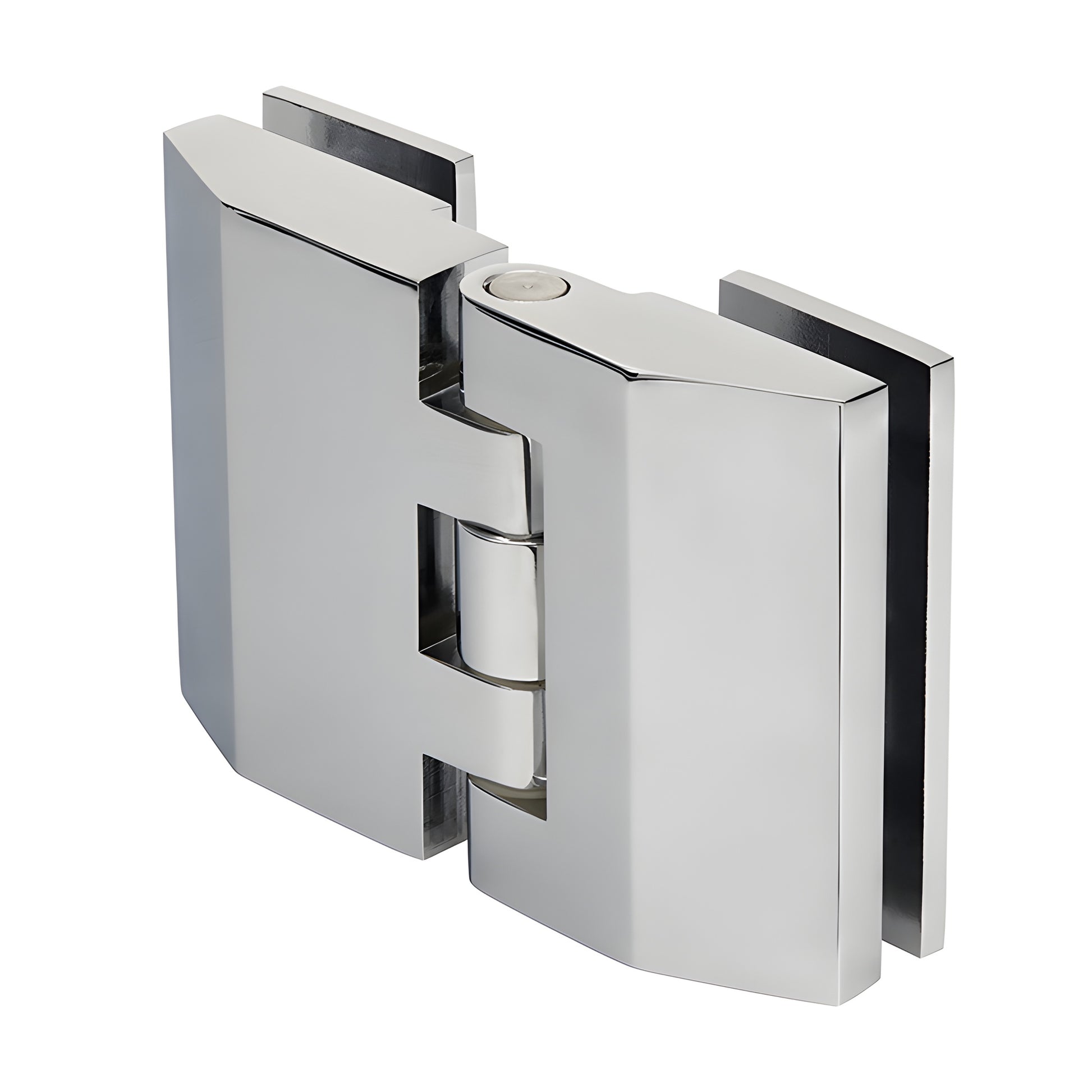

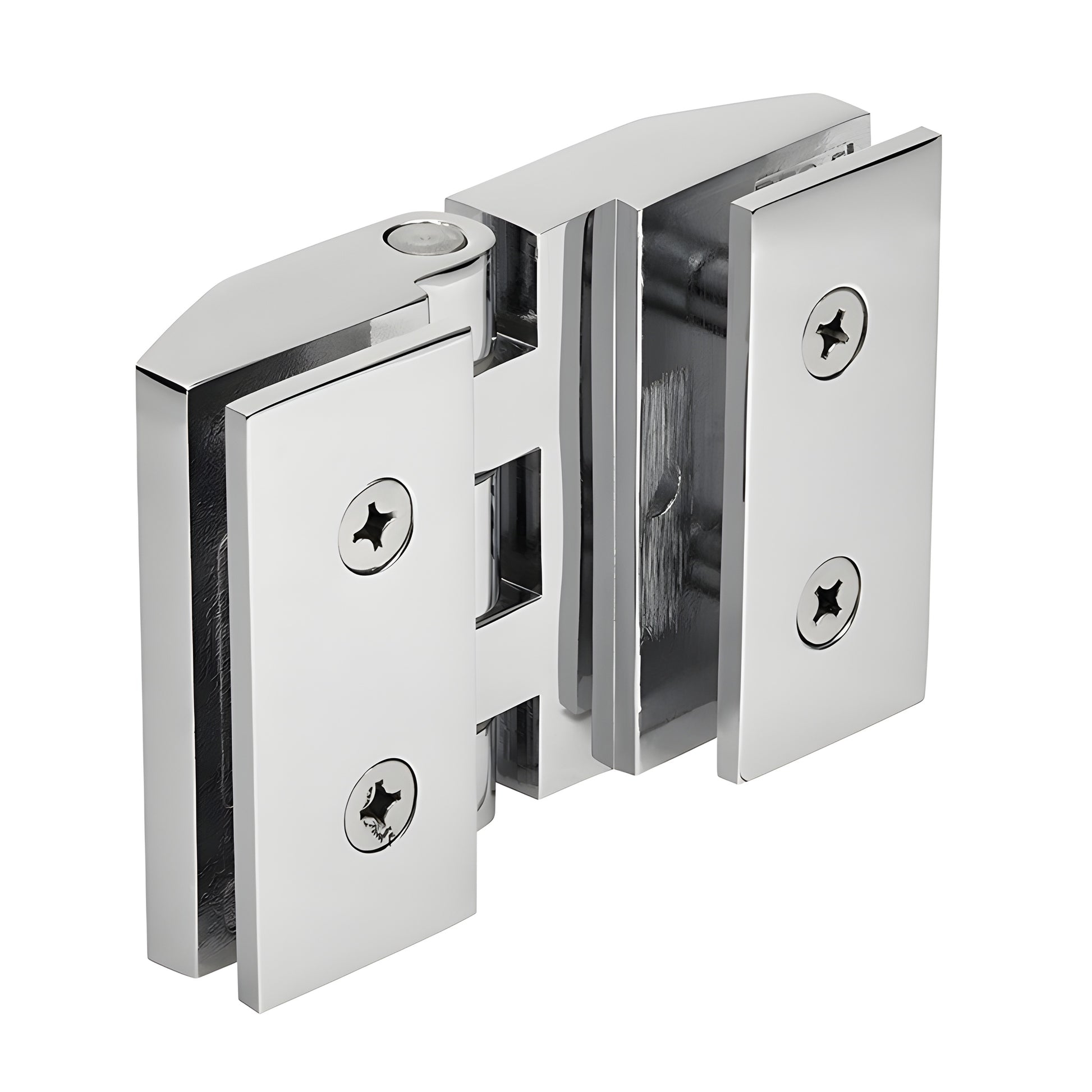

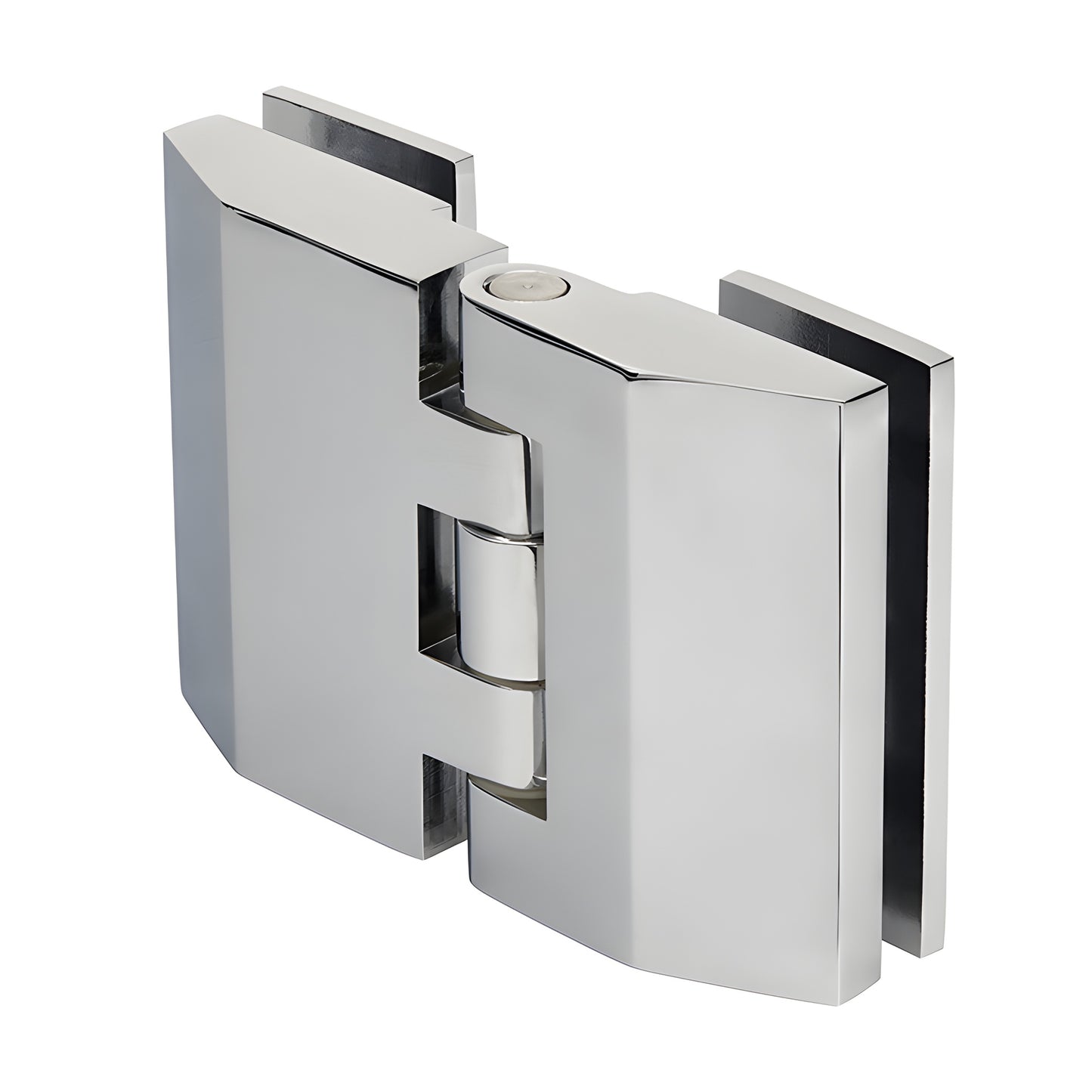

CRL Regal 180° Polished Chrome Glass-to-Glass Shower Hinge

• Glass-to-Glass Model
• Adjustable After Door is Installed
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Regal Hinges are Not Available in Europe
• Use Monolithic Tempered Glass

The CRL Regal Adjustable Hinge (SKU: REG180CH) is a precision-engineered glass-to-glass shower door hinge designed for adjustable, field-tunable installation. The Wall Mount model requires only two holes in the door (no cut-out). The Glass-to-Glass model requires four holes per hinge (two in the door and two in the fixed panel). This solid brass, adjustable shower hinge lets you fine-tune the closing angle from 0° to 90° after the door is installed—simply loosen the Allen screw, set the door to the desired closed position, and retighten. That feature compensates for walls that are not a perfect 90°, allowing a single glass-to-glass hinge to accommodate angles from 90° to 180°.

Note: REG037 and REG180 are not available in Europe.

Load Capacity

Using two hinges with 5/16" or 3/8" tempered glass (8 mm or 10 mm), the hinge will hold up to 90 lbs (41 kg) with a maximum door width of 30" (762 mm). Using three hinges with 5/16" or 3/8" glass, the hinge will hold up to 130 lbs (59 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass

Construction: Solid brass (durable shower hardware)

Hinge Swings: Approximately 90° outward only (requires stop)

Closing Type: Precise closing to 0°

Installation: No cut-out required; two holes only per glass panel

Includes: Gaskets, screws, and glass fabrication dimensions

Installation Notes: Door glass width may require alteration from standard clearance deductions when adjusting angles—contact CRL Technical Sales for details. Custom finishes available on request; contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
