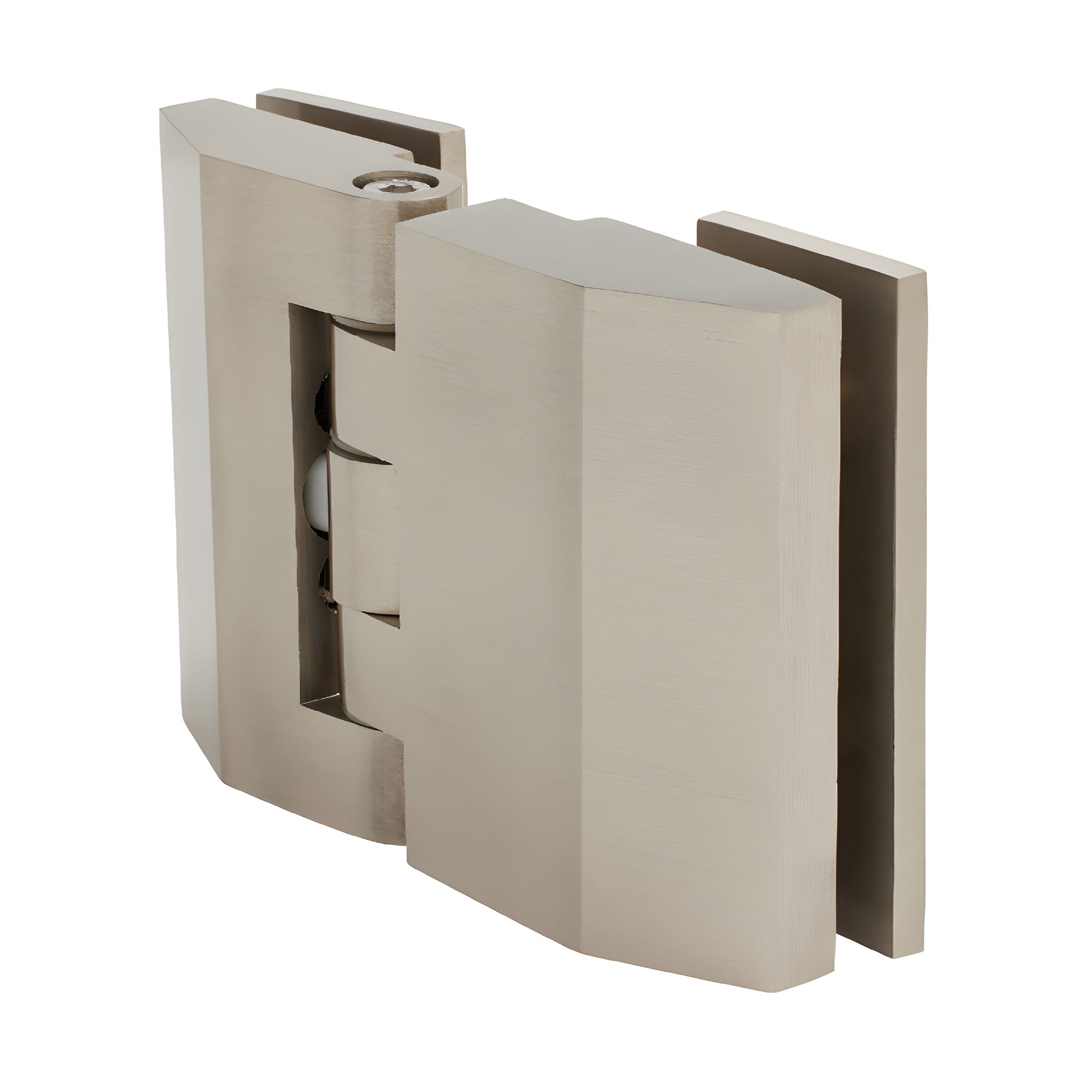

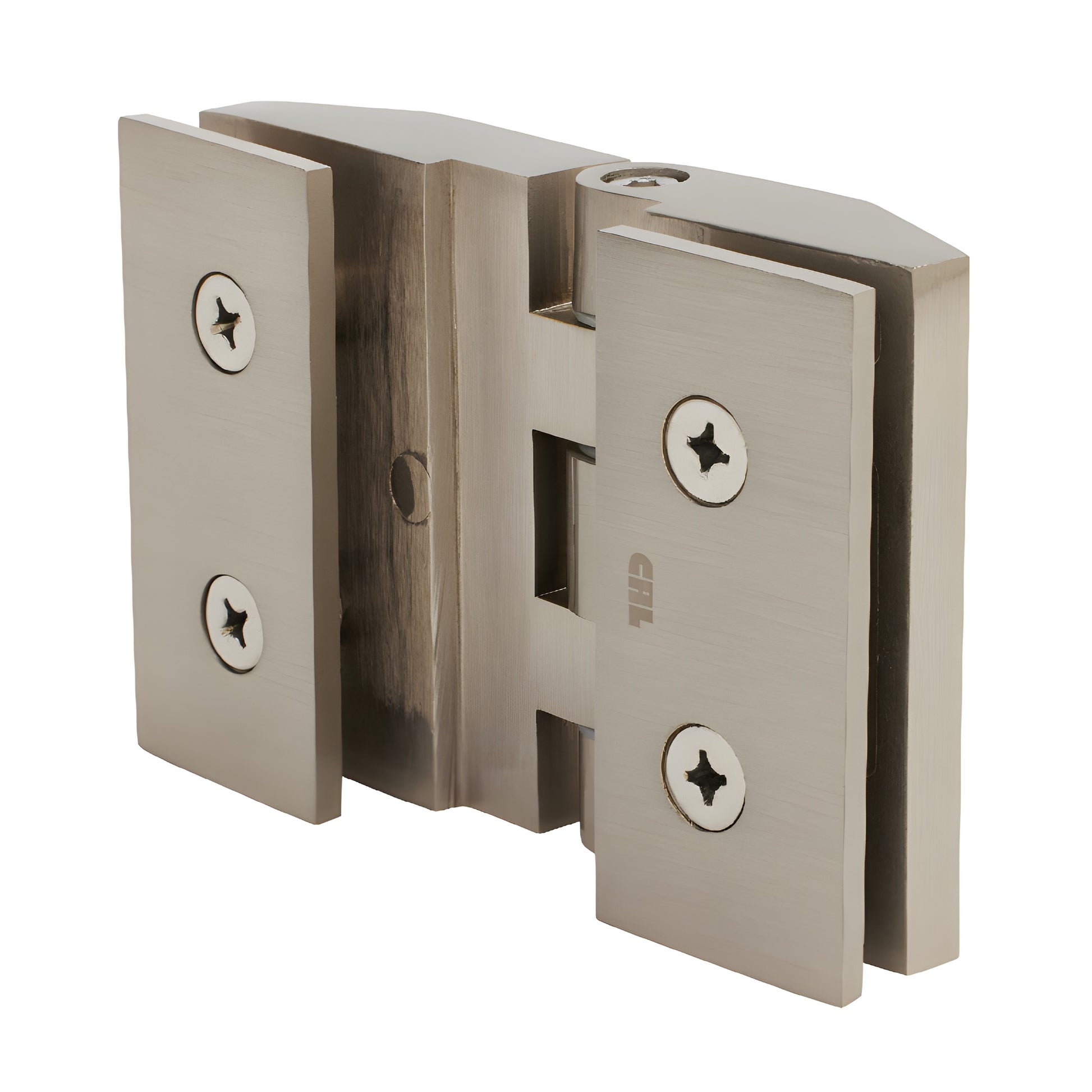

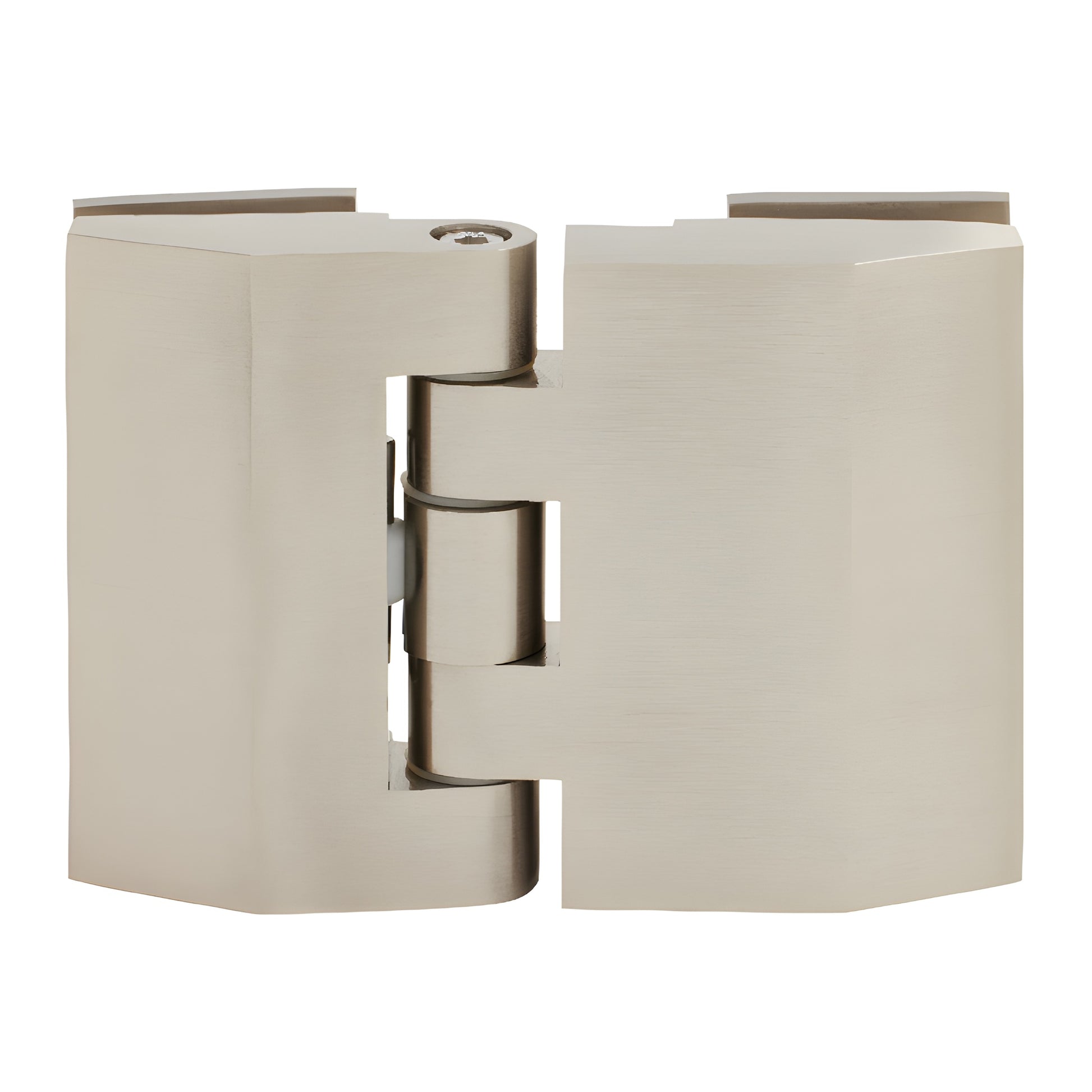

CRL Regal 180 Brushed Nickel Frameless Glass-to-Glass Shower Hinge

• Glass-to-Glass Model
• Adjustable After Door is Installed
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Regal Hinges are Not Available in Europe
• Use Monolithic Tempered Glass

CRL Regal Adjustable Hinge — SKU: REG180BN

The CRL Regal Adjustable Hinge is an innovative, solid brass shower hinge designed for glass-to-glass and wall-mount shower doors. The Wall Mount model requires only two holes in the door (no cut-out). The Glass-to-Glass model requires four holes per hinge (two in the door and two in the fixed panel). This hinge is adjustable after installation, letting you correct non‑square walls by setting the closing angle anywhere from 0° to 90° (a single Glass-to-Glass unit can accommodate angles from 90° to 180°).

Key Differentiators

• Adjustable closing angle after installation — corrects walls that are not a perfect 90°
• Solid brass construction for corrosion resistance and long life
• Designed for monolithic tempered safety glass (no laminated glass)
• Includes gaskets, screws, and glass fabrication dimensions

Performance & Compatibility

Using two hinges with 5/16" (8 mm) or 3/8" (10 mm) tempered glass, each hinge set supports up to 90 lb (41 kg) with a maximum door width of 30" (762 mm). Using three hinges increases capacity to 130 lb (59 kg) with a maximum door width of 34" (864 mm).

Specifications

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Construction: Solid Brass
• Hinge Swing: Approximately 90° outward only (requires stop)
• Closing Type: Precise closing to 0°
• Mounting: No cut-out required; two holes only per glass panel (wall mount) or four holes per hinge (glass-to-glass)

Notes

• REG037 and REG180 models are not available in Europe.
• Door glass width may require alteration from standard clearance deductions when adjusting angles — call for details.
• Custom finishes available on request; contact the CRL Technical Sales Shower Door Department.
