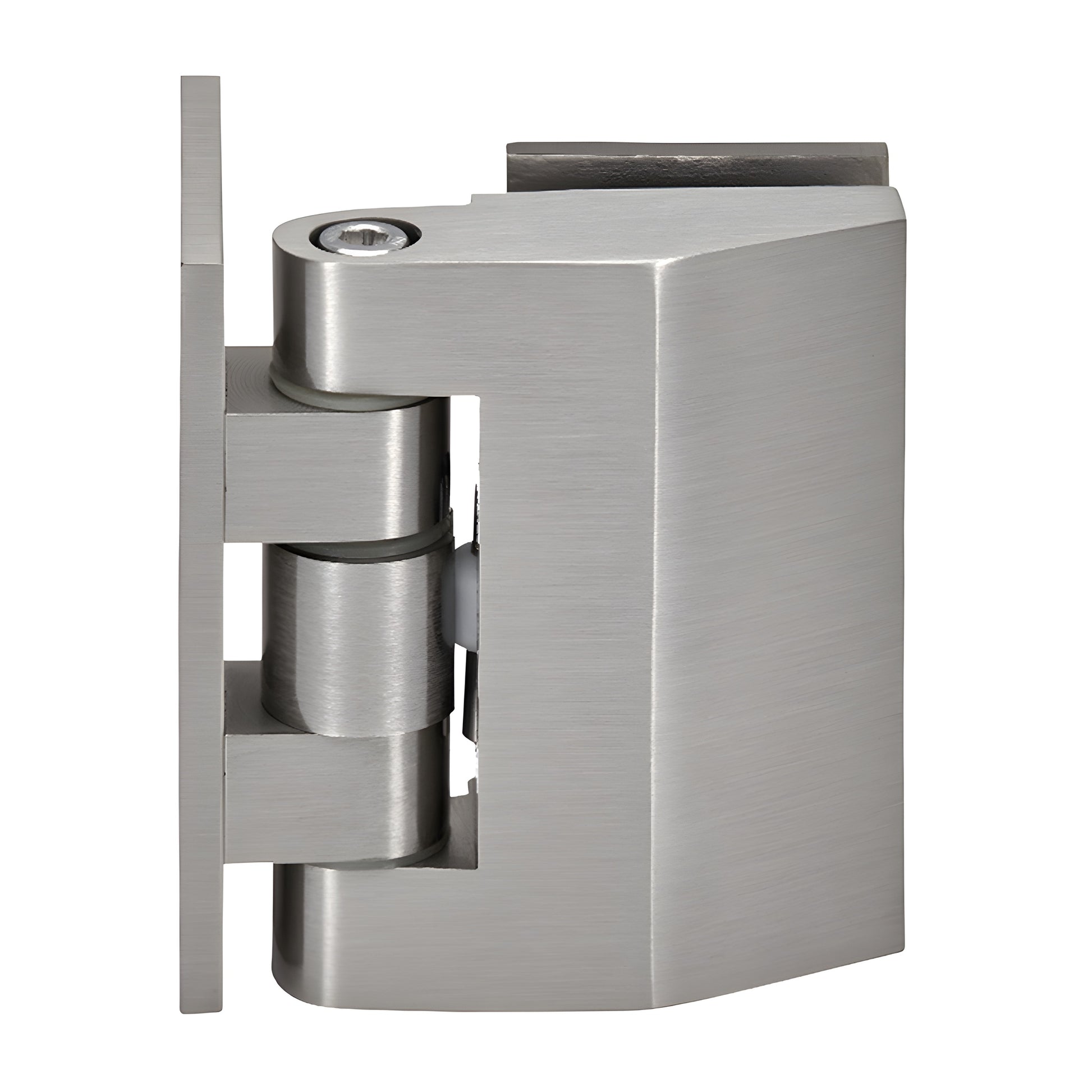

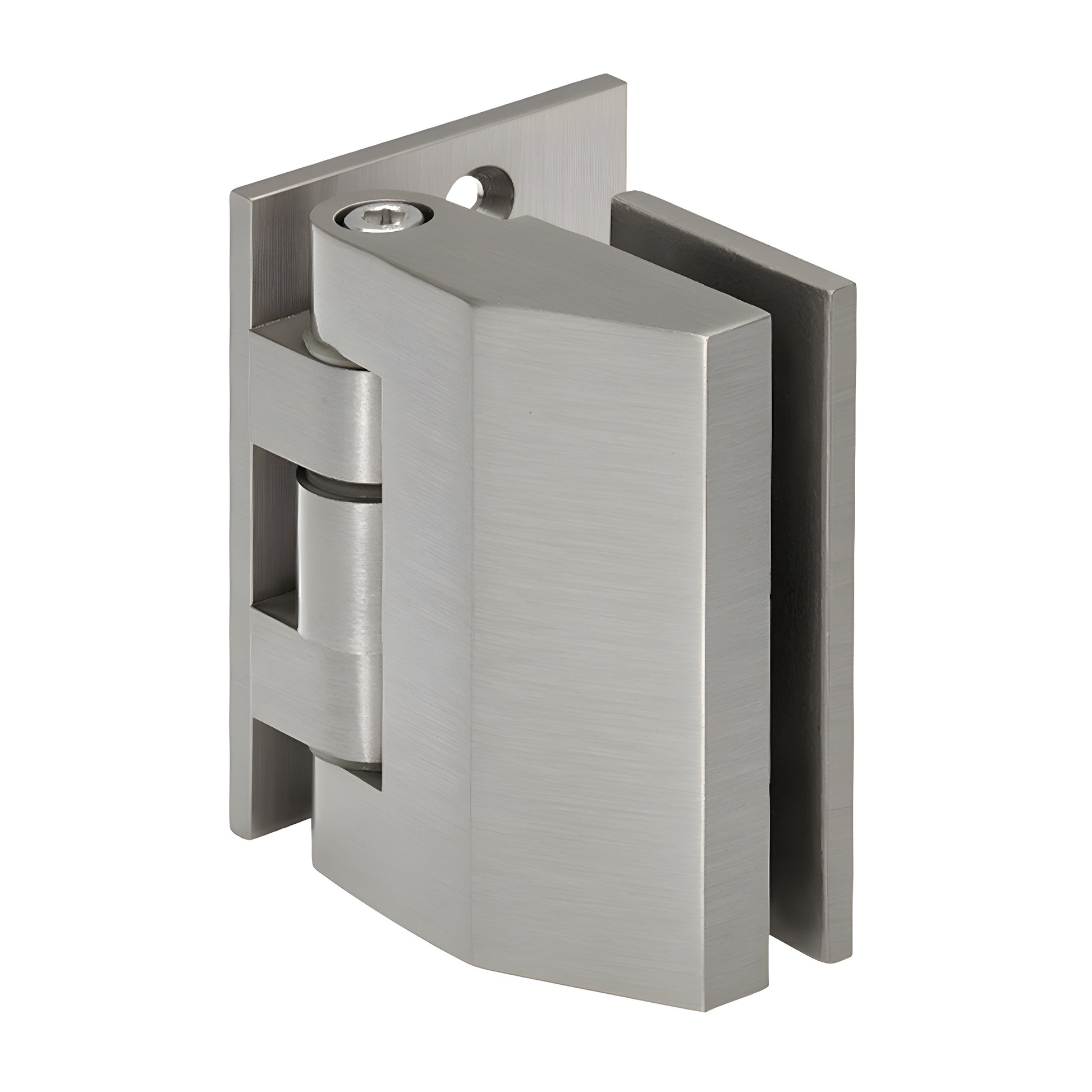

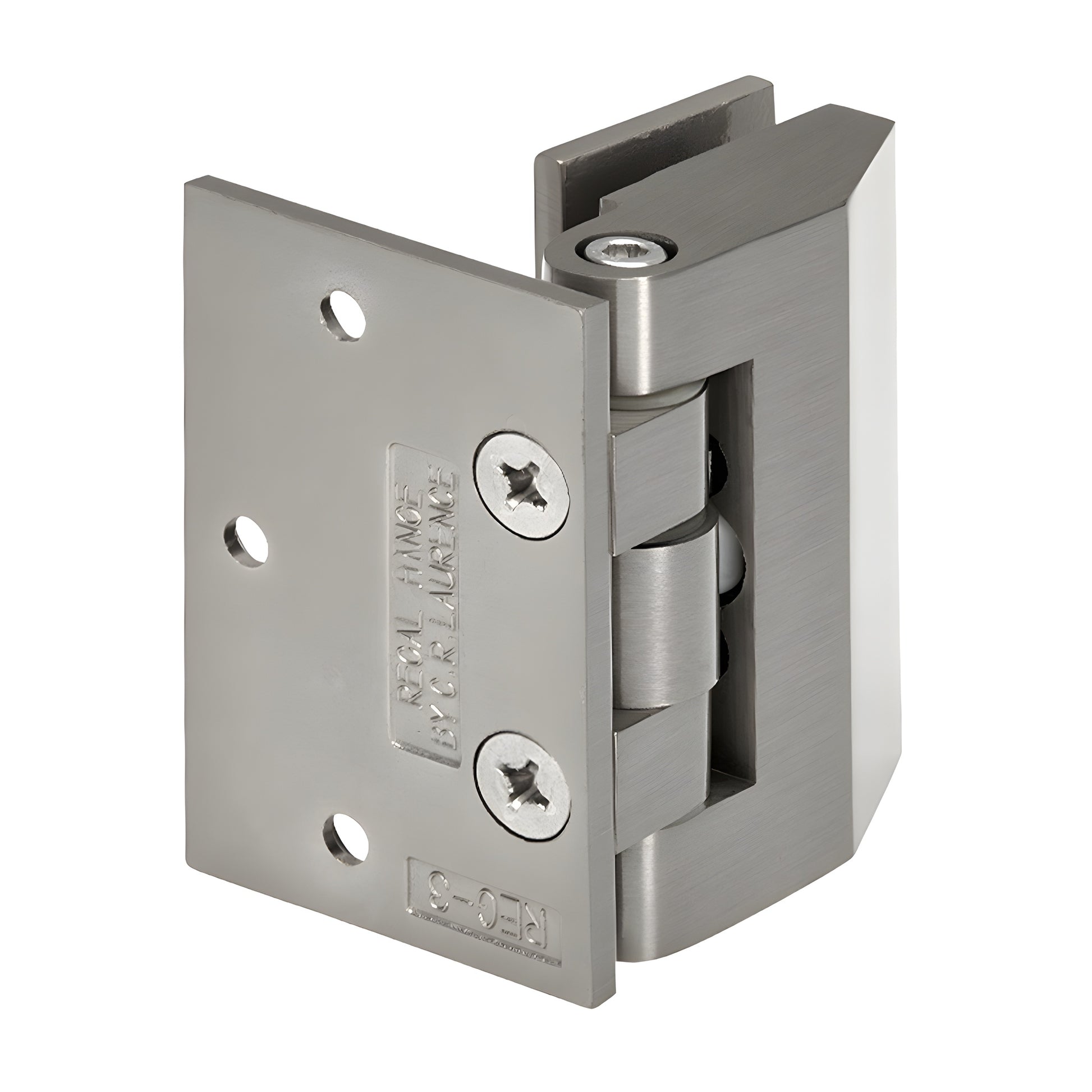

CRL Regal 037 Brushed Nickel Wall-Mount Offset Door Hinge

• Wall Mount
• Adjustable After Door is Installed
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Regal Hinges are Not Available in Europe
• Use Monolithic Tempered Glass

CRL Regal Adjustable Hinge — a unique adjustable shower door hinge engineered for easy installation and precise alignment. The Wall Mount model requires only two holes in the glass (no cut-out). The Glass-to-Glass model requires four holes per hinge (two in the door and two in the fixed panel). The hinge provides an adjustable closing angle from 0° to 90°; loosen the Allen screw, position the door, and retighten to correct non-90° wall-to-door alignment. A single Glass-to-Glass hinge can accommodate angles between 90° and 180° when adjusted, making this an ideal adjustable shower door hinge for custom frameless shower installs.

NOTE: REG037 and REG180 are not available in Europe.

Load Capacity: Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm). Using three hinges with 5/16" or 3/8" glass the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: Approximately 90° outward only (requires stop)

Closing Type: Precise closing to 0°

Mounting: No cut-out required; two holes only per glass panel

Includes: Gaskets, screws, and glass fabrication dimensions

Note: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request — contact the CRL Technical Sales Shower Door Department
