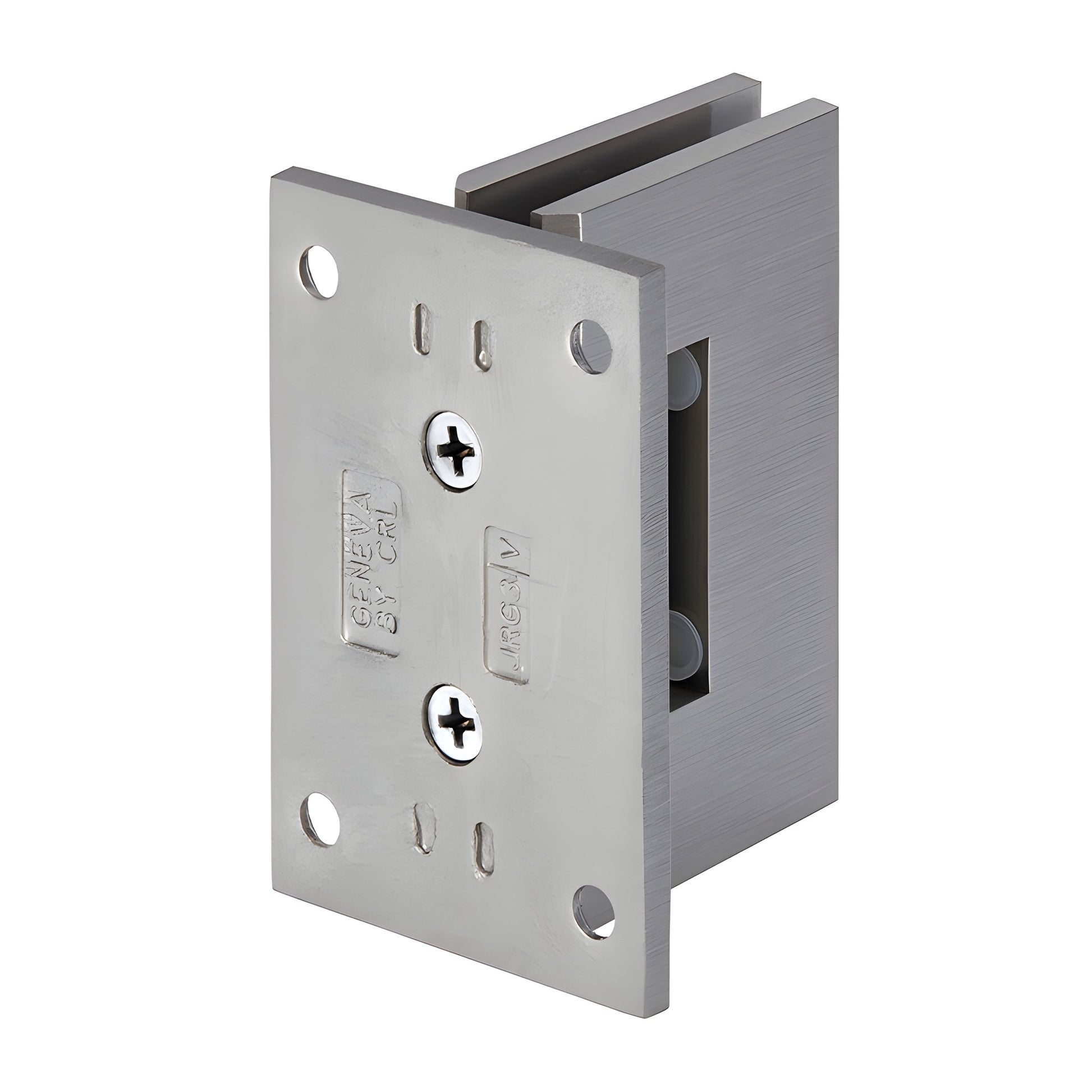

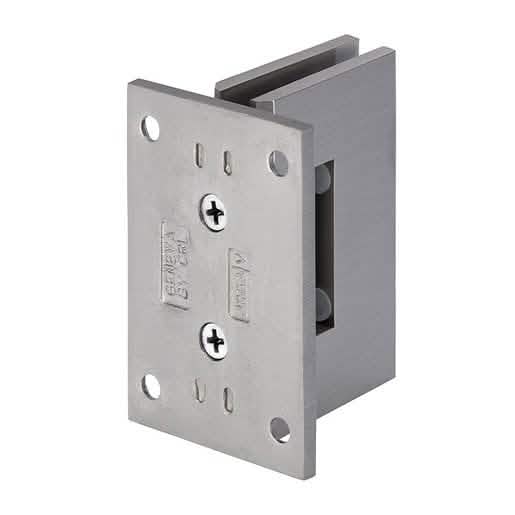

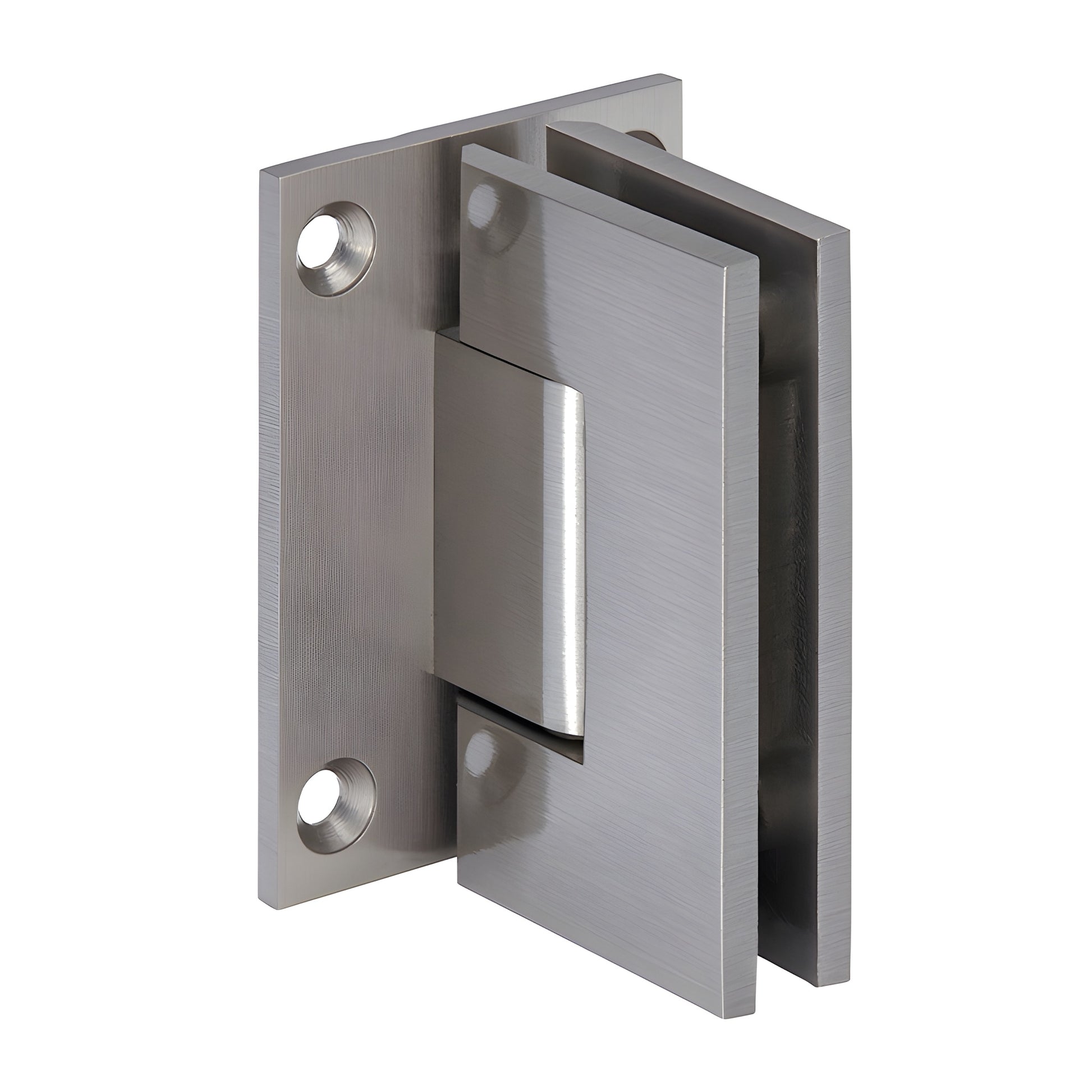

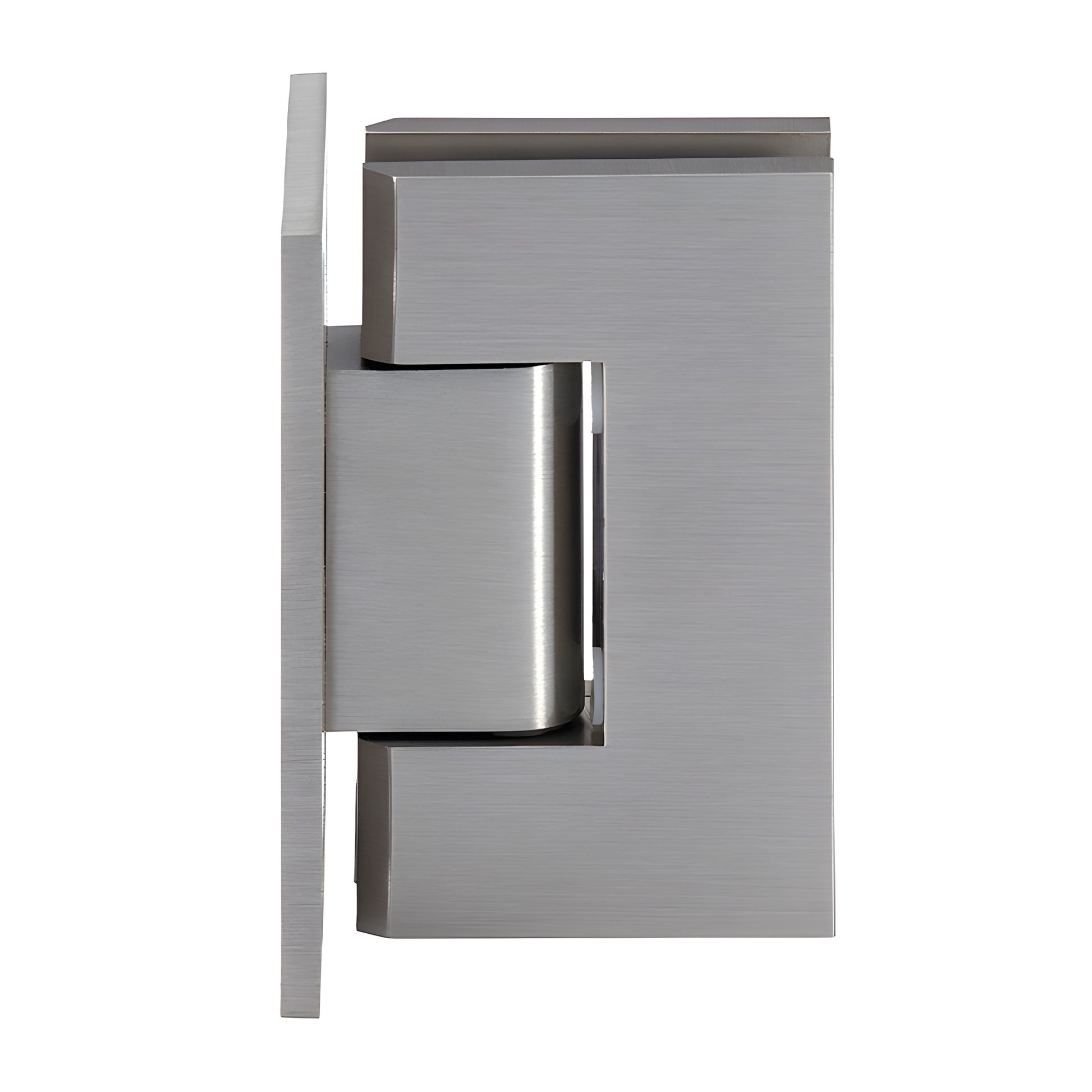

CRL Brushed Nickel Junior Geneva 037 Series Wall Mount Full Back Plate Hinge
CRL Brushed Nickel Junior Geneva 037 Series Wall Mount Full Back Plate Hinge
Regular price
$104.99 CAD
Regular price
Sale price
$104.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# JRG037BN
Shipping Weight: 1.08 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.08 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | No |
| Back | Plate Full |
| Finish/Color | Brushed Nickel |
| Glazing Thickness | 1/4 in. To 5/16 in. (6 mm To 8 mm) |

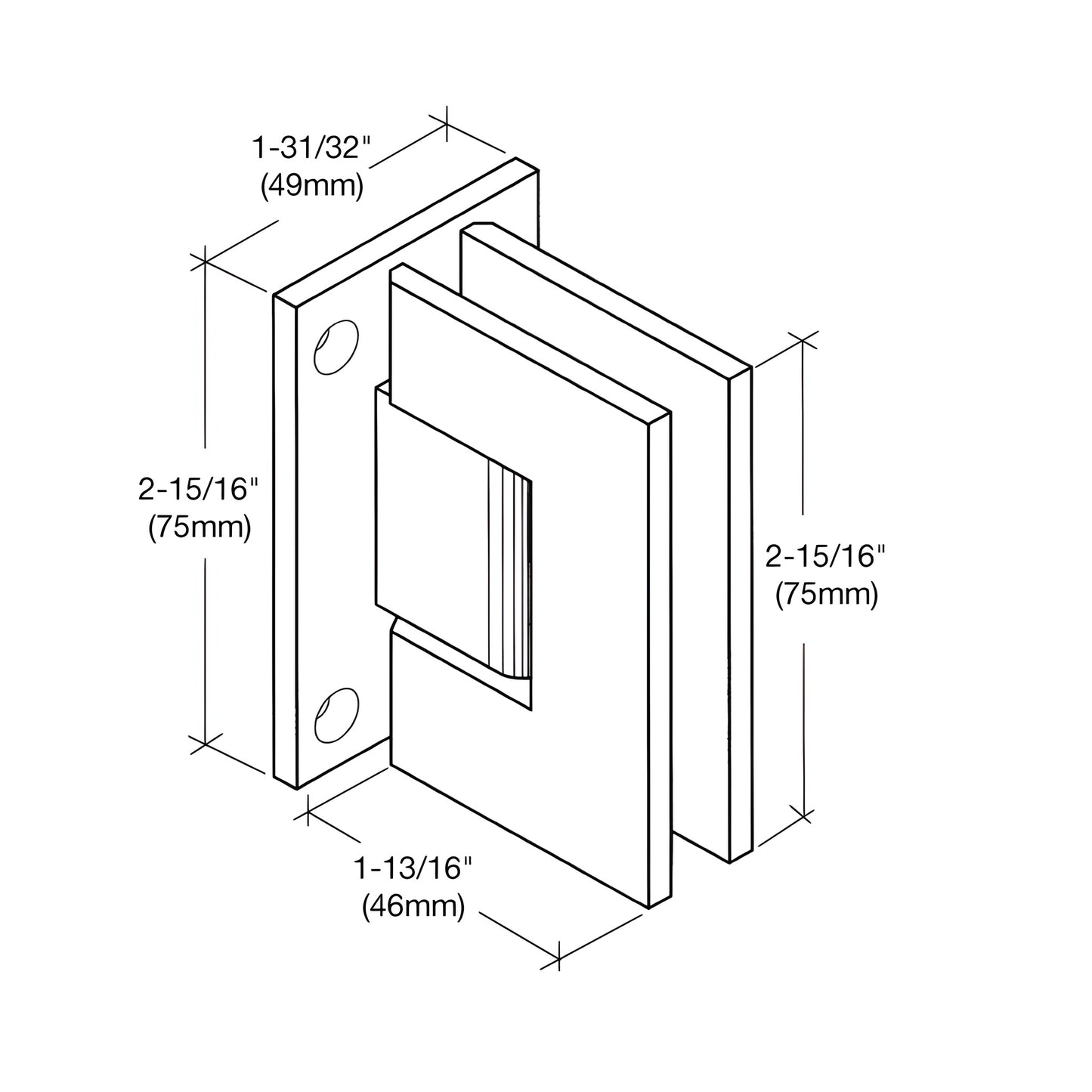

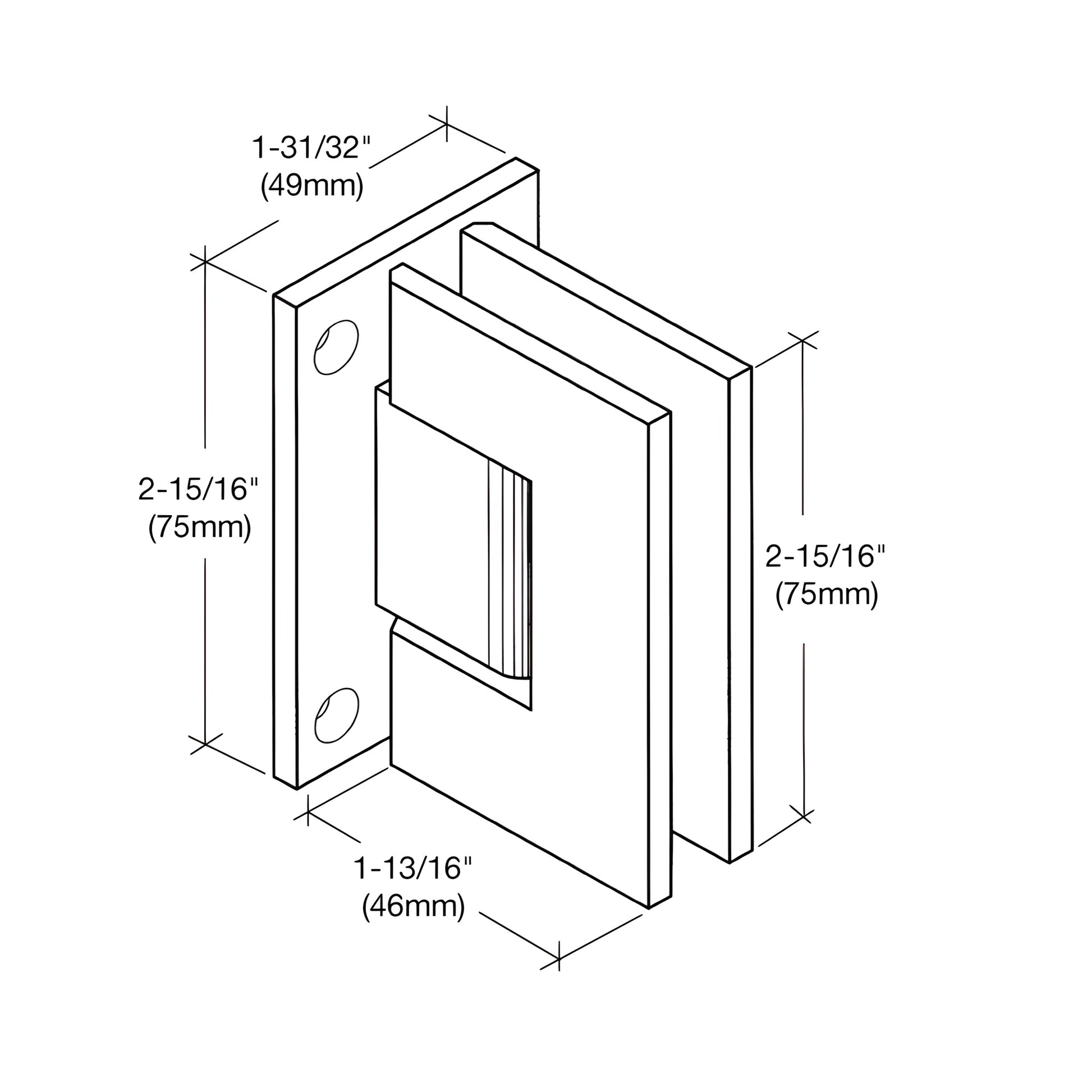

| Height 2-15/16 in. | (75 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges 62 lbs. | (28.1 kg) |
| Maximum Door Weight - 3 Hinges 92 lbs. | (41.7 kg) |
| Maximum Door Width - | 2 Hinges 28 |
| Maximum Door Width - | 3 Hinges 32 |
| Mounting | Type Wall Mount |
| Self-Centering Yes | Junior Geneva |
| Width 1-13/16 in. | (46 mm) |
Overview
Introducing our top-selling Junior Geneva Hinge Series, perfect for accommodating 1/4" to 5/16" thick glass.
This versatile series features a Wall Mount Full Back Plate Standard Model, factory set for standard closing positions, and is self-centering with a reversible 5-degree pivot pin.
Available in multiple stunning finishes, these hinges come with a 3-year warranty and are designed for use with monolithic tempered glass.
The Junior Geneva series offers the same sophisticated European design as the popular Geneva Series, with options for 90-degree, 135-degree, and 180-degree glass-to-glass styles.
Built from solid brass, these hinges provide reliable support for glass doors, making them an ideal choice for residential or hotel showers.
This versatile series features a Wall Mount Full Back Plate Standard Model, factory set for standard closing positions, and is self-centering with a reversible 5-degree pivot pin.
Available in multiple stunning finishes, these hinges come with a 3-year warranty and are designed for use with monolithic tempered glass.
The Junior Geneva series offers the same sophisticated European design as the popular Geneva Series, with options for 90-degree, 135-degree, and 180-degree glass-to-glass styles.
Built from solid brass, these hinges provide reliable support for glass doors, making them an ideal choice for residential or hotel showers.
