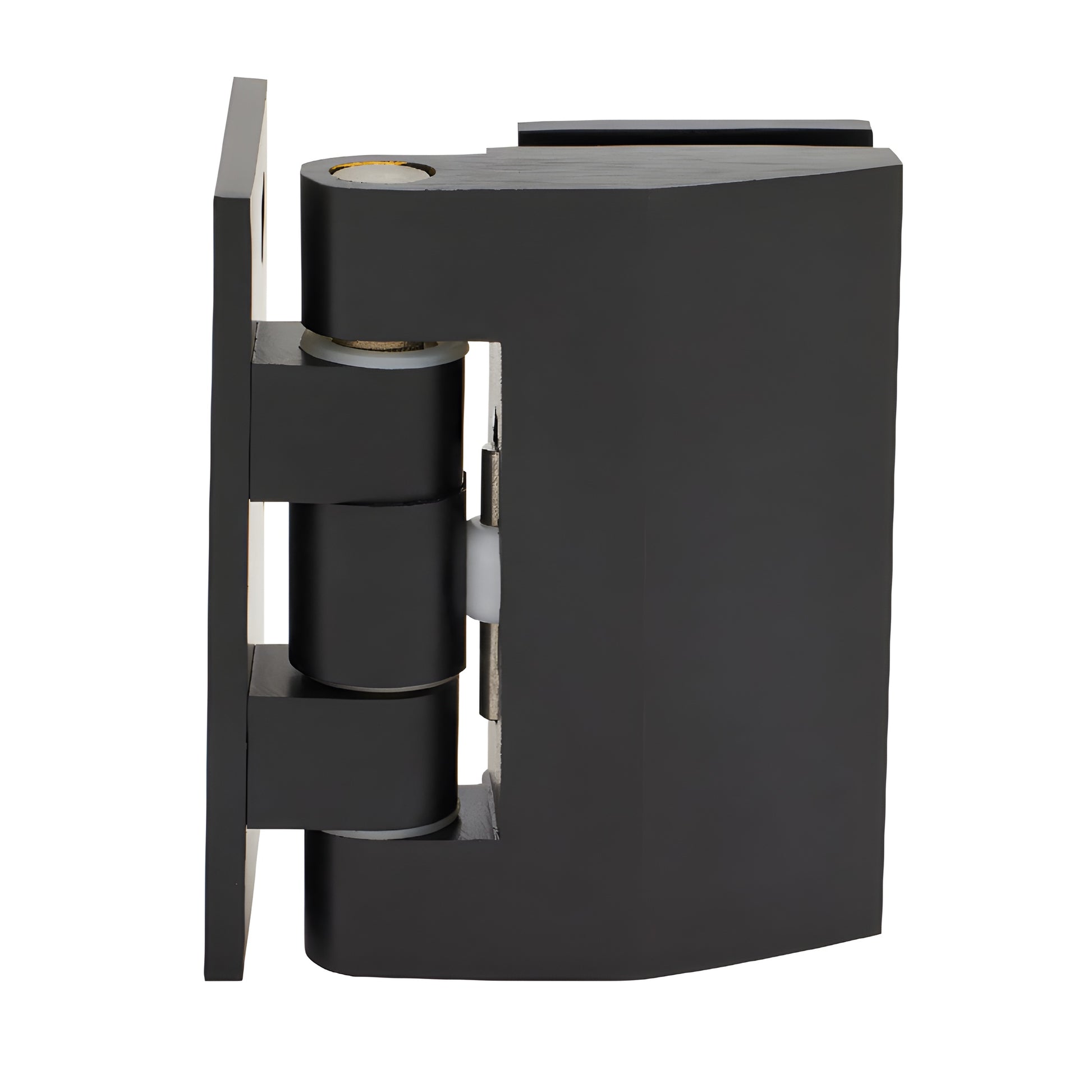

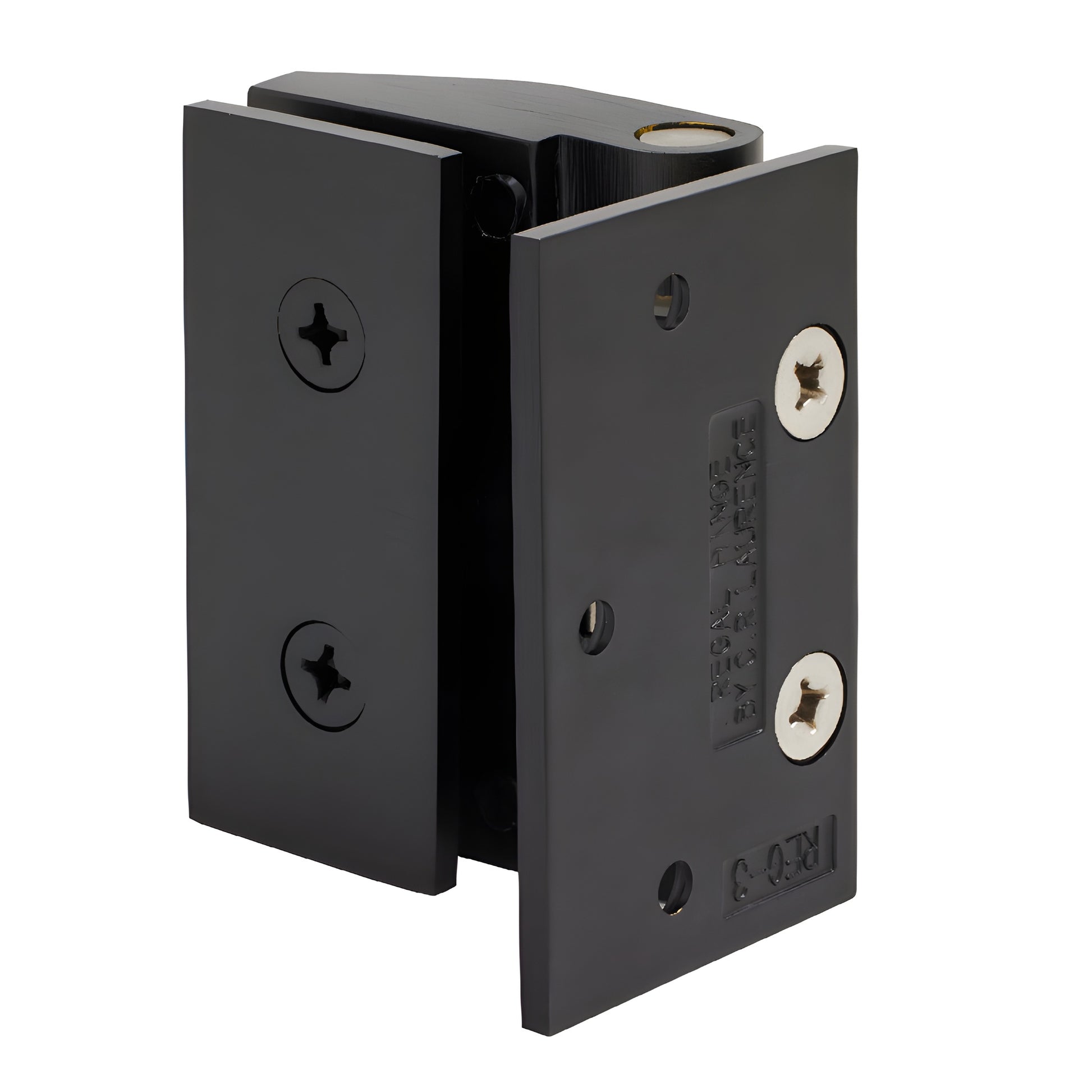

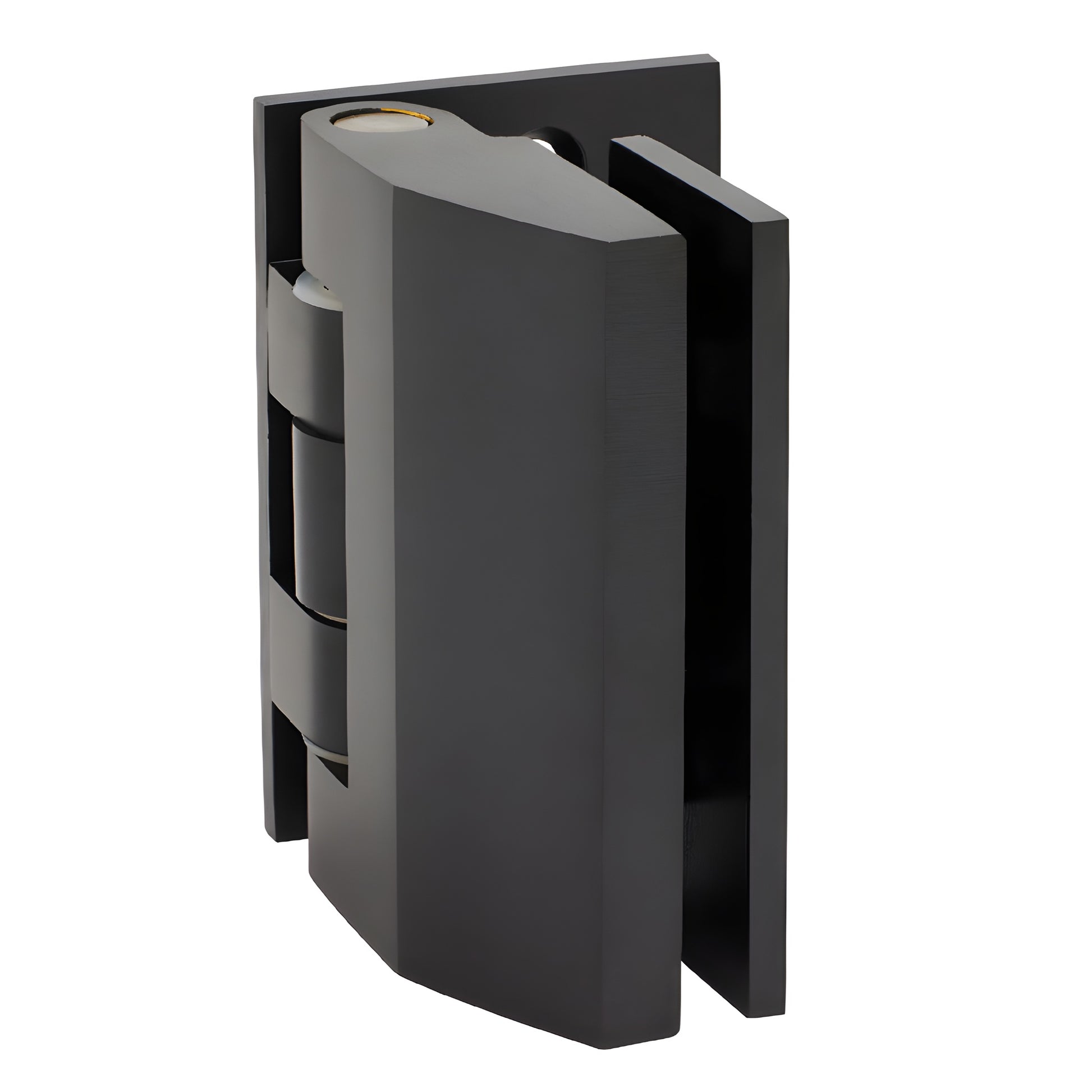

CRL Regal 037 Oil Rubbed Bronze Wall-Mount Offset Backplate Door Hinge

• Wall Mount
• Adjustable After Door is Installed
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Regal Hinges are Not Available in Europe
• Use Monolithic Tempered Glass

The CRL Regal Adjustable Hinge (SKU: REG0370RB) is engineered for residential and hotel shower doors as a premium adjustable shower door hinge. The wall-mount model requires only two holes in the glass (no cut-out). The glass-to-glass model requires four holes per hinge (two in the door and two in the fixed panel). This solid brass, adjustable shower hinge provides a configurable closing angle from 0° to 90° and—on glass-to-glass installations—can accommodate panel angles from 90° to 180° when adjusted.

Adjustment is fast: loosen the Allen screw, set the door to the desired closed position, then tighten the screw. This feature corrects walls that are not at a perfect 90° and eliminates the need for precision framing.

NOTE: REG037 and REG180 models are not available in Europe.

Load Capacity

Using two hinges with 5/16" or 3/8" tempered glass (8 or 10 mm): supports up to 90 lbs (41 kg), maximum door width 30" (762 mm).

Using three hinges with 5/16" or 3/8" tempered glass (8 or 10 mm): supports up to 130 lbs (59 kg), maximum door width 34" (864 mm).

SPECIFICATIONS:

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Construction: Solid brass
• Hinge Swing: Approximately 90° outward only (requires stop)
• Closing Type: Precise closing to 0°
• Installation: No cut-out required; two holes only per glass panel
• Includes: Gaskets, screws, and glass fabrication dimensions

Installation Notes: Door glass width may require alteration from standard clearance deductions when adjusting angles—contact CRL for details. Use only the included template; cut-out dimensions may not match other brands.

Custom Finishes: Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department for options.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For any other use, obtain approval from the CRL Shower Door Technical Sales Department.
