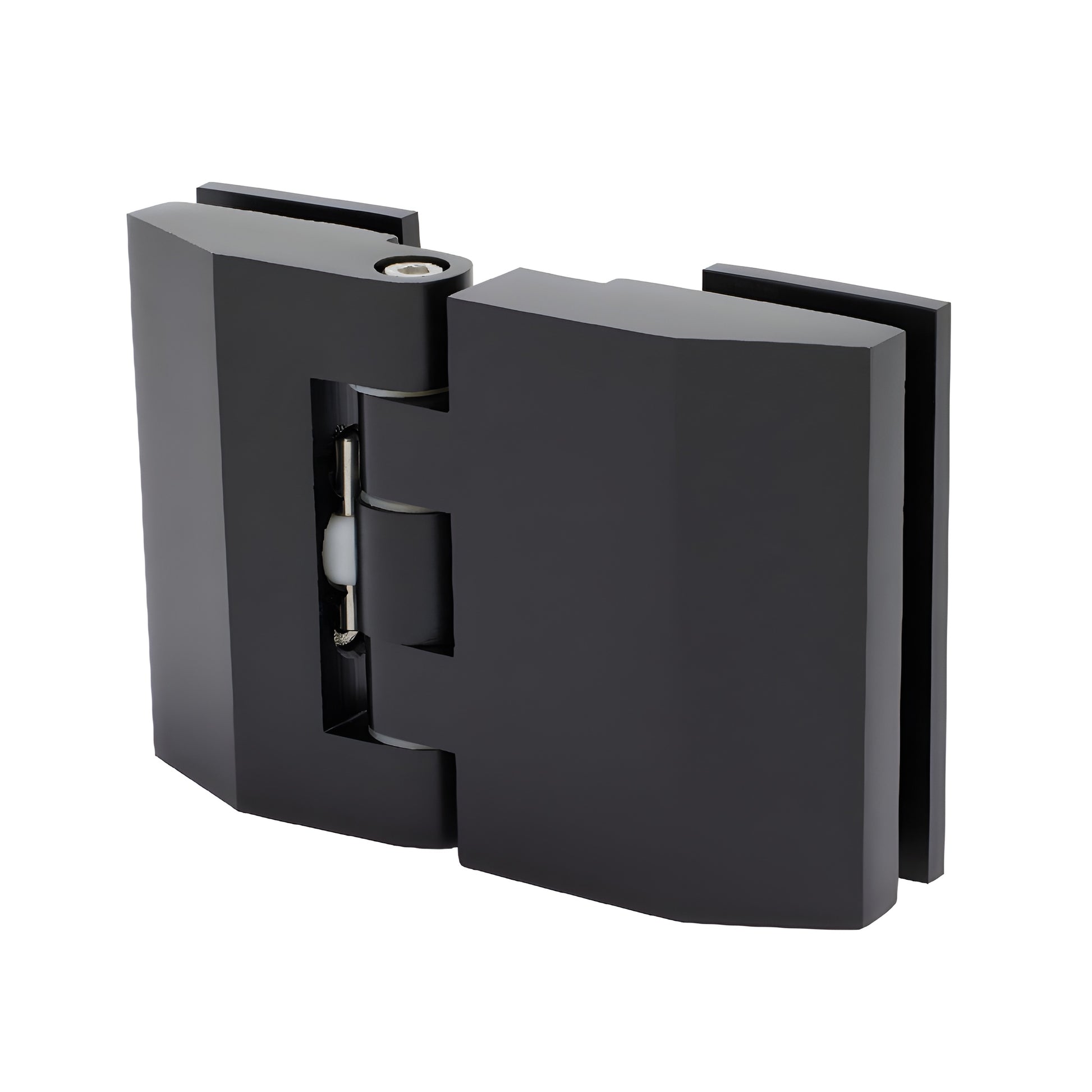

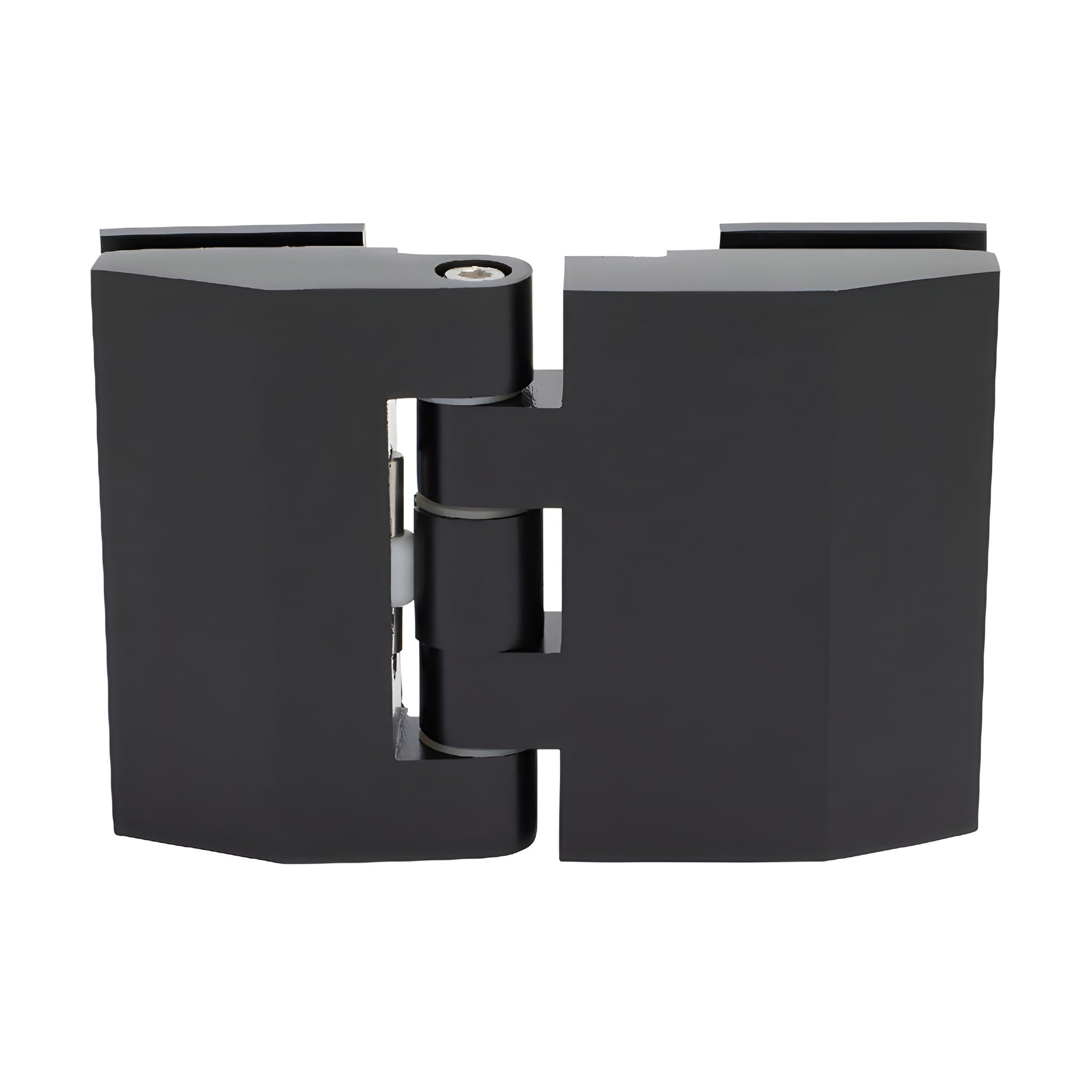

CRL Regal 180° Oil-Rubbed Bronze Frameless Glass Shower Hinge

• Glass-to-Glass Model
• Adjustable after door is installed
• Available in several beautiful finishes
• 3 year warranty
• Regal hinges are not available in Europe (REG037 and REG180)
• Use monolithic tempered safety glass

The CRL Regal Adjustable Hinge (SKU: REG1800RB) is engineered for precise glass-to-glass and wall-mount shower door installations. The Wall Mount model requires only two holes in the door (no cut-out). The Glass-to-Glass model requires four holes per hinge (two in the door and two in the fixed panel). Its patented-adjustment style lets you set the closing angle from 0° to 90° after installation: simply loosen the Allen screw, position the door, and retighten. This solves common site issues where walls and doors do not meet at a perfect 90°; a single Glass-to-Glass hinge can accommodate angles from 90° to 180° when adjusted.

Performance:
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm), the hinge supports up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm). Using three hinges with 5/16" or 3/8" glass, it supports up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Approximately 90° outward only (requires stop)
Closing Type: Precise closing to 0°
Mounting: No cut-out required — two holes only per glass panel
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: REG037 and REG180 are not available in Europe. Door glass width may require alteration from standard clearance deductions when adjusting angles — call for details. Custom finishes are available on request; contact CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may differ from other brands.
