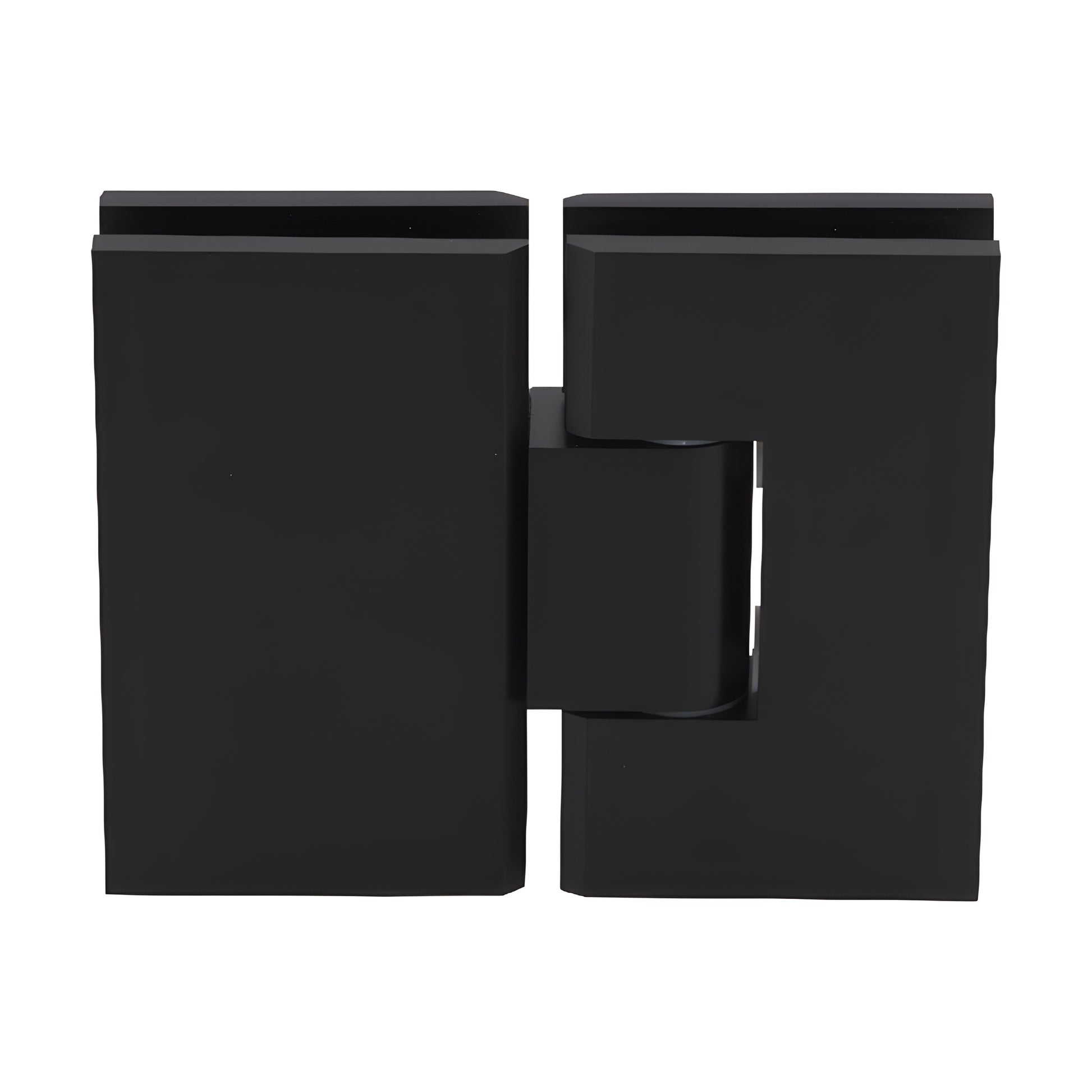

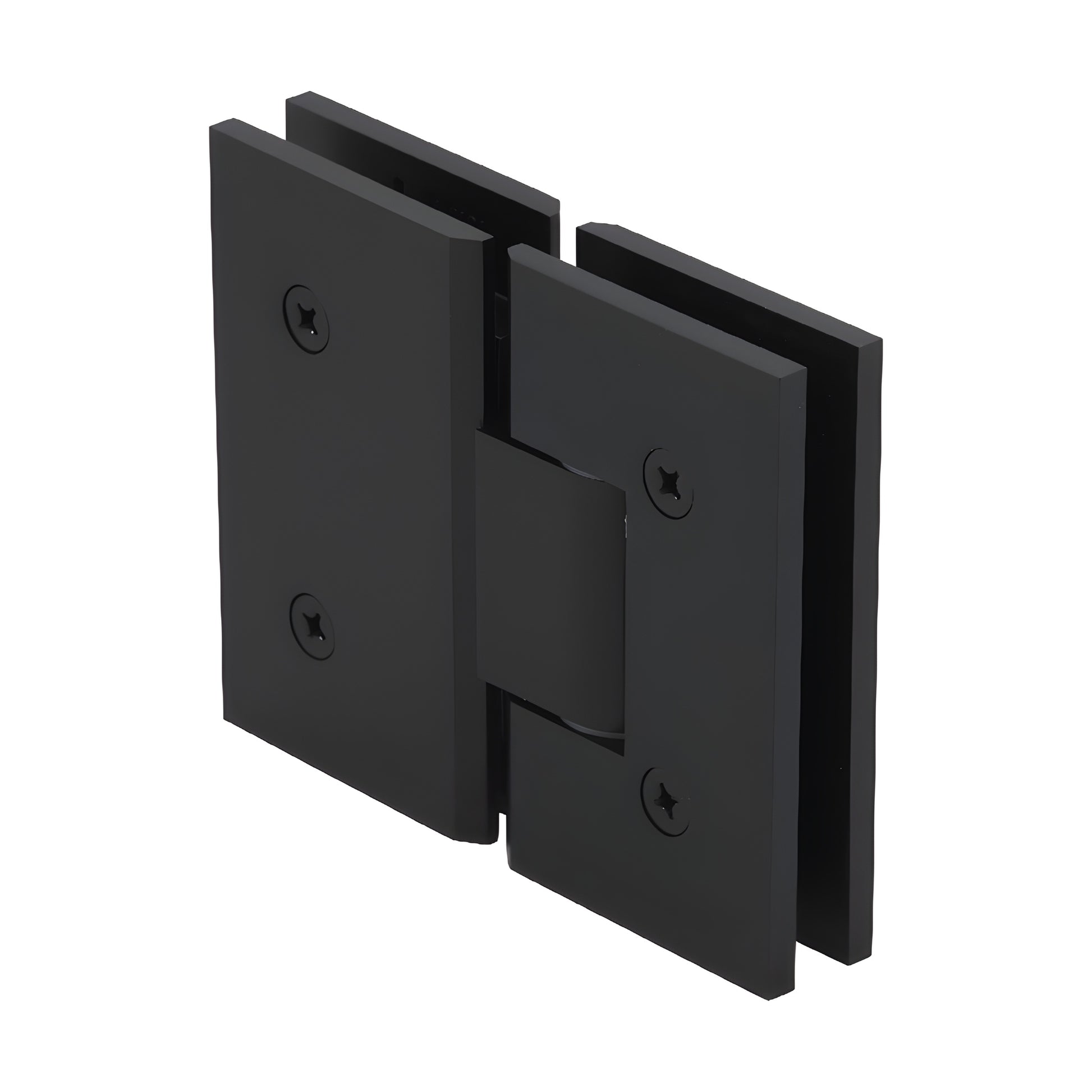

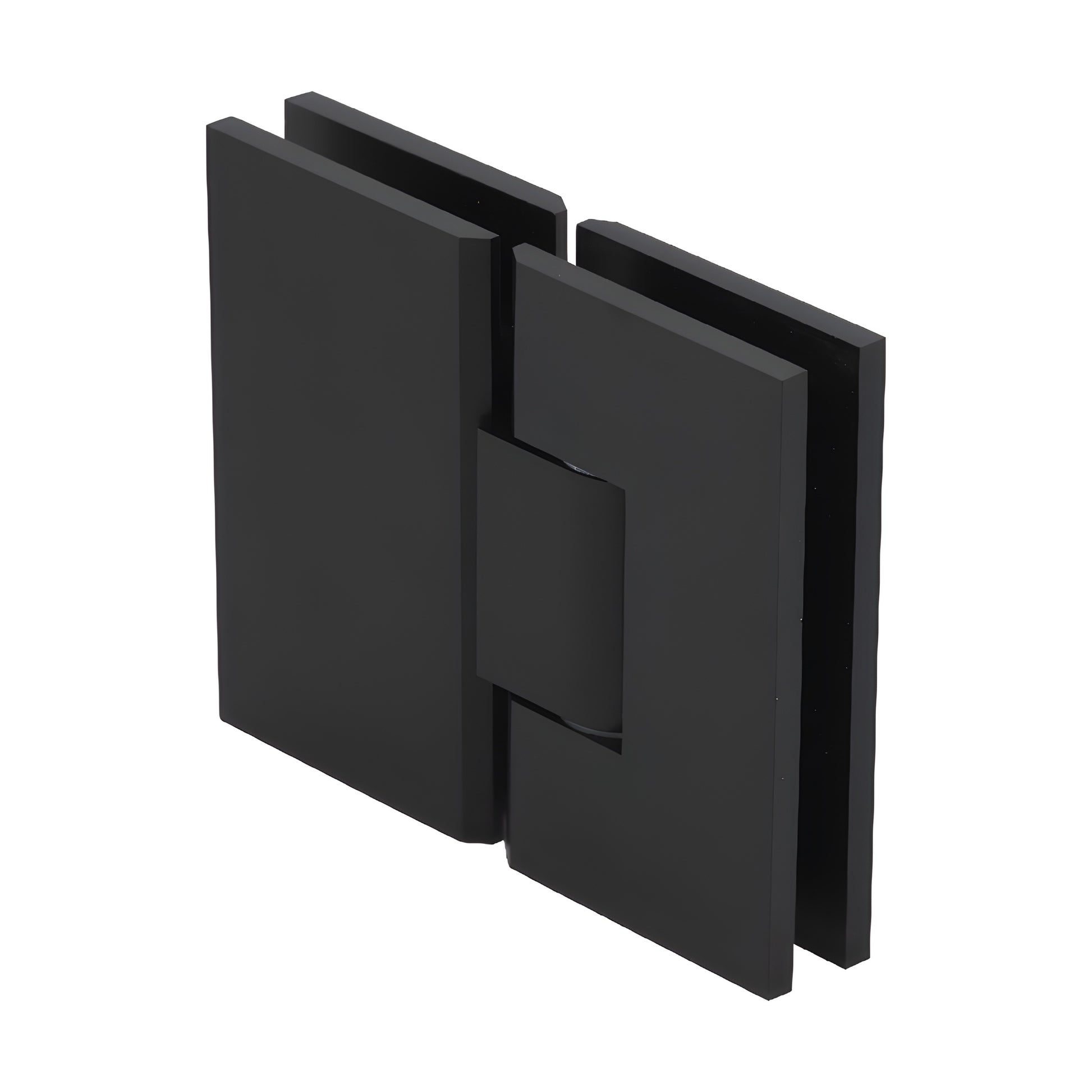

CRL Victoria 180° Oil-Rubbed Bronze Glass-to-Glass Shower Door Hinge

• Designed for heavier, wider frameless shower doors — ideal for commercial and residential glass doors
• Integrated safety interlock and stiffening beam for superior glass panel control and reduced hardware visibility
• Available in wall-mount and 180° glass-to-glass hinge models
• Compatible with 3/8" to 1/2" (10 to 12 mm) tempered safety glass

CRL Victoria Series Hinges (SKU: VCT1800RB) support wider, heavier frameless shower doors — up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges to preserve a clean, minimal look.

These hinges use an integrated stiffening beam to minimize clamping plate flex for exceptional holding power, heat-treated stainless steel springs for enhanced durability, and increased self-centering force for reliable closing performance. Stocked in six popular finishes with custom finishes available.

Important: Use a maximum of two hinges per door. Do not use three hinges.

Using two hinges: With 3/8"–1/2" (10–12 mm) glass and a door up to 39" (1 m) wide, two hinges support up to 140 lbs (64 kg). Glass fabrication and cut-outs are required.

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position

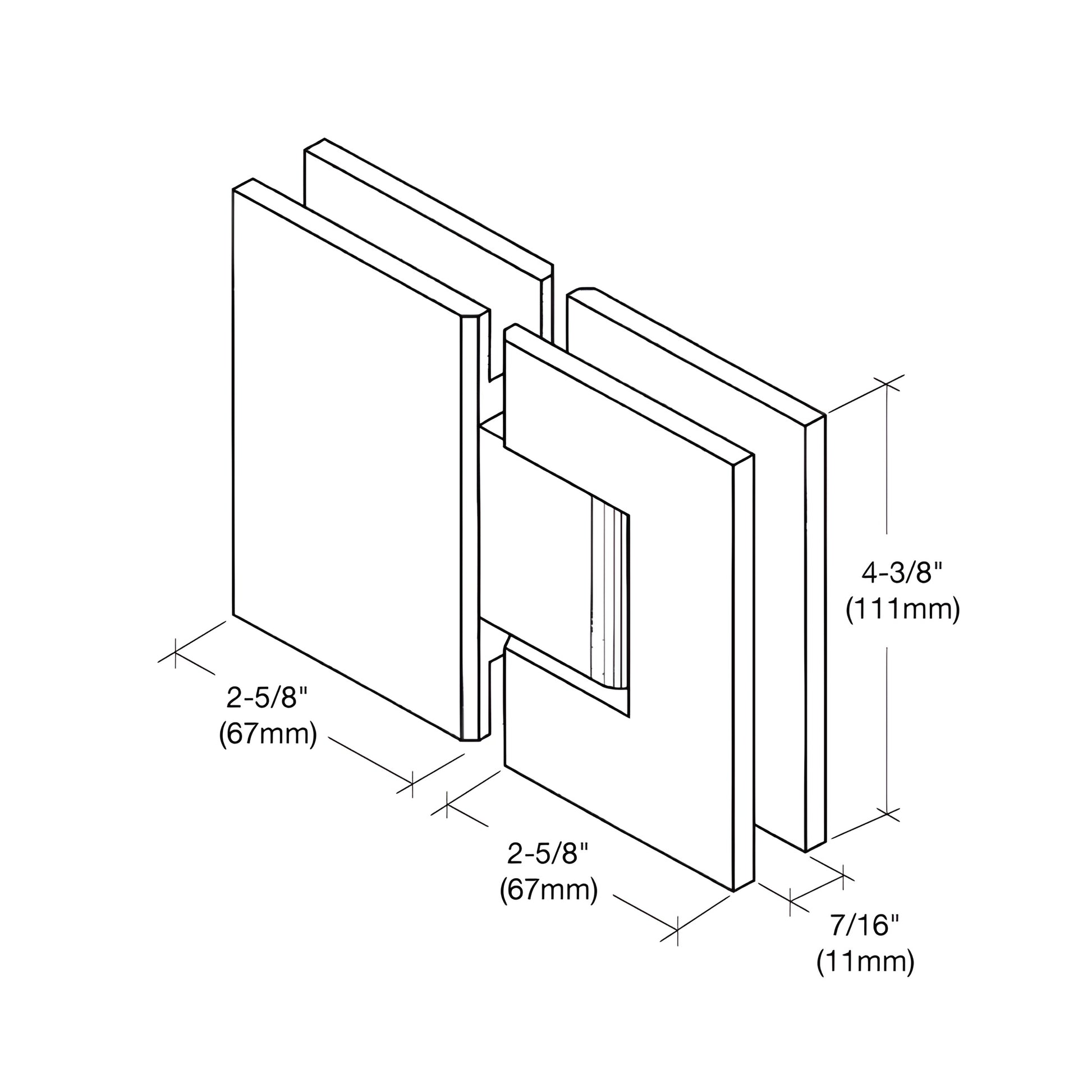

Includes: Gaskets, screws, and glass fabrication dimensions

WARNING:

CRL shower door hinges are intended for residential and hotel shower use. For alternate applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template — cut-out dimensions may differ from other brands.

Order the CRL Victoria Series hinge (VCT1800RB) for a durable, low-profile frameless shower hinge solution — contact us or add to cart to get started.
