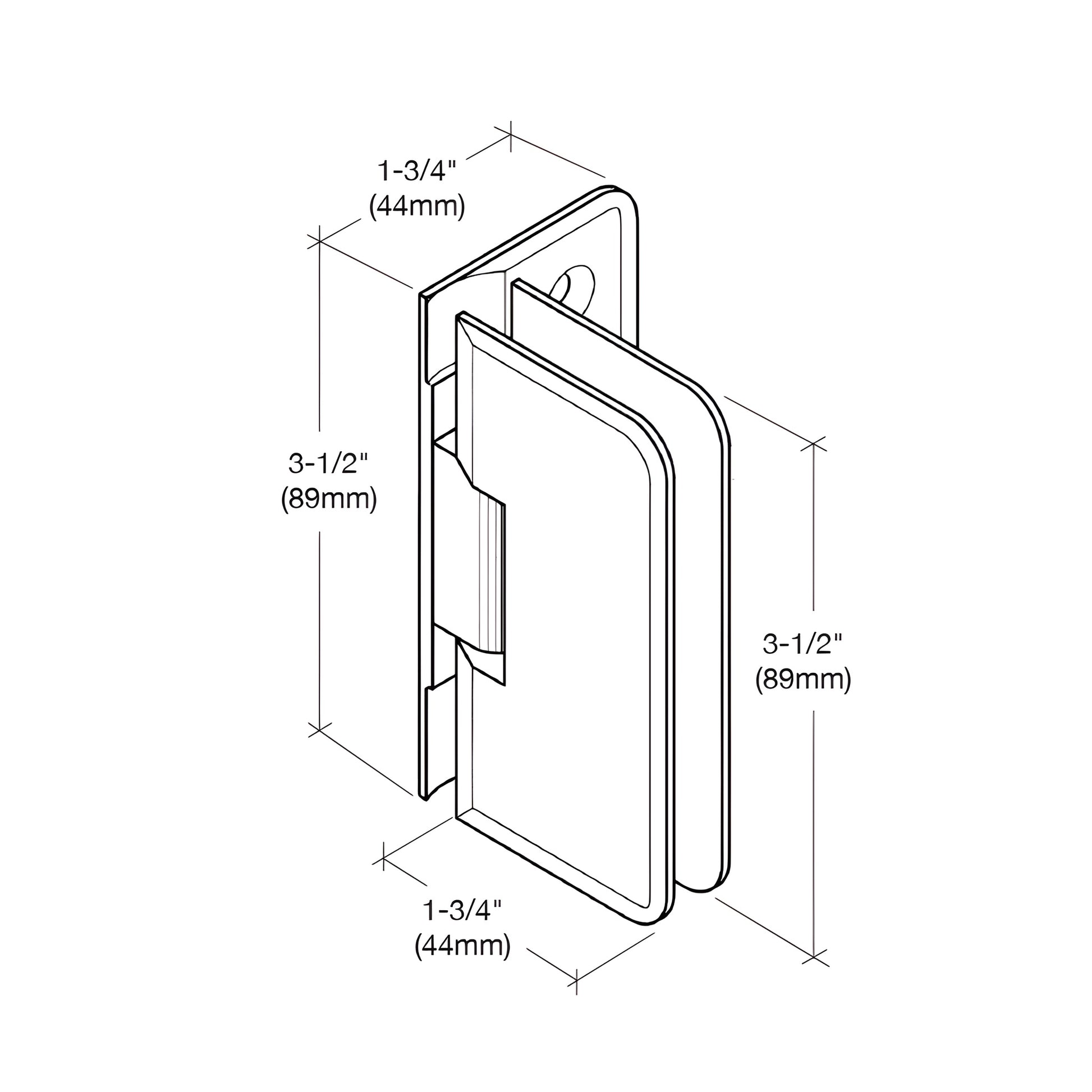

• PET044BN brushed-nickel wall-mount offset shower hinge, brass, for 1/4-5/16 (6-8mm) frameless glass.

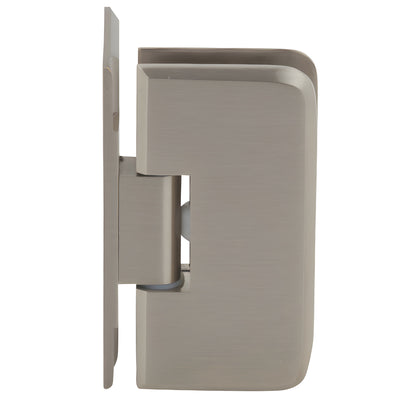

  • PET044BN brushed-nickel wall-mount offset shower hinge, brass, for 1/4-5/16 (6-8mm) frameless glass.

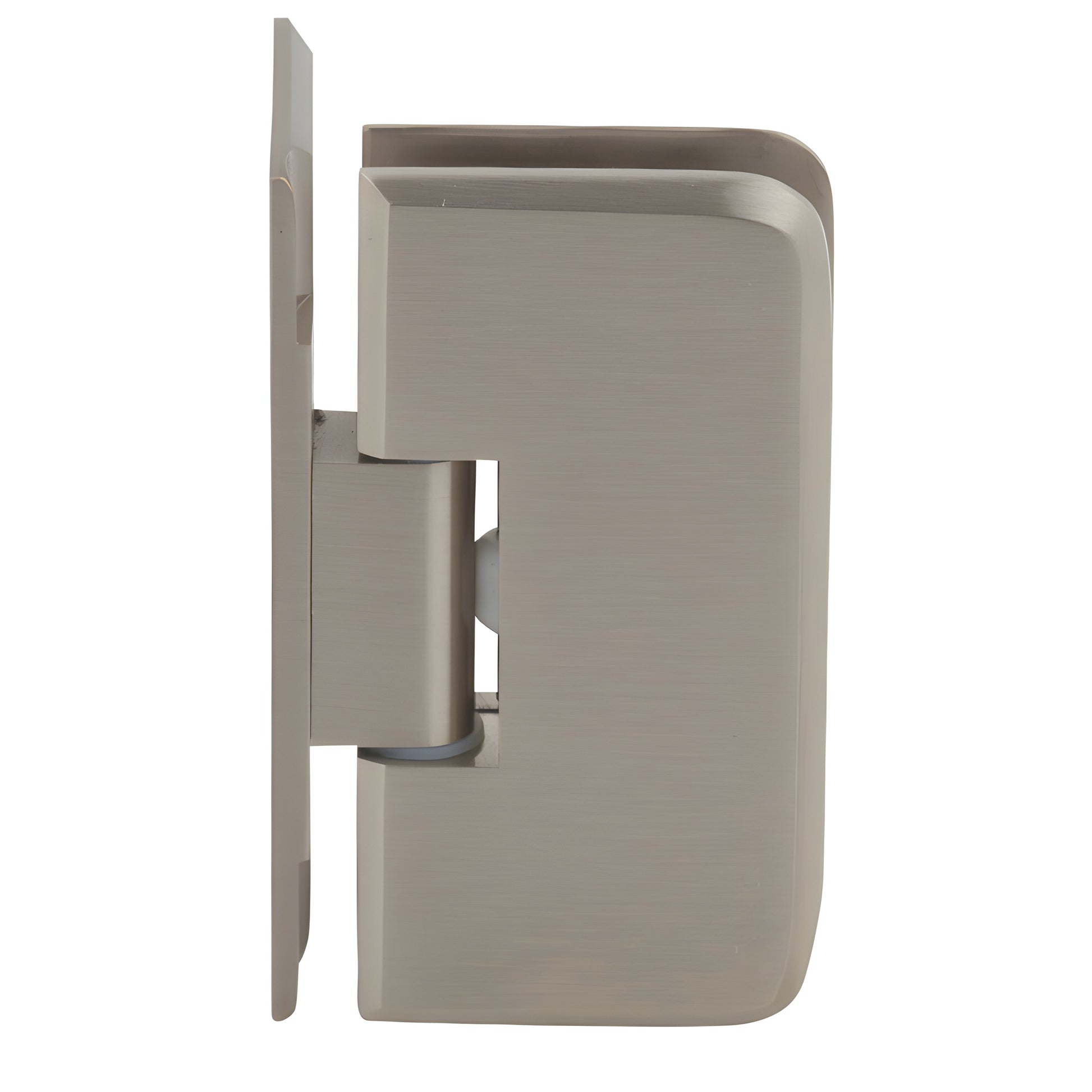

  • PET044BN brushed-nickel wall-mount offset shower hinge, brass, for 1/4-5/16 (6-8mm) frameless glass.

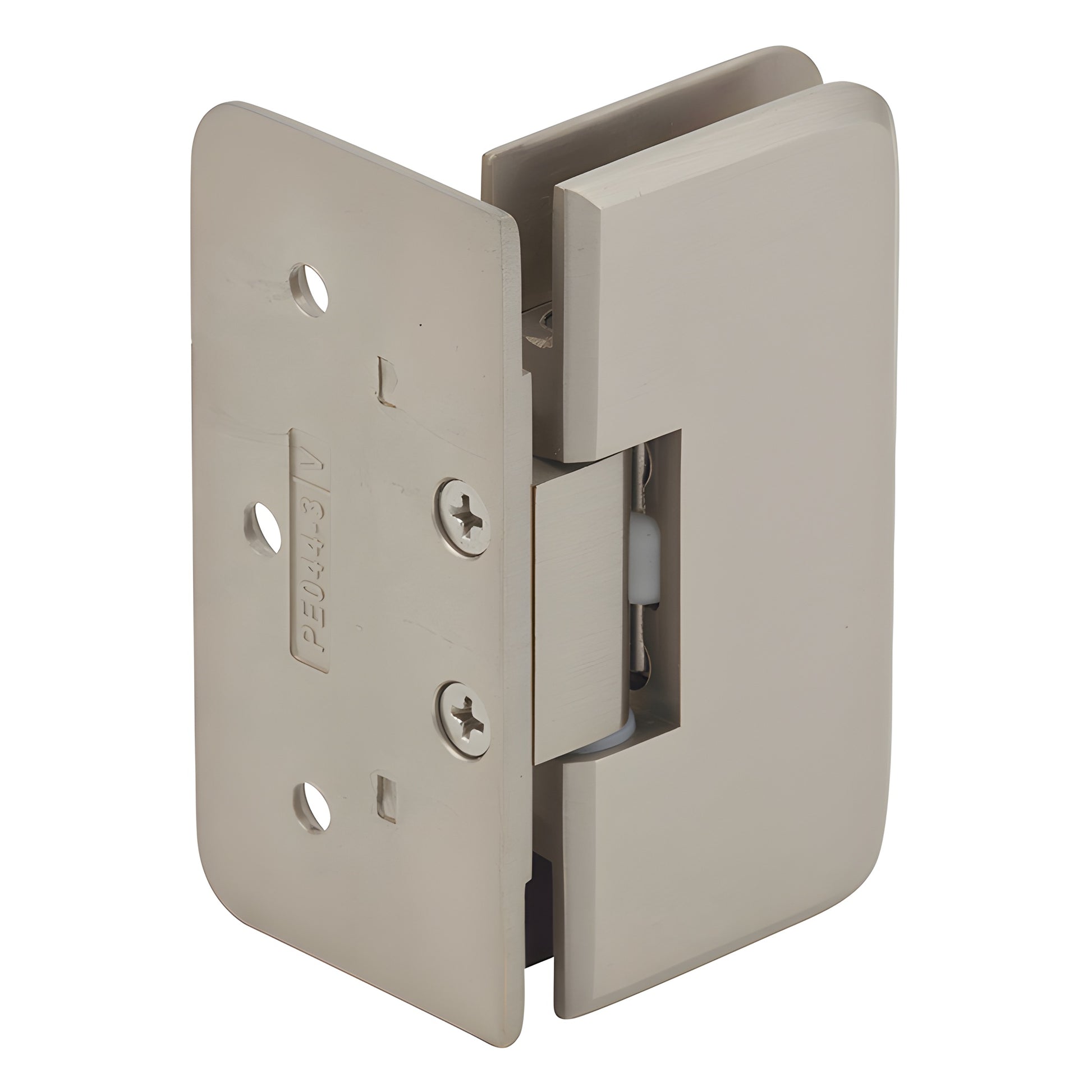

  • PET044BN brushed-nickel wall-mount offset shower hinge, brass, for 1/4-5/16 (6-8mm) frameless glass.
1 4

CRL

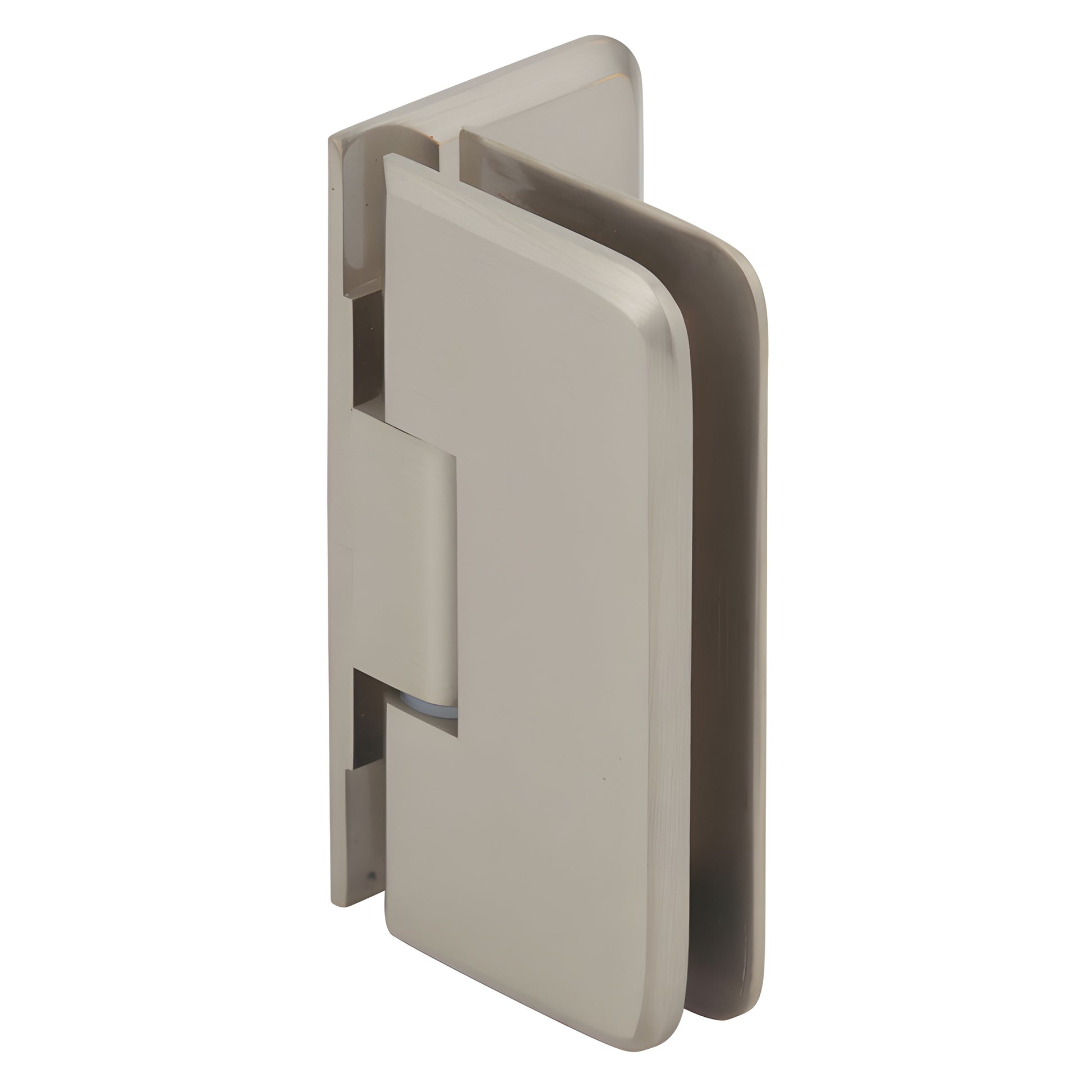

CRL Brushed Nickel 044 Petite Wall-Mount Offset Backplate Hinge

CRL Brushed Nickel 044 Petite Wall-Mount Offset Backplate Hinge

$105.42 CAD
$105.42 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PET044BN
Shipping Weight: 1.23 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Offset
Edge Profile
Beveled
Finish/Color
Brushed Nickel
Glazing Thickness
1/4 in. To 5/16 in. (6 mm To 8 mm)

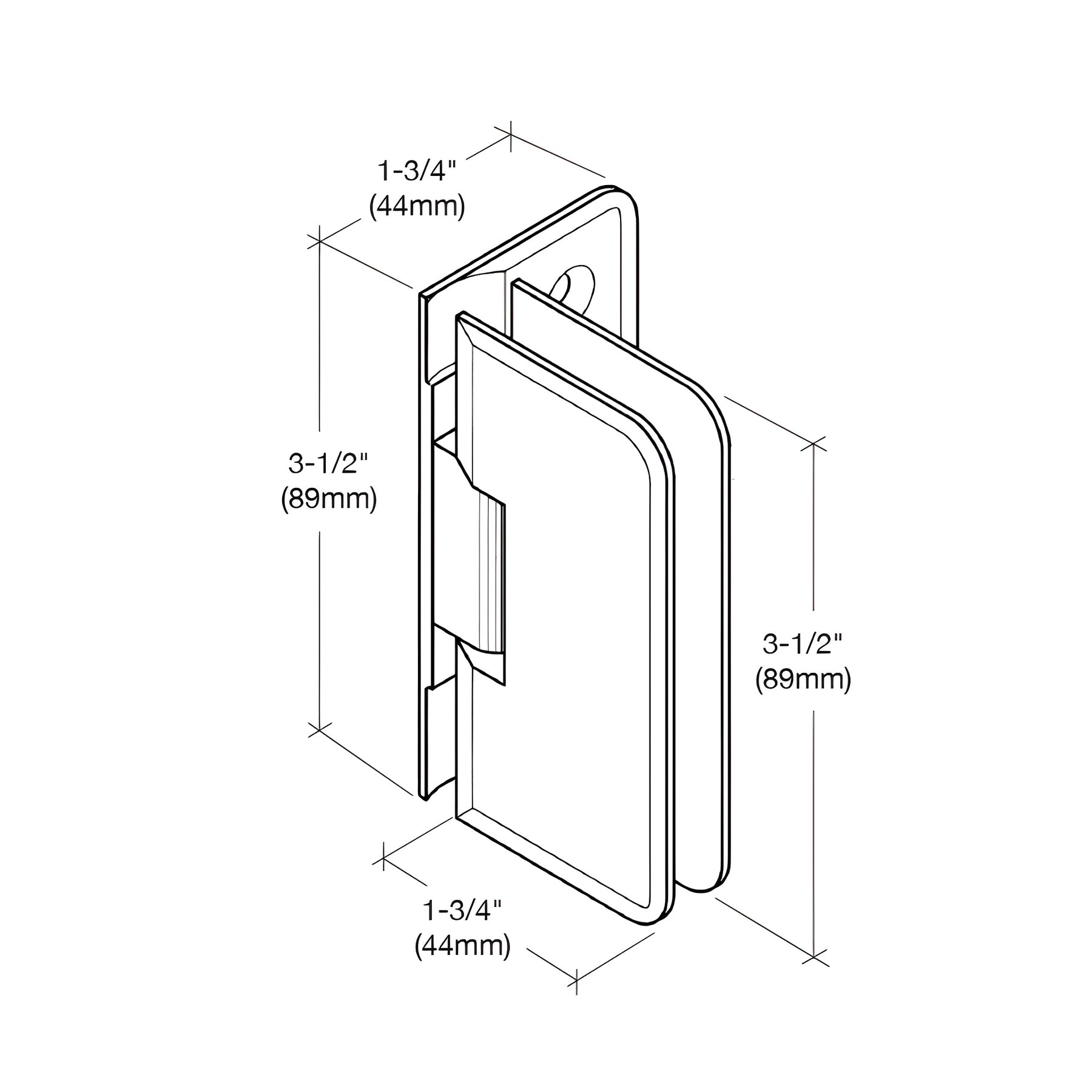

Height
3-1/2 in. (89 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
55 lbs. (24.9 kg)
Maximum Door Weight - 3 Hinges
82 lbs. (37.2 kg)
Maximum Door Width - 2 Hinges
31
Maximum Door Width - 3 Hinges
34
Mounting Type
Wall Mount
Series
Petite
Width
1-3/4 in. (44 mm)

Overview

  • Wall Mount Offset Back Plate (allows clean sight line from shower exterior) — SKU: PET044BN
  • Precise closing feature to 0° (zero degrees)
  • Available in several beautiful finishes; custom finishes available on request
  • 3 Year Warranty
  • Use with monolithic tempered safety glass (1/4" / 6 mm to 5/16" / 8 mm)

The CRL Petite Series offers a complete range of hinges for frameless shower doors using 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Designed for maximum configuration flexibility and design freedom, the Petite Series includes three hinge types:
  • PET044 Wall Mount Flush Back Plate Hinge (PET044BN) — wall-mount offset back plate keeps all mounting screws inside the shower for a clean exterior sight line, ideal for modern frameless shower door installations.
  • PET181 Glass-to-Glass Hinge — mounts a door to a fixed panel in a 180° plane and allows a full 180° outward swing.
  • PET182 Glass-to-Glass Hinge — allows a full 180° inward swing.
Petite hinges feature mitered edges with curved corners for an upscale look and have hinge plates that are 25% thicker than competitive hinges, reducing deflection and providing greater holding power — a key differentiator for durable frameless shower door hardware.

Load Capacity
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm): holds up to 55 lbs (25 kg); maximum door width 31" (787 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm): holds up to 82 lbs (37 kg); maximum door width 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass
Special Features: Hinge plates 25% thicker than competitive hinges for reduced deflection and increased holding power
Construction: Solid brass
Hinge Swings: 90° in and 90° out (except PET045, PET054, PET135, PET181, and PET182)
Closing Type: Precise closing to 0° (zero degrees)
Cut-Out Required: (except PET181 and PET182, which require holes only)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for finish options and project assistance.

Product Warning:

Specifications

Templates
PET044 Template
