- Large hinge plates provide increased clamping force for secure mounting
- Inset-style gasket system simplifies installation and reduces glass movement
- Glass fabrication requires a simple rectangular cut-out
- Compatible with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass

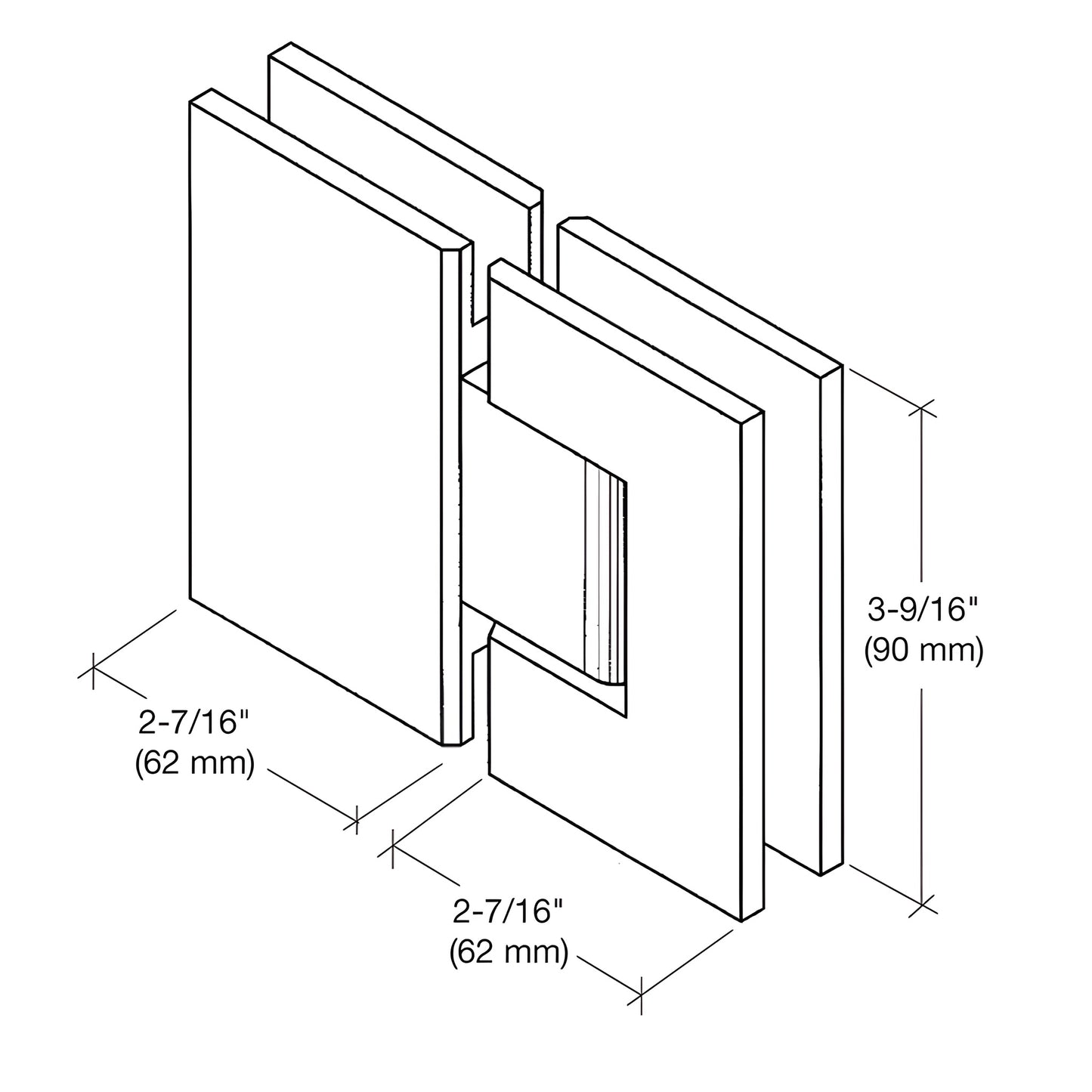

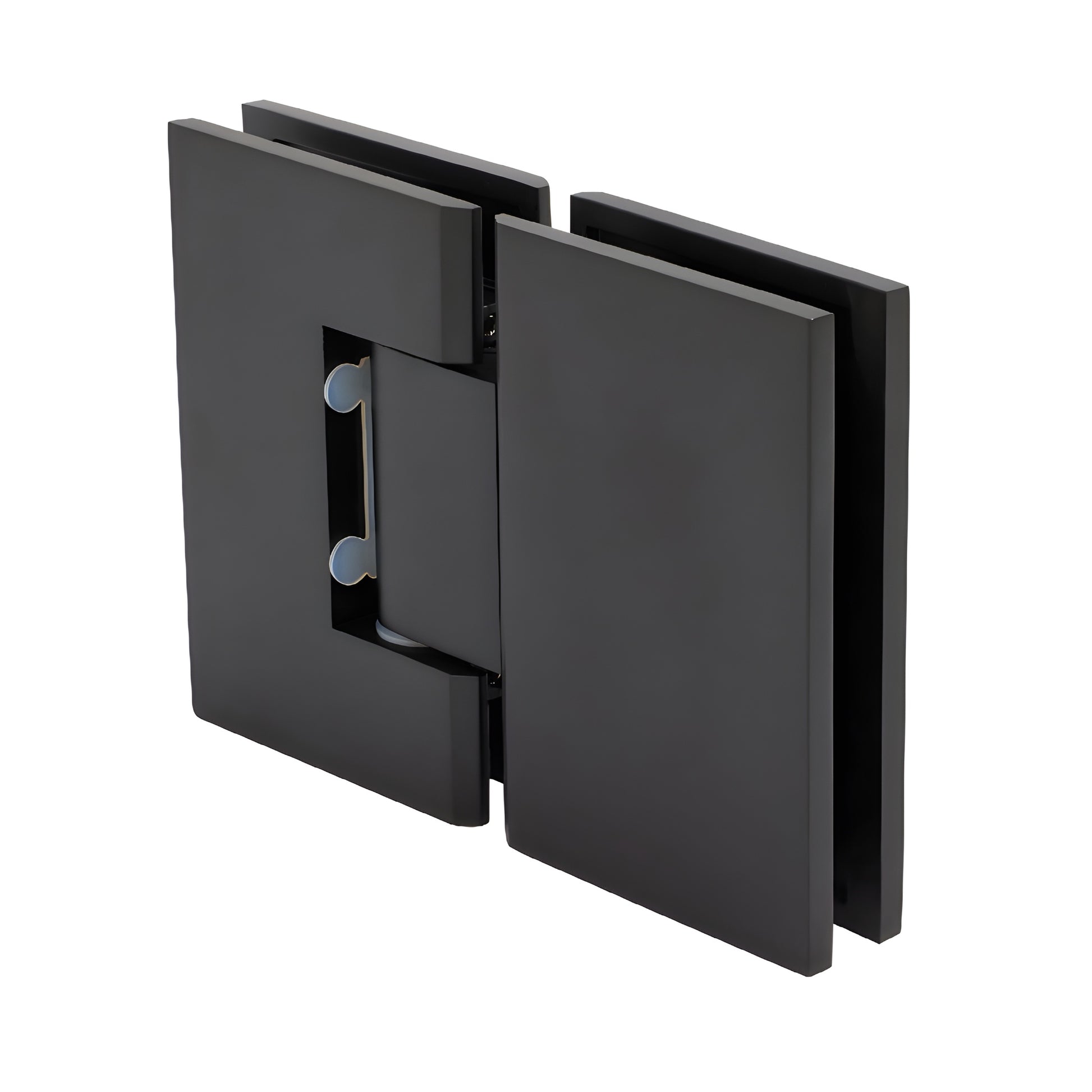

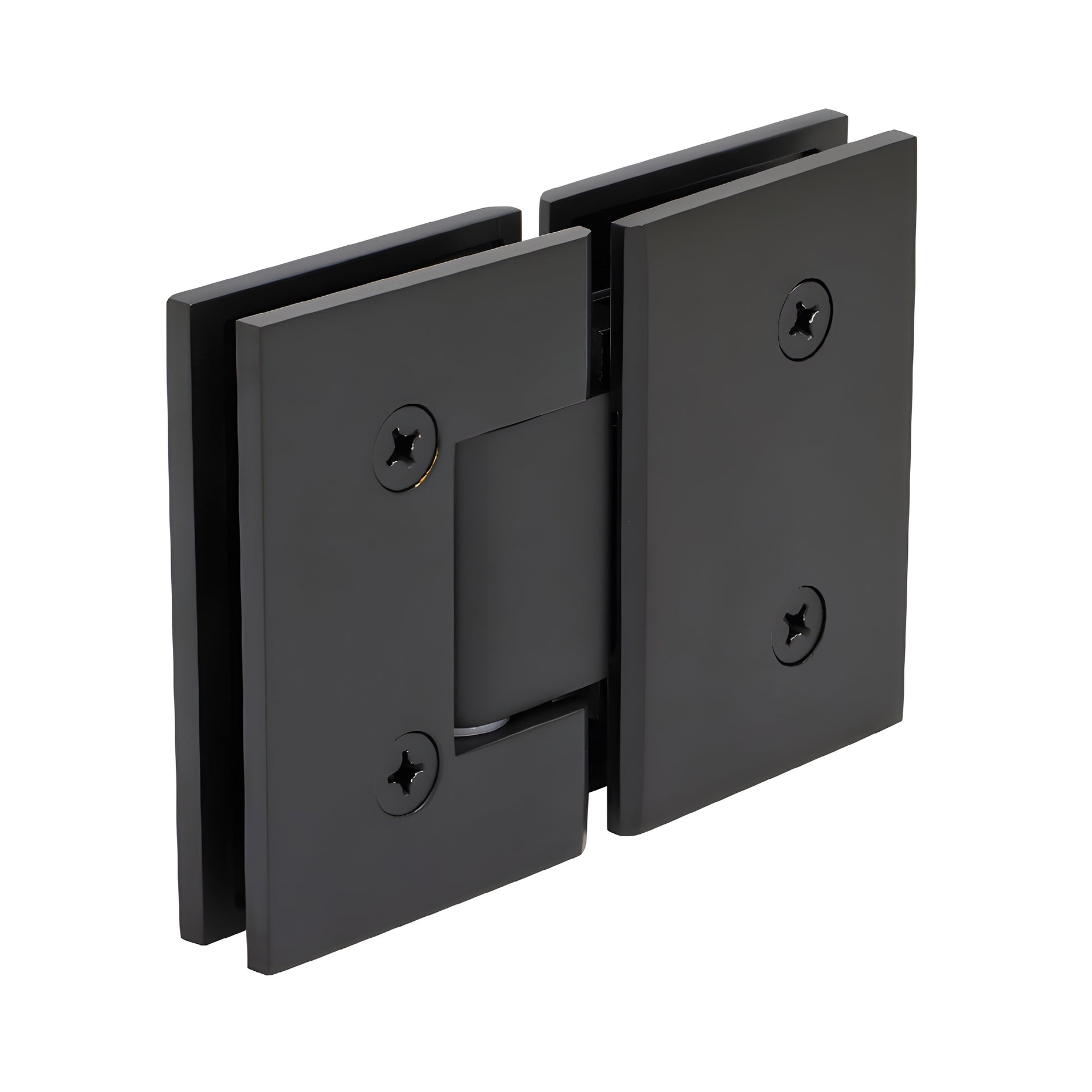

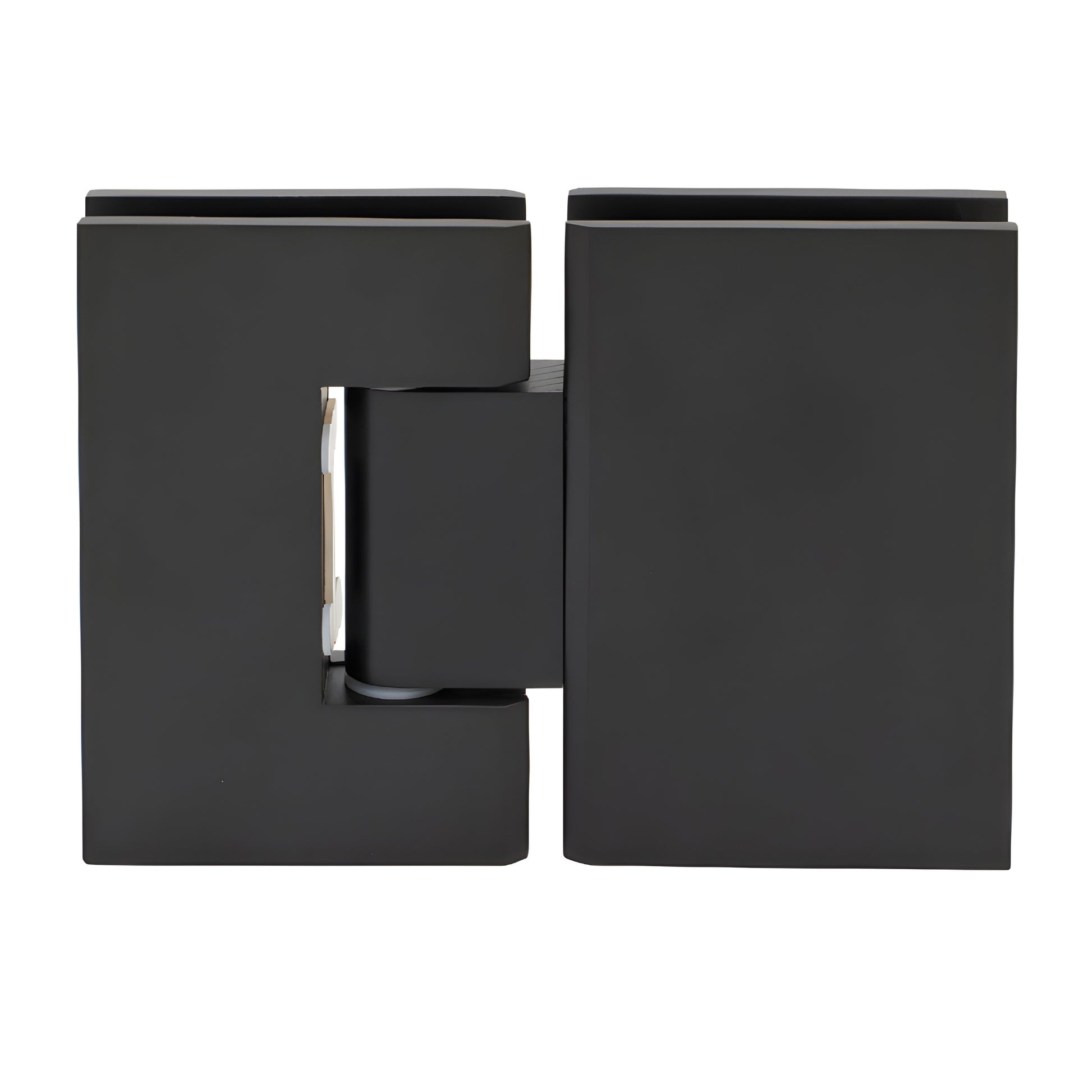

CRL Melbourne Series Hinges (SKU: MEL180MBL) — premium solid brass shower door hinges engineered for lasting performance. Features large hinge plates for stronger clamping force, an inset gasket system for easy installation, and a straightforward rectangular glass cut-out. Available as wall-mount models, a 180° glass-to-glass model, and replacement cover plates (for MEL024) to conceal rear hinge plate screws. Stocked in three popular finishes; custom finishes available on request.
Load Capacity
Using two hinges with 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 100 lbs. (45 kg) with maximum door width 30" (762 mm).
Using three hinges with 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 120 lbs. (54 kg) with maximum door width 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
For technical assistance or custom finish options contact the CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential and hotel shower use. For uses beyond intended applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
