CRL Lugano Matte Black 180° Glass-to-Glass Shower Hinge – Right
Item# LUG180LMBL
Shipping Weight: 1.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Matte Black
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Right Hand
Height
1-31/32 in. (50 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35 in. (889 mm)
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Lugano
Width
1-31/32 in. (50 mm)
- Rise and fall action: 3/16" (5 mm)
- Sleek, modern Lugano Series design
- Fits 5/16" to 3/8" (8 to 10 mm) tempered glass
- Supports up to 35" wide door using two hinges (max door weight 99 lb / 44 kg)

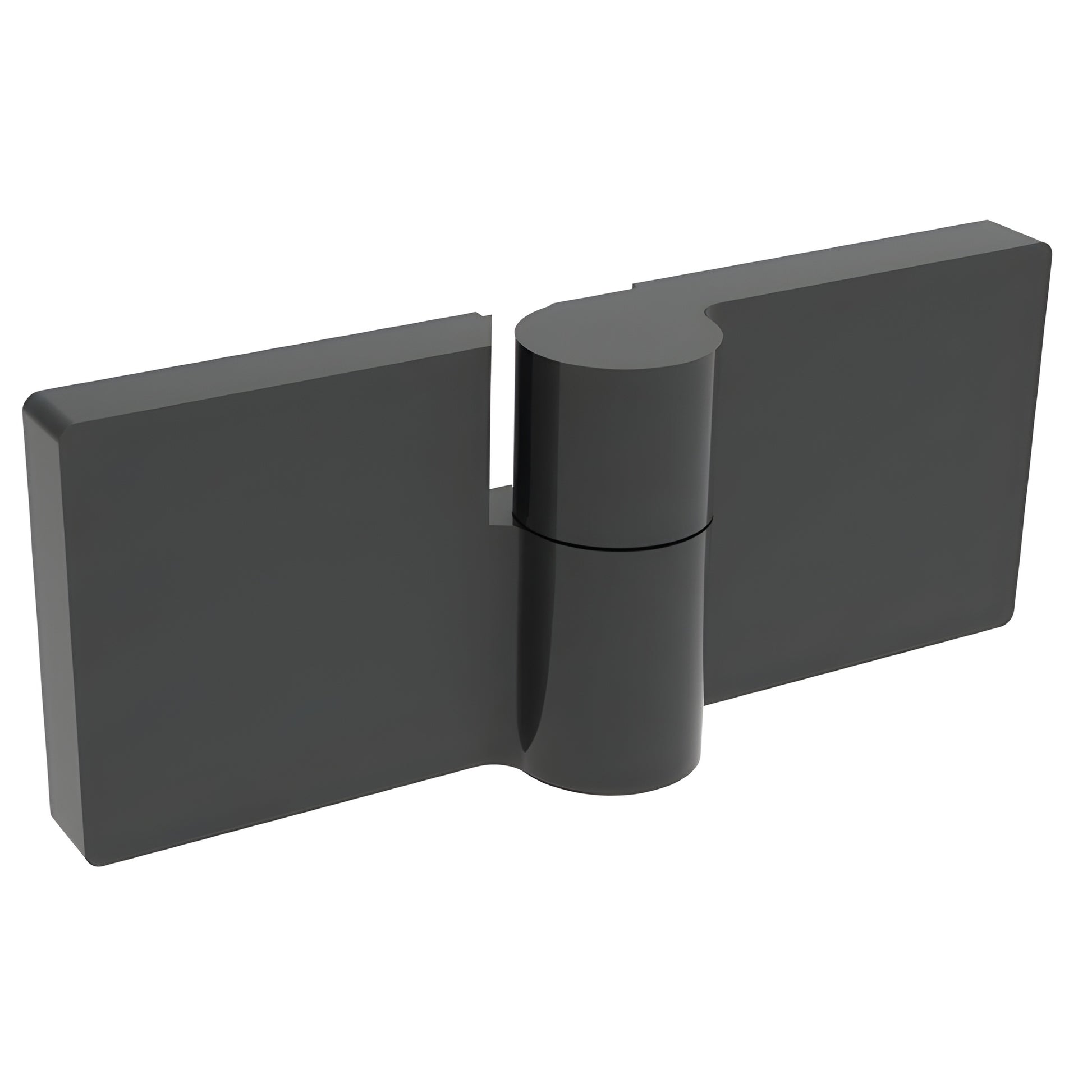

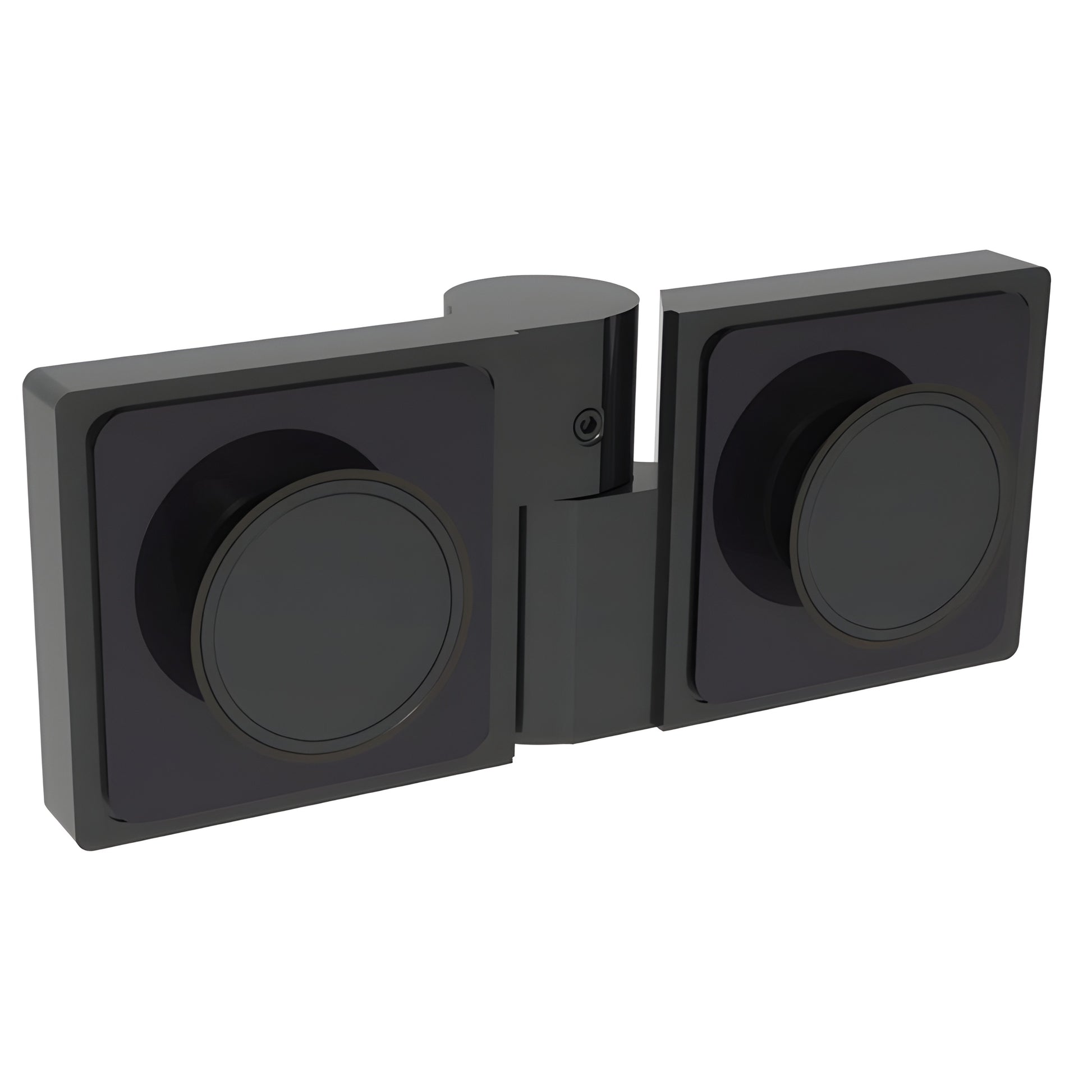

The Lugano Series hinge (SKU: LUG180LMBL) is a sleek, modern hinge designed for frameless tempered glass applications. Concealed fasteners maintain a clean look while the self-centering mechanism engages within 60° of the closed position for smooth operation. Ideal for frameless glass shower doors and commercial glass doors where a minimalist appearance and reliable alignment matter.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Order the Lugano hinge (LUG180LMBL) now to upgrade your frameless tempered glass door—contact CRL Customer Service to confirm compatibility or shipping details.
