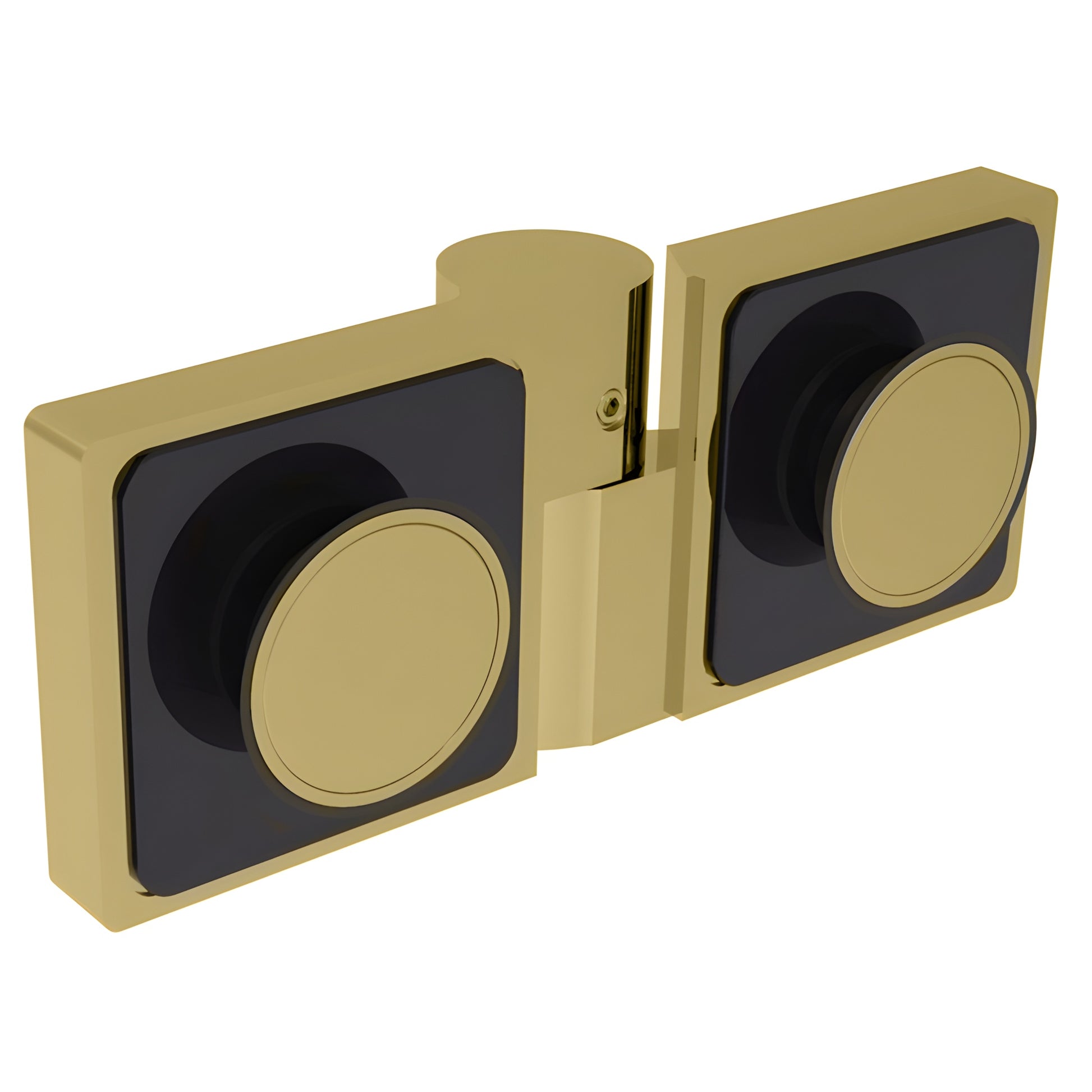

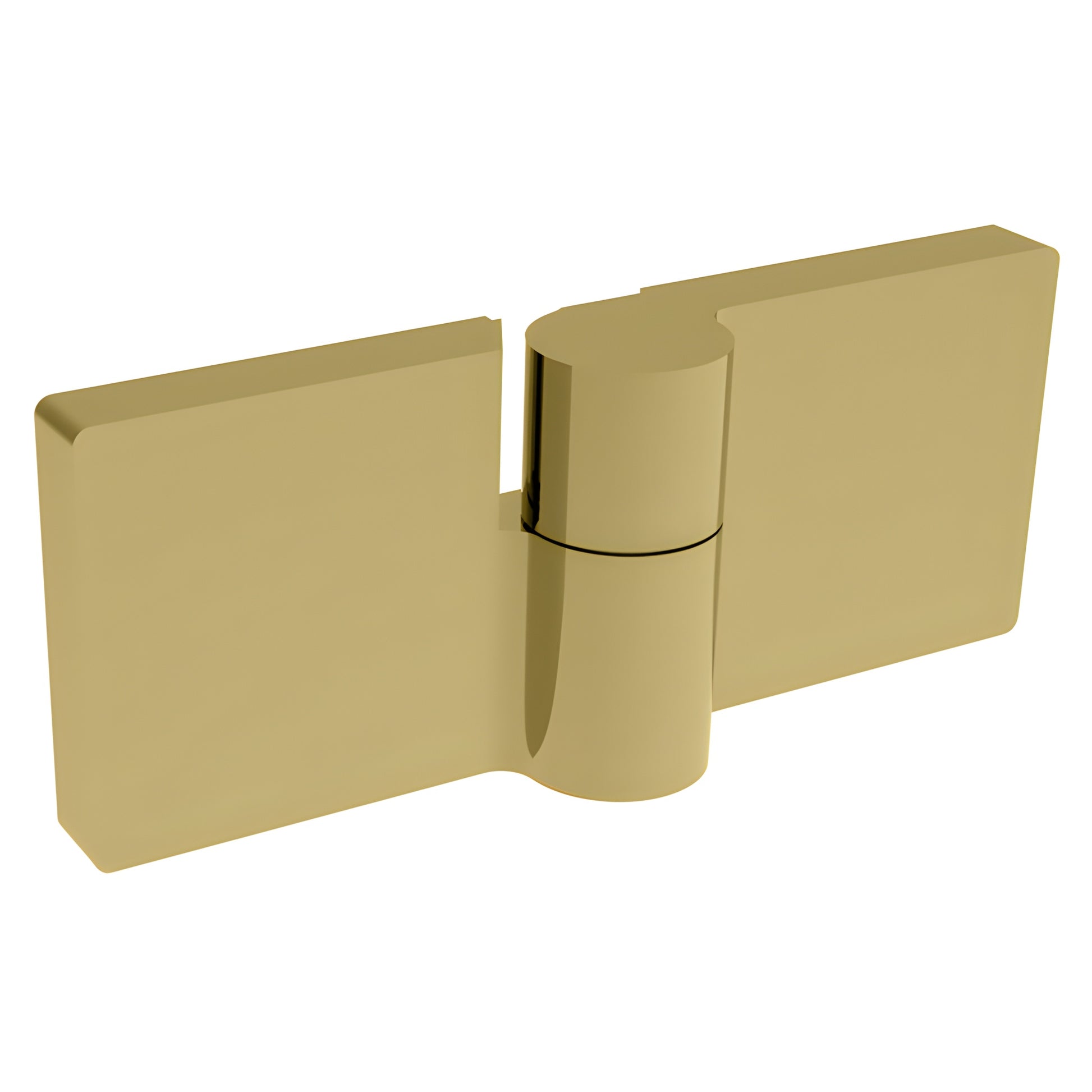

CRL Lugano Satin Brass 180° Glass-to-Glass Shower Hinge Right-Hand
Item# LUG180LSB
Shipping Weight: 1.15 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.15 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Right Hand

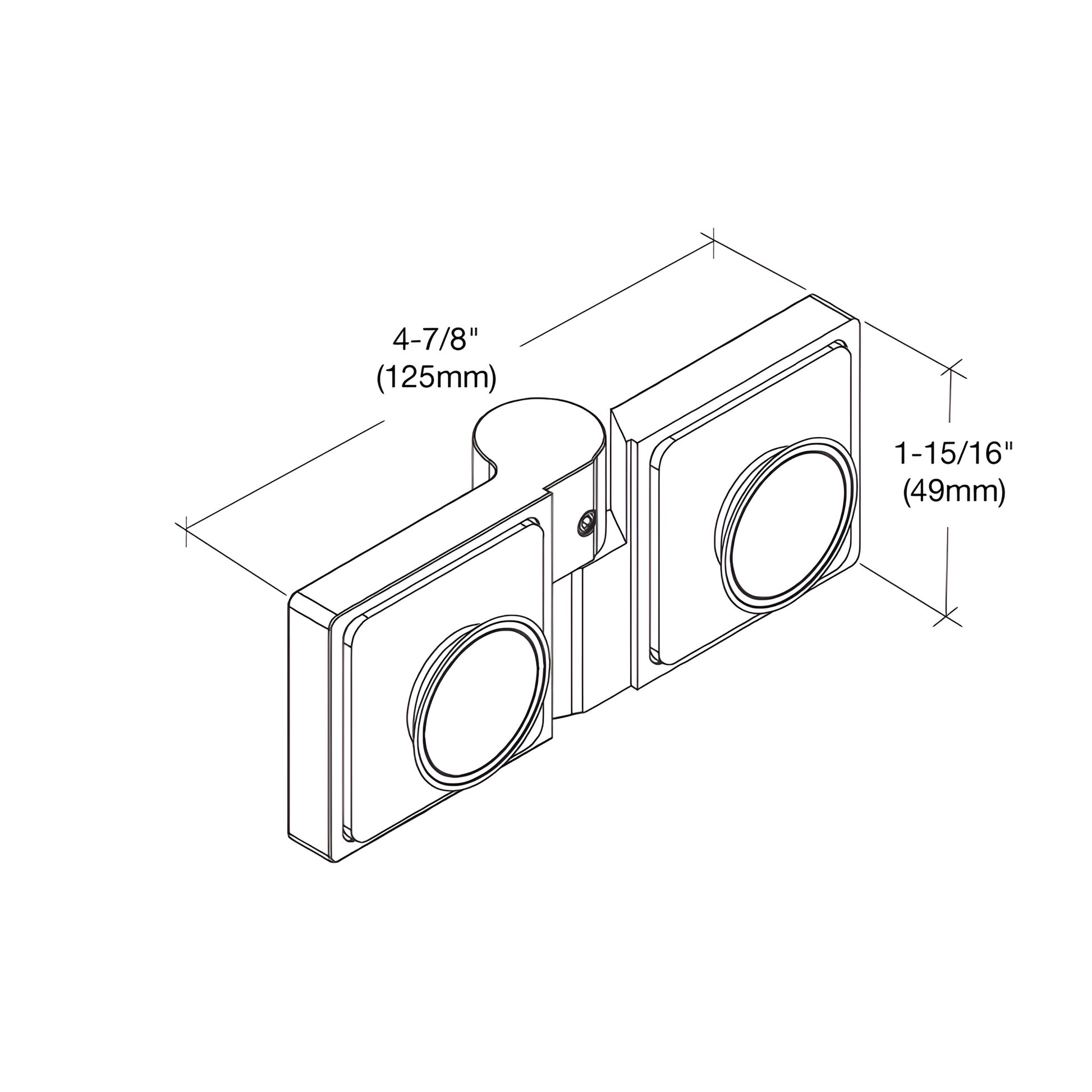

Height
1-31/32 in. (50 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35 in. (889 mm)
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Lugano
Width
1-31/32 in. (50 mm)
- Rise and Fall action - 3/16 (5mm)
- Sleek new design
- For 5/16 to 3/8 (8 to 10 mm) tempered glass
- Handles up to a 35" wide door using two hinges
The Lugano Series Hinge (SKU: LUG180LSB) is a sleek, modern glass door hinge engineered for 5/16" to 3/8" (8–10 mm) tempered glass. Concealed fasteners provide a clean aesthetic while the self-centering mechanism engages within 60° of the closed position. Using two hinges supports doors up to 35" wide and a maximum weight of 99 lb (44 kg). Ideal for frameless glass shower doors and interior tempered glass installations where a low-profile, self-centering hinge is required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Order the Lugano Series Hinge LUG180LSB today for a refined, concealed-fastener solution for 8–10 mm tempered glass doors.
