CRL Lugano Satin Brass Wall-Mount Outswing Door Hinge, Right-Hand
CRL Lugano Satin Brass Wall-Mount Outswing Door Hinge, Right-Hand
Regular price
$264.22 CAD
Regular price
Sale price
$264.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LUG044LSB
Shipping Weight: 1.115 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.115 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Back Plate
Offset
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Right Hand
Height
1-31/32 in. (50 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35 in. (889 mm)
Maximum Door Width - 2 Hinges
35
Mounting Type
Wall Mount
Opening Style
Swing(side)
Series
Lugano
Width
1-31/32 in. (50 mm)
Overview
- Rise-and-fall action: 3/16" (5 mm)
- Sleek new design for modern bathrooms
- Compatible with 5/16" to 3/8" (8–10 mm) glass
- Ideal for pitched curb installations
- Use with no-ledge installations for wheelchair accessibility
- Flush-mount inside for easy-to-clean glass

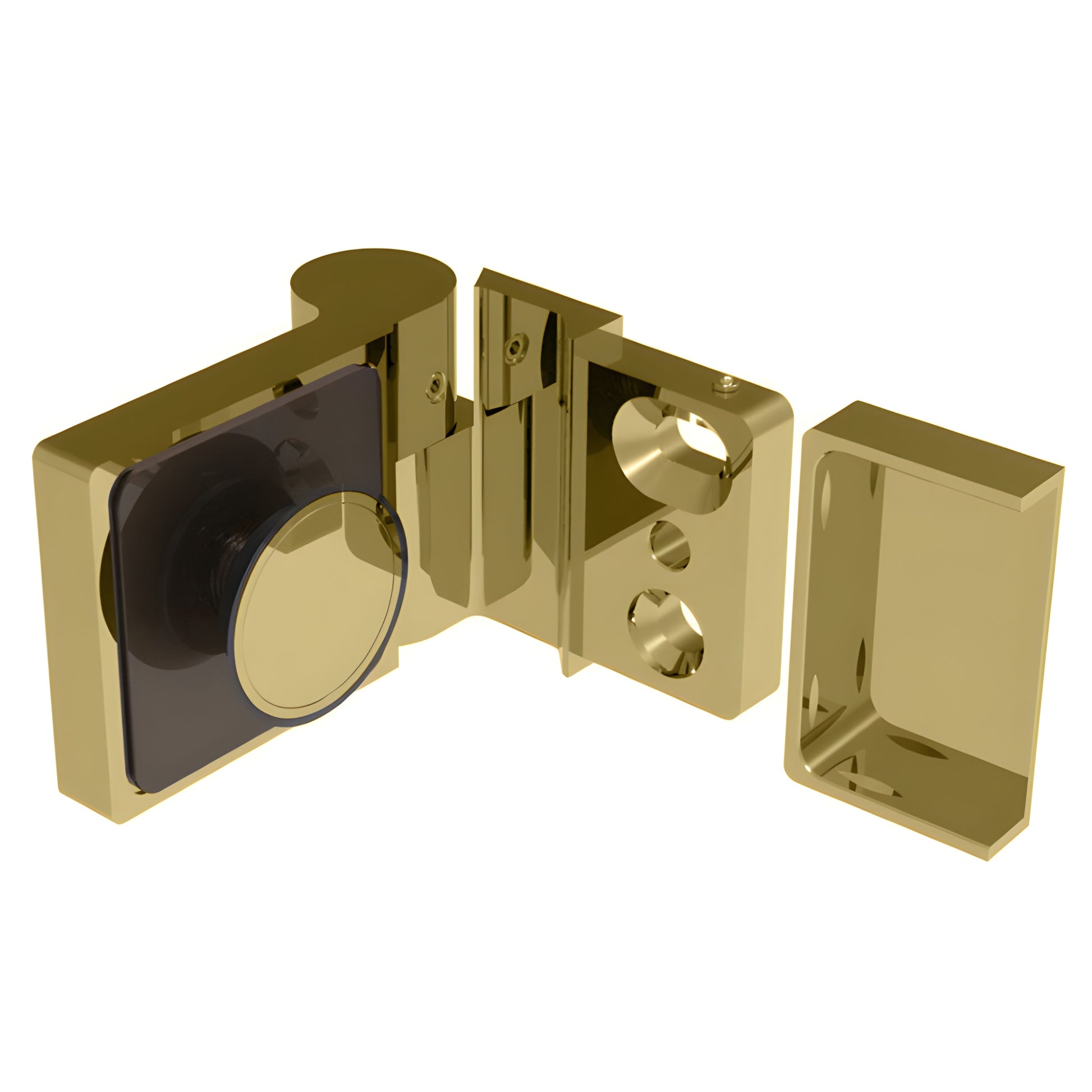

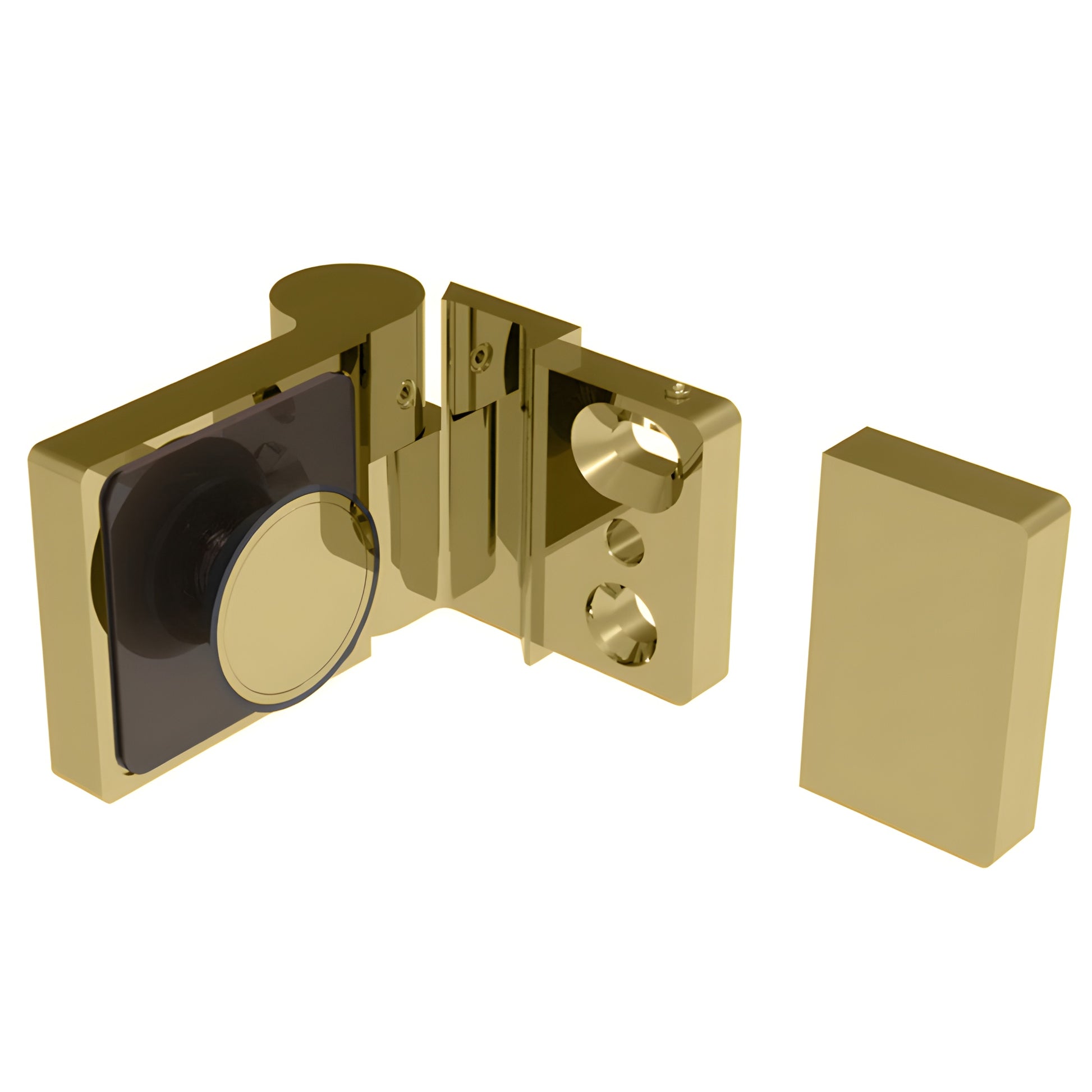

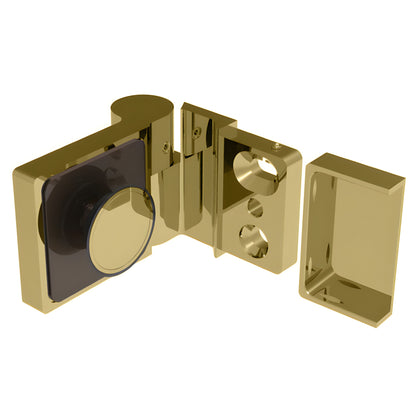

- Snap-on covers conceal screws for a seamless look
- Self-centering within 60° of closed position
- Rigorously tested to 100,000 cycles — 5× industry standard

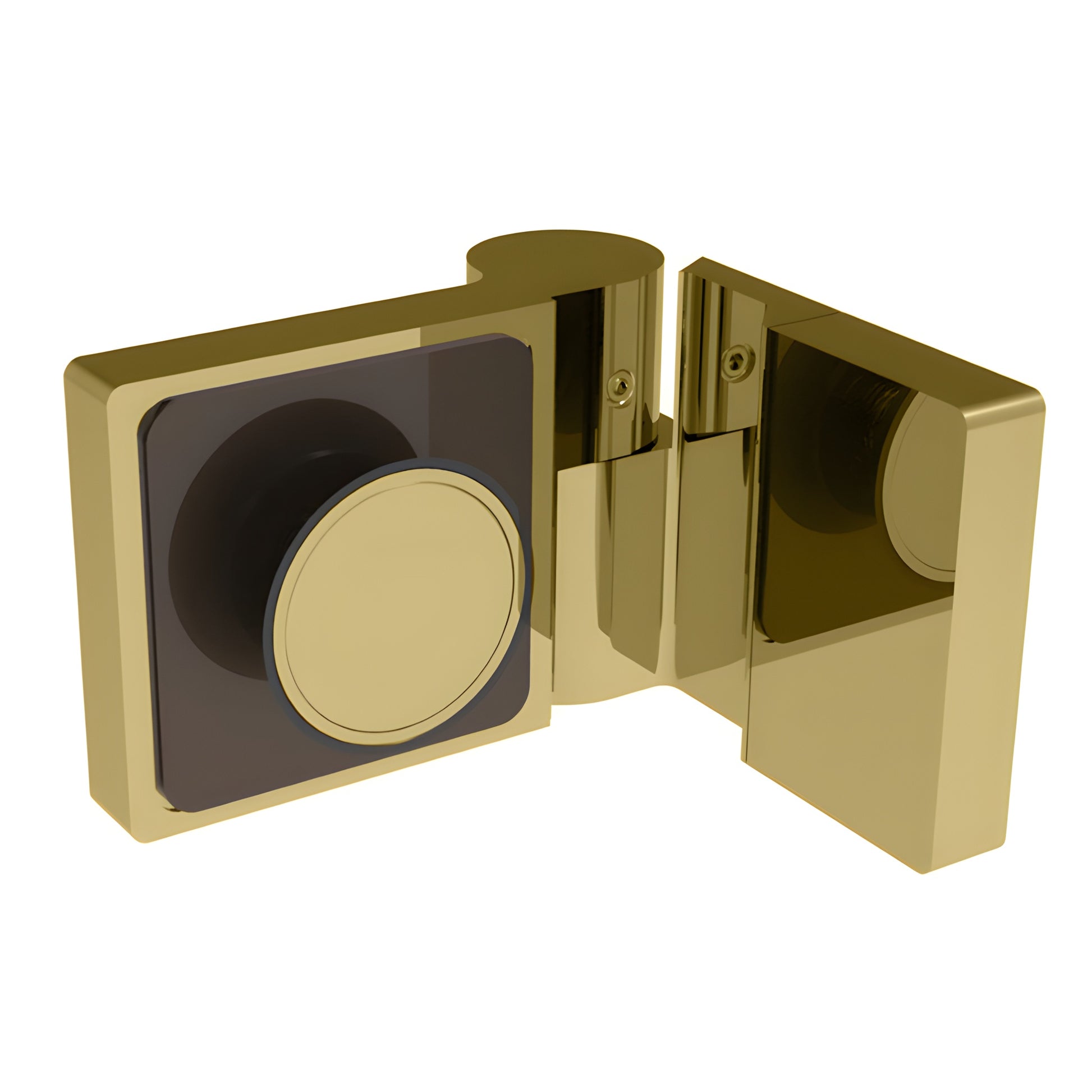

The Lugano Series hinge (SKU: LUG044LSB) delivers a sleek, modern aesthetic for frameless shower doors and glass partitions. Designed for 5/16"–3/8" (8–10 mm) tempered glass, it features concealed fasteners and snap-on covers for a clean finish. Use two hinges to achieve a maximum door width of 35" and a maximum weight of 99 lb (44 kg). The rise-and-fall mechanism and self-centering action ensure smooth, reliable operation for accessible and pitched-curb shower installations.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging. For details, see the Brass Finish Disclaimer in the Technical References section.
Order the Lugano hinge LUG044LSB today for a durable, low-profile glass shower hinge that supports accessible, pitched-curb installations.
