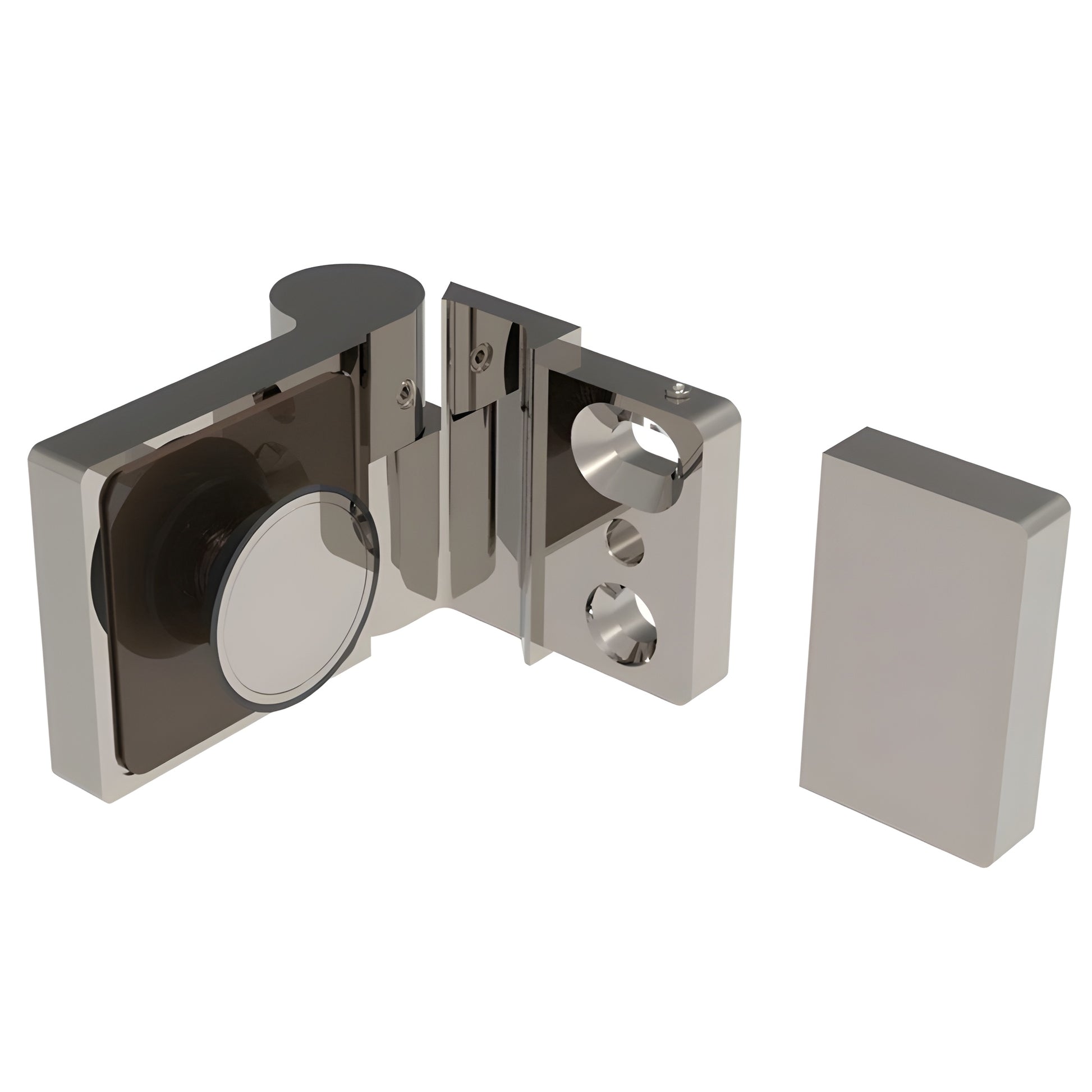

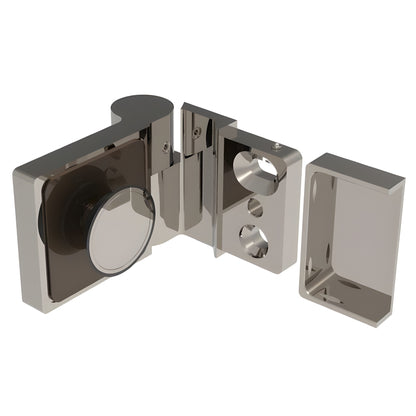

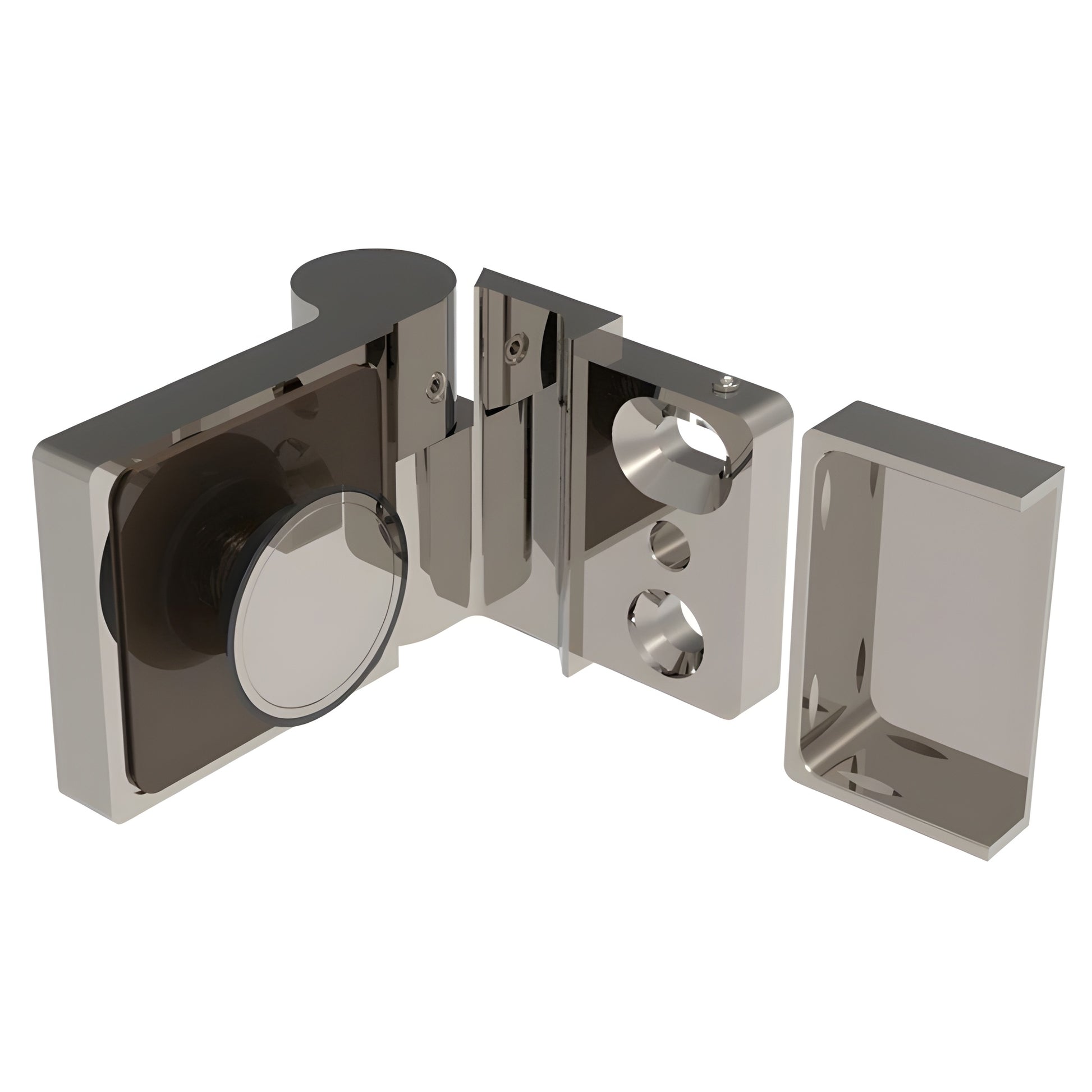

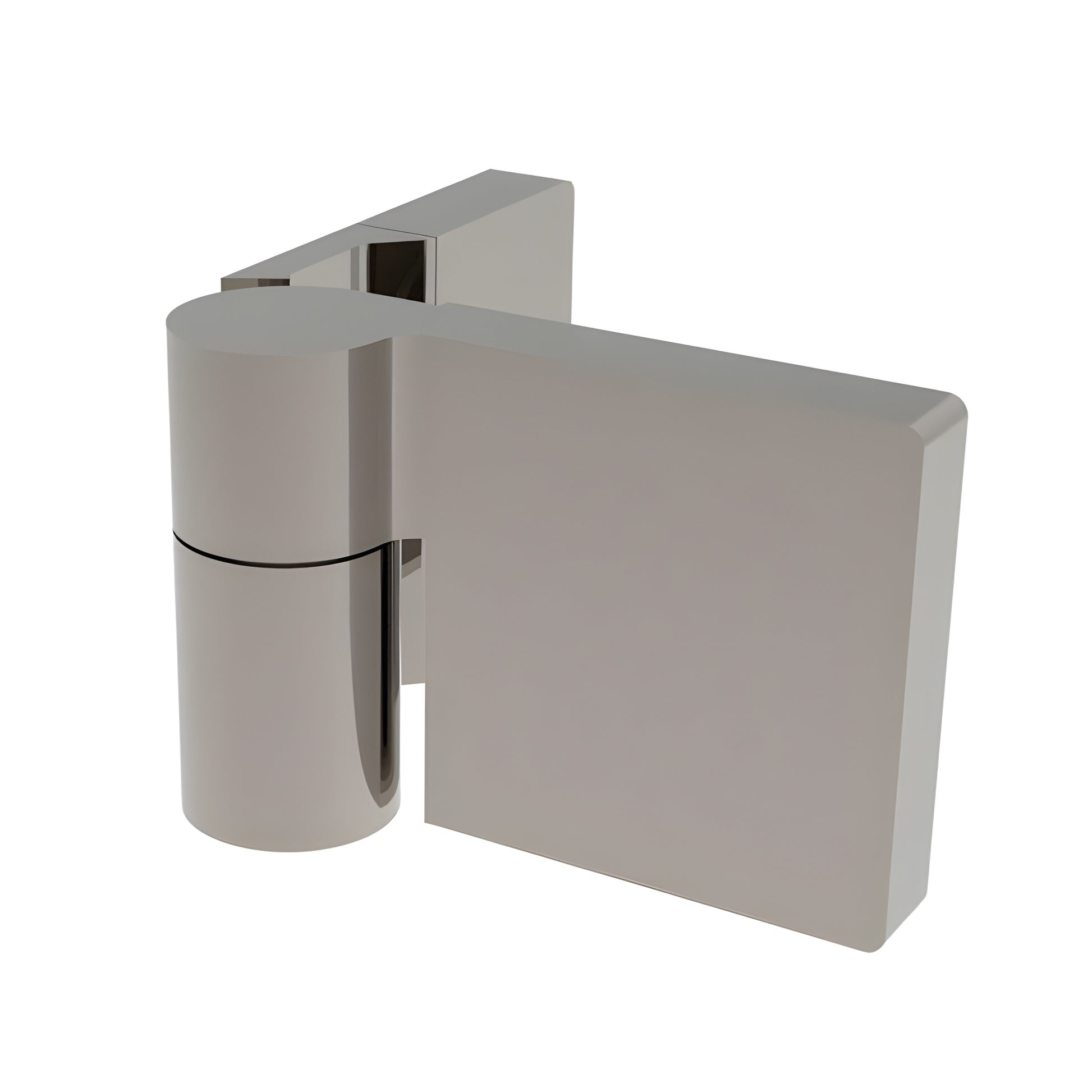

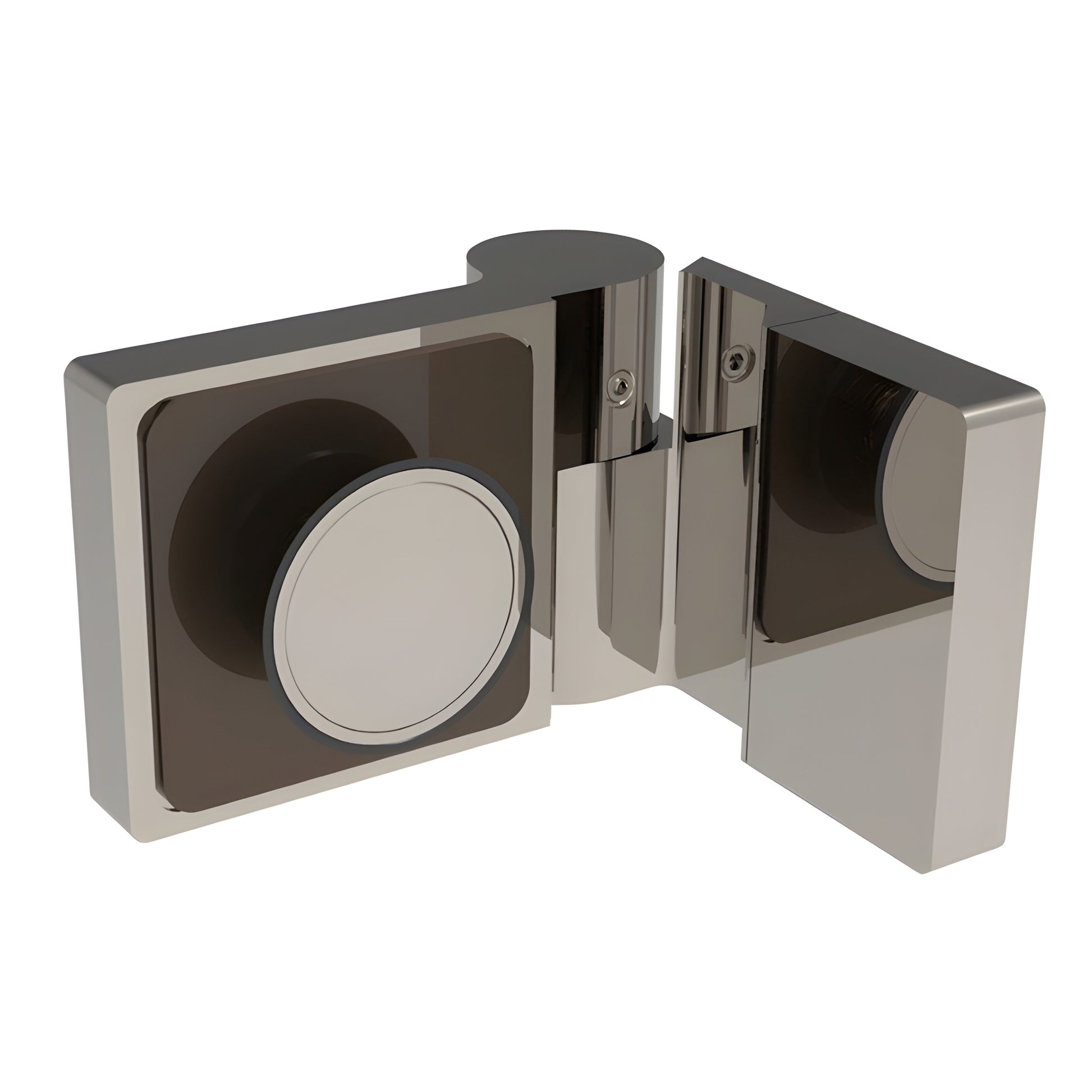

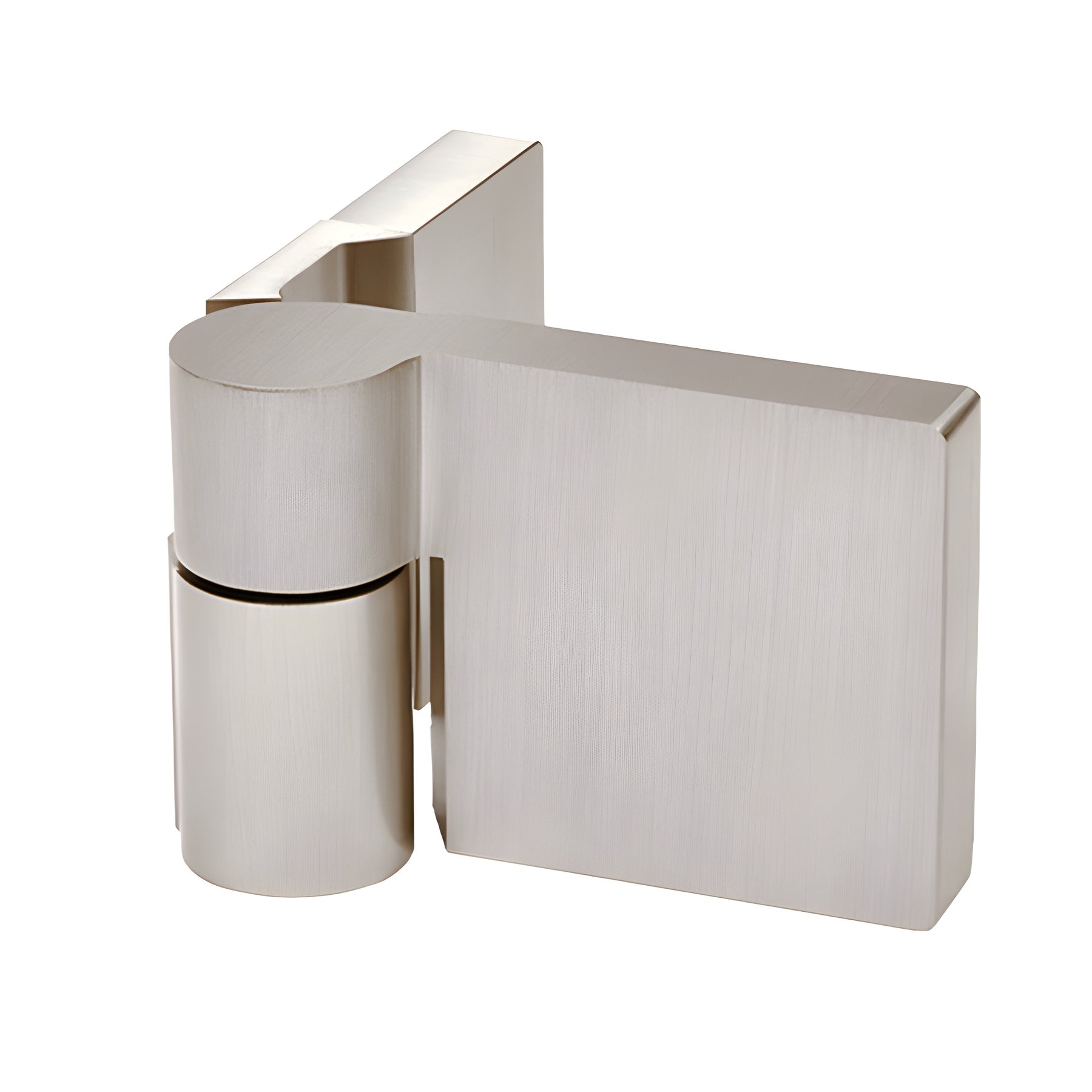

CRL Lugano Brushed Nickel Outswing Wall Hinge - Right Hand
Item# LUG044LBN
Shipping Weight: 1.125 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.125 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Back Plate
Offset
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Nickel
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Right Hand
Height
1-31/32 in. (50 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35 in. (889 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Series
Lugano
Width
1-31/32 in. (50 mm)
- Rise-and-fall action: 3/16" (5 mm)
- Sleek Lugano Series design for modern interiors
- Fits 5/16" to 3/8" (8 to 10 mm) glass
- Ideal for pitched curb installations
- Use with no ledge for wheelchair-accessible glass shower doors
- Flush mount inside for easy-to-clean glass
- Snap-on covers conceal screws for a clean look
- Rigorously tested to 100,000 cycles — 5× the industry standard

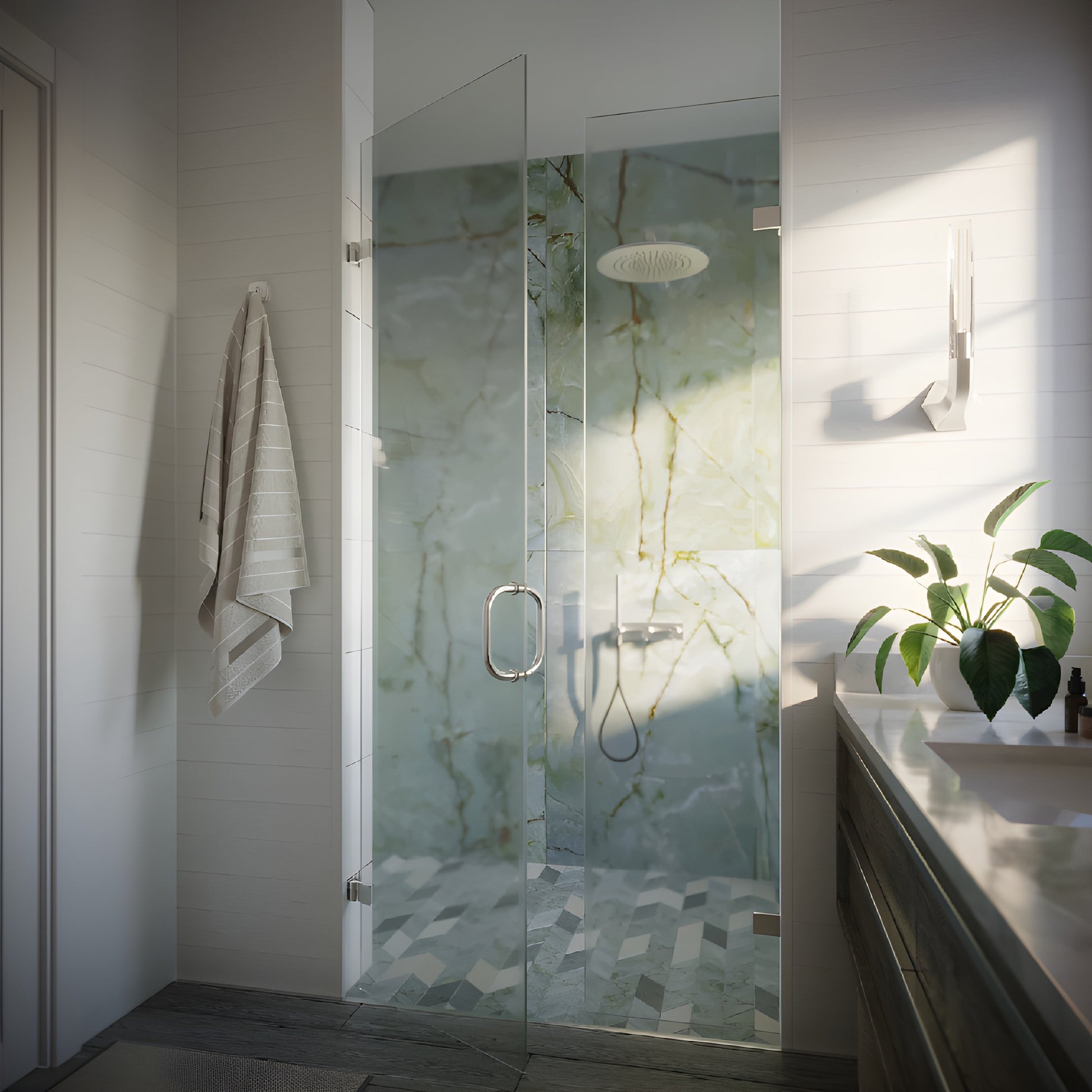

The Lugano Series hinge (SKU: LUG044LBN) is a sleek, modern glass shower door hinge designed for 5/16"–3/8" (8–10 mm) tempered glass. All fasteners are concealed and the hinges are self-centering within 60° of the closed position. Using two hinges supports doors up to 35" wide and 99 lb (44 kg) — a durable solution for frameless glass shower doors and accessible shower installations.
