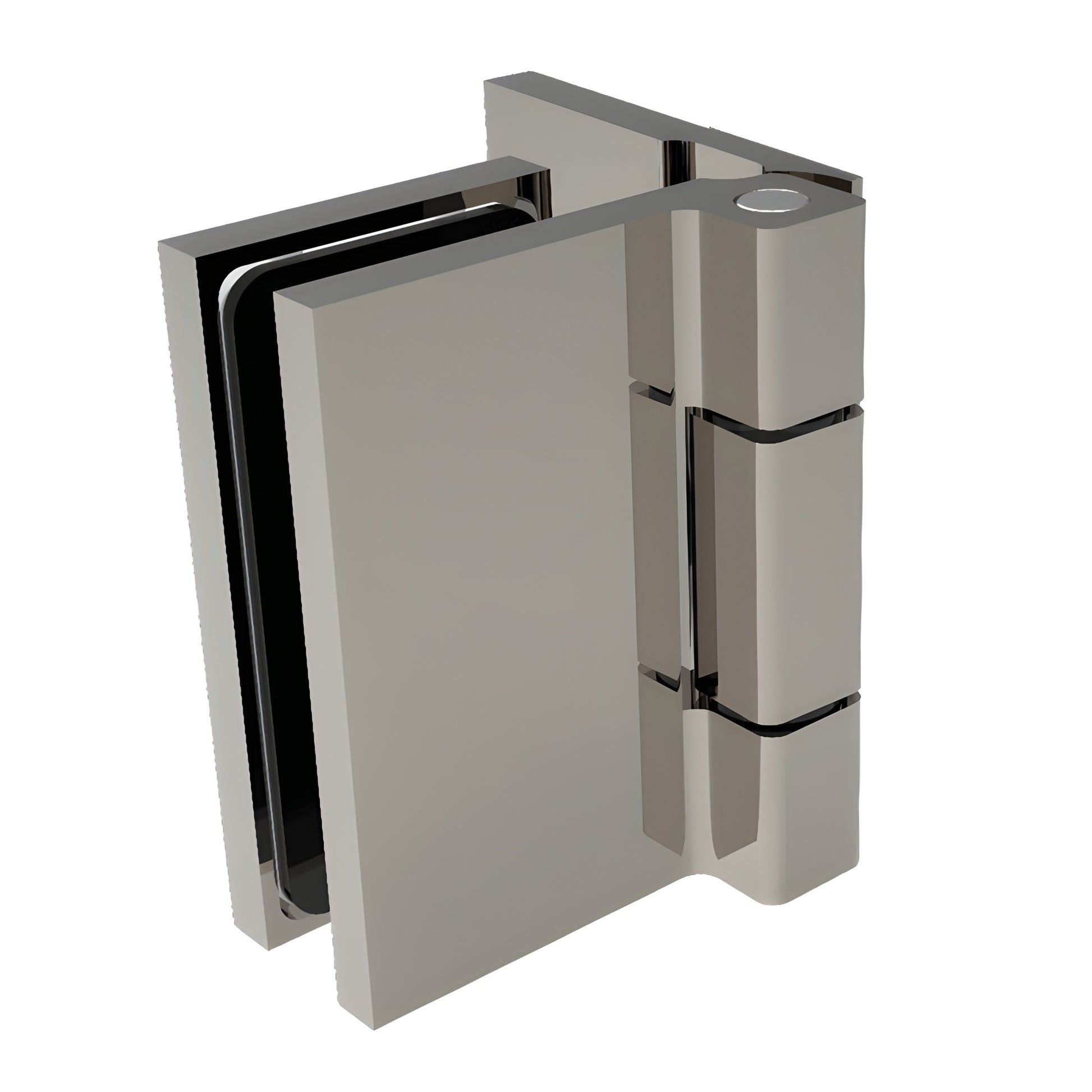

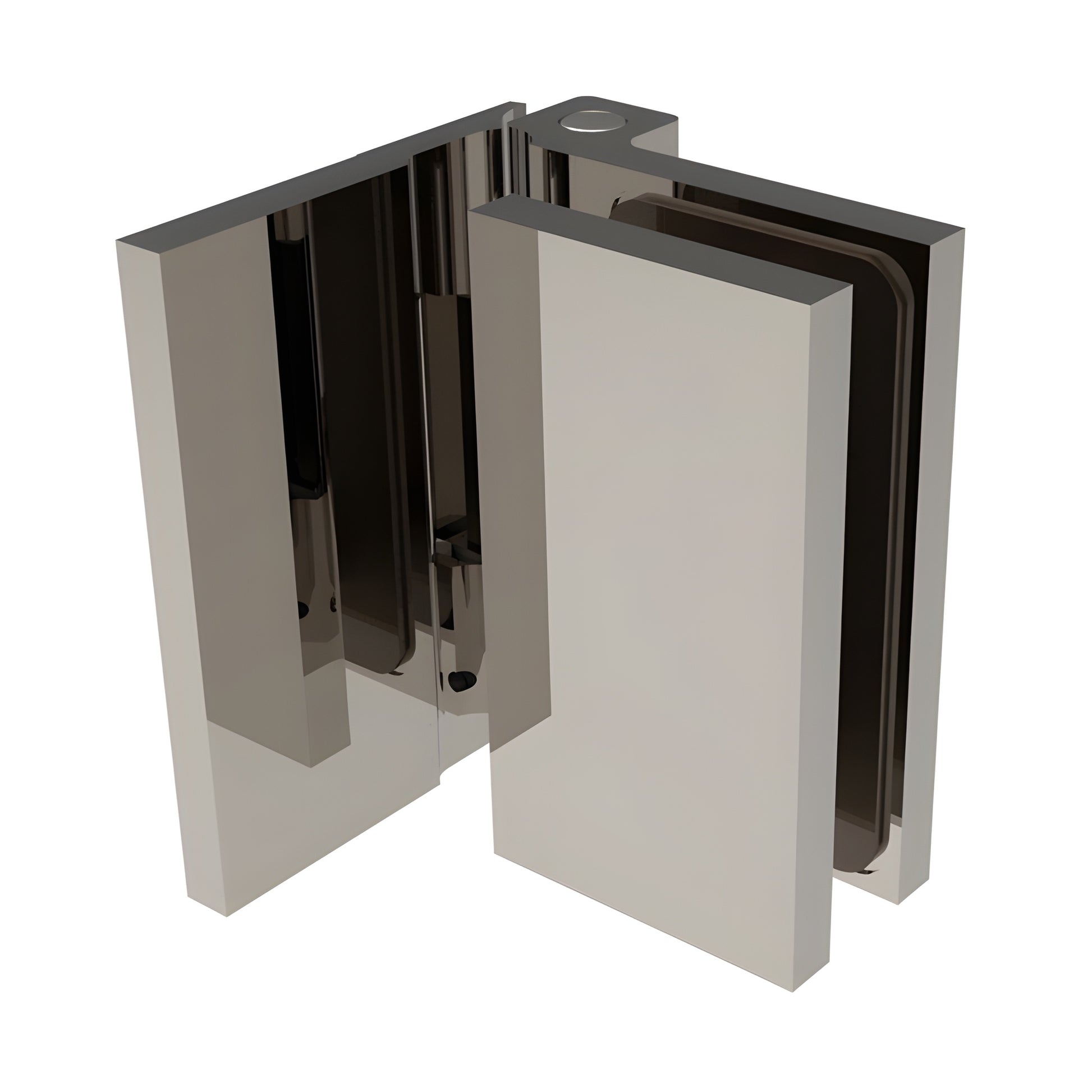

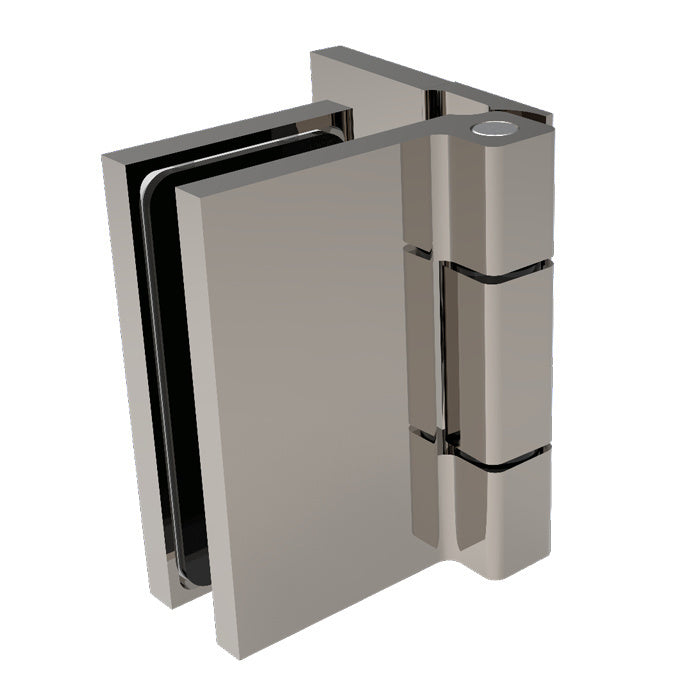

CRL Como Brushed Nickel Wall-Mount Outswing Hinge for Shower Door

• Wall-mount outswing hinge for glass doors
• Fits 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• 180-degree free swing — supports saloon door configuration
• Ideal for wheelchair-accessible shower openings and ADA-style layouts

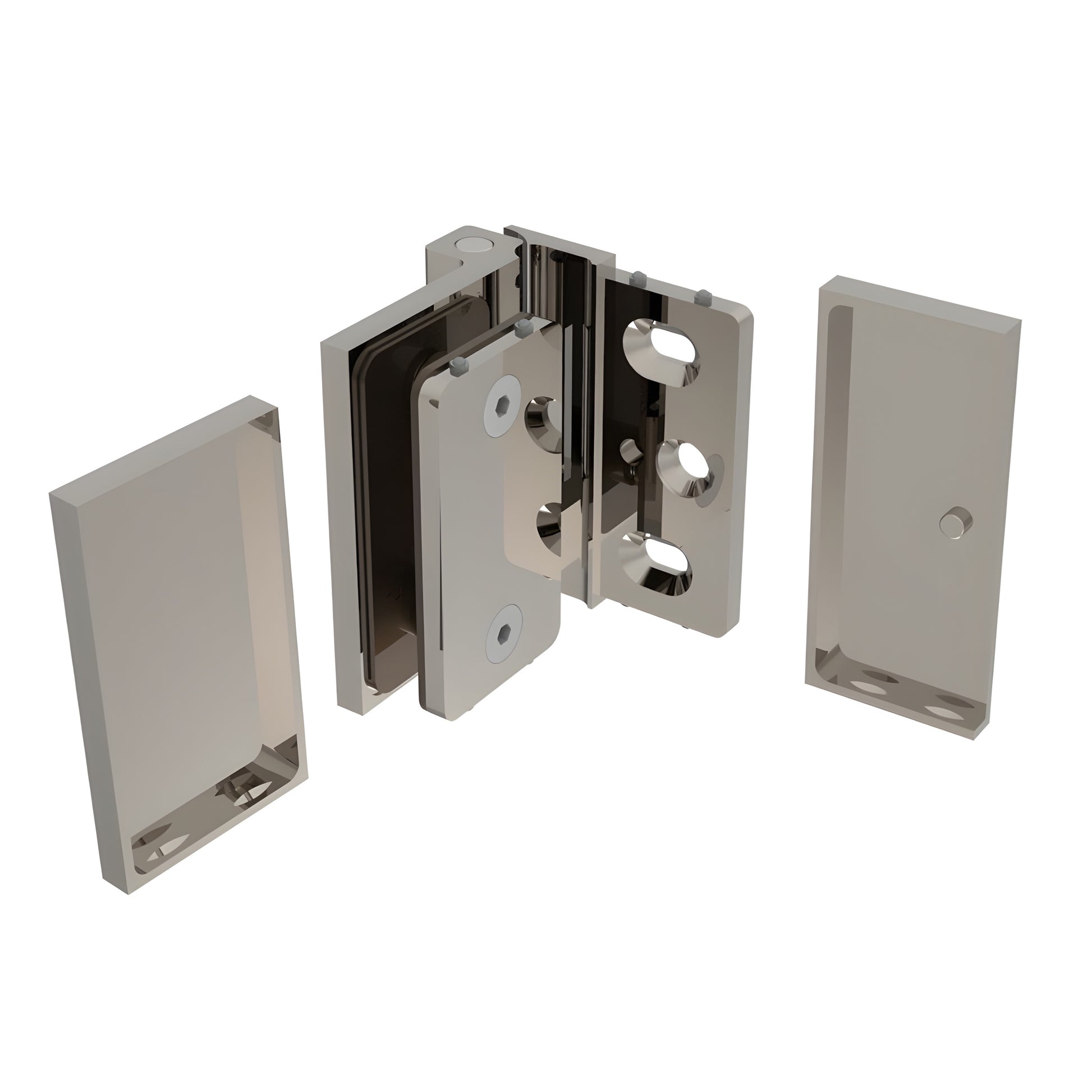

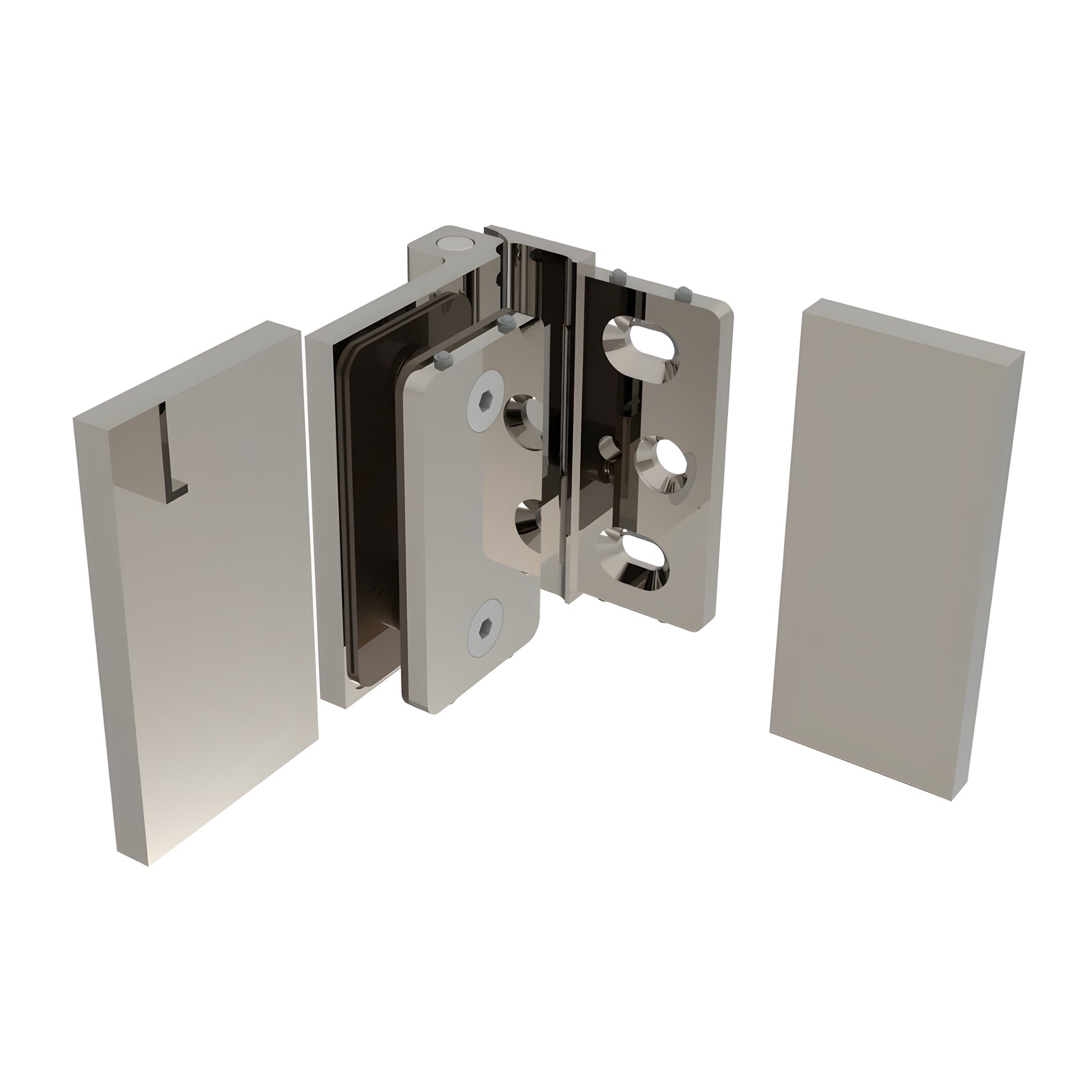

• Snap-on covers conceal screws for a clean, modern appearance
• Rigorously tested to 100,000 cycles — 5× the industry standard

The CRL COMO Series professional hinge (SKU: C0M044BN) is designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Each hinge requires only two holes per panel with no cut-out needed, simplifying glass fabrication and installation.

Using two hinges with 5/16"–3/8" glass, the assembly supports up to 110 lbs (50 kg) with a maximum door width of 39" (914 mm).

SPECIFICATIONS:

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Construction: Stainless steel or solid brass options
• Hinge Swings: See product images and descriptions for available swing types
• Closing Type: Free-swinging (180°)
• Mounting: Two holes required per hinge per panel (no cut-out)
• Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request — contact the CRL Technical Sales Shower Door Department for custom plating or finishes.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For applications beyond intended use, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template; cut-out dimensions for CRL hinges may not match other brands.

Ready to upgrade your shower hardware? Contact CRL or add SKU C0M044BN to your cart to order.
