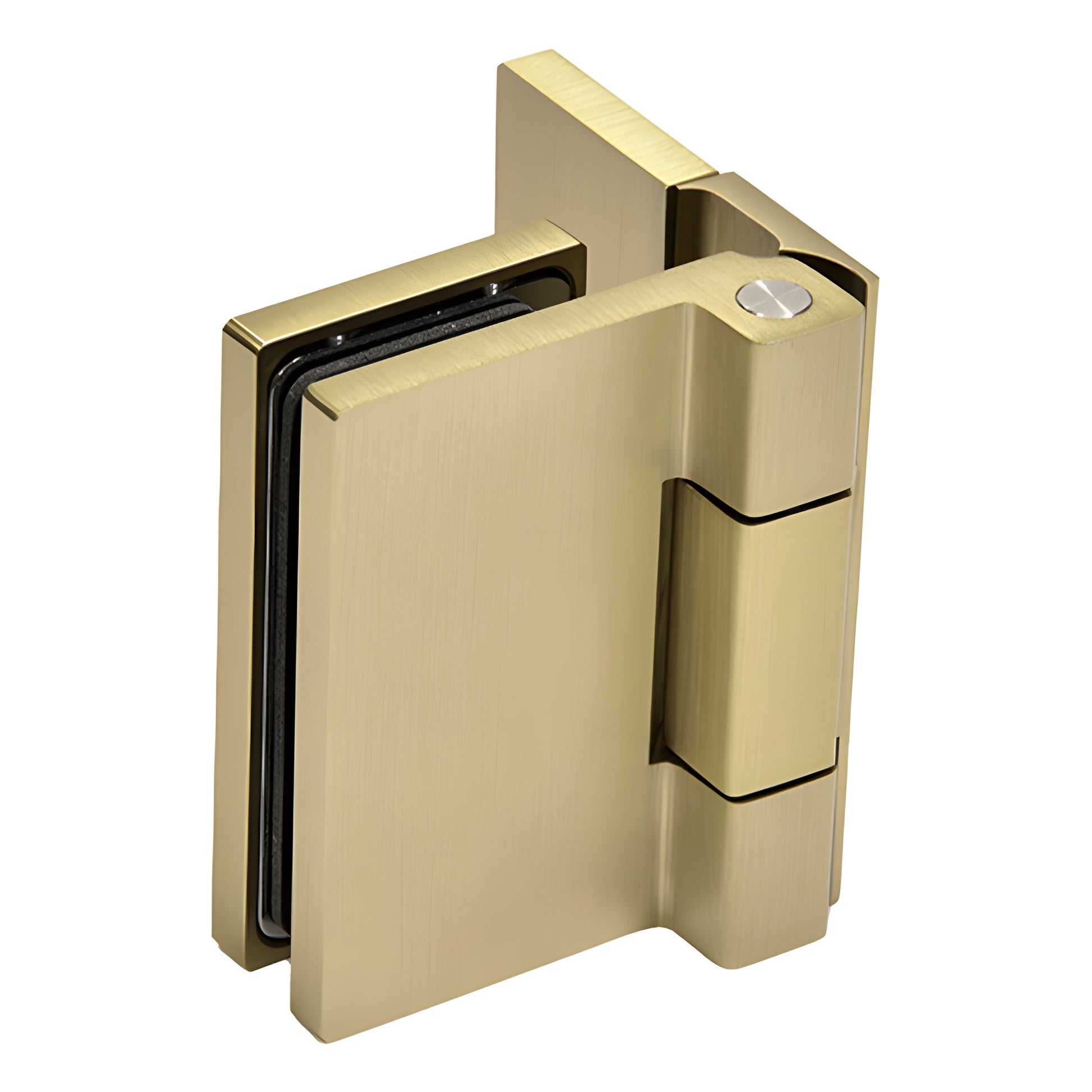

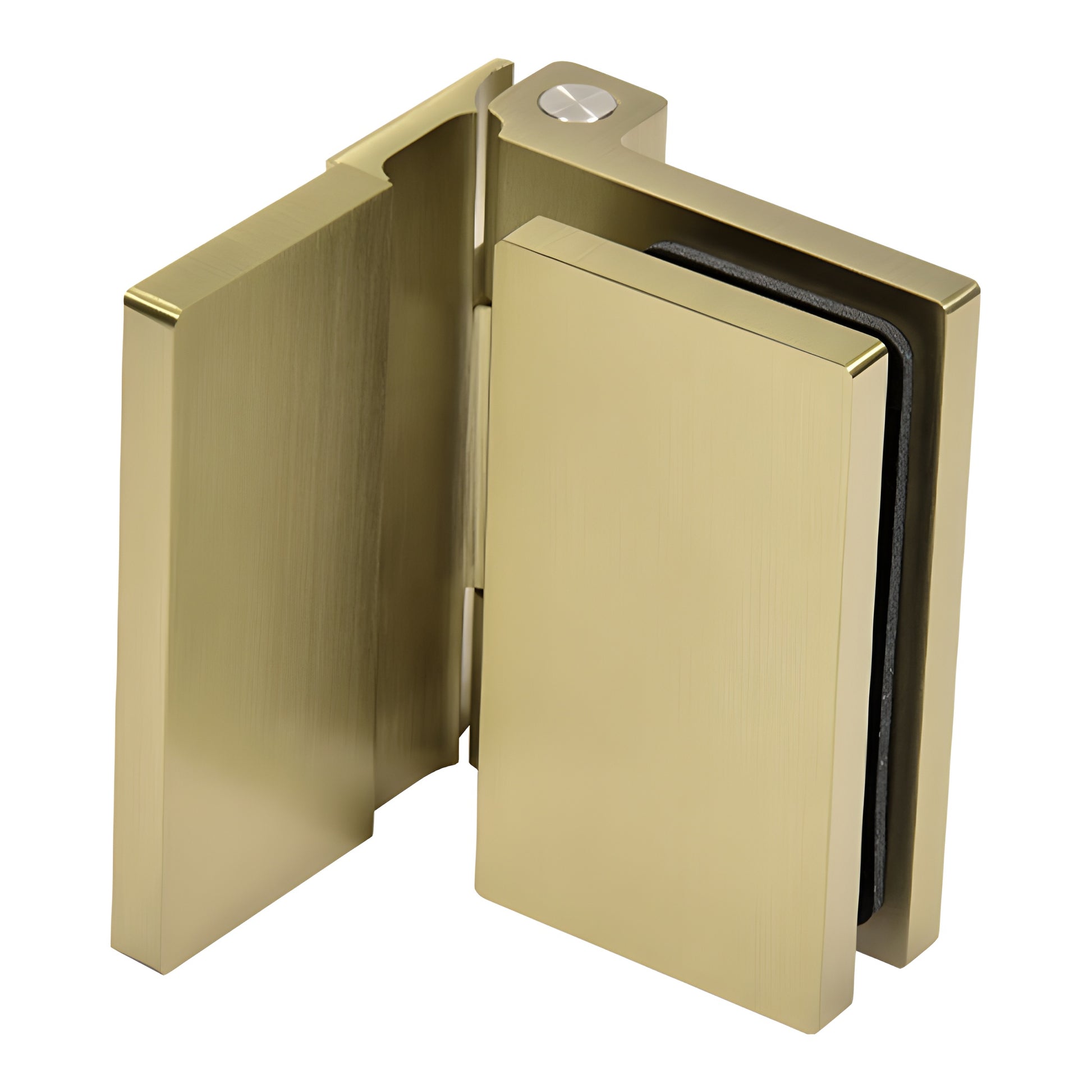

CRL Brushed Bronze Como Series Wall Mount Outswing Hinge
CRL Brushed Bronze Como Series Wall Mount Outswing Hinge
Regular price
$261.03 CAD
Regular price
Sale price
$261.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C0M044BBRZ
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

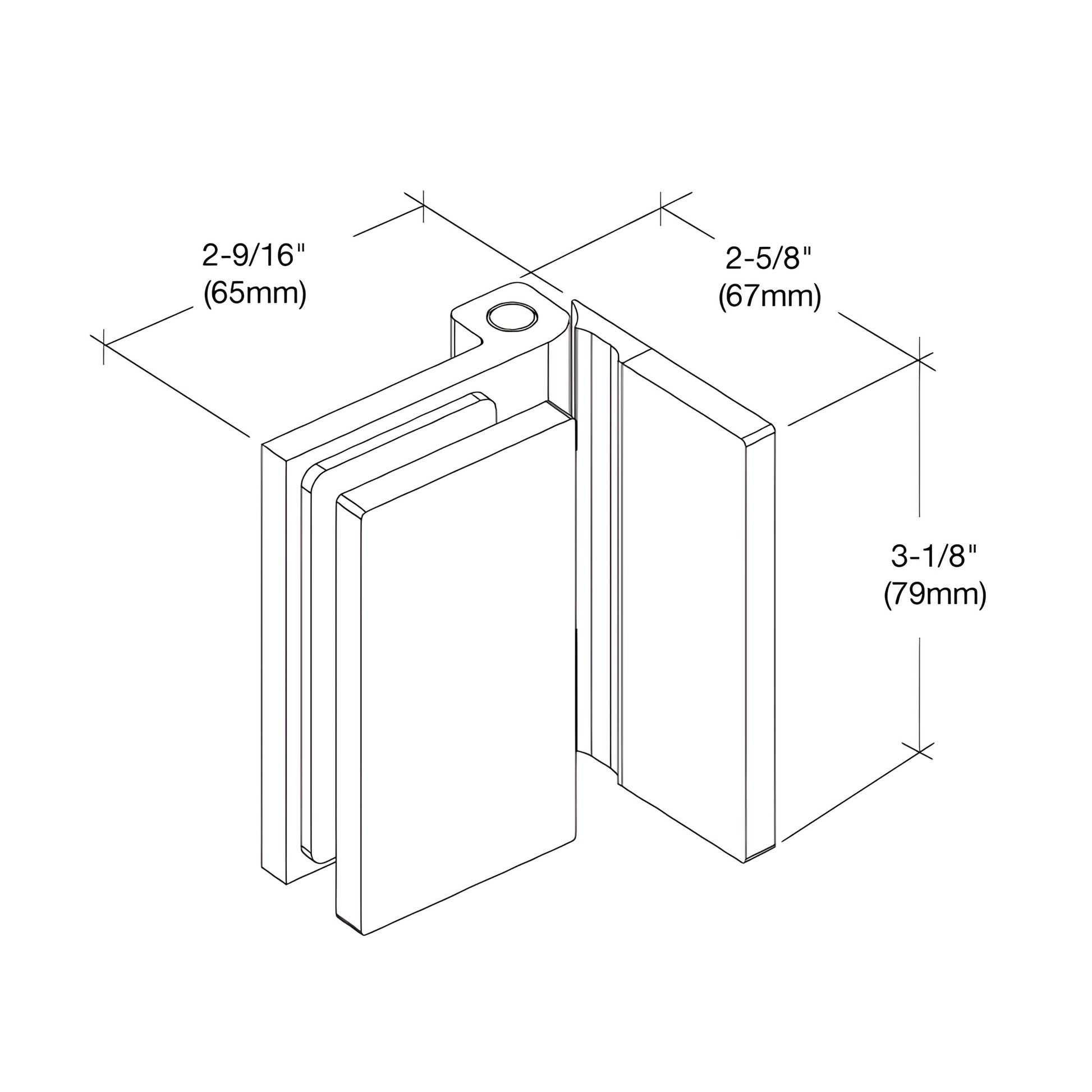

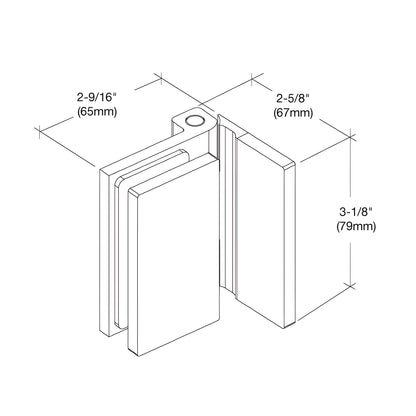

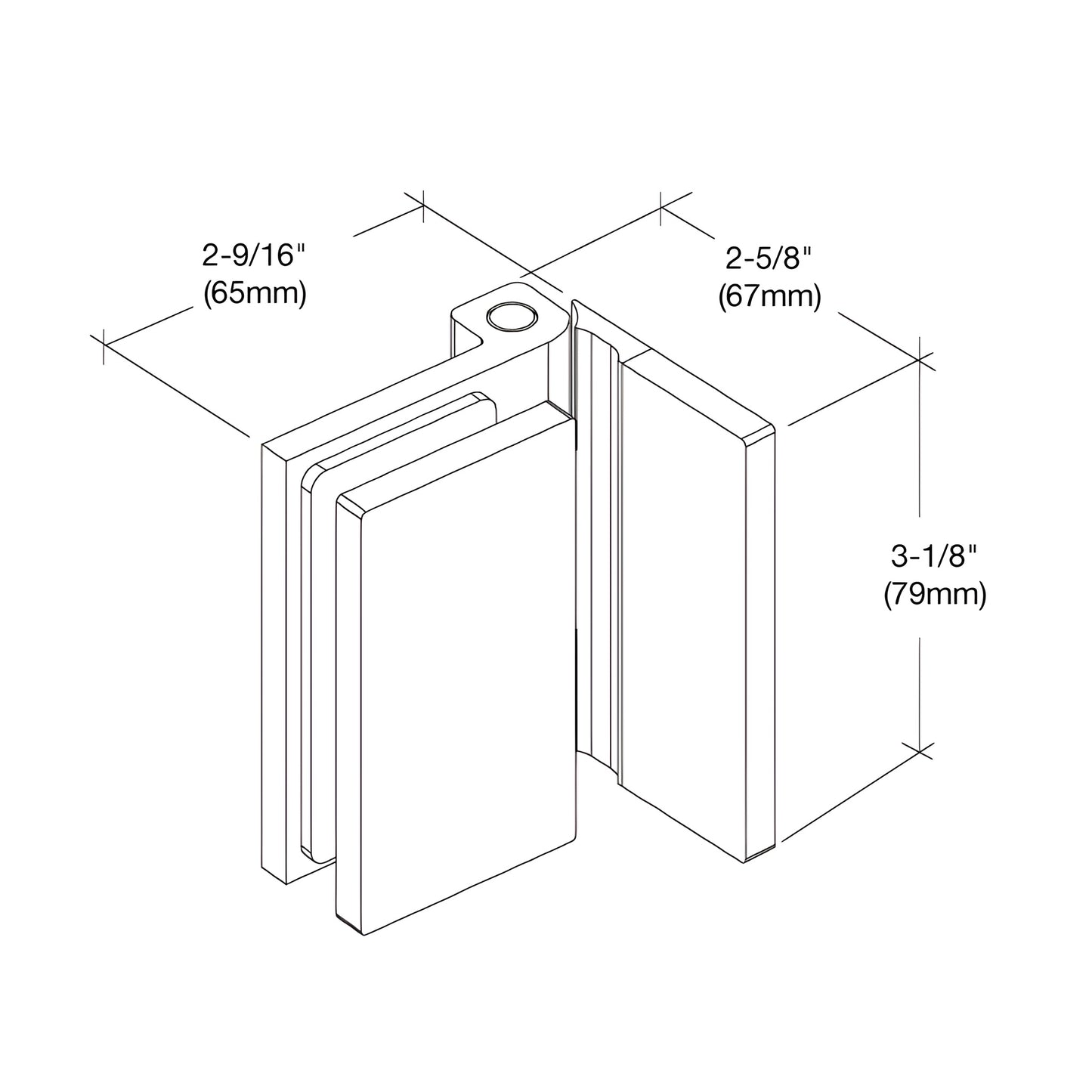

| 5 Degree Pre-Set No | No |
| Back | Plate Offset |
| Design | Style Concealed/Premium |
| Edge | Profile Square |
| Enclosure | Type Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Brushed Bronze |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Height 3-1/8 in. | (79 mm) |
| Material | Brass |
| Maximum Door Weight 110 lbs. | (49.9 kg) |
| Maximum Door Width 39 in. | (991 mm) |
| Mounting | Type Wall Mount |
| Opening Style Swing | (side) |
| Self-Centering No | Como |
| Width 2-9/16 in. | (36.5 mm) |
Overview
The CRL COMO Series features premium wall mount outswing hinges designed for 5/16" to 3/8" tempered safety glass, providing a robust 180-degree free swing ideal for saloon door configurations and wheelchair accessibility.
These hinges, rigorously tested for 100,000 cycles—five times the industry standard—come with snap-on covers to conceal screws, ensuring both functionality and aesthetic appeal.
Constructed from stainless steel or solid brass, they support doors up to 110 lbs with a maximum width of 39 inches, requiring just two holes per hinge per panel without any cut-out.
Custom finishes are available, and for optimal usage, consult the CRL Technical Sales Shower Door Department, especially if using outside of residential or hotel shower settings.
These hinges, rigorously tested for 100,000 cycles—five times the industry standard—come with snap-on covers to conceal screws, ensuring both functionality and aesthetic appeal.
Constructed from stainless steel or solid brass, they support doors up to 110 lbs with a maximum width of 39 inches, requiring just two holes per hinge per panel without any cut-out.
Custom finishes are available, and for optimal usage, consult the CRL Technical Sales Shower Door Department, especially if using outside of residential or hotel shower settings.
