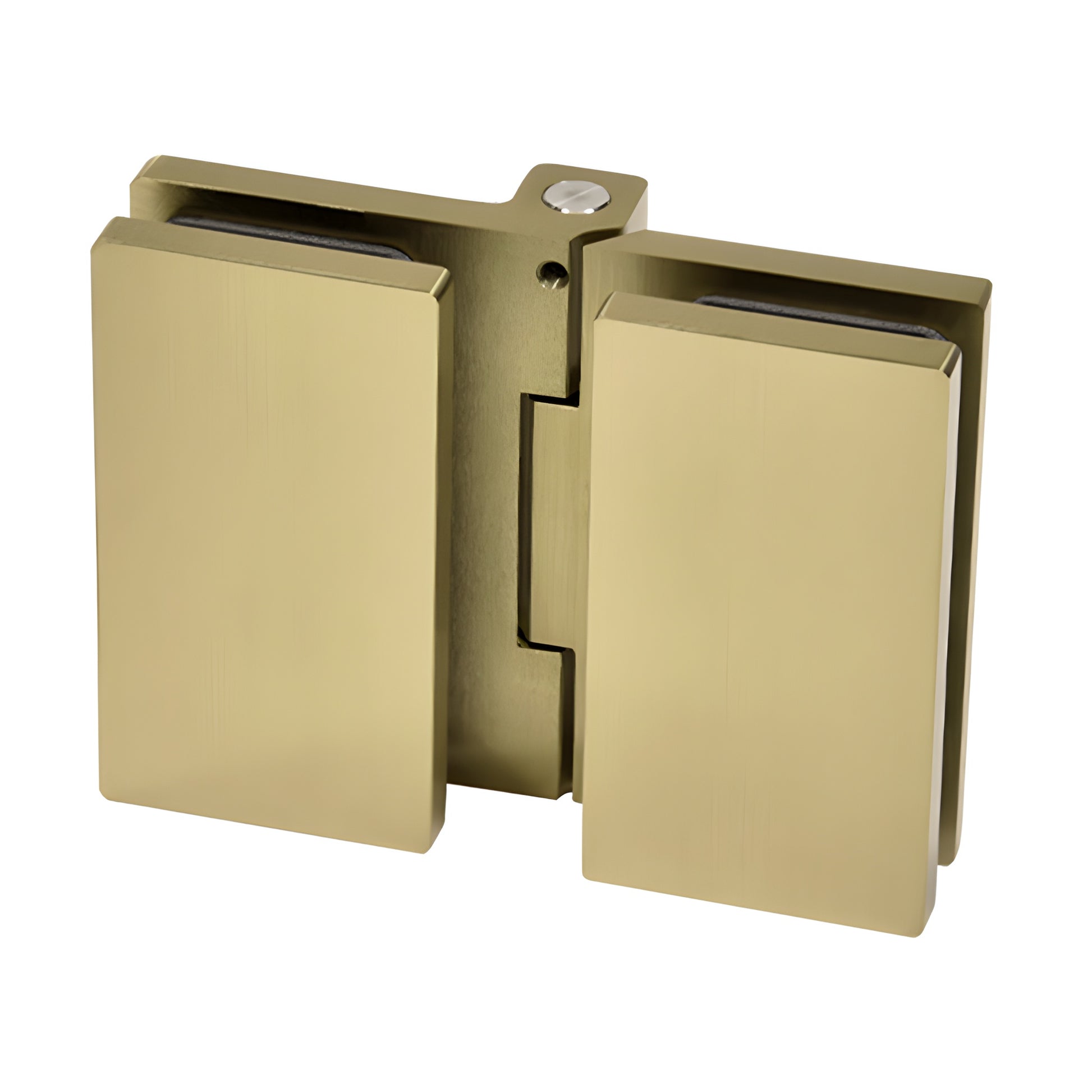

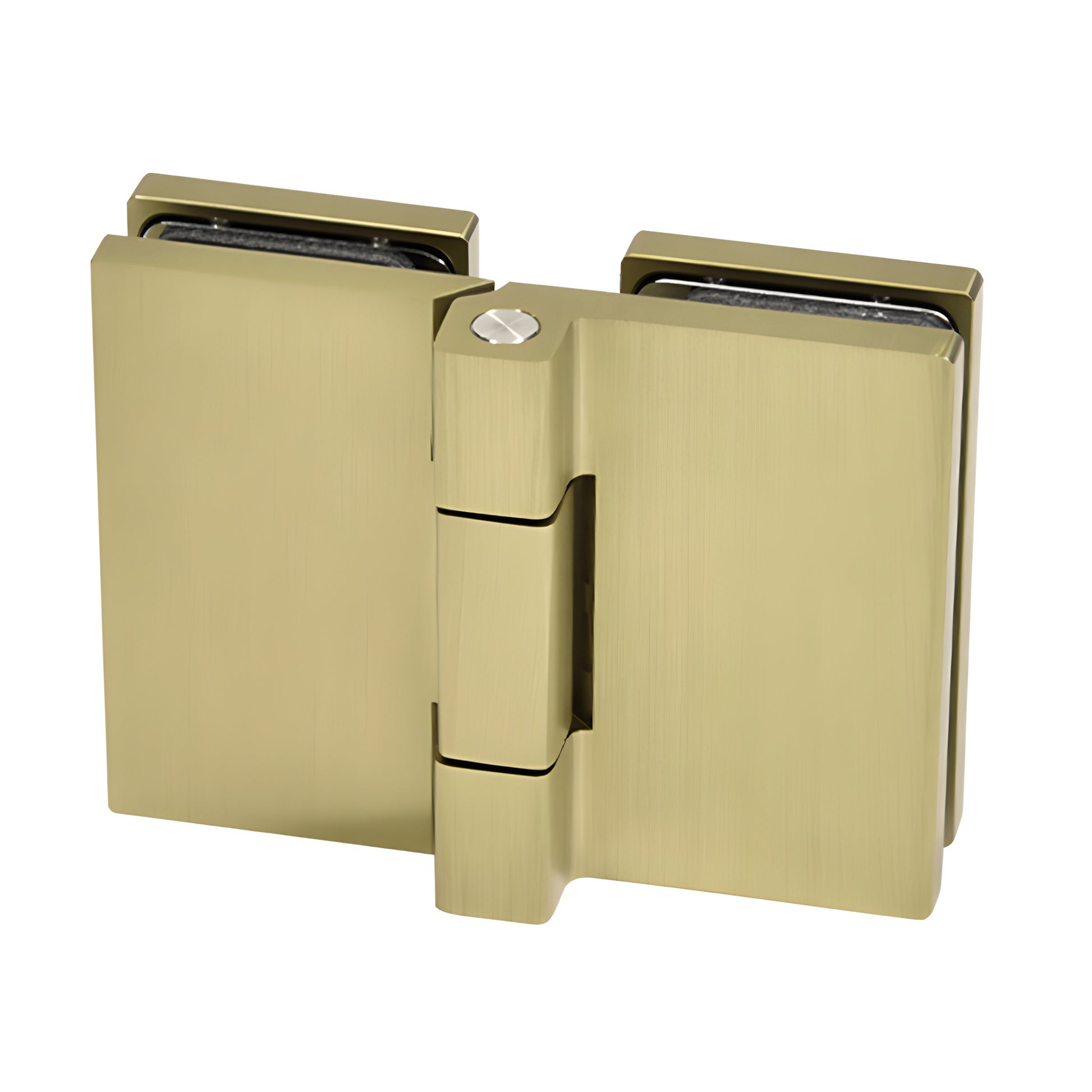

CRL Como Series 180° Brushed Bronze Glass-to-Glass Shower Door Hinge

• Glass-to-Glass Inline Outswing hinge for tempered shower glass
• Fits 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Wheelchair-accessible design — ideal for accessible shower openings
• Snap-on covers conceal screws for a clean, vandal-resistant appearance
• Rigorously tested to 100,000 cycles — 5× more than the industry standard

The CRL COMO Series professional hinges are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Each hinge requires only two holes per panel and no glass cut-out, simplifying installation and preserving glass integrity.

NOTE: Not available in Germany.

Load & sizing:

• Using two hinges (5/16"–3/8" glass): holds up to 110 lbs (50 kg); maximum door width 39" (914 mm).
• Using three hinges (5/16"–3/8" glass): holds up to 150 lbs (68 kg); maximum door width 39" (914 mm).

SPECIFICATIONS:

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Construction: Stainless steel or solid brass options
• Hinge Swing: See image descriptions for swing types
• Closing Type: Free-swinging
• Mounting: Two holes required per hinge per panel (no cut-out)
• Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request — contact the CRL Technical Sales Shower Door Department for finish and customization options.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For uses outside intended applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.
