Product Details
- Use Monolithic Tempered Glass
- Works with 5/16" to 3/8" (8 to 10 mm) glass
- Ideal for Wheelchair Accessibility

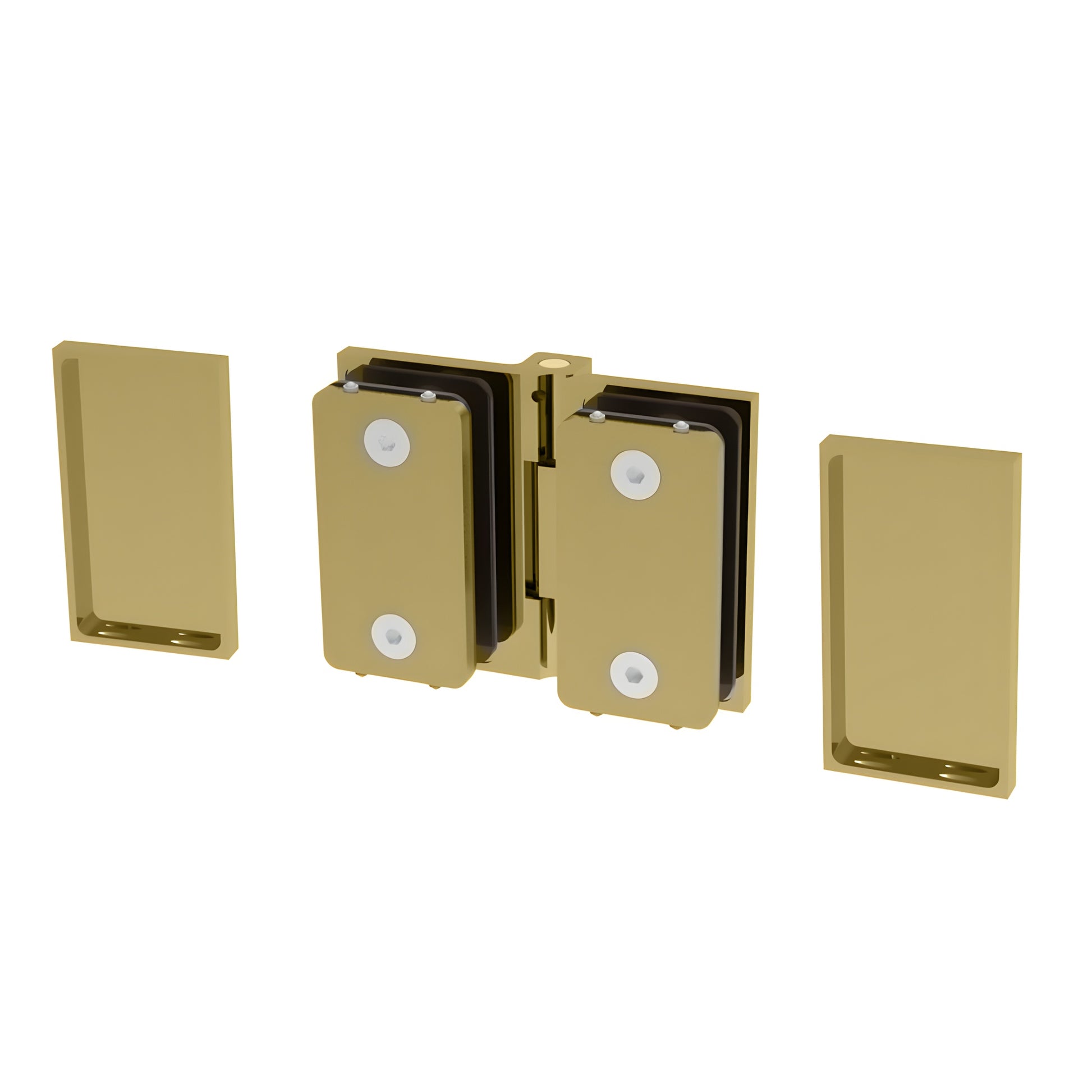

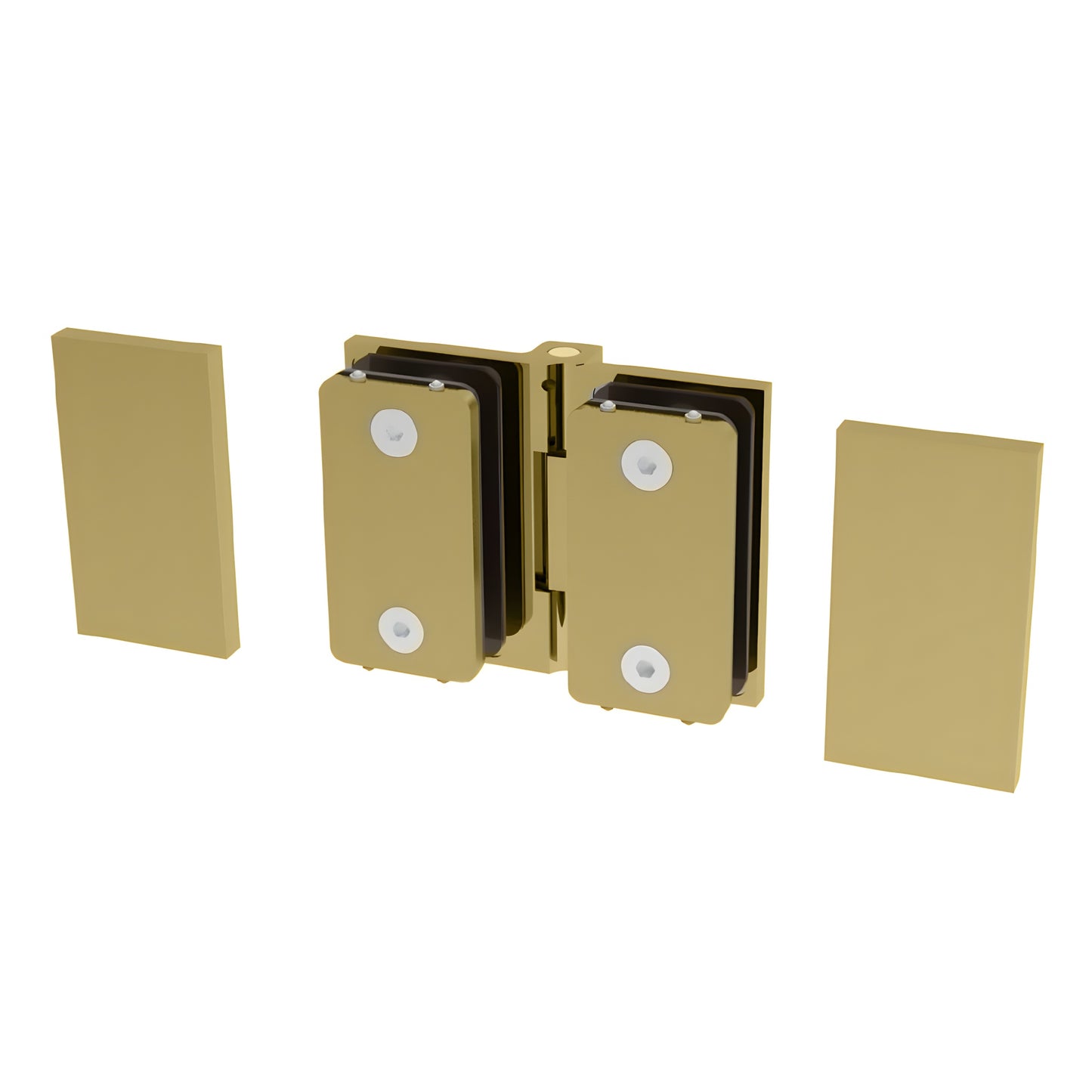

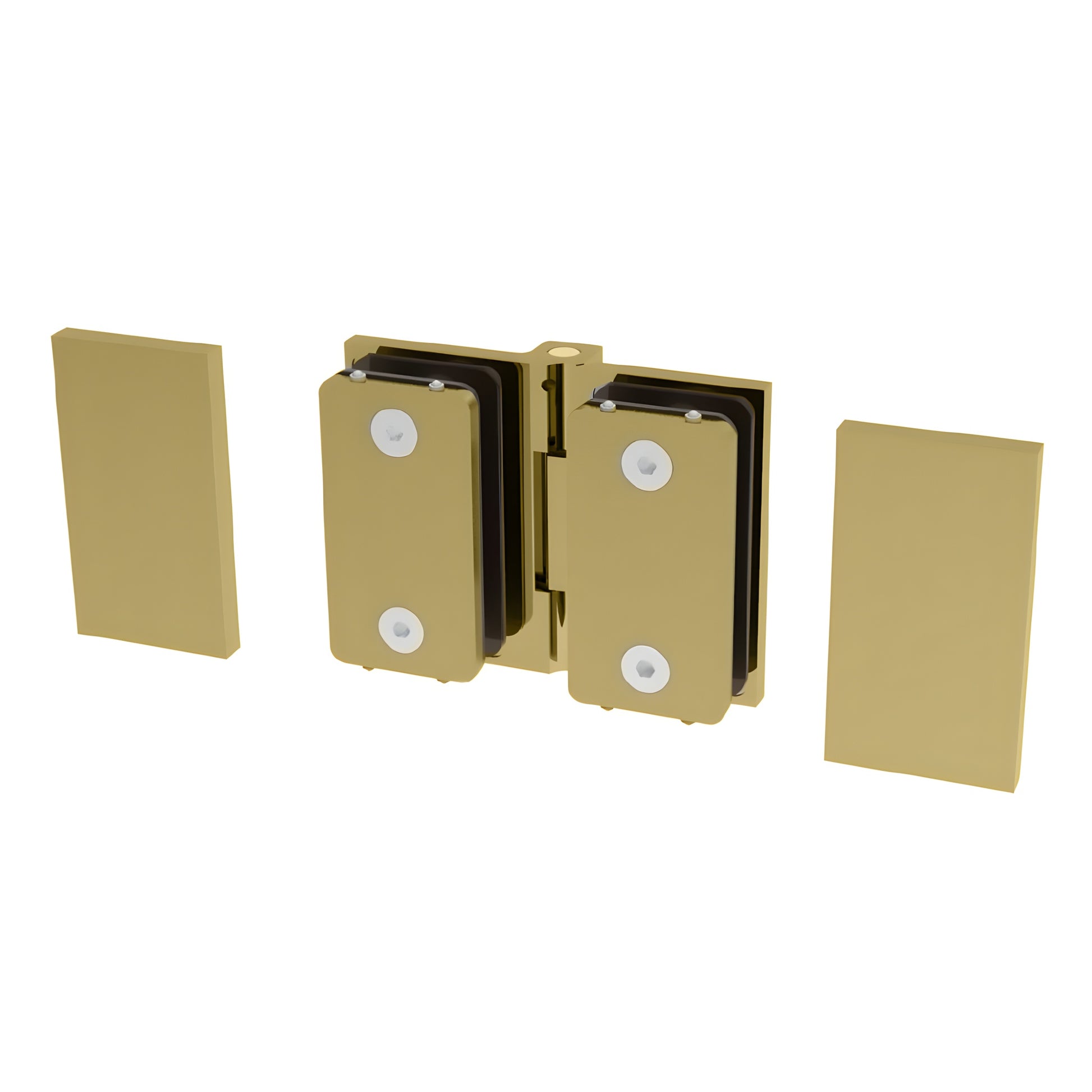

- Snap-on Covers Conceal Screws
- Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard
- Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
- Construction: Stainless Steel or Solid Brass
- Hinge Swings: See descriptions next to photos of hinges.
- Closing Type: Free-Swinging
- Two Holes Required Per Hinge Per Panel (No Cut-Out)
- Includes: Gaskets, Screws, and Glass Fabrication Dimensions Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands. Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

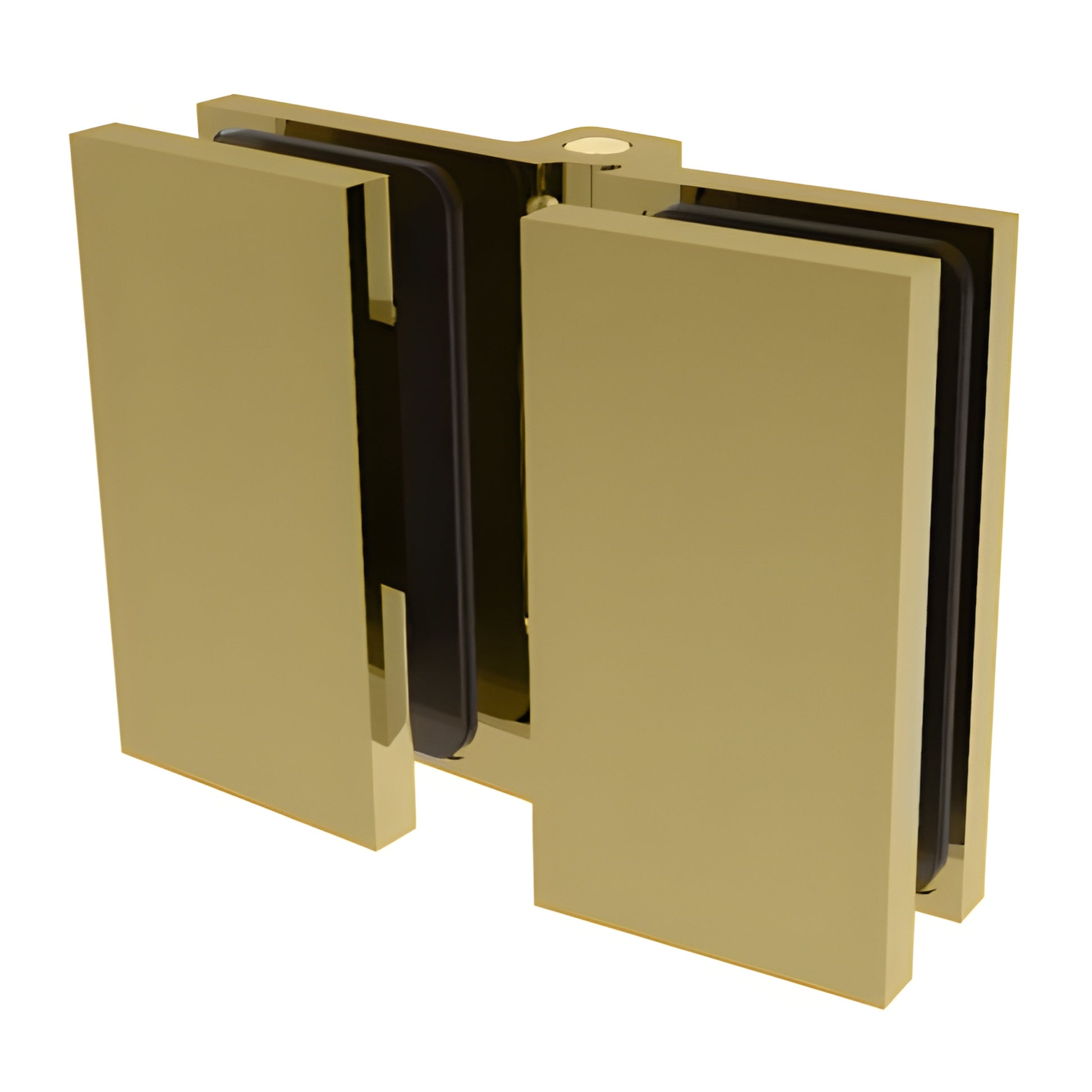

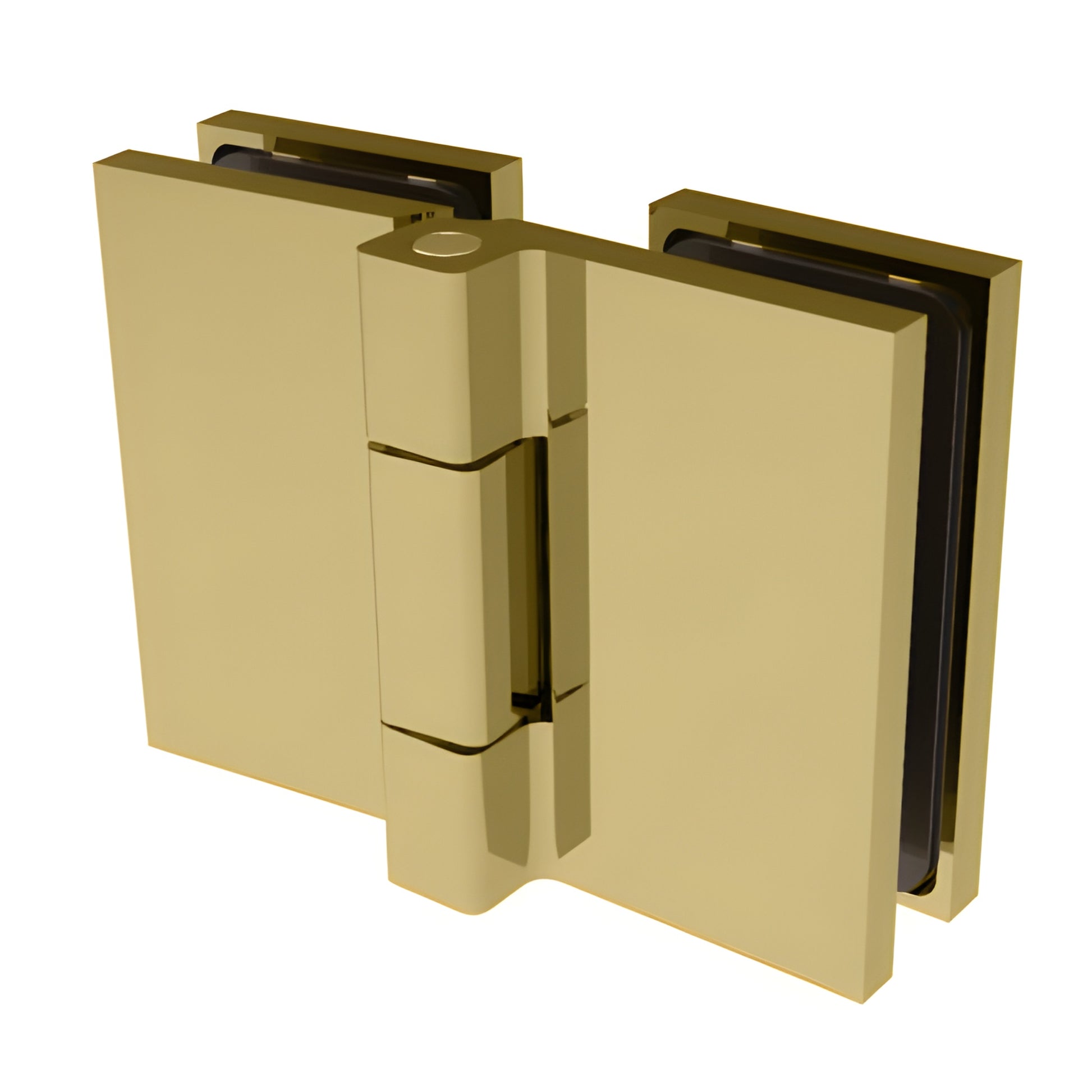

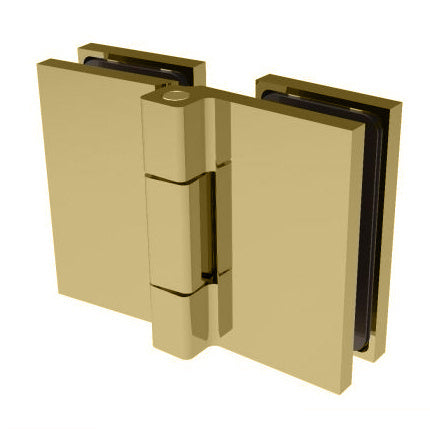

The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 39” (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 39” (914 m).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Stainless Steel or Solid Brass
Hinge Swings: See descriptions next to photos of hinges.
Closing Type: Free-Swinging
Two Holes Required Per Hinge Per Panel (No Cut-Out)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Brass Finish Advisory:Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
