CRL Como Series Satin Brass Wall-Mount Outswing Door Hinge

CRL Como Series Satin Brass Wall-Mount Outswing Door Hinge

Regular price $252.50 CAD
Regular price Sale price $252.50 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# C0M044SB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Offset
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Height
3-1/8 in. (79 mm)
Material
Brass
Maximum Door Weight
110 lbs. (49.9 kg)
Maximum Door Width
39 in. (991 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
No
Series
Como
Width
2-9/16

Overview

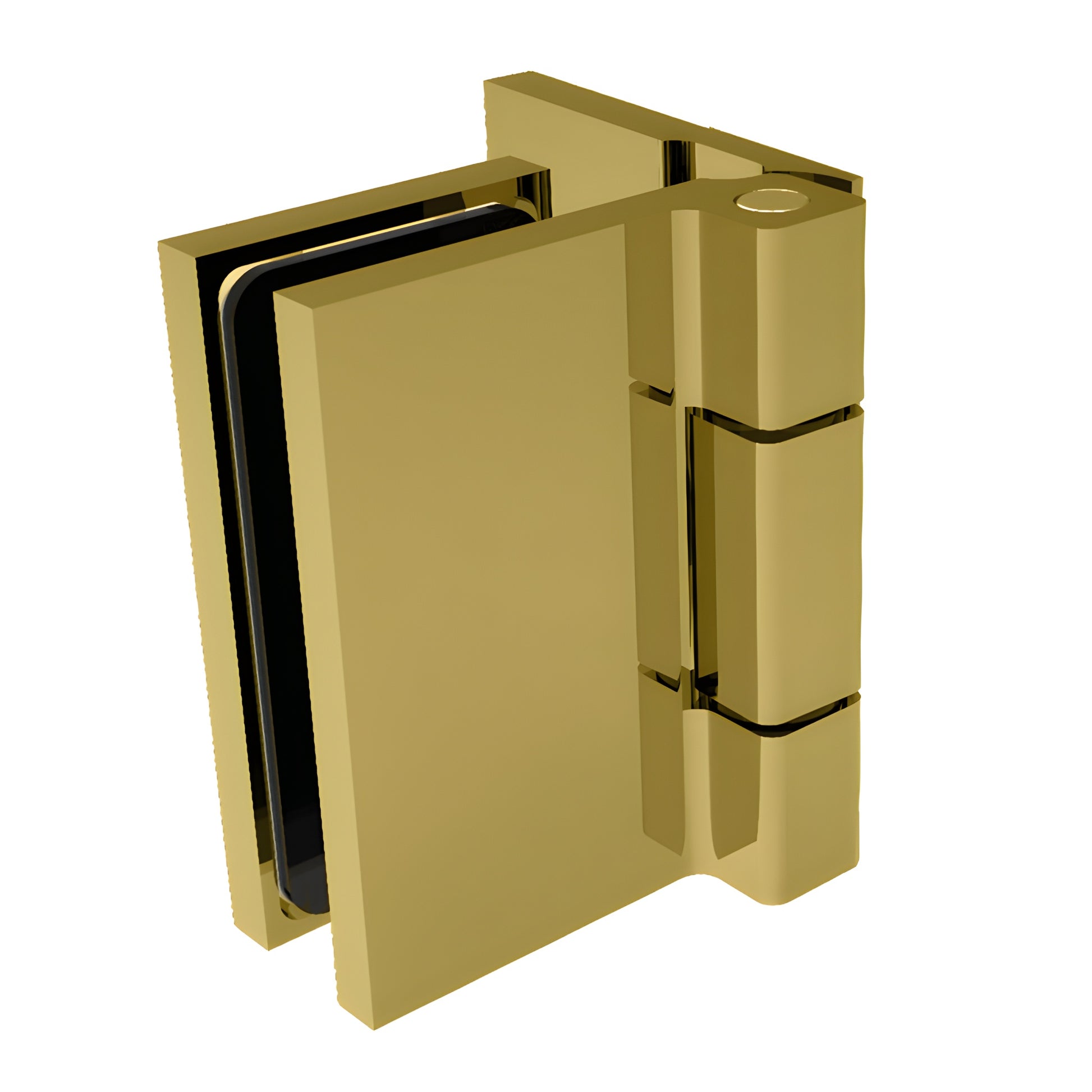

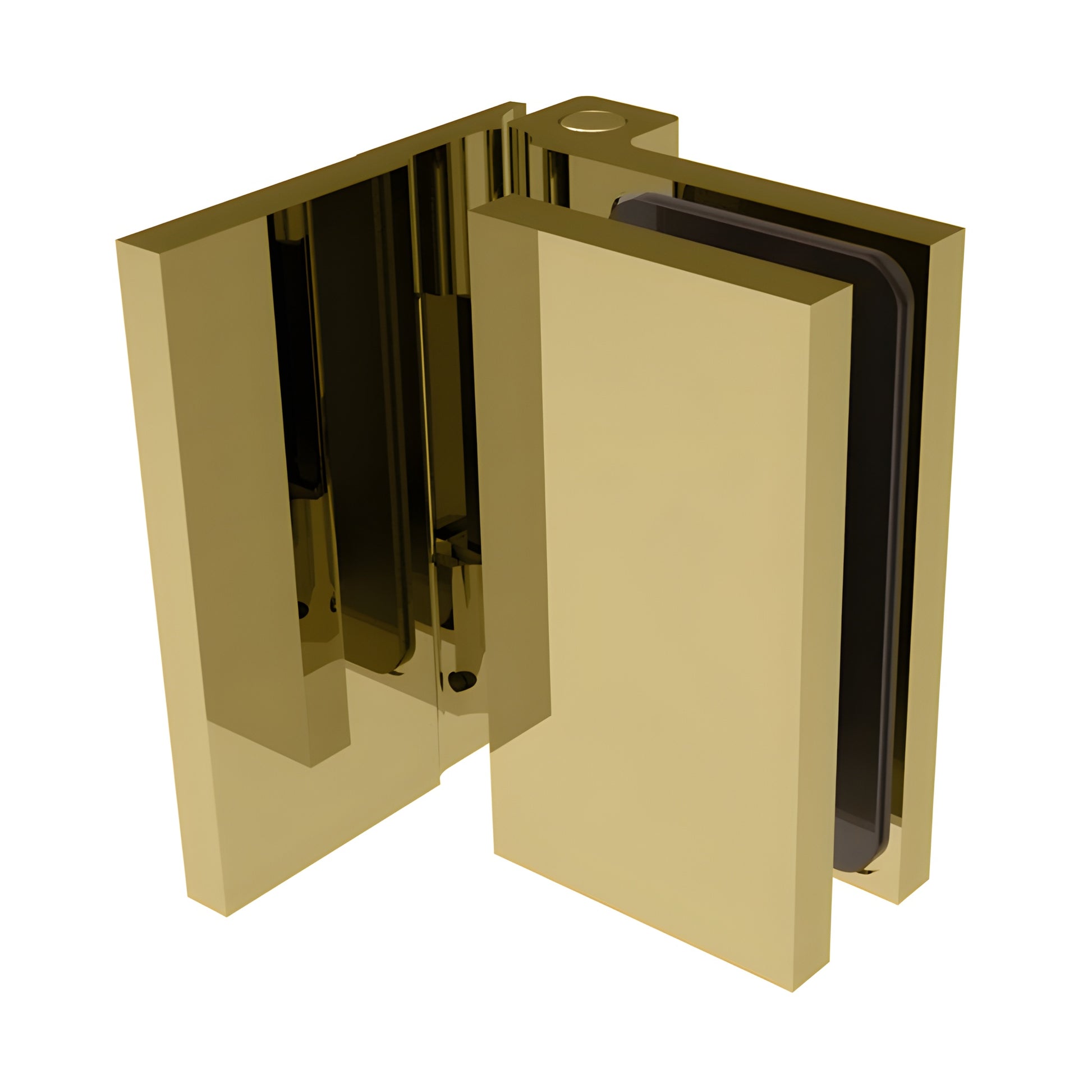

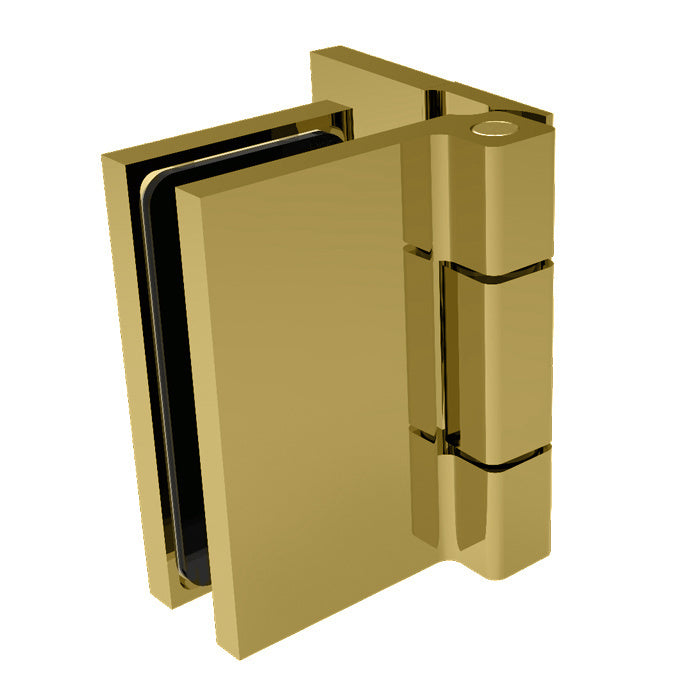

  • Wall-mount outswing glass shower door hinge
  • Fits 5/16" to 3/8" (8–10 mm) tempered safety glass
  • 180° free swing — supports saloon door configuration
  • Ideal for wheelchair-accessible shower openings

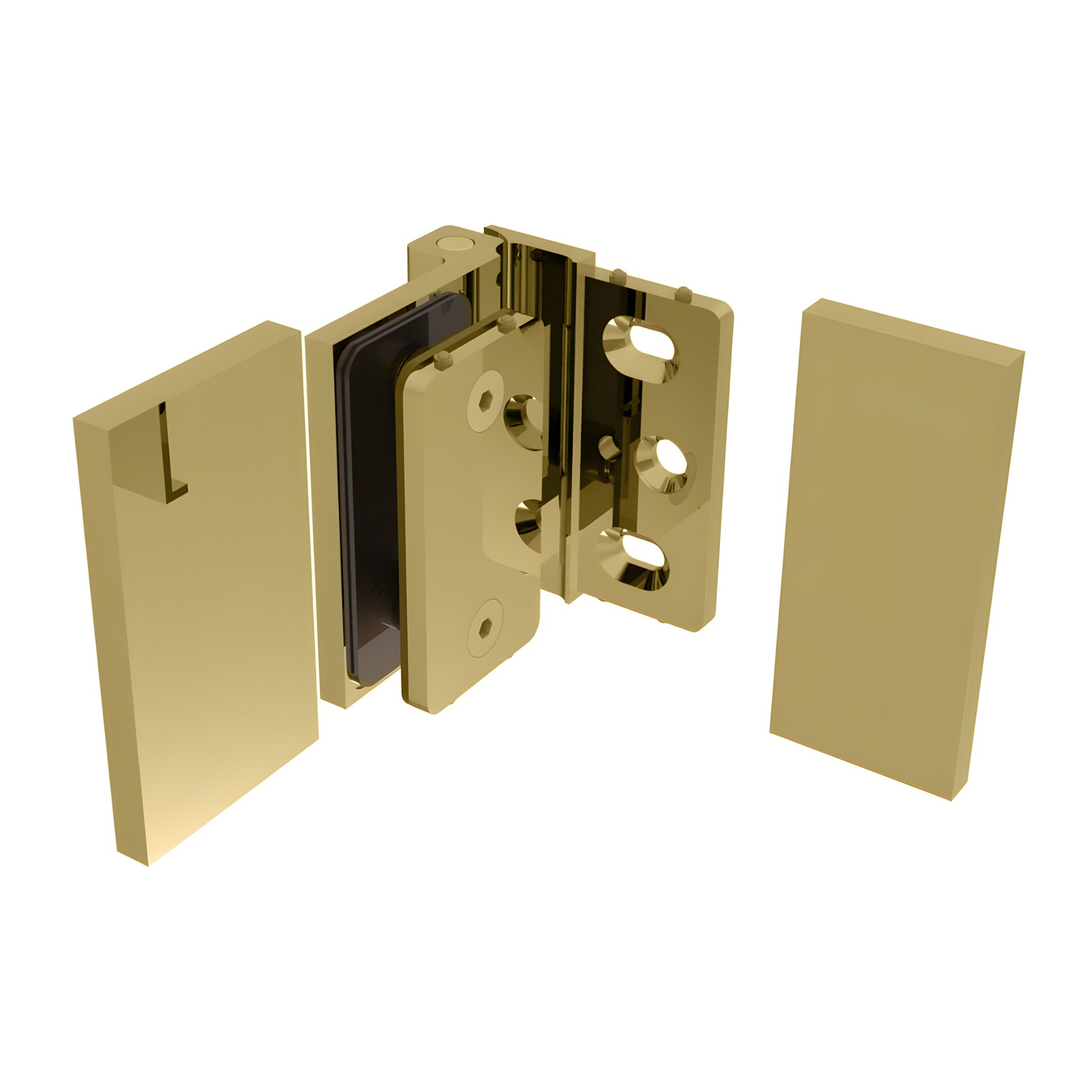

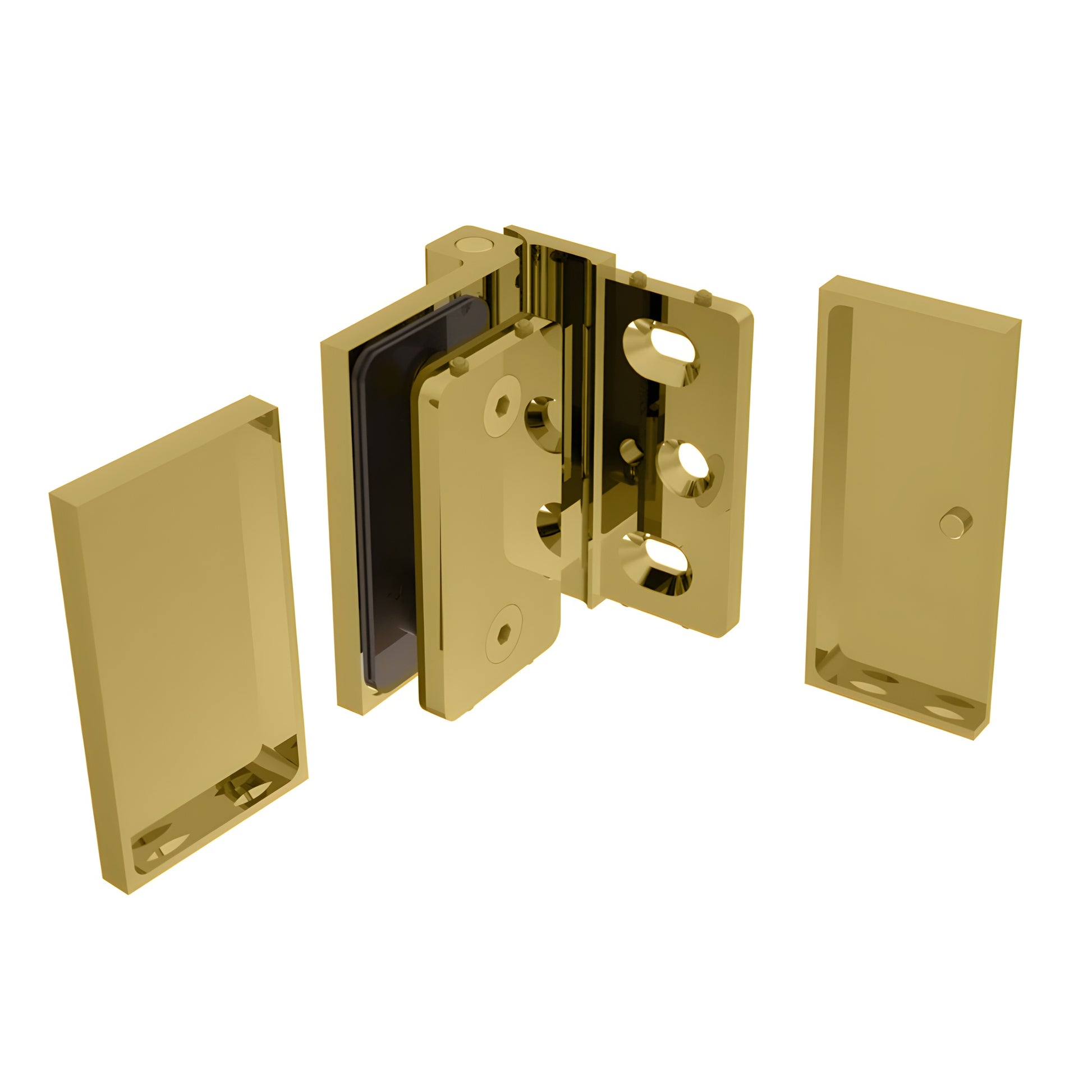

  • Snap-on covers conceal mounting screws for a clean look
  • Rigorously tested to 100,000 cycles — 5× industry standard durability

The CRL COMO Series hinge (SKU: C0M044SB) is a professional-grade glass shower door hinge designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Each hinge requires only two holes per panel — no glass cut-out is necessary.


Performance: Using two hinges, the door will support up to 110 lbs (50 kg) with a maximum door width of 39" (914 mm).


SPECIFICATIONS:

  • Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
  • Construction: Stainless steel or solid brass options
  • Hinge Swings: See product photos for swing descriptions
  • Closing Type: Free-swinging (180°)
  • Mounting: Two holes required per hinge per panel (no cut-out)
  • Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request — contact the CRL Technical Sales Shower Door Department for finish options and lead times.


Product Warning:

CRL shower door hinges are intended for residential or hotel shower use. For applications outside intended use, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template; cut-out dimensions for CRL hinges may differ from other brands.


Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.

Brass Finish Advisory:
Brass finishes are durable but prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance.

Choose the CRL COMO hinge for a durable, wheelchair-accessible glass shower door solution — contact us to order or request a finish sample.
