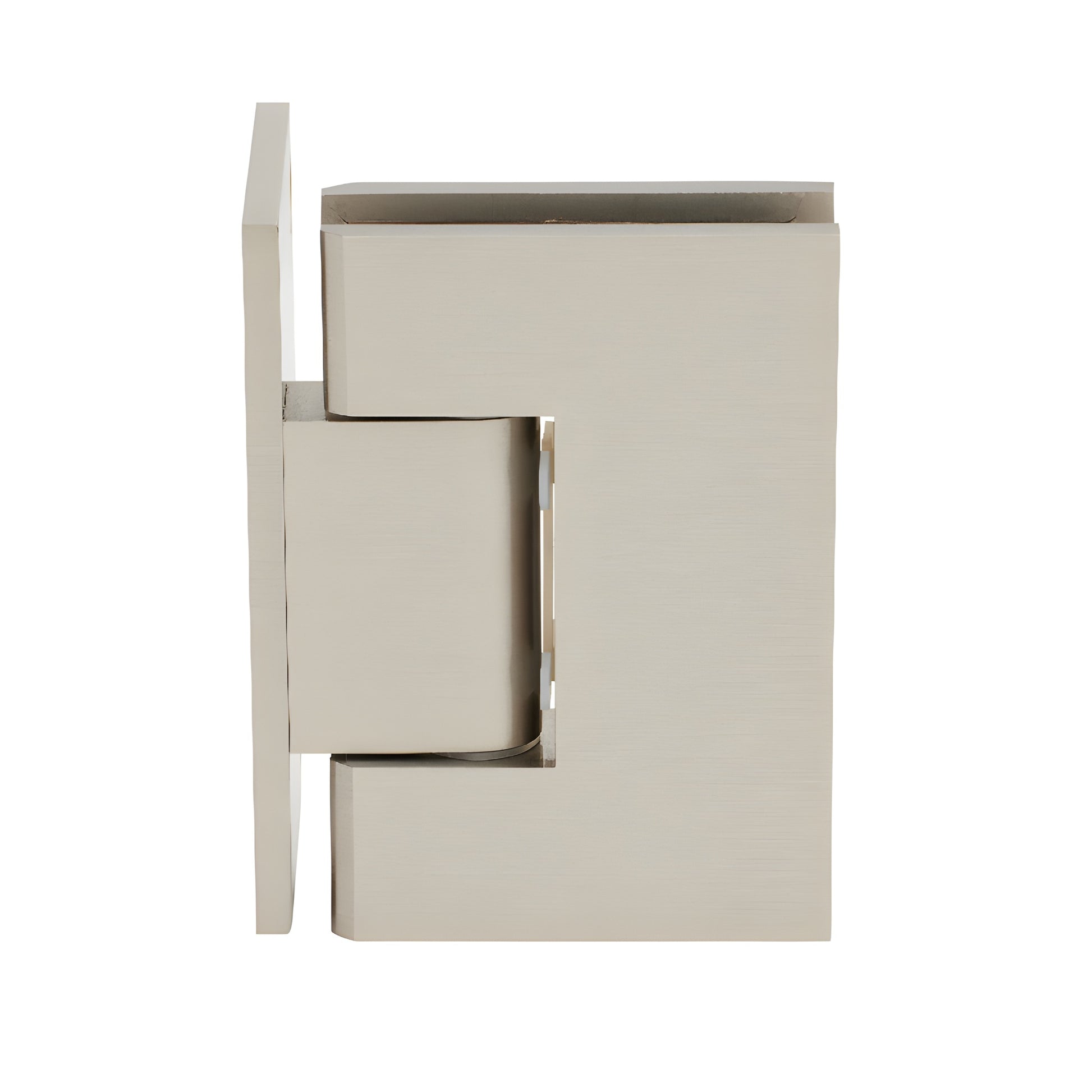

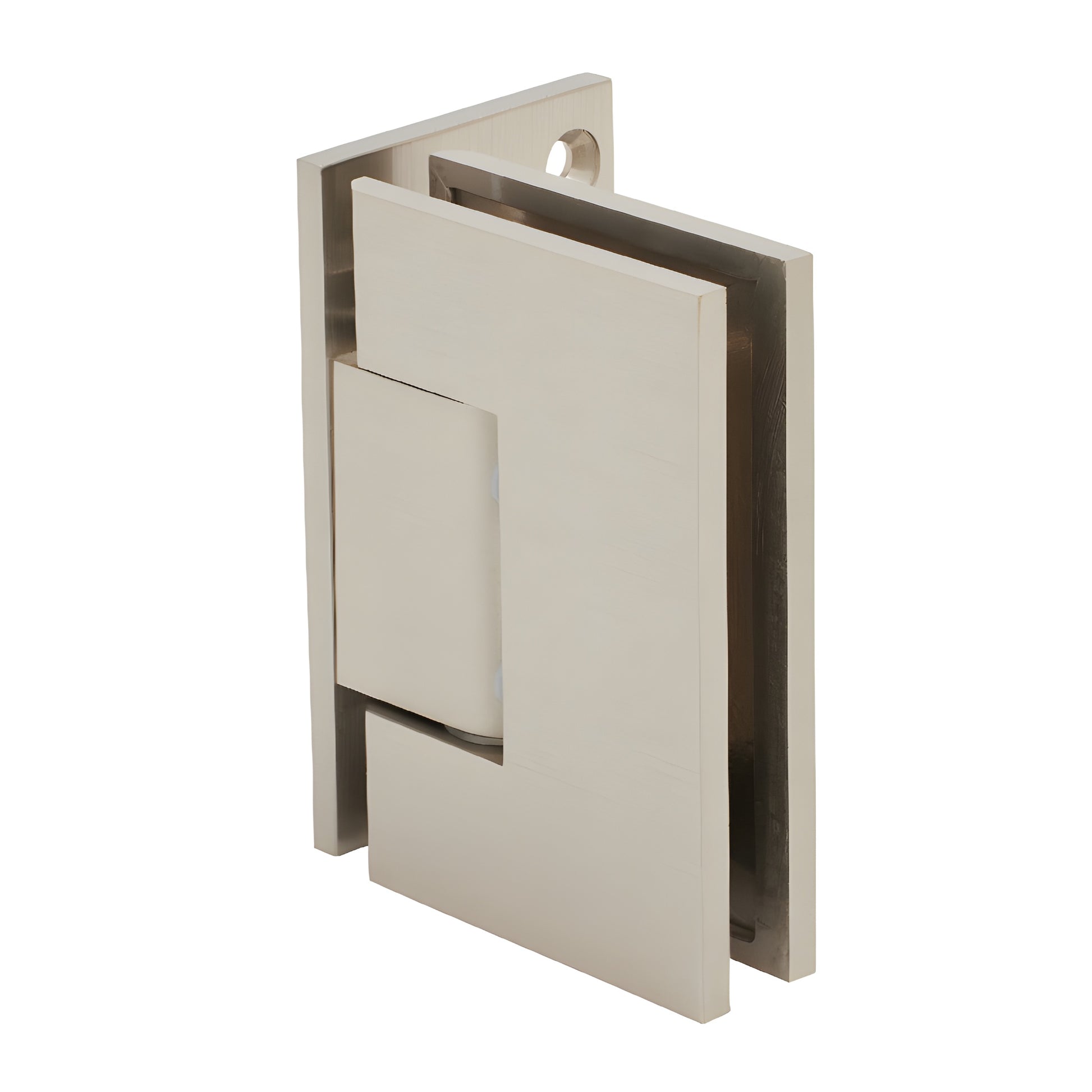

CRL Melbourne Brushed Nickel Offset Wall-Mount Door Hinge

• Large hinge plates provide increased clamping force for secure installation
• Simple rectangular cut-out simplifies tempered glass fabrication
• Compatible with 1/2", 3/8", and 5/16" (12, 10, 8 mm) tempered safety glass
• Stocked in three popular finishes; custom finishes available

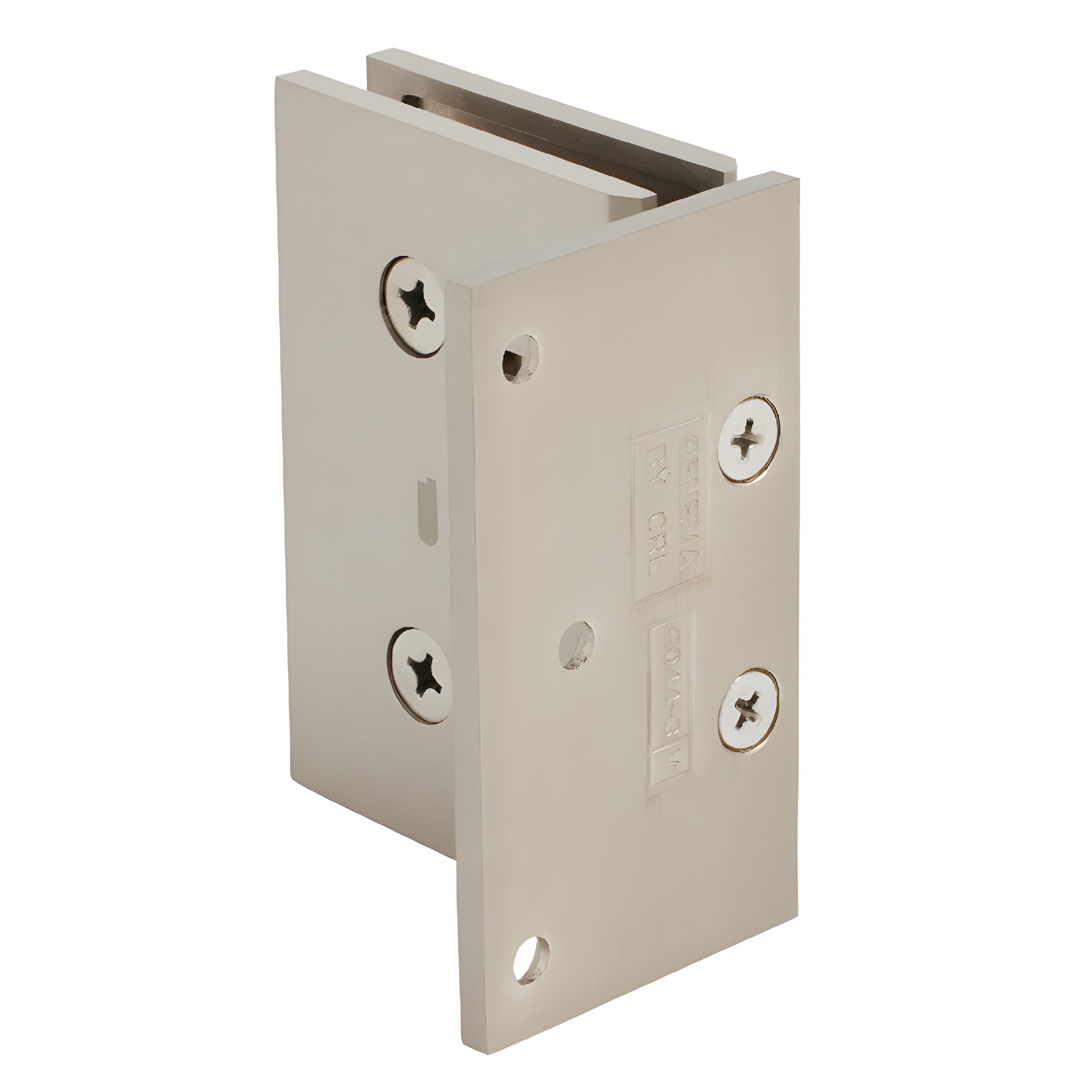

CRL Melbourne Series Hinges (SKU: MEL044BN) are forged from solid brass for durable, corrosion-resistant performance as a shower door hinge and architectural glass hardware solution. Designed for tempered glass shower doors, the large hinge plates increase clamping force while the simple rectangular cut-out makes glass fabrication easier. Available in wall-mount and 180° glass-to-glass models; replacement cover plates conceal hinge plate screws for a clean appearance.

Load Capacity
Using two hinges: Supports up to 100 lbs (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges: Supports up to 120 lbs (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, 8 mm) tempered safety glass
Construction: Forged solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions/template

For technical guidance or custom finish inquiries, contact CRL Shower Door Technical Sales Department.

Product Warning:
CRL Shower Door Hinges are intended for residential and hotel shower use. Use for other purposes requires approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
