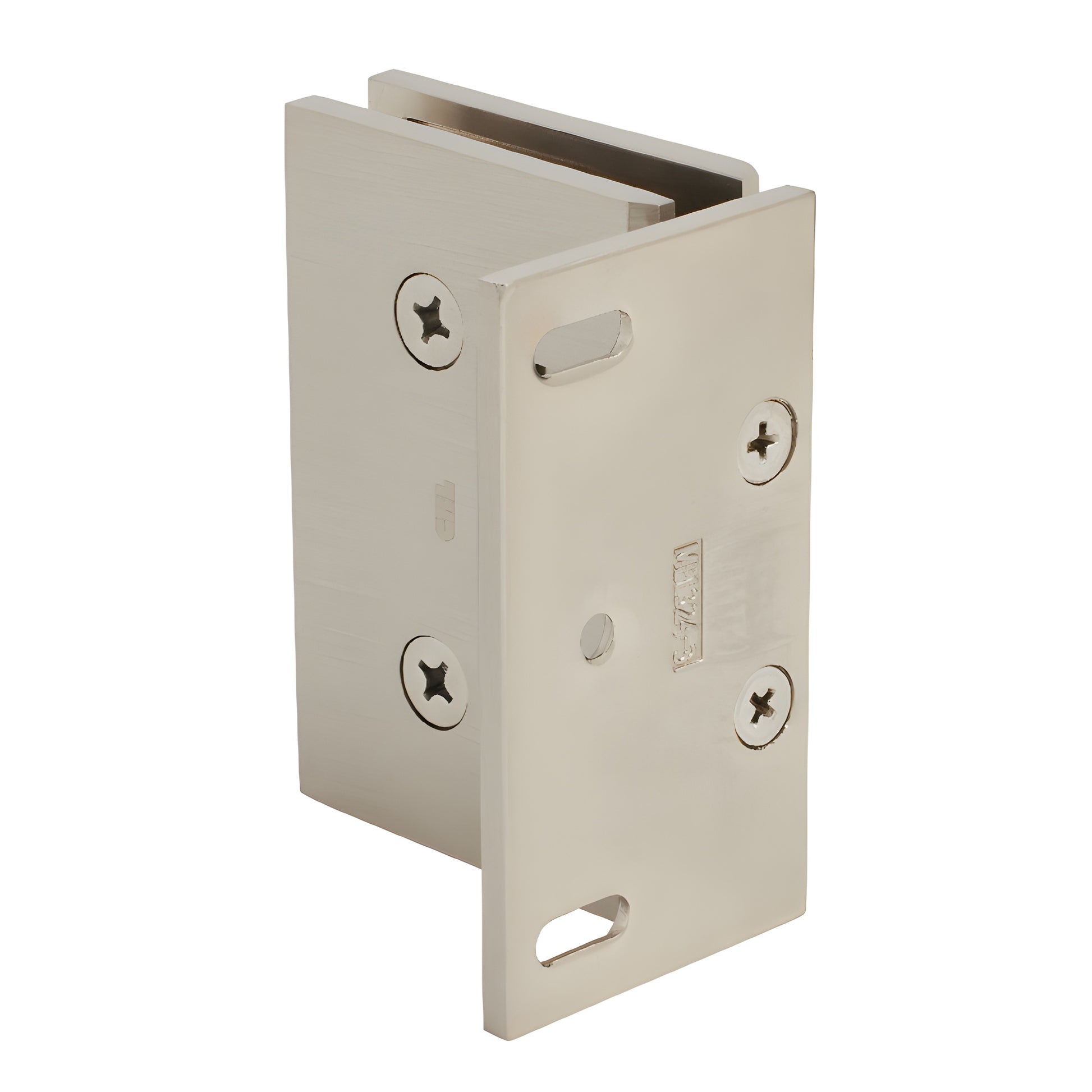

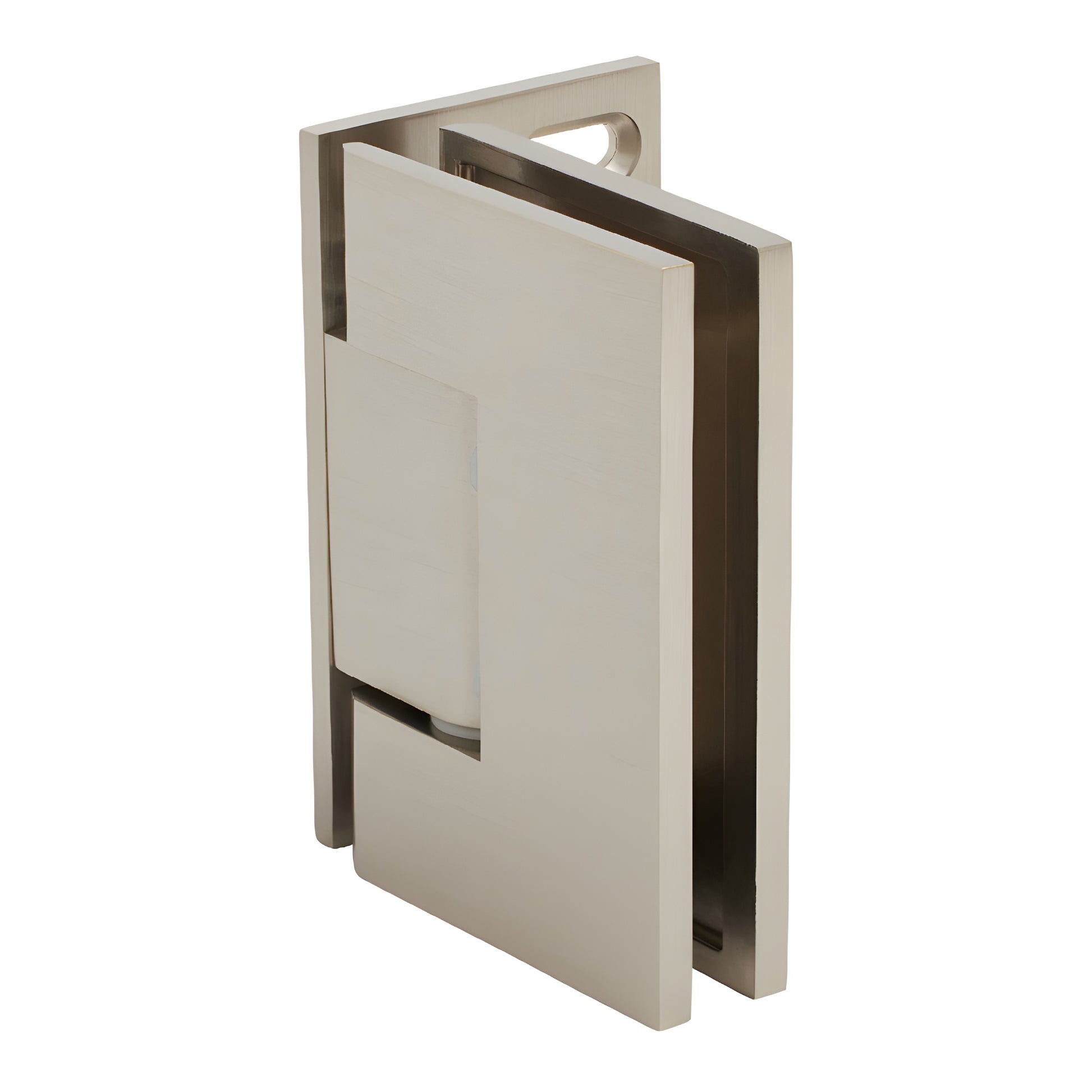

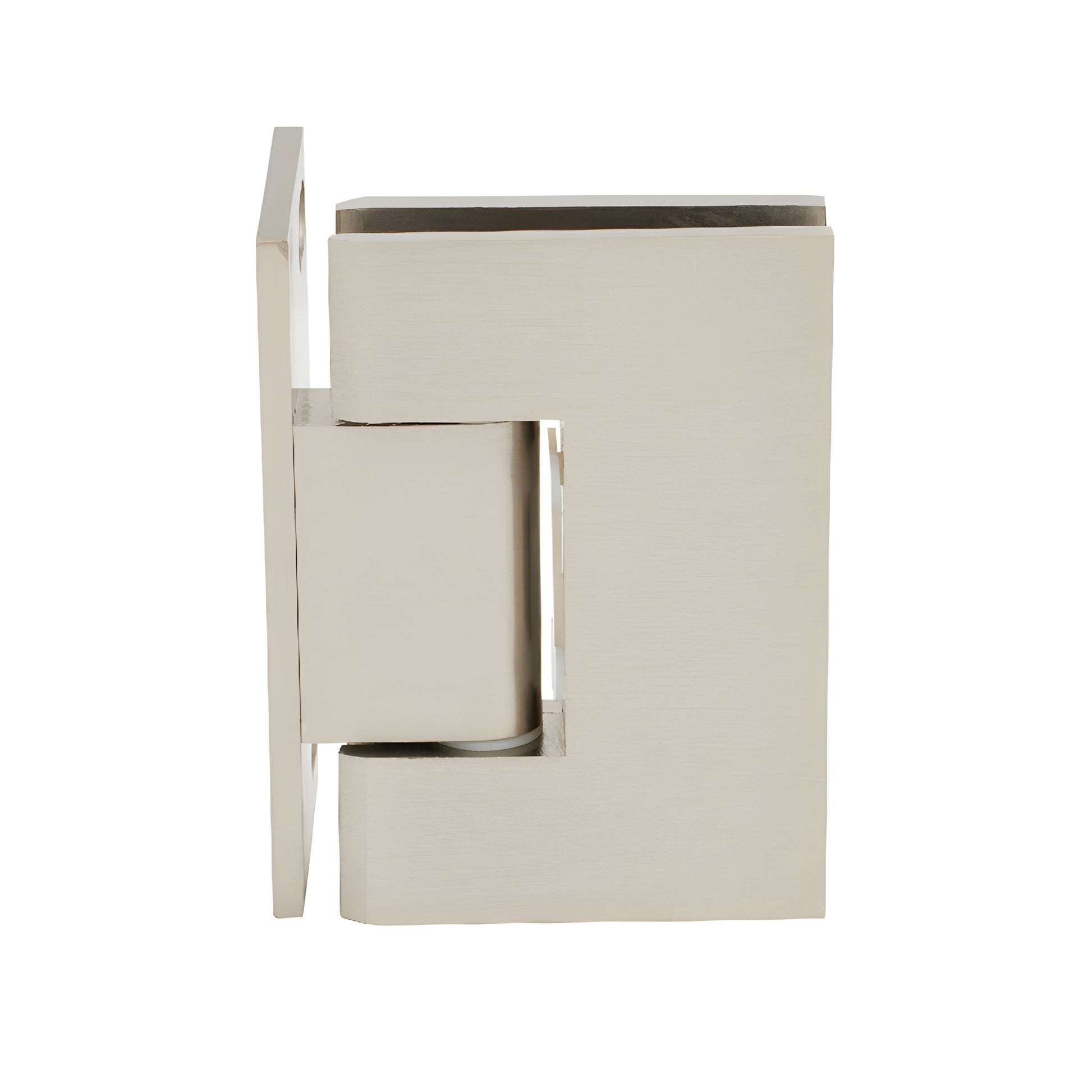

CRL Melbourne Brushed Nickel Offset Wall-Mount Hinge with Cover Plate

• Large hinge plates provide increased clamping force for secure glass mounting
• Simple rectangular cut-out simplifies glass fabrication and installation
• Fits 1/2", 3/8", and 5/16" (12, 10, 8 mm) tempered safety glass
• Stocked in three popular finishes; custom finishes available

CRL Melbourne Series Hinges (SKU: MEL024BN) — forged solid brass shower door hinges engineered for tempered glass shower doors and enclosure projects. The Melbourne Series features oversized hinge plates for superior clamping force, a simple rectangular cut-out to streamline glass fabrication, and optional replacement cover plates to conceal hinge screws. Available in wall-mount and 180° glass-to-glass models.

Load Ratings
Using two hinges with 1/2", 3/8", or 5/16" (12, 10, 8 mm) tempered glass: holds up to 100 lbs. (45 kg); maximum door width 30" (762 mm).
Using three hinges with 1/2", 3/8", or 5/16" (12, 10, 8 mm) tempered glass: holds up to 120 lbs. (54 kg); maximum door width 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, 8 mm) tempered safety glass
Construction: Forged solid brass for corrosion resistance and long life
Hinge Swings: 90° in and 90° out (factory-set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Simple rectangular cut-out — use only the included template
Includes: Gaskets, screws, and glass fabrication dimensions

For technical assistance or to confirm cut-out dimensions, contact the CRL Shower Door Technical Sales Department.

Product Warning:
Designed for residential and hotel shower use. For alternate applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may not match other brands.


Buy the Melbourne Series MEL024BN solid brass tempered glass shower hinge — contact us to order or request a CAD/template.
