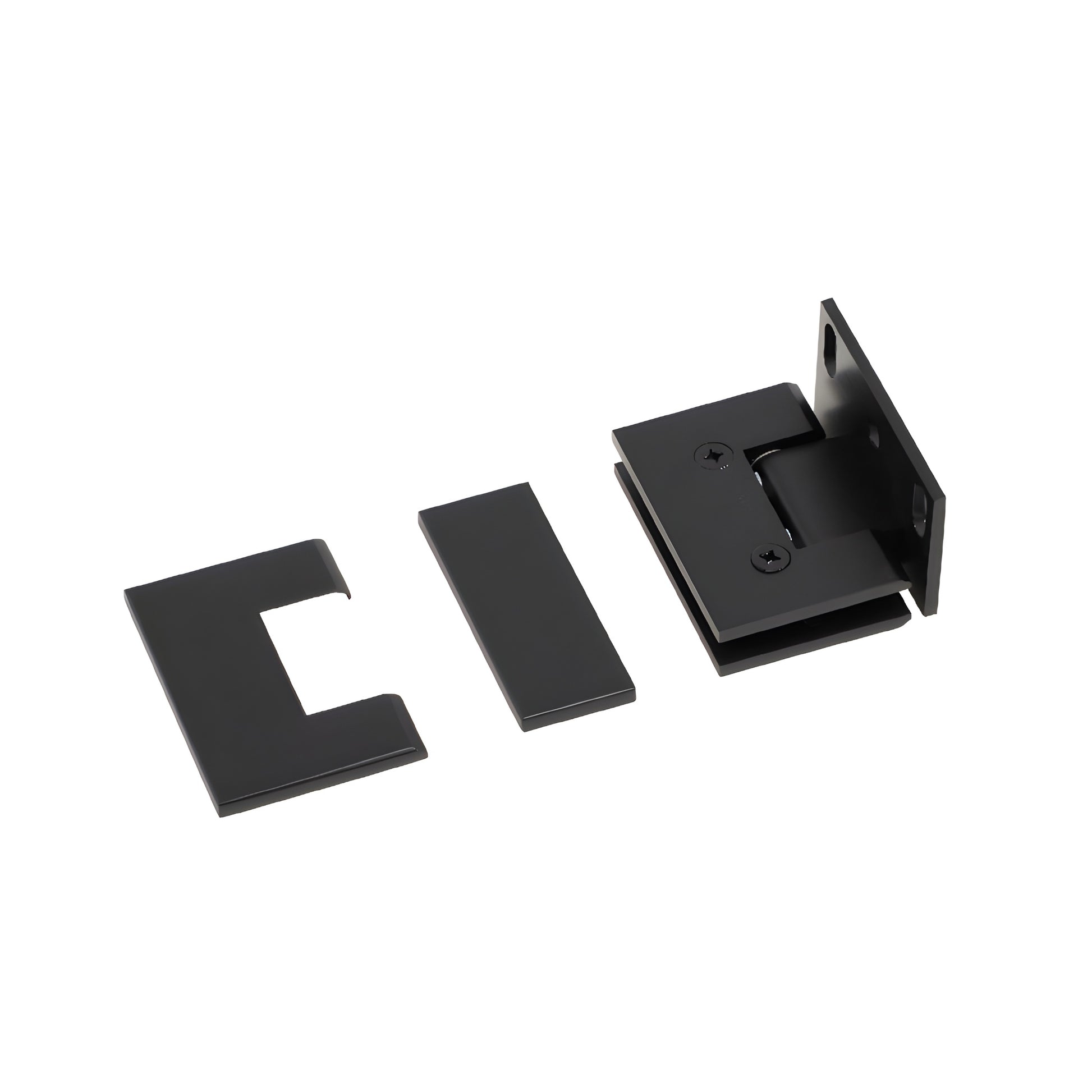

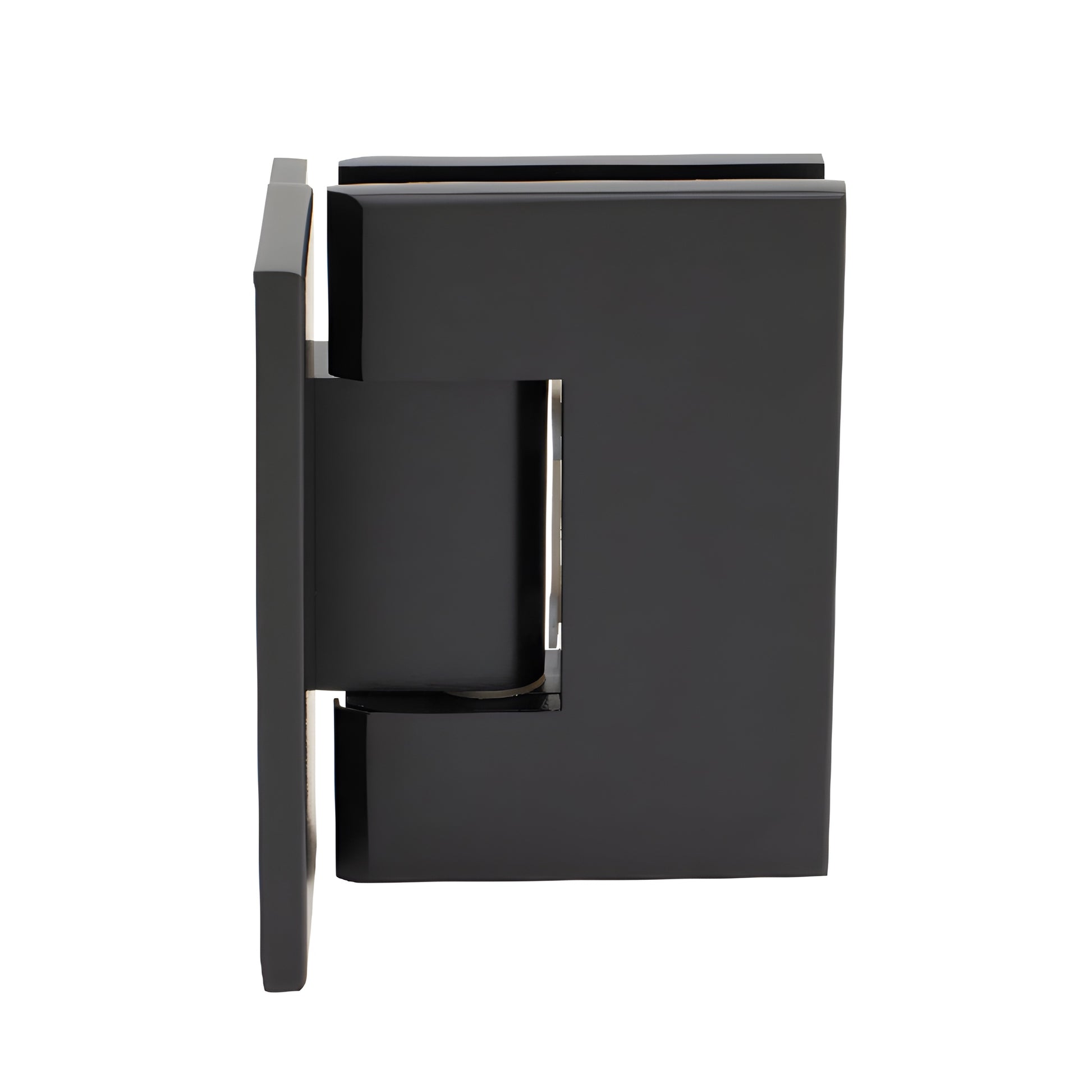

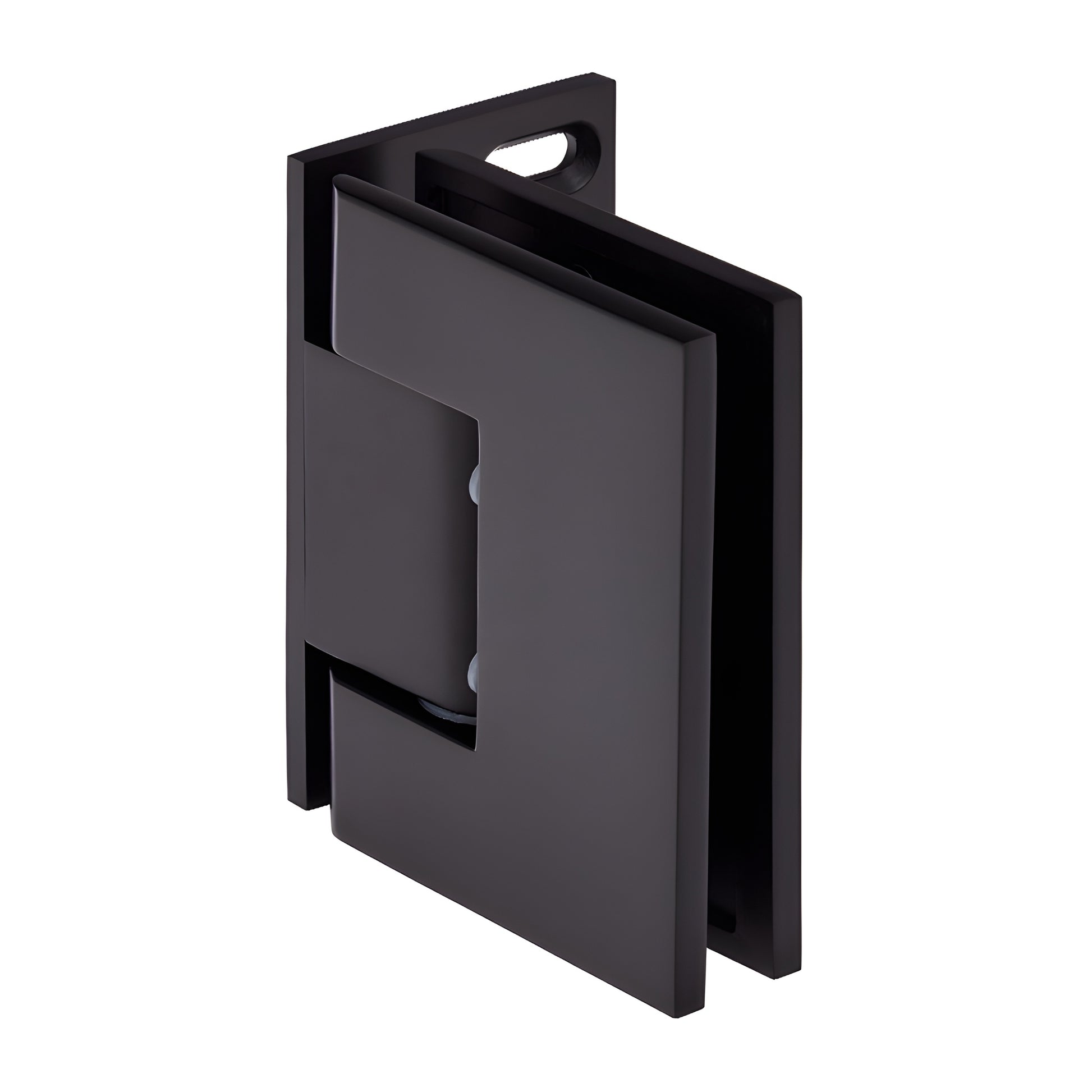

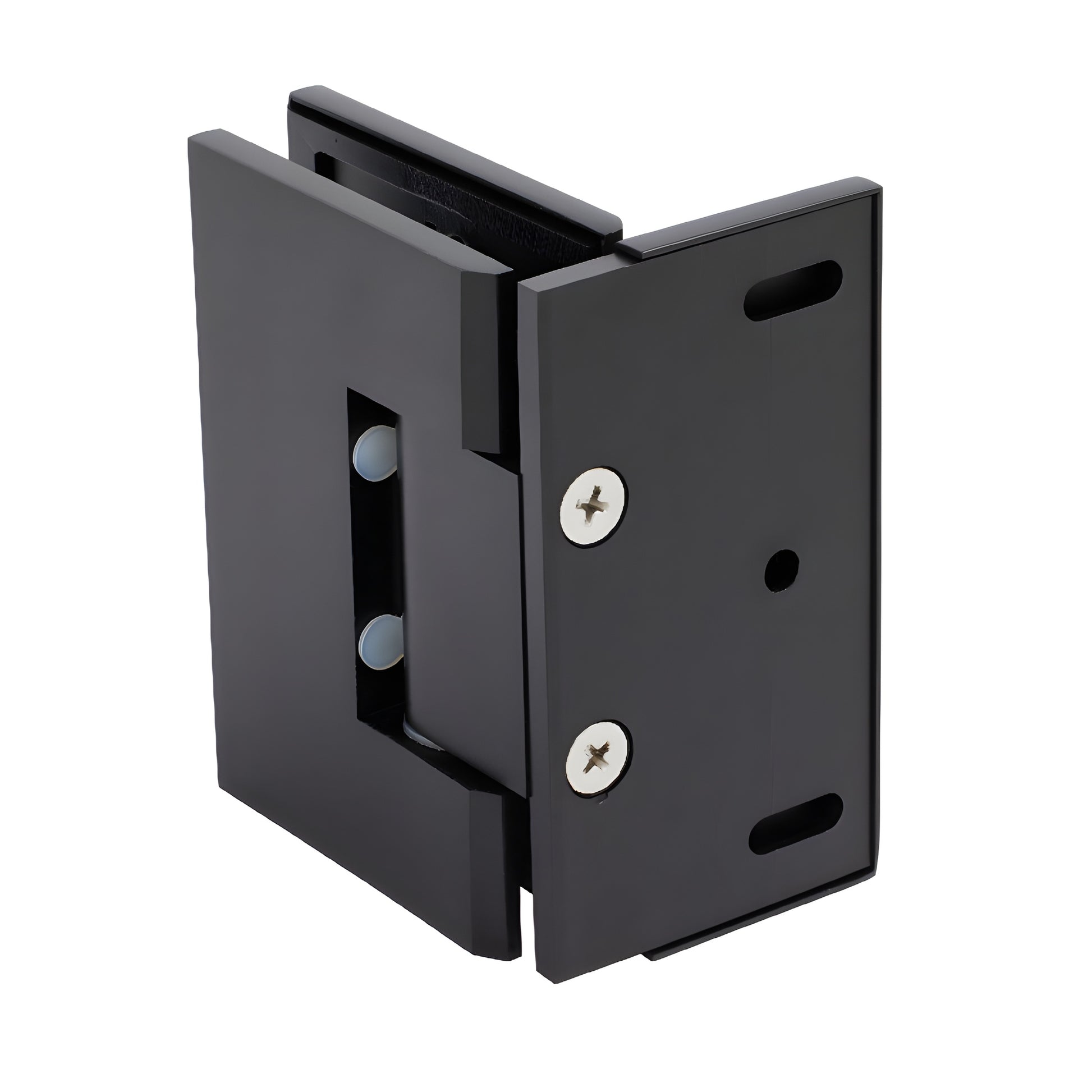

CRL Melbourne Oil-Rubbed Bronze Offset Wall Hinge Back Plate w/ Cover

• Large hinge plates provide increased clamping force
• Simple rectangular cut-out simplifies glass fabrication
• Compatible with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered glass
• Stocked in three popular finishes; custom finishes available

CRL Melbourne Series Hinges (SKU: MEL0240RB) feature large hinge plates for stronger clamping on frameless glass shower doors and other tempered glass applications. The required simple rectangular cut-out makes glass fabrication fast and repeatable. Constructed of forged solid brass, the Melbourne Series includes multiple wall-mount versions, a 180° glass-to-glass model, and replacement cover plates to conceal hinge screws. Ideal for frameless glass shower door hardware and solid brass bathroom fittings.

Load Capacity & Door Size
Using two hinges with 1/2", 3/8", or 5/16" glass (12, 10, and 8 mm), each door can hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 1/2", 3/8", or 5/16" glass (12, 10, and 8 mm), each door can hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass
Construction: Solid brass (forged)
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: gaskets, screws, and glass fabrication dimensions

For technical assistance or custom finish options, contact the CRL Shower Door Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
