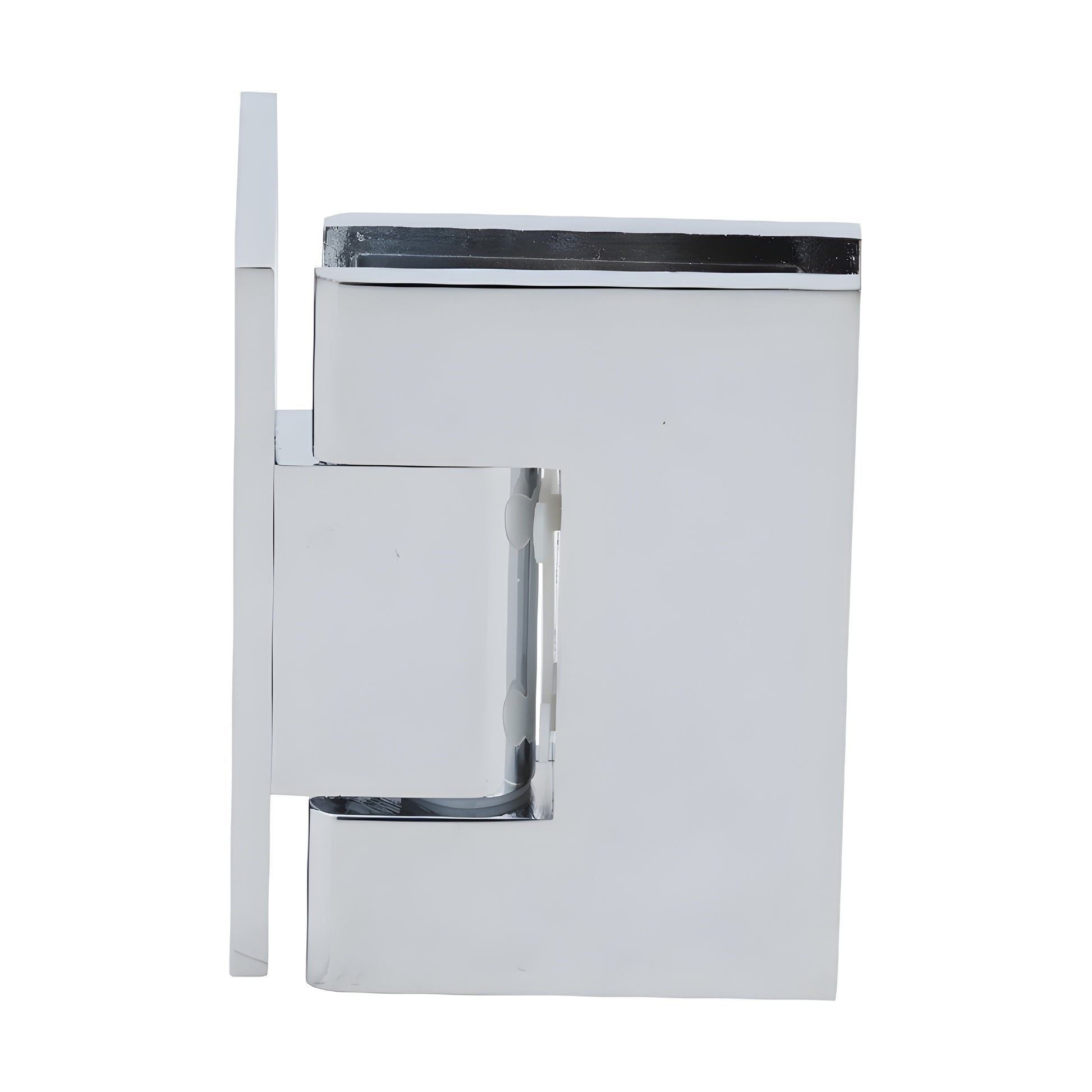

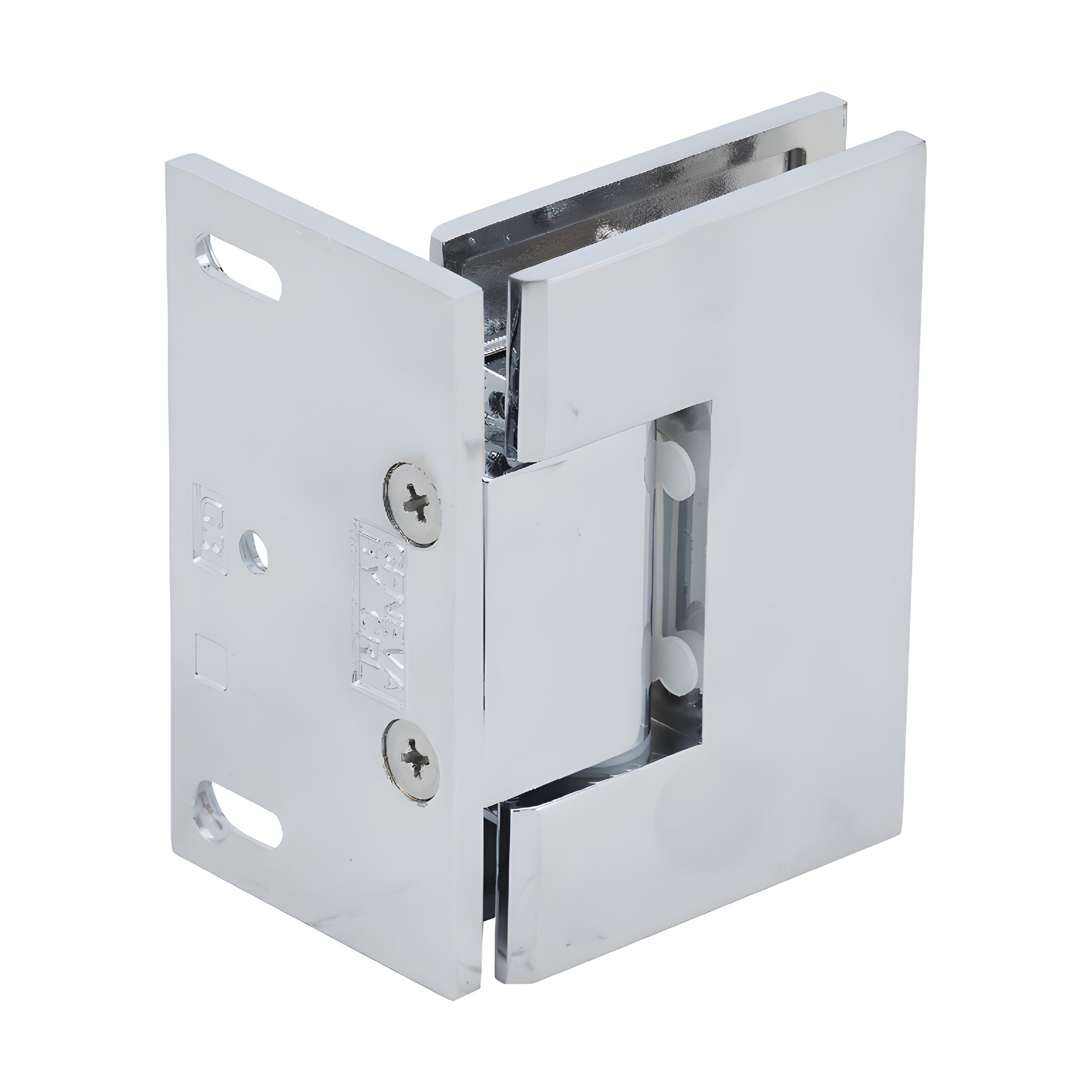

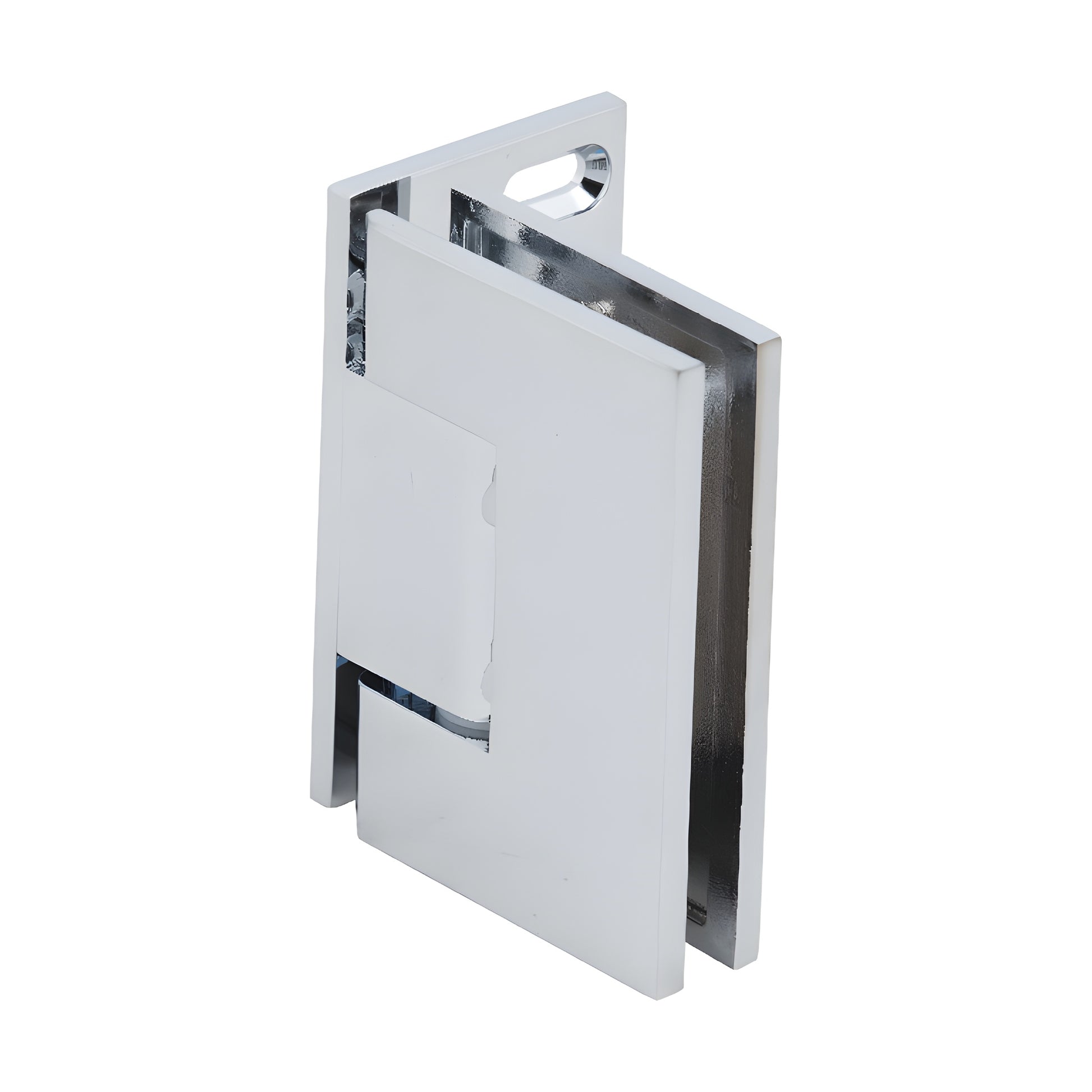

CRL Melbourne Polished Chrome Offset Wall Hinge for Glass Shower Door

• Large hinge plates provide increased clamping force for secure glass doors
• Simple rectangular cut-out simplifies glass fabrication and installation
• Compatible with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass
• Stocked in three popular finishes; custom finishes available

CRL Melbourne Series Hinges (SKU: MEL024CH) feature oversized hinge plates for greater clamping force and a simple rectangular cut-out to speed glass fabrication. Forged from solid brass, the Melbourne Series includes multiple wall-mount versions, a 180° glass-to-glass model, and replacement cover plates to conceal hinge-plate screws. Ideal as solid brass shower door hinges and glass door hinges for tempered bathroom doors.

Load Capacity
Using two hinges with 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 100 lbs. (45 kg); maximum door width 30" (762 mm).

Using three hinges with 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 120 lbs. (54 kg); maximum door width 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass (forged)
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Simple rectangular cut-out for glass fabrication (use included template)
Includes: Gaskets, screws, and glass fabrication dimensions

For installation questions or custom finishes, contact CRL Shower Door Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For any use outside intended applications, obtain approval from CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.



Contact CRL for pricing, availability, or technical support.
