- Large Hinge Plates Provide More Clamping Force
- Simple Rectangular Cut-Out for Ease of Glass Fabrication
- For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
- Stocked in Three Popular Finishes, with Custom Finishes Available
- Apply medium-strength threadlocker on cover plate screws

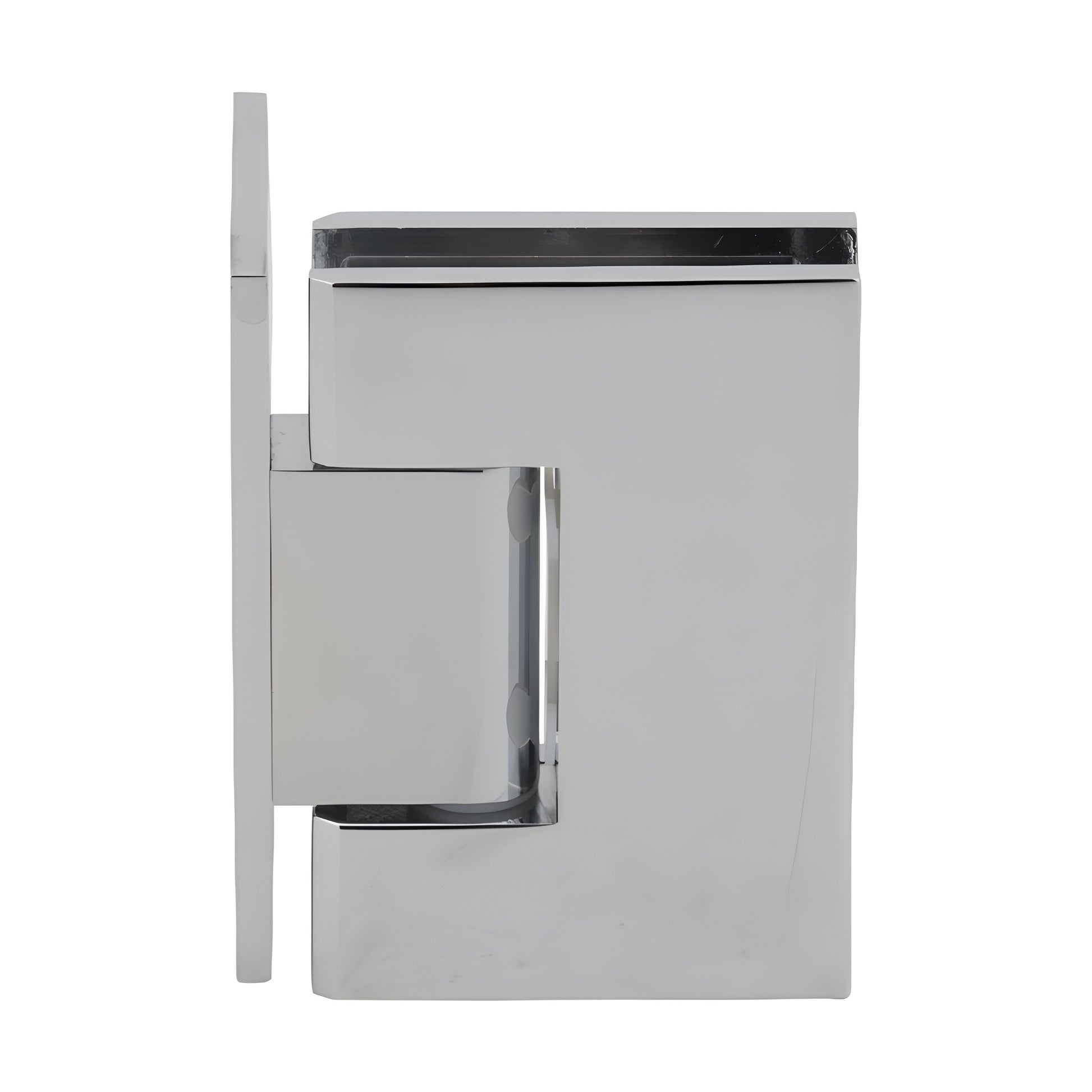

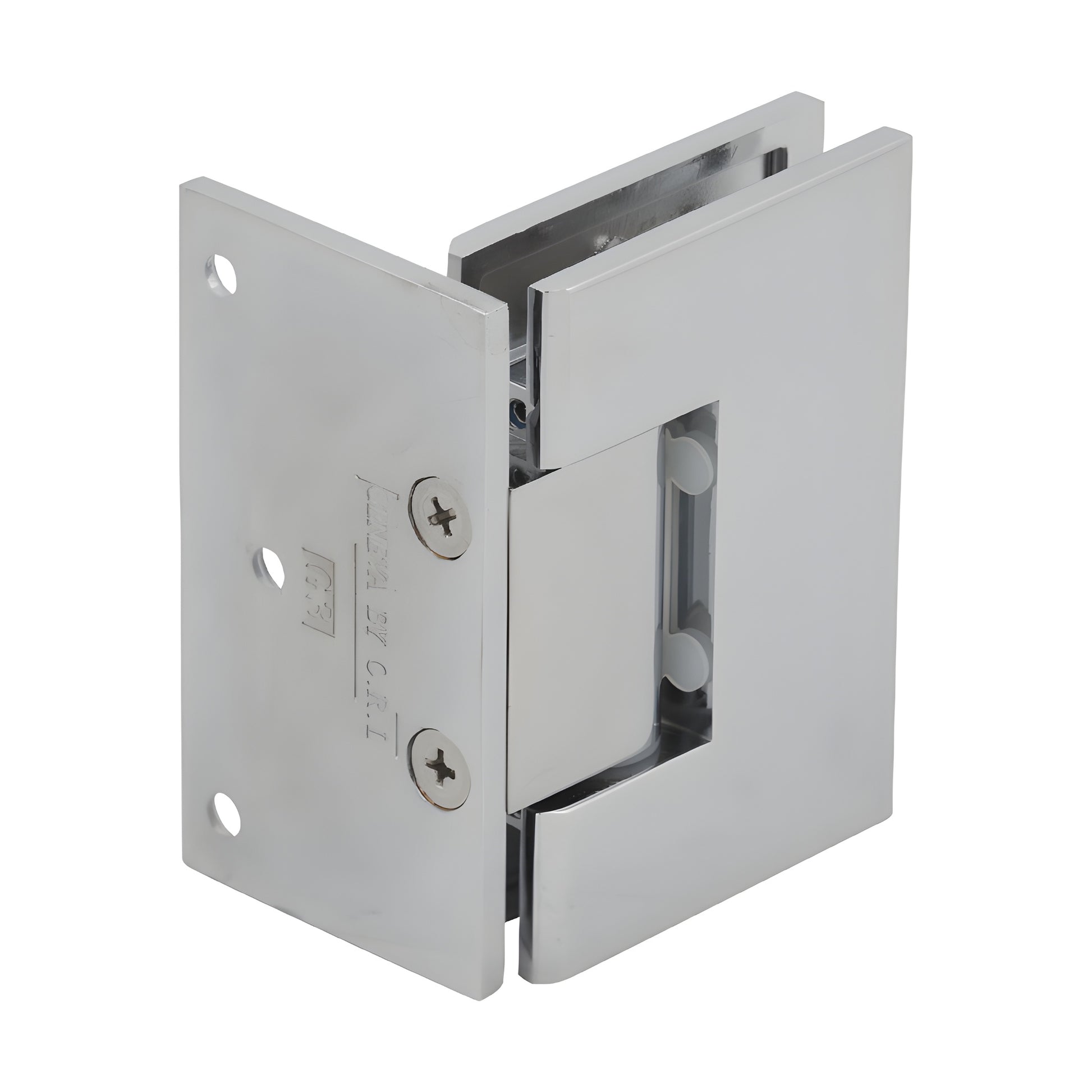

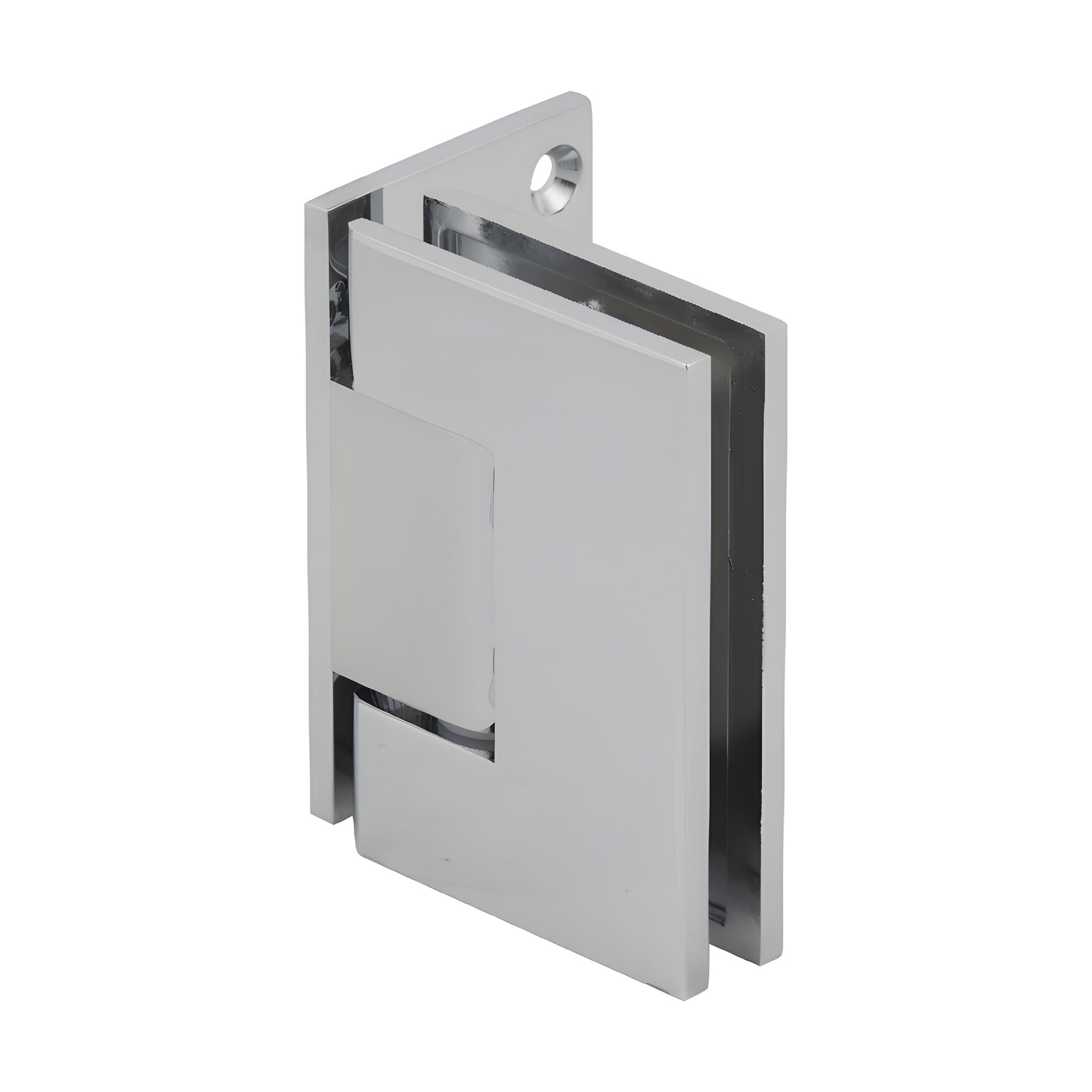

CRL Melbourne Series Hinges
feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.
Using two hinges
with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges
with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

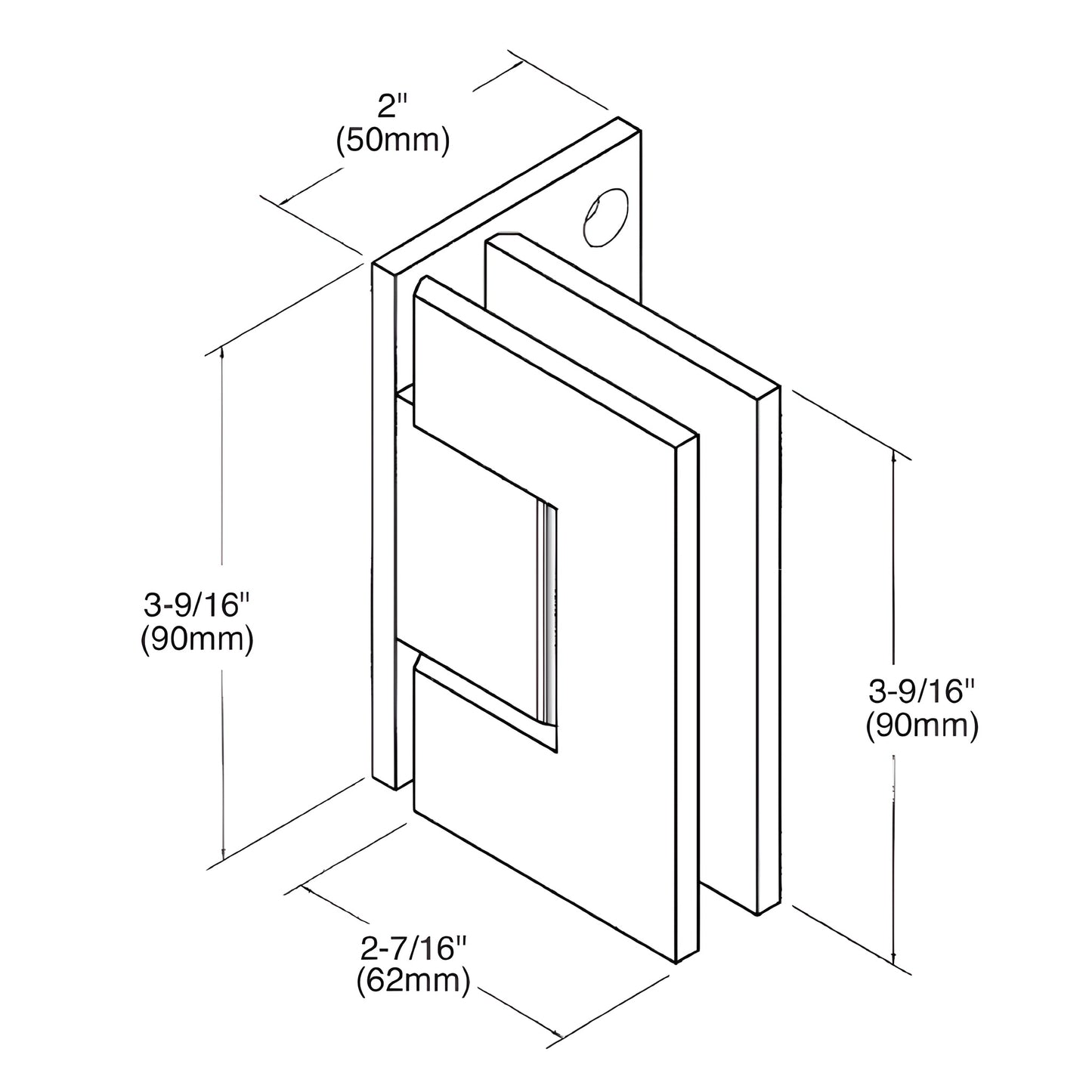

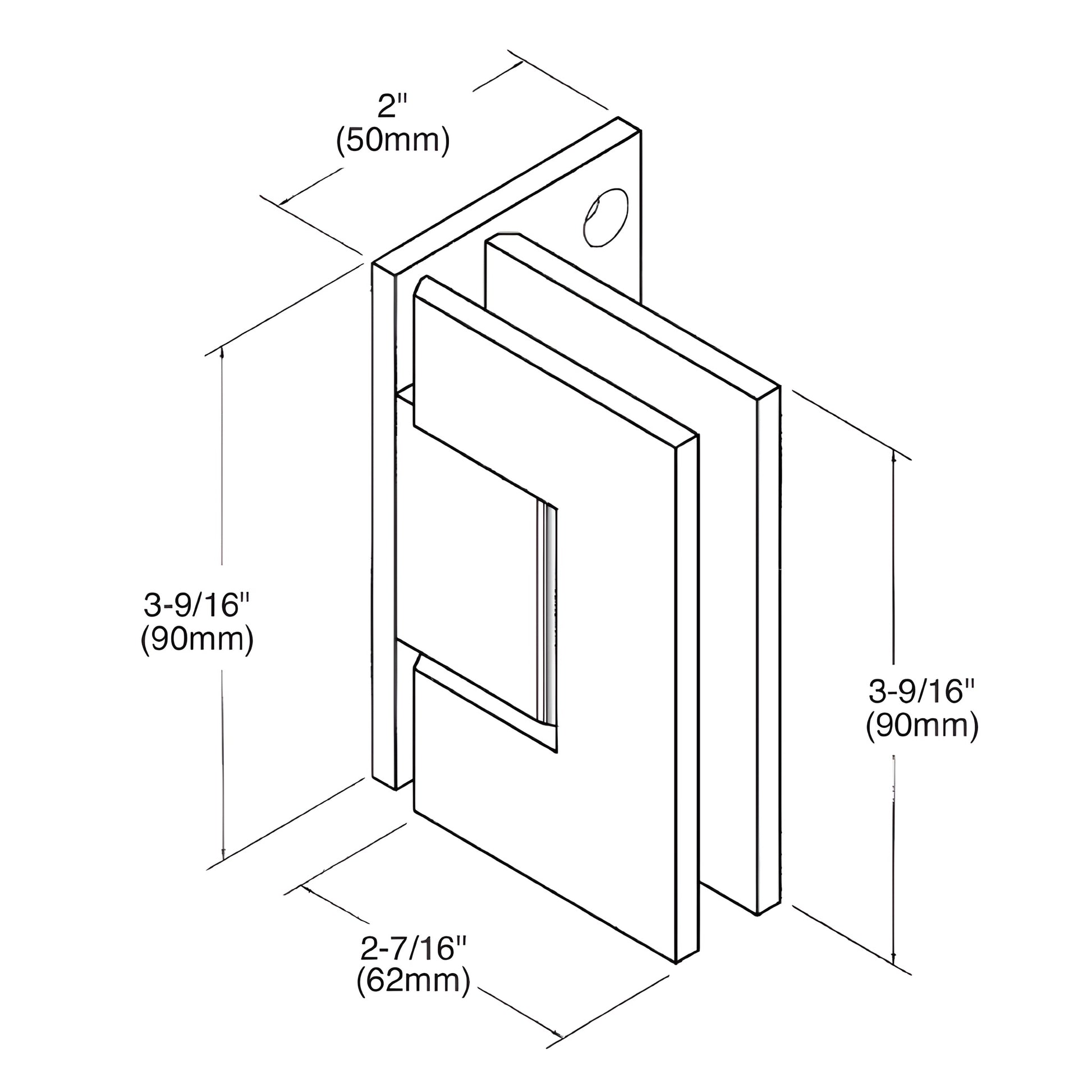

SPECIFICATIONS
Glass Thickness
1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction
Solid Brass
Hinge Swings
90 degrees in and 90 degrees out (at factory set position).
Closing Type
Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes
Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Product Warning
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
