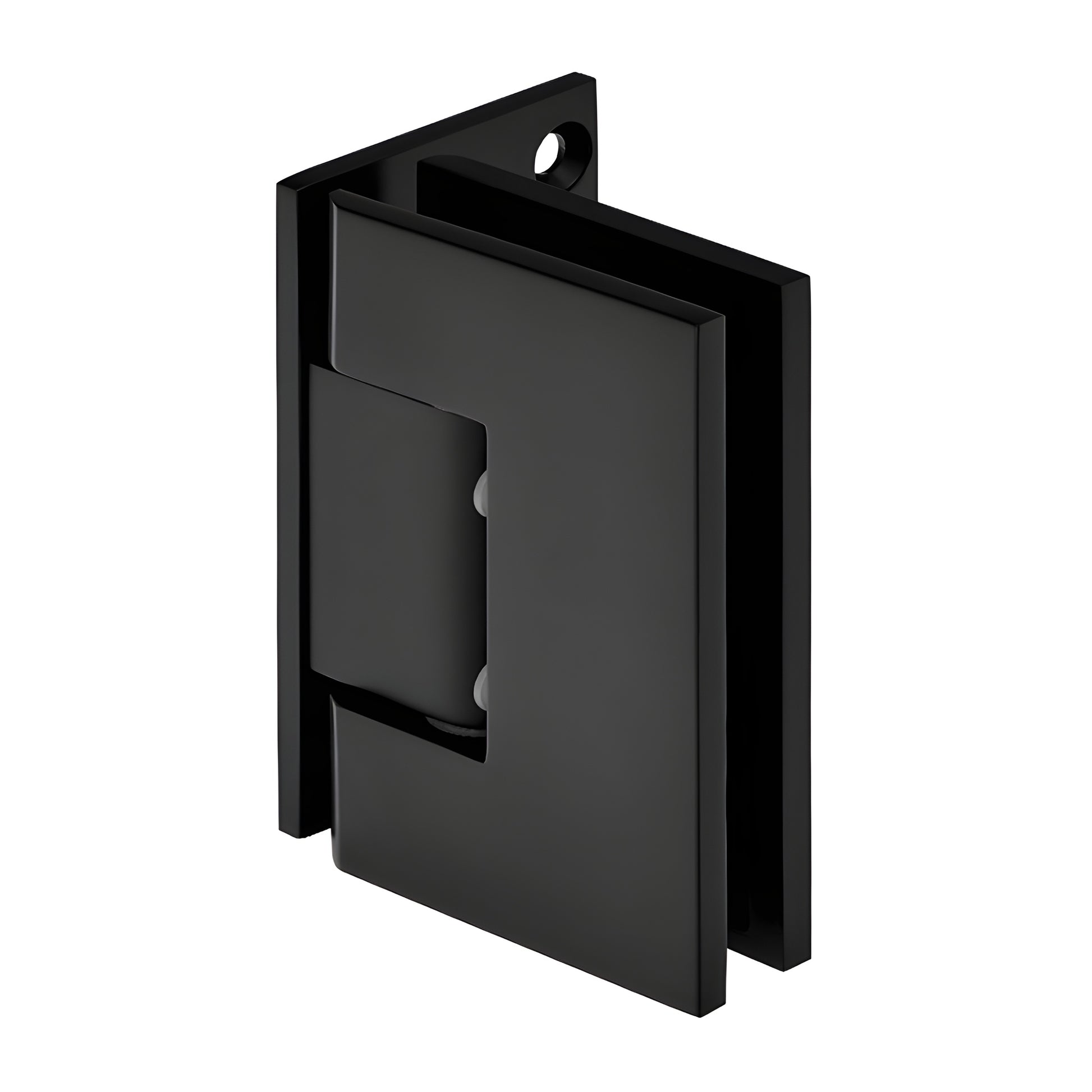

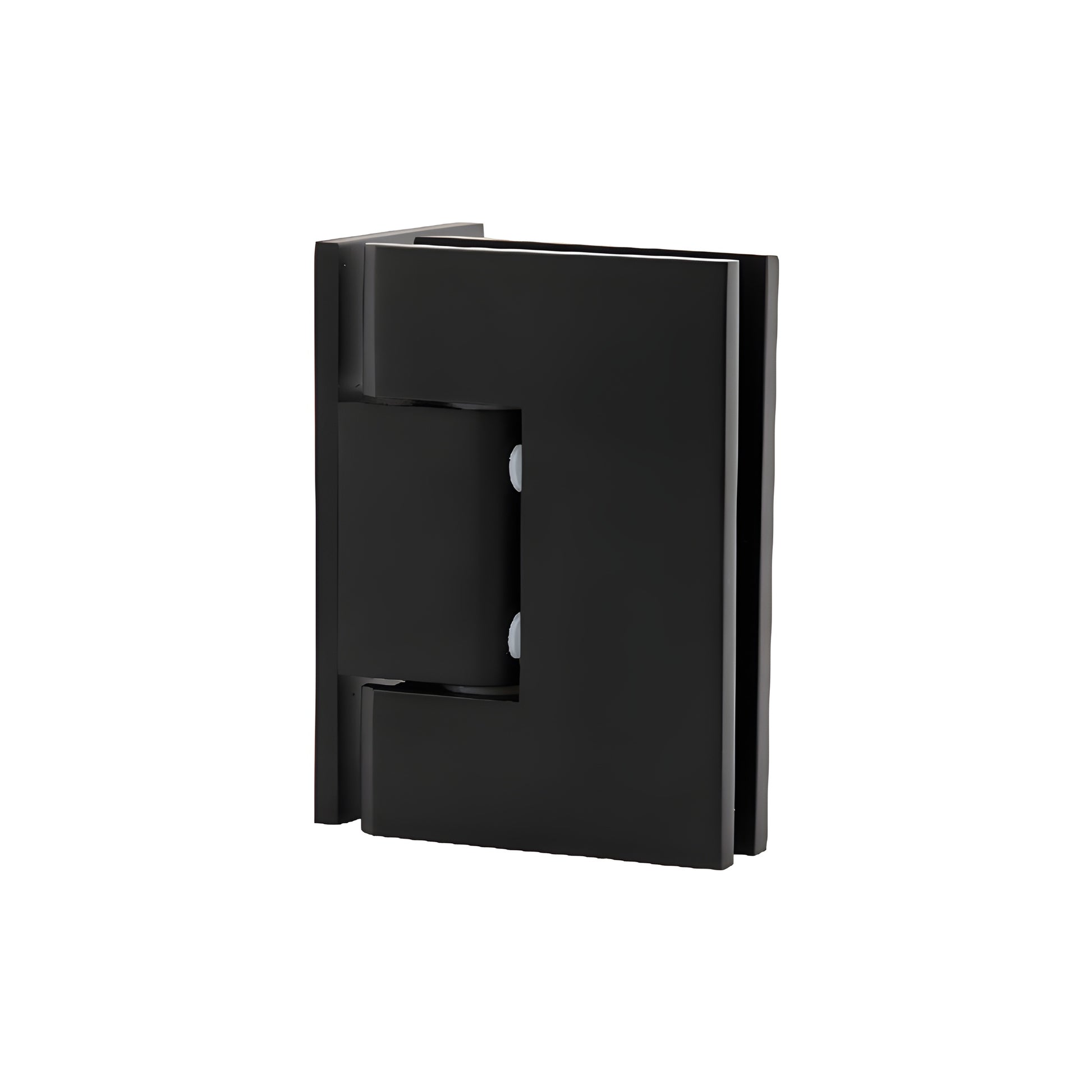

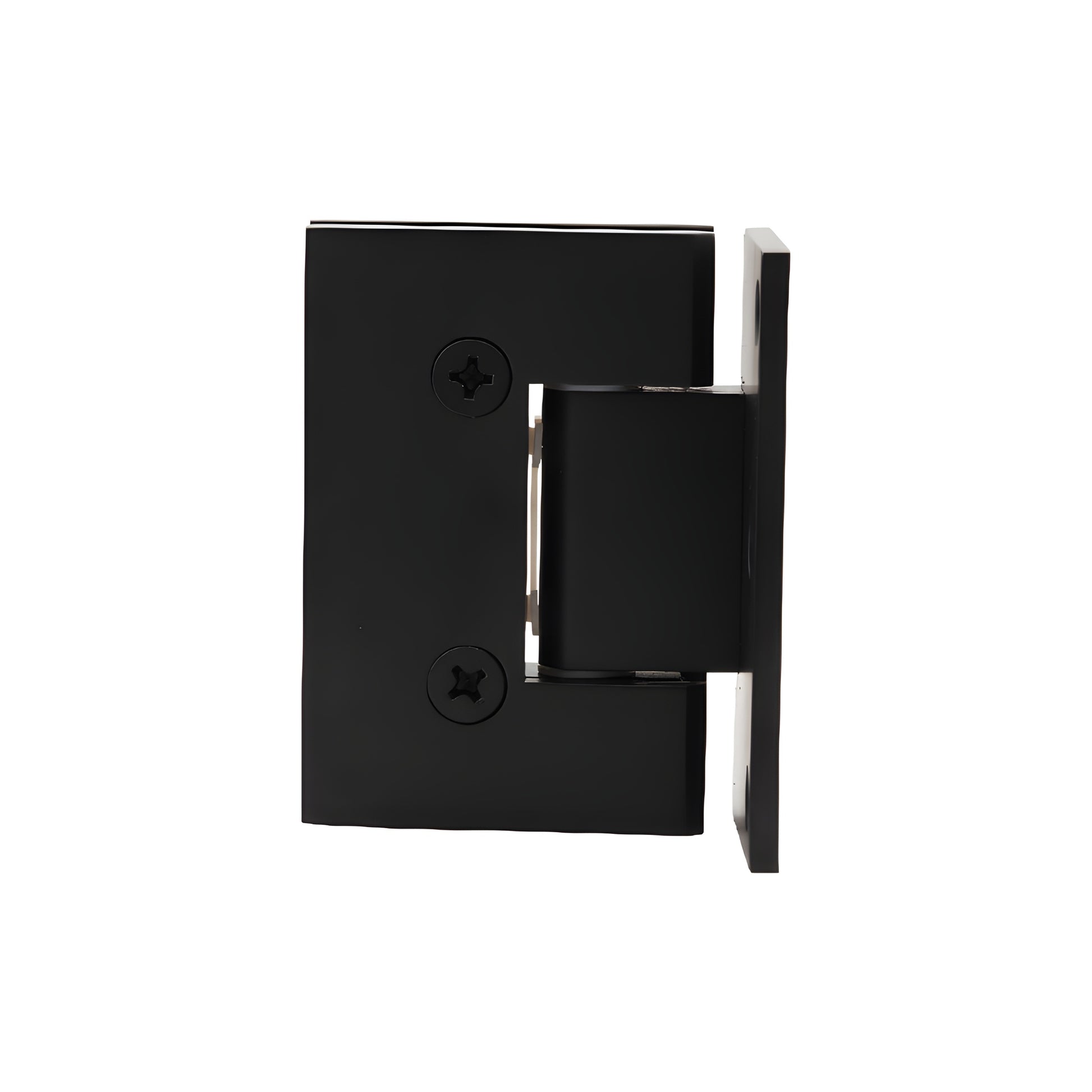

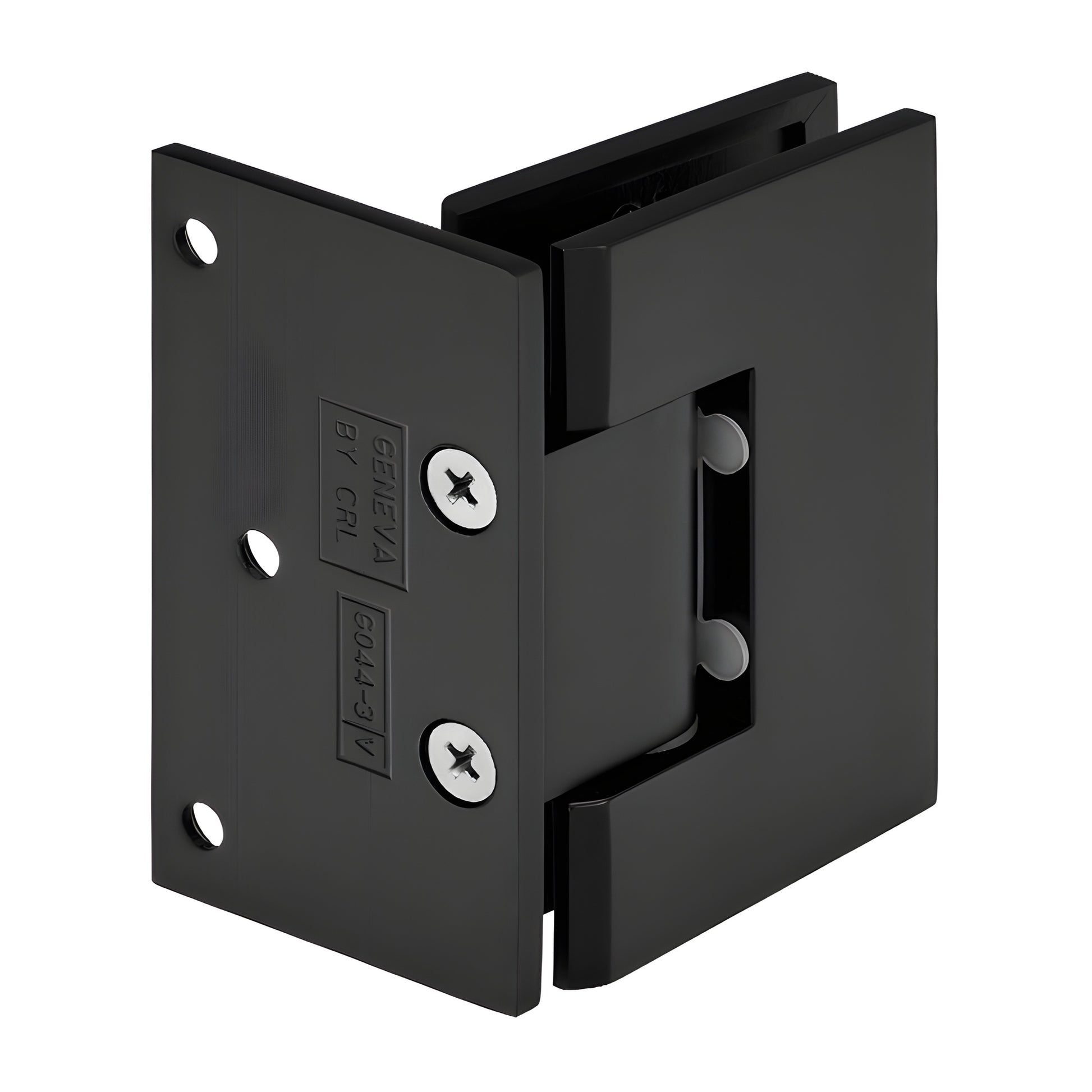

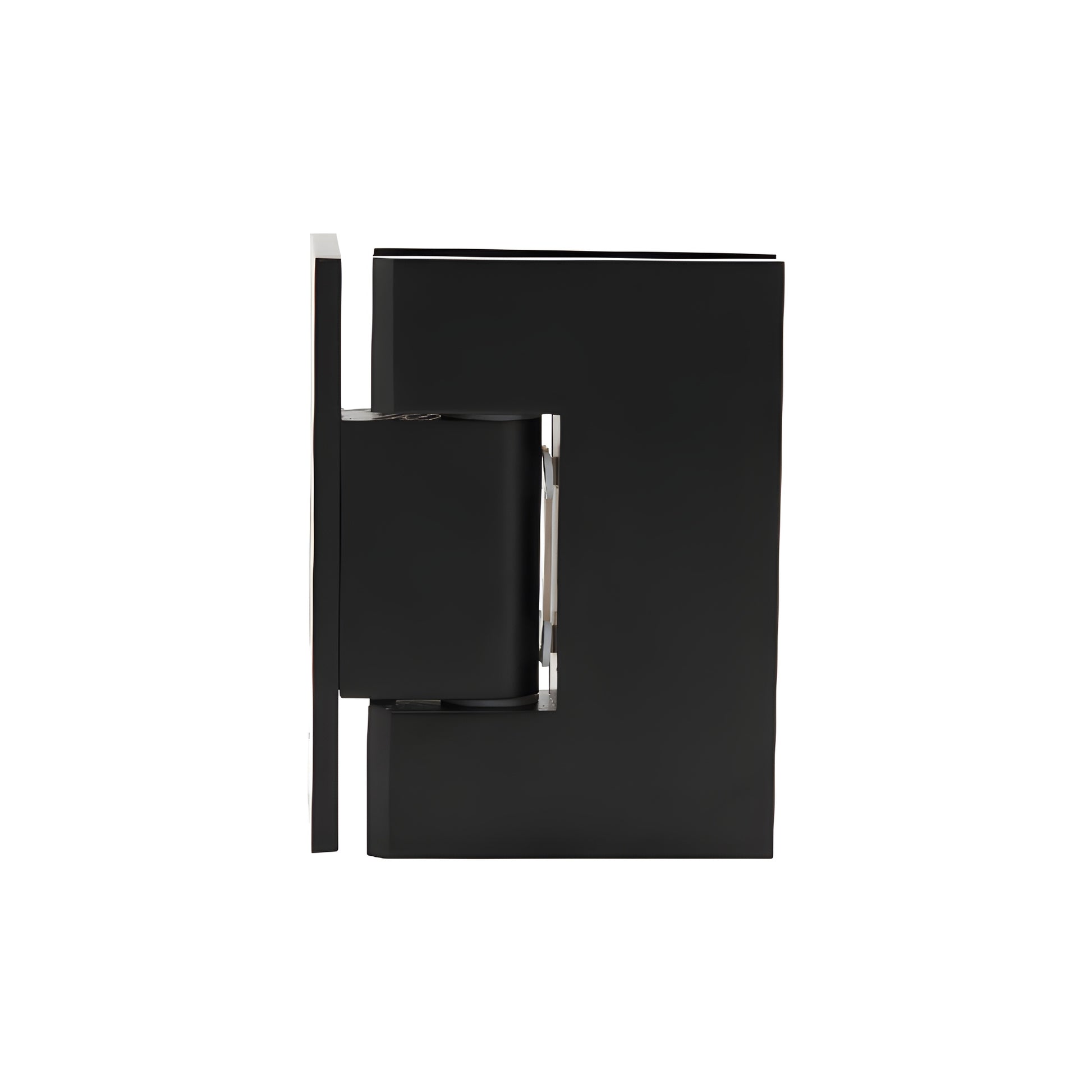

CRL Melbourne Matte Black Offset Wall-Mount Shower Glass Door Hinge

• Large hinge plates provide increased clamping force
• Simple rectangular cut-out for ease of tempered glass fabrication
• Fits 1/2", 3/8", and 5/16" (12, 10, 8 mm) thick tempered safety glass
• Stocked in three popular finishes; custom finishes available

CRL Melbourne Series Hinges (SKU: MEL044MBL) feature large hinge plates for superior clamping force and a simple rectangular cut-out to simplify glass fabrication. Constructed of forged solid brass, the Melbourne Series includes multiple wall-mount models, a 180° glass-to-glass model, and replacement cover plates to conceal hinge plate screws. These solid brass shower door hinges are optimized for tempered glass shower doors and frameless shower enclosures.

Load Capacity & Door Width
Using two hinges with 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass
Construction: Solid brass (forged)
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position (self-centering shower door hinge)
Cut-Out Required: Simple rectangular cut-out—use only the template included
Includes: Gaskets, screws, and glass fabrication dimensions

For technical questions or custom finish requests contact the CRL Shower Door Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used outside their intended purpose, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—cut-out dimensions for CRL hinges may not match other brands.
