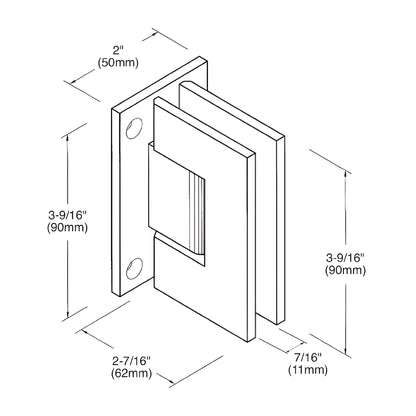

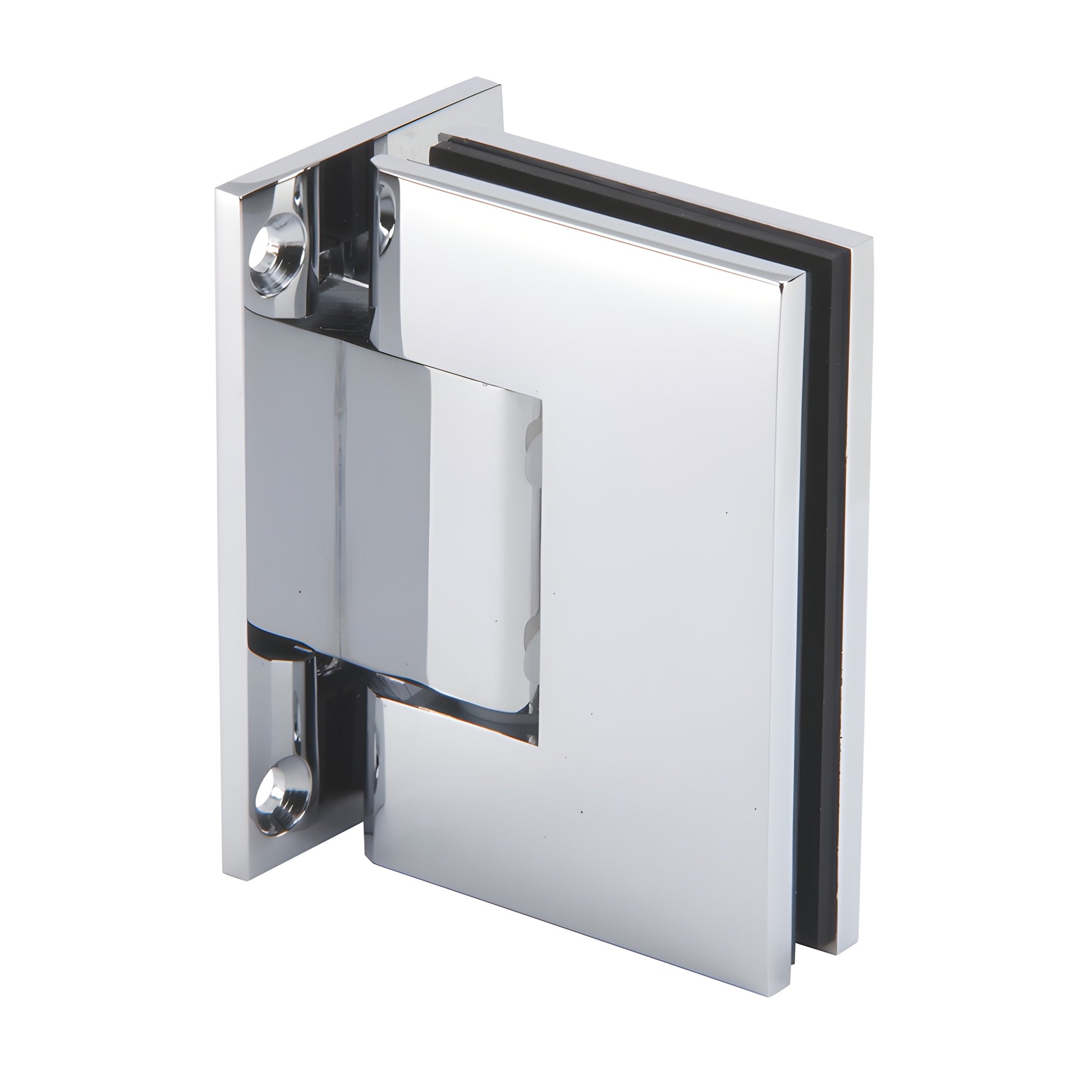

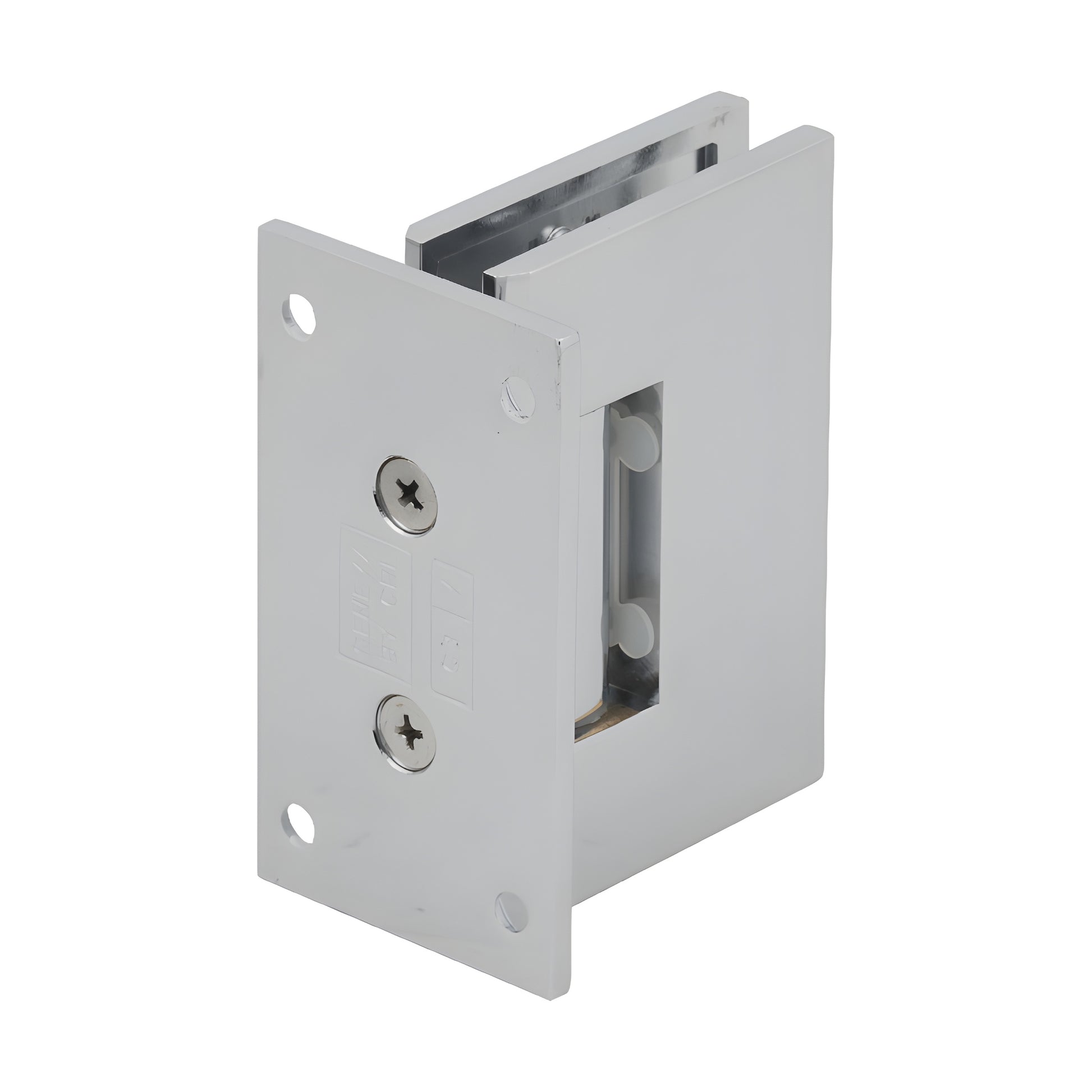

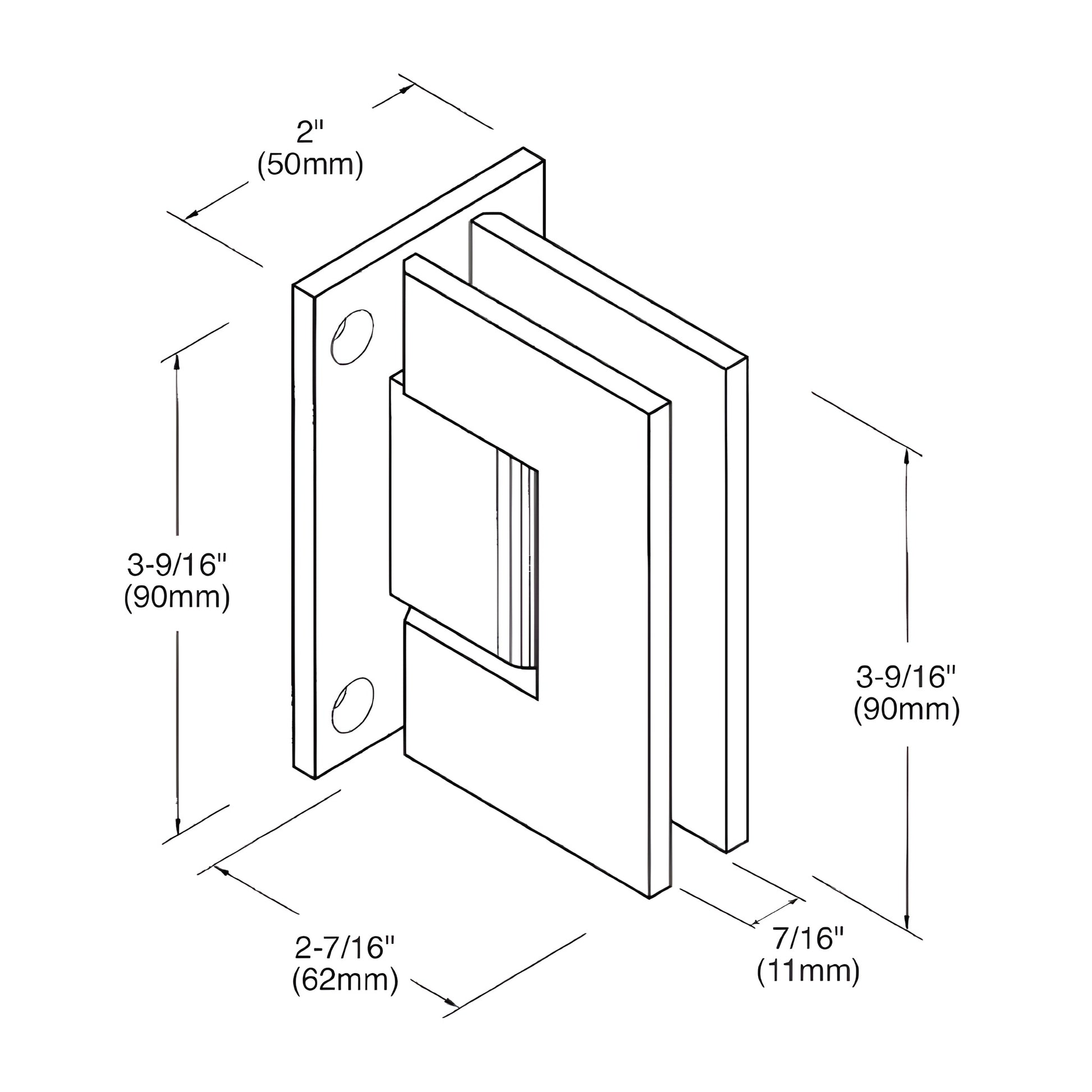

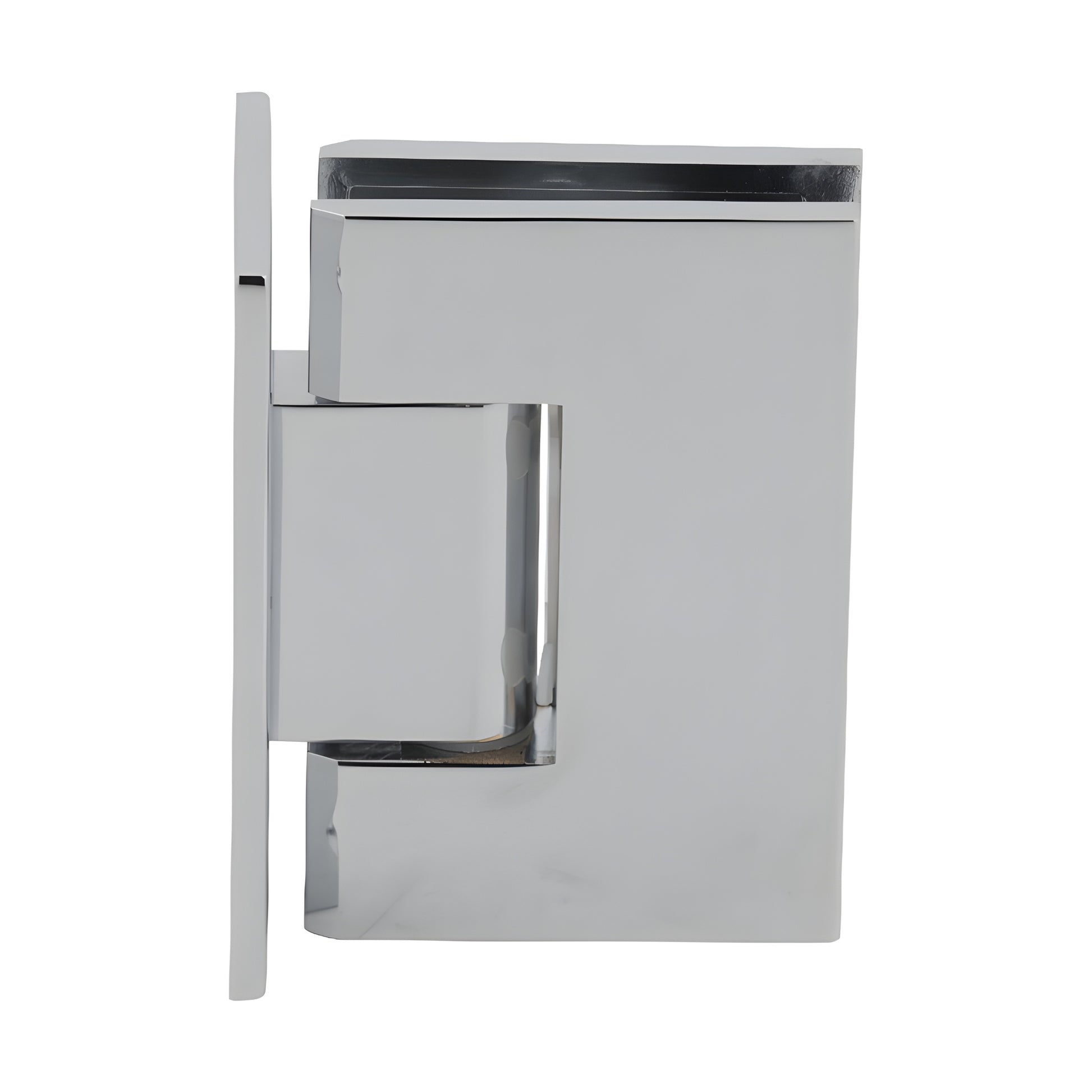

CRL Melbourne Polished Chrome Wall Mount Full Back Plate Door Hinge

• Large hinge plates provide increased clamping force for secure glass shower doors
• Simple rectangular cut-out speeds and simplifies glass fabrication
• Compatible with 1/2", 3/8", and 5/16" (12, 10, 8 mm) tempered safety glass
• Stocked in three popular finishes; custom finishes available

CRL Melbourne Series Hinges (SKU: MEL037CH) are forged solid brass shower door hinges engineered for durable, reliable performance on frameless glass shower enclosures. Designed for residential and hotel shower use, the Melbourne Series includes wall-mount models, a 180° glass-to-glass model, and replacement cover plates to conceal hinge screws. The large hinge plates increase clamping force while the simple rectangular cut-out eases glass fabrication and installation.

Load Capacity
Using two hinges with 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 100 lbs (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with the same glass thicknesses: holds up to 120 lbs (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

For technical questions or custom finish requests, contact the CRL Shower Door Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used outside their intended purpose, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
