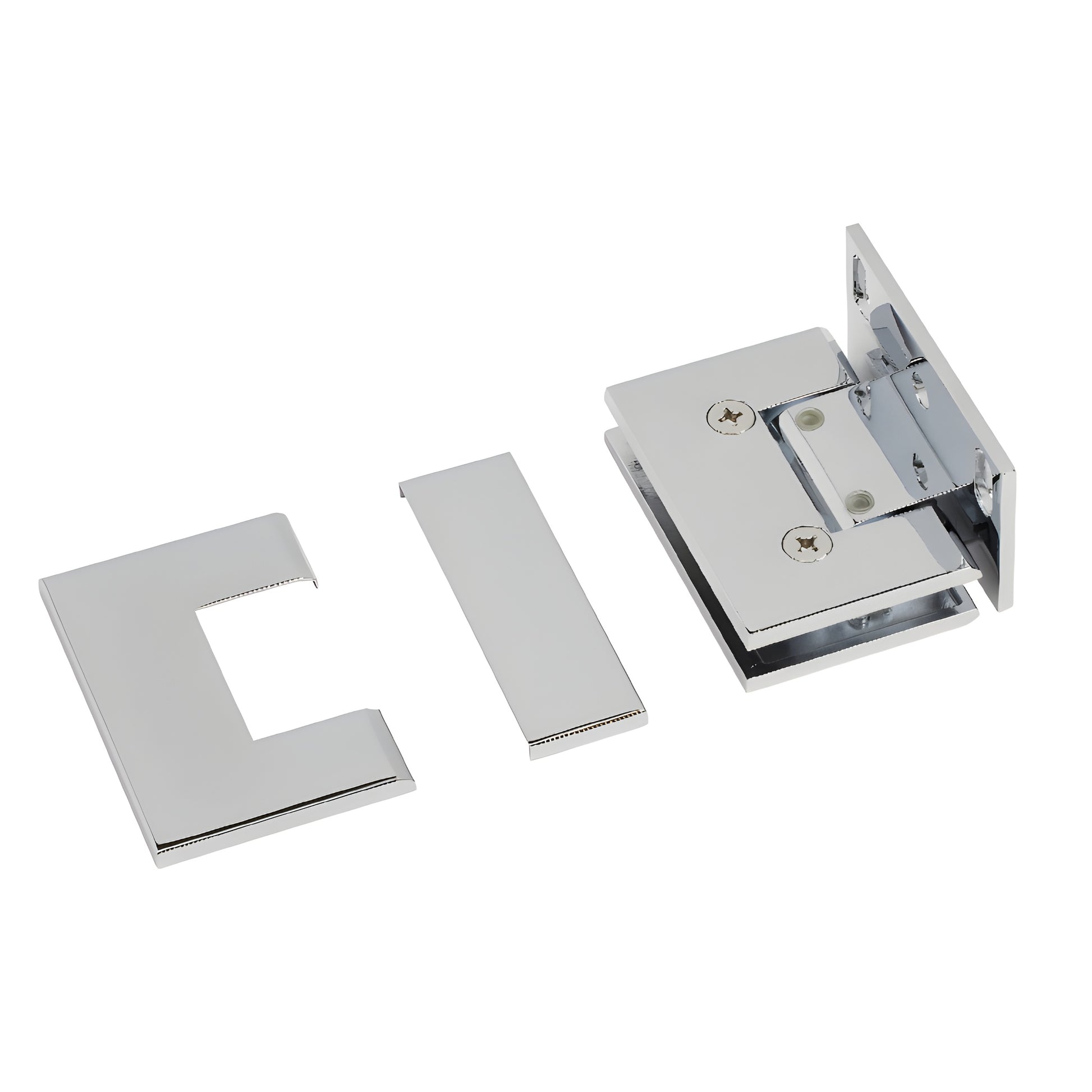

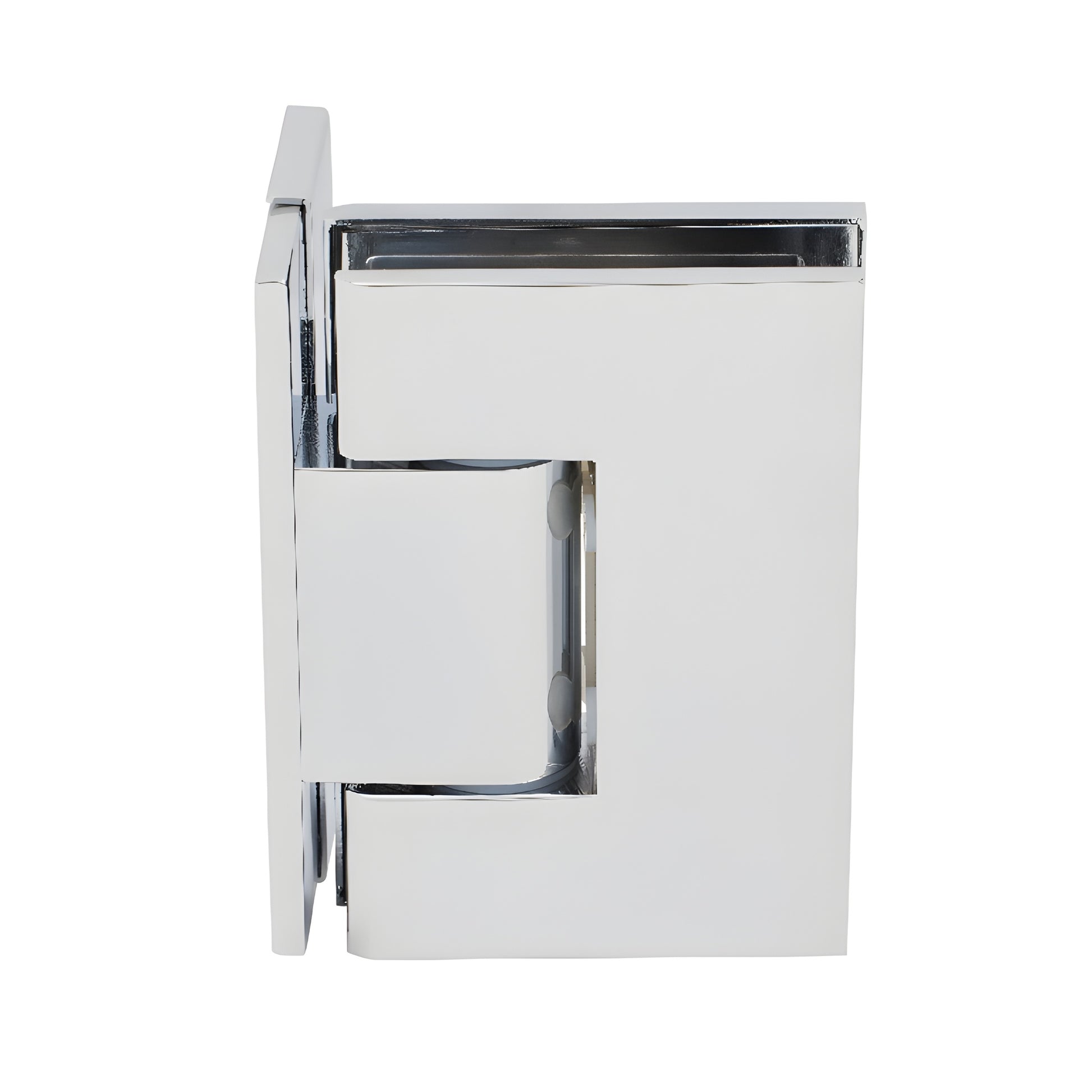

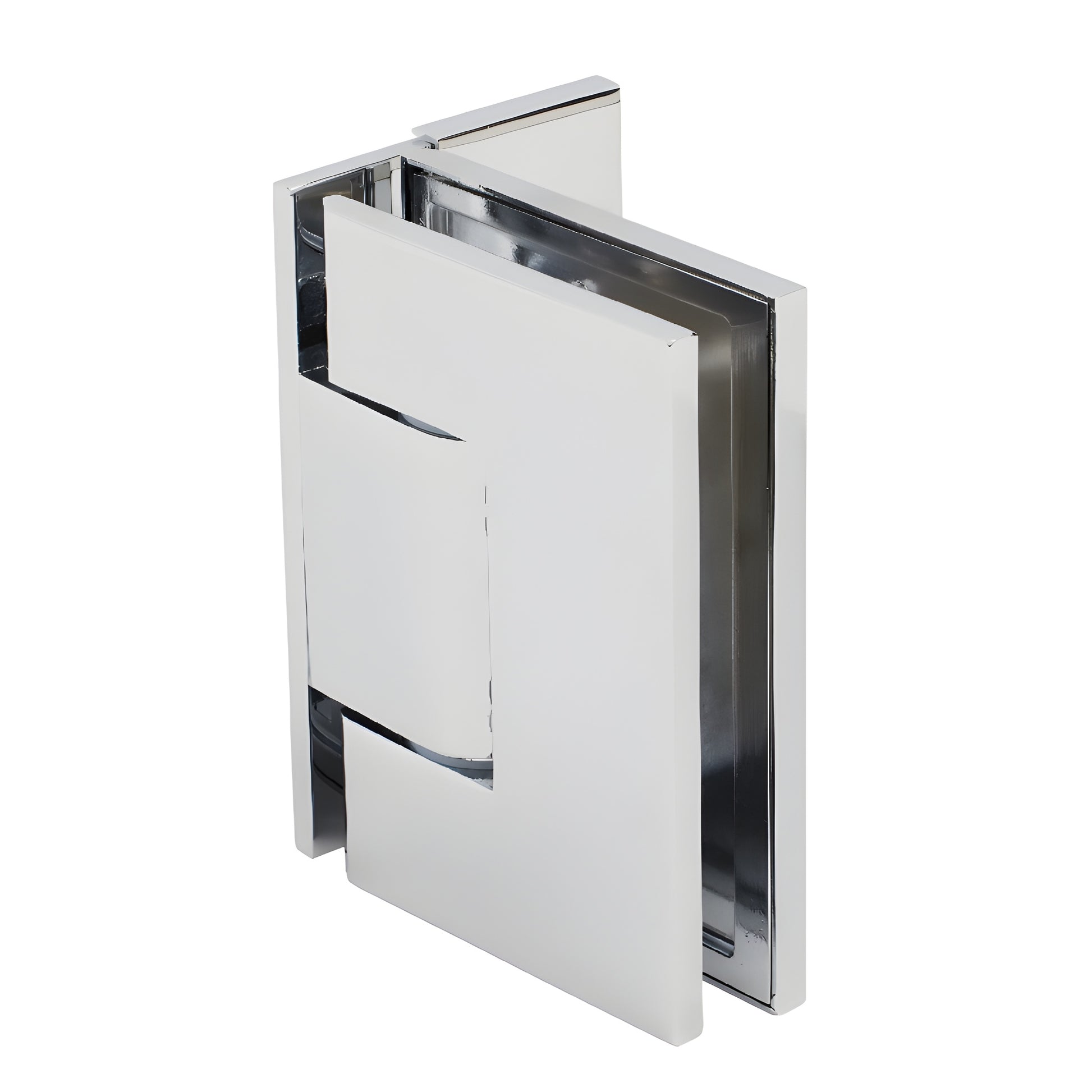

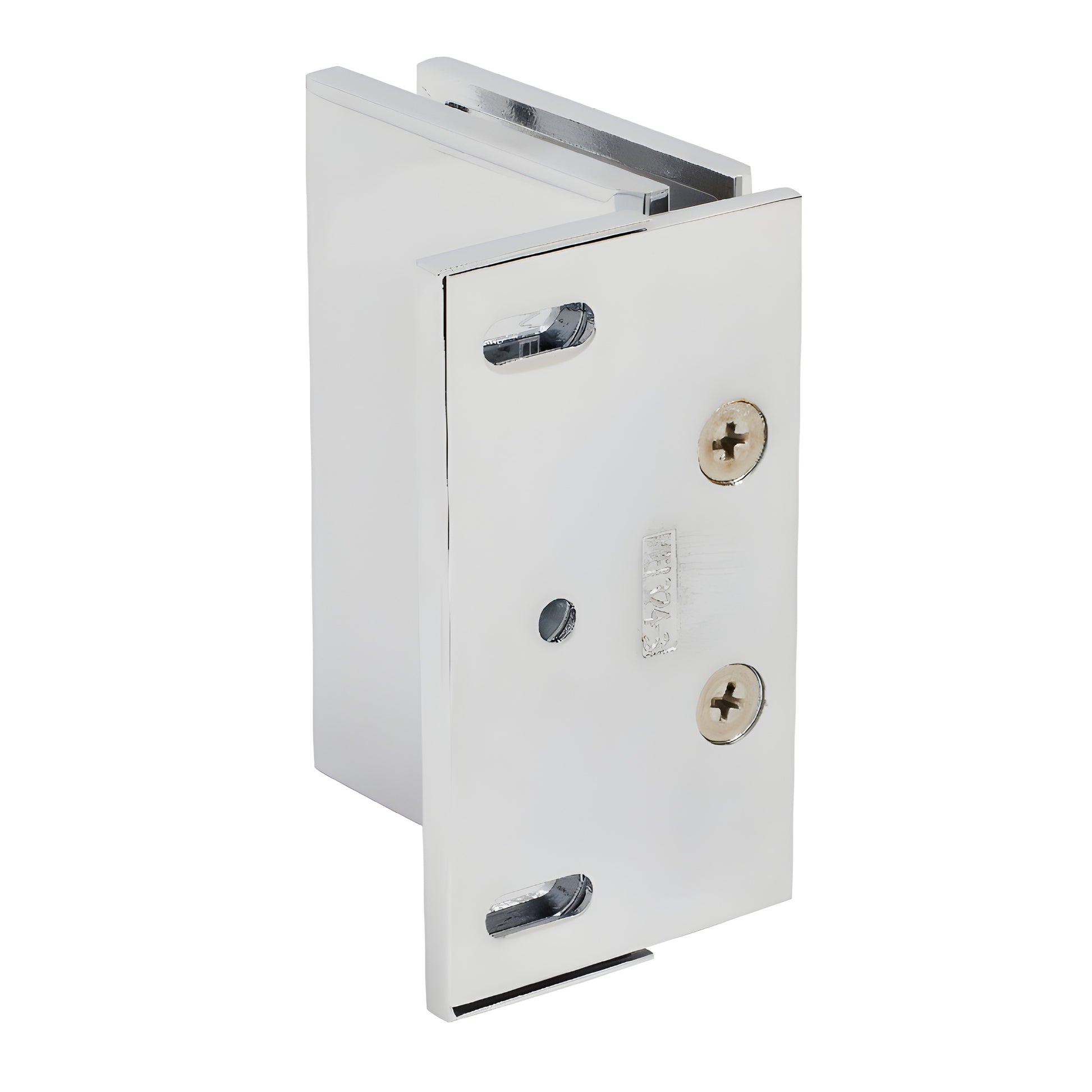

CRL Melbourne Chrome Adjustable Offset Wall Mount Glass Door Hinge

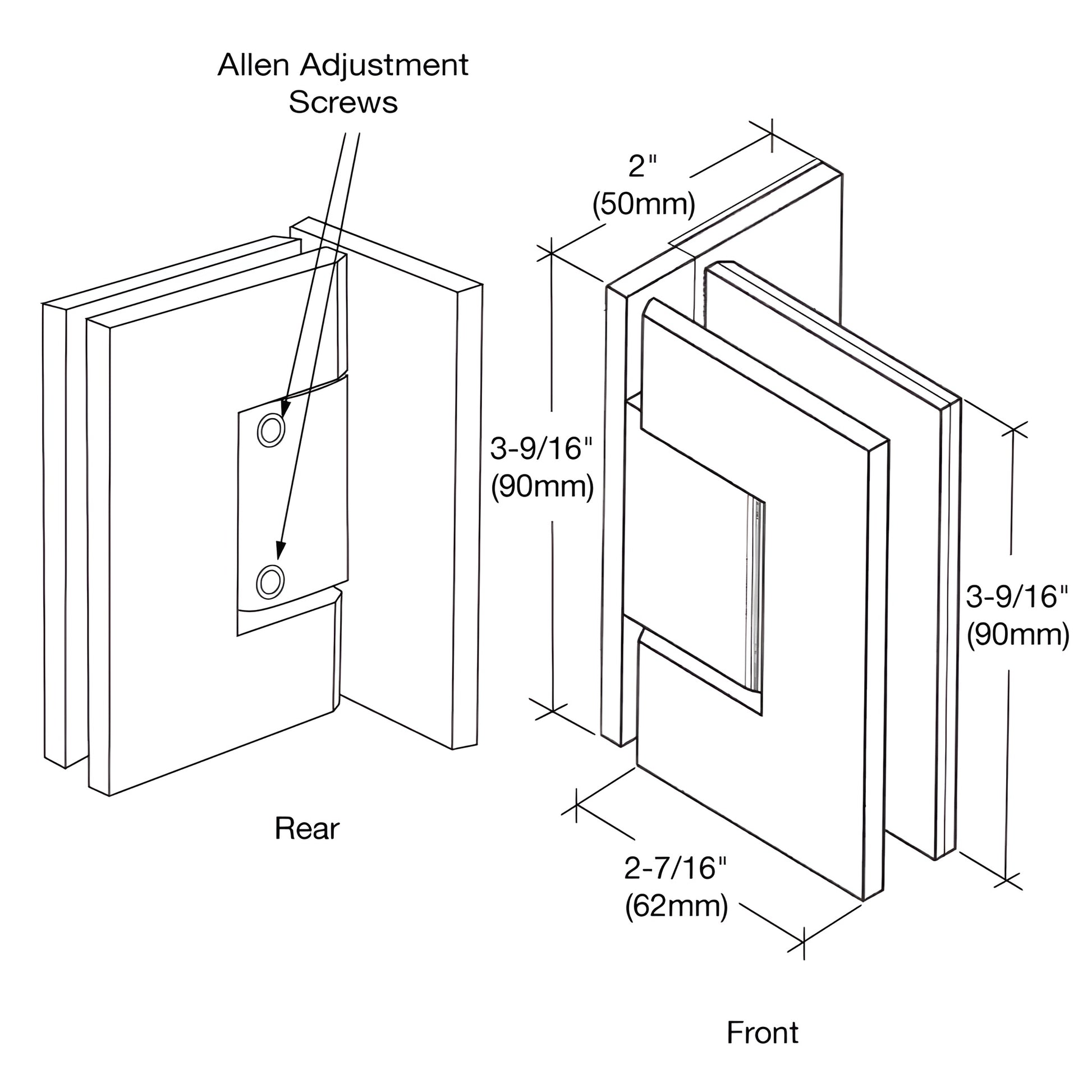

• Adjustable Up to 60 Degrees
• Simple Rectangular Cut-Out for Ease of Glass Fabrication
• For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass

SKU: MEL324CH

CRL Melbourne Series Adjustable Hinges are forged solid brass shower door hinges engineered for durable, reliable performance on tempered glass shower doors. The hinge features large hinge plates for increased clamping force and an adjustable pivot that accommodates angles up to 60 degrees. A simple rectangular cut-out (template provided) makes glass fabrication straightforward for installers and fabricators.


Rated for tempered safety glass thicknesses of 1/2", 3/8", and 5/16" (12, 10, and 8 mm), these adjustable brass shower door hinges are designed for residential and hotel applications. Using two hinges on the specified glass thicknesses, each hinge set supports up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm). Using three hinges increases capacity to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass (forged)
Hinge Swings: 90 Degrees In and 90 Degrees Out (at Factory Set Position)
Closing Type: Self-Centering When Within 15 Degrees of Closed Position
Cut-Out Required: Simple rectangular cut-out (template included)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

For more information contact CRL Shower Door Technical Sales.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
